FEED SUPPLY VALVE INSTALLATION

STEP 1. Follow the cold water line from shut-off valve to the existing faucet and unscrew the threaded connection.
STEP 2. Insert feed supply valve between cold water line and existing connection.
STEP 3. Follow the assembly sequence shown for attaching valve to the existing cold water line.
STEP 4. Connect Black line from RO system as shown in Fig 1.
a.
Remove the 1/2" Compression Nut from Valve body. Be carefull not to loose the plastic or brass Insert and
the Conical Compression Sleeve.
b.
Insert the 1/4" Black Tubing into the Compression Nut with the threads towards the end of the tube.
c.
Slip the Conical Compression Sleeve onto the Black Tube with the long slope pointing toward the end of
the tube.
d.
Place the Insert into the end of the Black Tubing. Make sure you push the insert in all the way.
e.
Tighten Compression Nut back on the Valve body.
STEP 5. When installation of the valve is complete, check for leaks as follows:
a. Close Feed Supply Valve that you just installed.
b. Open cold water supply valve and check for leaks around feed supply valve fittings. Tighten if necessary.
NOTE: To be certain of the cold line; turn on the hot water, allow water to run until pipe becomes warm. Then
attach fitting to the cold water line. If you run hot water through your system it will damage the membrane.
FEED VALVE
INSTALL ON COLD WATER LINE
8
®
SpectraPure Inc.
®
480.894.5437 Call us toll-free 1.800.685.2783
2167 East Fifth St, Tempe, Arizona 85281

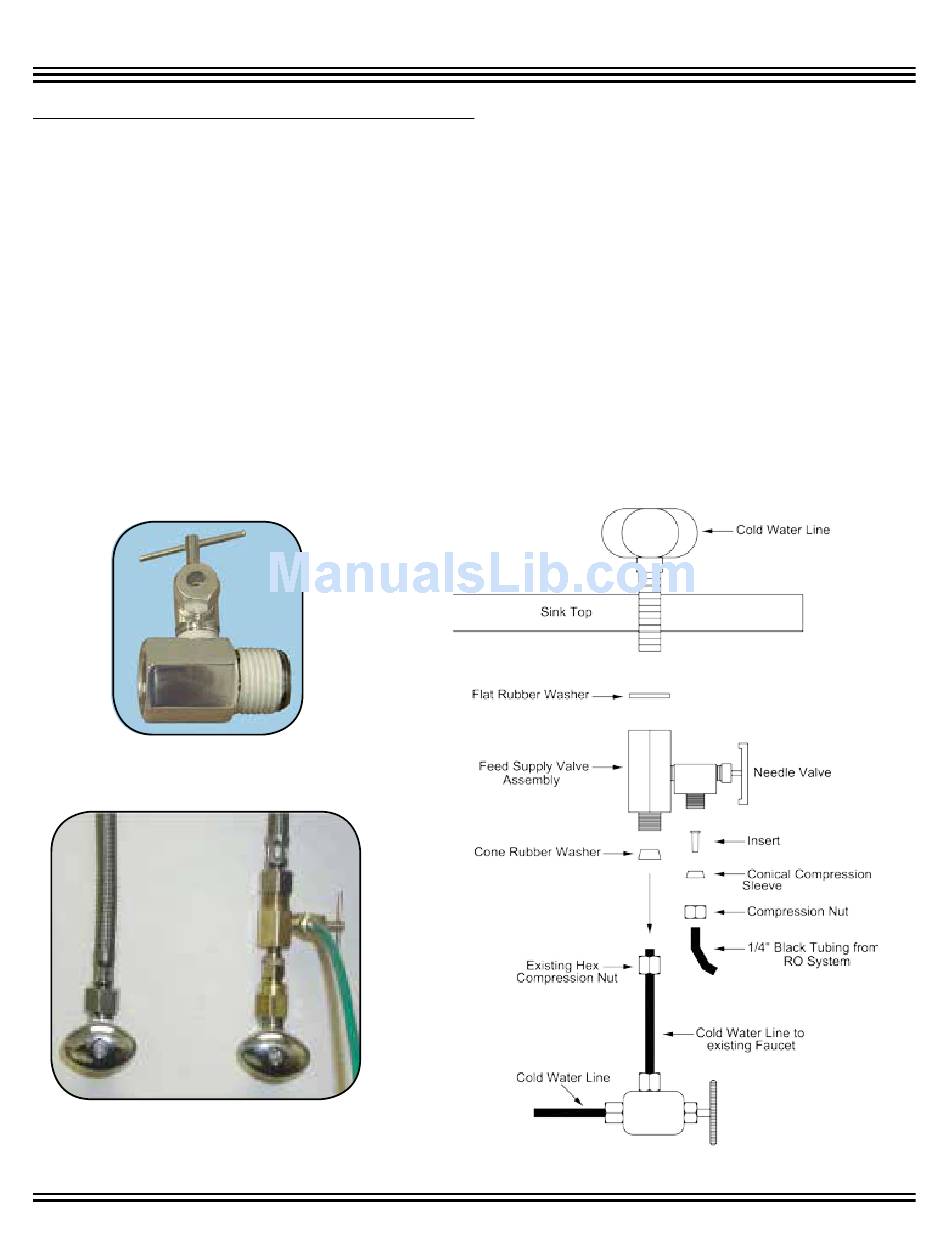

FIGURE 1: FEED SUPPLY INSTALLATION
