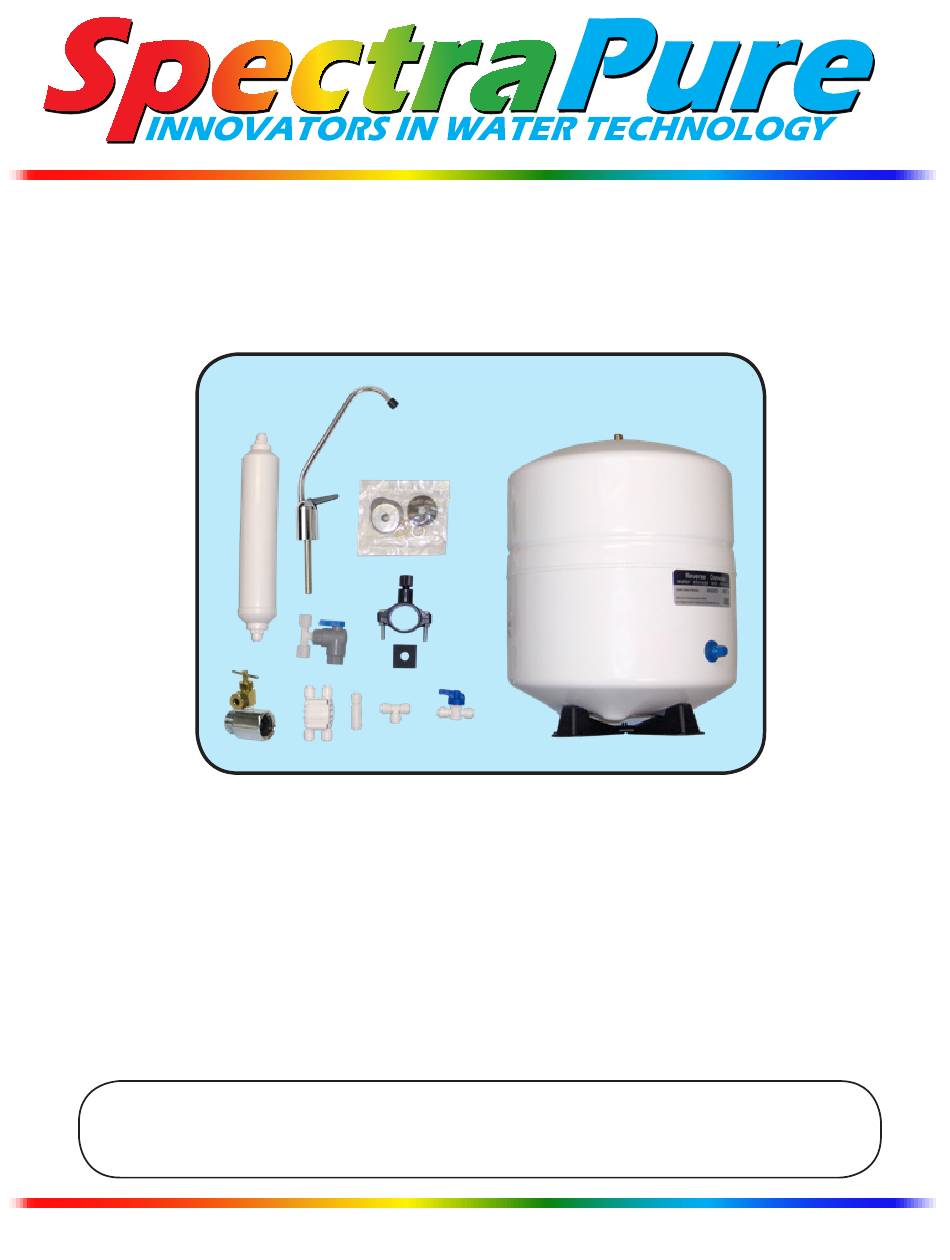

Drinking Water Kit with Air Gap & Non Air Gap
for RO and RO/DI Systems
Faucet
INSTRUCTIONS
WARNING
Please read carefully before proceeding with installation. Failure to follow any
attached instructions or operating parameter may lead to the product's failure and
possible damage to property.
SpectraPure
Inc.
®
assumes no responsibility for water damage due to leaks. It is
the user's responsibility to determine that the system is leak-free.
09-30-2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SpectraPure Drinking Water Kit
Summary of Contents for SpectraPure Drinking Water Kit
- Page 1 ® ® Drinking Water Kit with Air Gap & Non Air Gap for RO and RO/DI Systems Faucet INSTRUCTIONS WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property.
-
Page 2: Table Of Contents
Thank You for your purchase of a SpectraPure System. With proper installation and maintenance, this system ® will provide you with high quality water for years to come. All SpectraPure products are rigorously tested ® by us for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our online troubleshooting at www.spectrapure.com. -
Page 3: Operational Specifications
1/4" Quick Connect Plastic Tubing Adapter (refer to page 9) IF ANY OF THE ITEMS LISTED ABOVE ARE MISSING PLEASE CONTACT SPECTRAPURE PRIOR TO INSTALLATION. ALL RETURNS WITHOUT RMA# WILL BE REFUSED. CLAIMS MUST BE WITHIN 10 DAYS FROM RECEIPT. -
Page 4: Preparation
DRILL HOLE FOR FAUCET IN A PORCELAIN SINK NOTE: Porcelain sink material is extremely hard and can crack or chip quite easily. To avoid this, use extreme caution when drilling. A carbide tipped masonry bit is recommended. SpectraPure accepts no responsibility ®... -
Page 5: Feed Supply Valve Installation
SpectraPure ® FEED SUPPLY VALVE INSTALLATION STEP 1. Follow the cold water line from shut off valve to the existing faucet and unscrew the threaded connection. STEP 2. Insert feed supply valve between cold water line and existing connection. STEP 3. Follow the assembly sequence shown for attaching valve to the existing cold water line. -
Page 6: Air Gap Faucet Installation
SpectraPure ® FAUCET INSTALLATION AIR GAP FAUCET INSTALLATION A. Place the chrome counter plate and rubber washer over the threaded shaft and barbed nipples on the faucet (Refer to Figure below). B. Pass the Blue 3/8" tubing, the Yellow 1/4" tubing, and the Black 3/8" tubing up through the drilled countertop hole and temporarily secure them so they don’t fall back through the hole. -
Page 7: Non Air Gap Faucet Installation
SpectraPure ® NON AIR-GAP FAUCET INSTALLATION A. Place the chrome counter plate and large rubber washer over the threaded shaft on the faucet and place in hole previously drilled on page 4. B. Place the small rubber washer, locating washer, flat metal washer, and hex nut in sequence over the threaded shaft and temporarily hand-tighten. -
Page 8: Schematic Of Ro/Di System With Drinking Water Kit Installed
SpectraPure ® SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281... -
Page 9: Drain Saddle Installation
SpectraPure ® DRAIN SADDLE INSTALLATION 1. Refer to Figure 2 and determine the location for the drain saddle assembly and drain hole. It must be located above the “P” trap (“U” shaped bend in drain pipe) on the sink side of the drain pipe. -
Page 10: Automatic Shutoff Valve And Check Valve Installation
SpectraPure ® INSTALLING ASO AND CHECK VALVE Locate the Black Tube between the Carbon Filter and the Membrane. Cut the Black Tube in half. Insert the cut end from the Carbon Filter into the IN Port of the ASO Valve. -
Page 11: Installing Ball Valve On Tank
SpectraPure ® INSTALLING BALL VALVE ON TANK 1. If there is not Teflon tape applied to the nipple on the tank, wrap (7-12 turns) around the pipe threads (MPT) on the Stainless Steel fitting. 2. Thread the Ball Valve (supplied in the parts bag) onto the stainless steel nipple on top of the tank. -
Page 12: Sanitizing The Ro/Di System With Dwk
SpectraPure ® SANITIZING THE RO/DI SYSTEM (once a year) Sanitizing is recommended at least once every year or if water smells (or tastes) bad even after a post carbon filter replacement. A convenient time for sanitization is during a filter changeout. IT IS IMPORTANT THAT YOU HAVE CLEAN HANDS WHILE HANDLING INNER PARTS OF THE SYSTEM. -
Page 13: Troubleshooting Guide
SpectraPure ® TROUBLESHOOTING GUIDE FOR RO/DI SYSTEM Problem Cause Corrective Action 1. Low production rate. a. plugged prefilters. i. Replace prefilters. b. low water temperature. ii. Use higher GPD membrane. c. low water pressure (< 40 psi). iii. Use booster pump OR use higher GPD membrane. - Page 14 SpectraPure ® Problem Cause Corrective Action 4. Red light on OPTIONAL a. TDS buildup in the i. Drain tank completely and retest TDS. push-to-test button bladder tank. monitor comes on when RO water stored in tank is being tested. b. Bad membrane.
-
Page 15: Warranty Information
US dollars. Claims for error in quantity or condition must be made within 10 days of receipt of material. SpectraPure, Inc. will not be responsible for any claimed shortages not reported within 10 days. Returns other than warranty claims may be subject to 20% restocking fee. -
Page 16: Replacement & Optional Parts
SpectraPure ® REPLACEMENT PARTS PART NUMBER PART DESCRIPTION CF-IN-10 10" inline post carbon filter Polishes water and removes odors and flavors V-ASO-4JG ASO Valve Completely shuts off Product water and Waste water VA-CK-IL-1/2LB-4 Check Valve Is used in conjunction with the ASO Valve.
