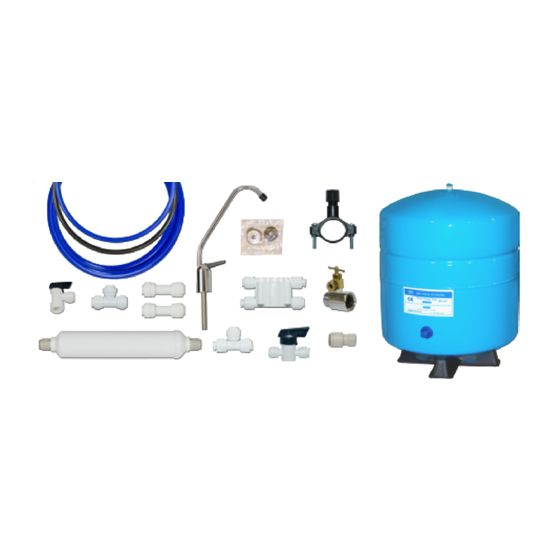

Drinking Water Kit with Non-Air Gap Faucet
for RO and RO/DI Systems
(Including "-MF" Systems)
INSTRUCTIONS
WARNING
Please read carefully before proceeding with installation. Failure to follow any
attached instructions or operating parameter may lead to the product's failure and
possible damage to property.
SpectraPure
Inc.
®
assumes no responsibility for water damage due to leaks.
It is the user's responsibility to determine that the system is leak-free.
v4 2013 -12-03
Advertisement
Table of Contents
Related Manuals for SpectraPure RO Systems
Summary of Contents for SpectraPure RO Systems
- Page 1 WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. SpectraPure Inc. ® assumes no responsibility for water damage due to leaks.
-
Page 2: Table Of Contents
ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise without the prior written permission of SpectraPure Inc. SpectraPure Inc. -
Page 3: Feed Water Requirements
INLINE CARBON ASO VALVE SYSTEMS) ADAPTER BLOCK FILTER IF ANY OF THE ITEMS LISTED ABOVE ARE MISSING PLEASE CONTACT SPECTRAPURE PRIOR TO INSTALLATION. ALL RETURNS WITHOUT RMA# WILL BE REFUSED. CLAIMS MUST BE WITHIN 10 DAYS FROM RECEIPT. SpectraPure Inc. ®... -
Page 4: Configuring A Manual Flush (-Mf) System For The Drinking Water Kit
CONFIGURING A MANUAL FLUSH SYSTEM FOR THE DRINKING WATER KIT: SpectraPure “-MF” Systems (MC-RODI-xx-MF, CSPDI-xx-MF, CSP-xx-MF) are configured in such a way as to be incompatible with the Drinking Water Kit. Follow these steps to convert your “-MF” system into a compatible configuration. -
Page 5: Configuring A Legacy (Non -Mf/-Af) System For The Drinking Water Kit
SpectraPure ® CONFIGURING A LEGACY SYSTEM FOR THE DRINKING WATER KIT: (Including MPRO, MPDI, CSP, CSPDI and MAXCAP models without automatic or manual flush) 1. Locate the Black Tube between the Carbon Filter and the Membrane. 2. Cut the Black Tube in two. -
Page 6: Diagram Of Ro/Di System With Drinking Water Kit Installed
SpectraPure ® SpectraPure Inc. ® 480.894.5437 Call us toll-free 1.800.685.2783 2167 East Fifth St, Tempe, Arizona 85281... -
Page 7: Preparation
DRILL HOLE FOR FAUCET IN A PORCELAIN SINK NOTE: Porcelain sink material is extremely hard and can crack or chip quite easily. To avoid this, use extreme caution when drilling. A carbide tipped masonry bit is recommended. SpectraPure accepts no responsibility for ®... -
Page 8: Feed Supply Valve Installation
SpectraPure ® FEED SUPPLY VALVE INSTALLATION STEP 1. Follow the cold water line from shut-off valve to the existing faucet and unscrew the threaded connection. STEP 2. Insert feed supply valve between cold water line and existing connection. STEP 3. -
Page 9: Faucet Installation
SpectraPure ® FAUCET INSTALLATION 1. Place the chrome counter plate and large rubber washer over the threaded shaft on the faucet and insert this assembly into hole previously drilled on page 7. 2. Place the small rubber washer, locating washer, flat metal washer, and hex nut in sequence over the threaded shaft and temporarily hand-tighten. -
Page 10: Drain Saddle Installation
SpectraPure ® DRAIN SADDLE INSTALLATION 1. Refer to Figure 4 and determine the location for the drain saddle assembly and drain hole. It must be located above the “P” trap (“U” shaped bend in drain pipe) on the sink side of the drain pipe. -
Page 11: Installing Pressurized Storage Tank And Mounting System
SpectraPure ® INSTALLING BALL VALVE ON TANK STEP 1. If there is not Teflon tape applied to the nipple on the tank, wrap (7-12 turns) around the pipe threads (MPT) on the Stainless Steel fitting. STEP 2. Thread the Ball Valve (supplied in the parts bag) onto the stainless steel nipple on top of the tank. -
Page 12: Sanitizing The Ro/Di System With Dwk
SpectraPure ® MAINTENANCE PROCEDURES SANITIZING THE RO/DI SYSTEM WITH DWK Sanitizing is recommended at least once every year or if water smells (or tastes) bad even after a post carbon filter replacement. A convenient time for sanitization is during a filter changeout. IT IS IMPORTANT THAT YOU HAVE CLEAN HANDS WHILE HANDLING INNER PARTS OF THE SYSTEM. -
Page 13: Troubleshooting Guide
SpectraPure ® TROUBLESHOOTING GUIDE Problem Cause Corrective Action 1. LOW PRODUCTION RATE a. plugged prefilters. i. Replace prefilters. b. low water temperature. ii. Use higher GPD membrane. c. low water pressure (< 40 psi). iii. Use booster pump OR use higher GPD membrane. - Page 14 SpectraPure ® TROUBLESHOOTING GUIDE (continued) Problem Cause Corrective Action WATER SMELLS BAD. Bacterial contamination of bladder i. Sanitize RO/DI System. tank. b. Ruptured bladder in storage tank. ii. Replace tank. Exhaused post carbon filter. iii. Replace post carbon filter. MILKY COLORED WATER.
-
Page 15: Warranty Information
(see exceptions above) from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. -
Page 16: Replacement & Optional Parts
SpectraPure ® REPLACEMENT PARTS: Part Number Part Description CF-IN-10-6JG 10" inline post carbon filter Polishes water and removes any taste V-ASO -4JG ASO Valve Completely shuts off Product water and Waste water V- CK- IL-1LB -4JG Check Valve Used in conjunction with the ASO Valve.
