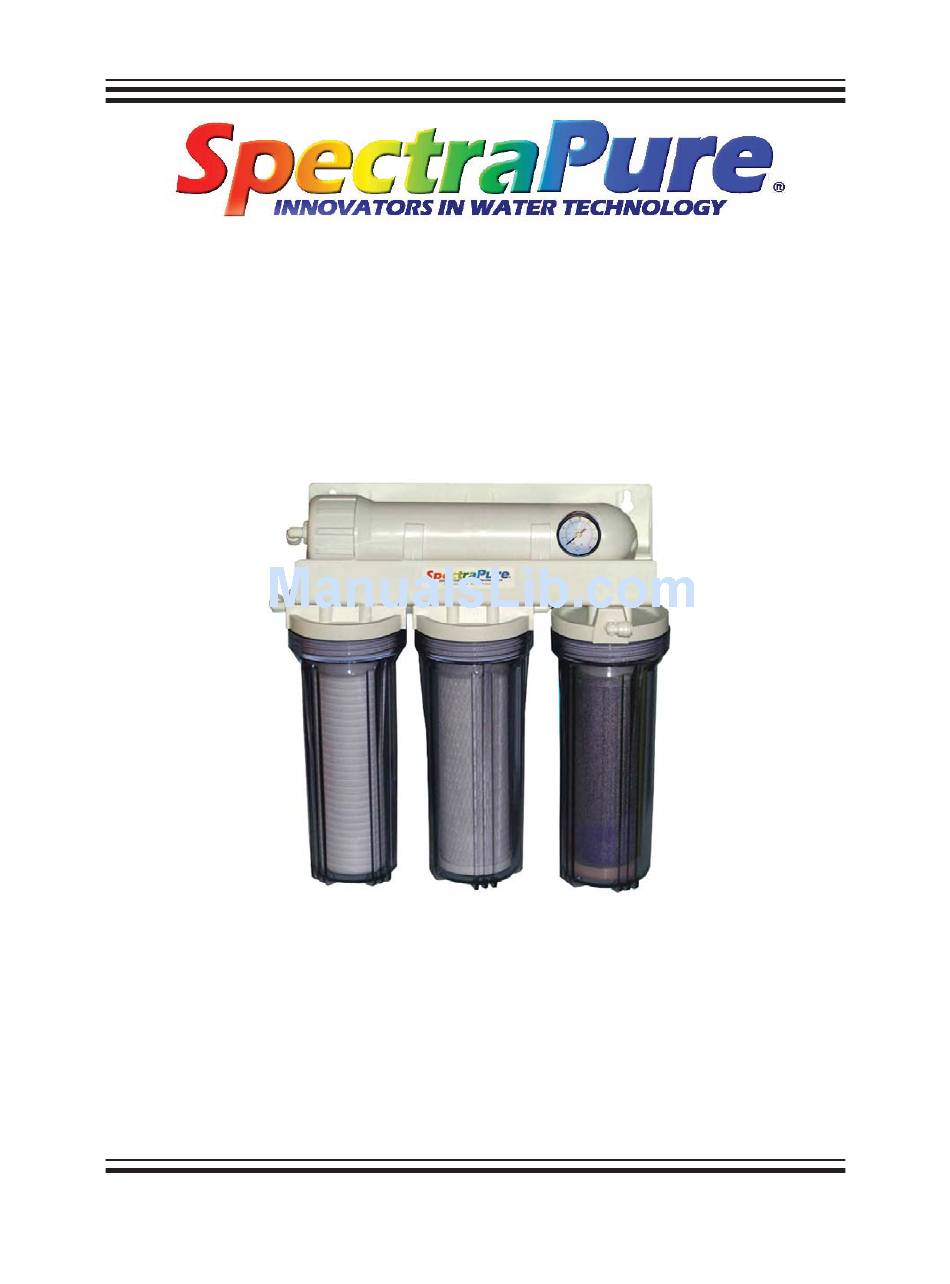

MaxPure MPDI™ RO/DI System
Reverse Osmosis/Ion Exchange Water
Purification System
(Single and Dual Membrane Models)
INSTALLATION AND OPERATING MANUAL
WARNING
Please read carefully before proceeding with installation. Failure to
follow any attached instructions or operating parameter may lead to
the product's failure and possible damage to property.
REV 04-01-2010
Advertisement
Table of Contents
Troubleshooting
Related Manuals for SpectraPure MaxPure MPDI RO System
Summary of Contents for SpectraPure MaxPure MPDI RO System
- Page 1 MaxPure MPDI™ RO/DI System Reverse Osmosis/Ion Exchange Water Purification System (Single and Dual Membrane Models) INSTALLATION AND OPERATING MANUAL WARNING Please read carefully before proceeding with installation. Failure to follow any attached instructions or operating parameter may lead to the product’s failure and possible damage to property. REV 04-01-2010...
-
Page 2: Table Of Contents
® SpectraPure TABLE OF CONTENTS: Thank You for your purchase of a SpectraPure® System. With proper installation and maintenance, this system will provide you with high quality water for years to come. All SpectraPure® products are rigorously tested by us for safety and reliability. If you have any questions or concerns, please contact our customer service department at 1.800.685.2783 or refer to our... -
Page 3: Warranty Information
SpectraPure, Inc.® warrants the product to the original owner only to be free of defects in material and workmanship for a period of three years from the date of receipt. SpectraPure’s liability under this warranty shall be limited to repairing or replacing at SpectraPure’s option, without charge, F.O.B. SpectraPure’s factory, any product of SpectraPure’s manufacture. -
Page 4: System Specifications
SYSTEM SPECIFICATIONS: Sediment Pre-Filter 0.5 micron MicroTec™ sediment pre-filter Carbon Filter 0.5 micron carbon block pre-filter RO Membrane Type SpectraPure Thin-Film Composite (TFC) DI Cartridge Color Indicating SilicaBuster™ Rejection Rate Greater than 96% average Input Water Pressure 60 psi (4.15 bar) line pressure* Input Water Temp 77°F (25°C) -
Page 5: System Description
SpectraPure SYSTEM DESCRIPTION: The SpectraPure MPDI system is a four stage reverse osmosis de-ionization system. First, the incoming feed water is passed through a 1 micron Micro-Tec™ sediment pre-filter. This filter is required to remove excess turbidity (particulate matter) that may cause the membrane to plug. - Page 6 ® SpectraPure Fig. B: Single-Membrane Assembly Top/Rear View RO membrane yellow concentrate (waste) tubing membrane feed blue purified push-fitting water tubing (Good Water) black tubing to membrane black feed feed tubing Fig. C: Dual-Membrane Assembly Top/Rear View blue purified product water tee...
-
Page 7: System Initialization
Liquid Level Controller (LLC-S-115 ), (LLC-M-115) or the Auto Shut-Off Kit (ASOFK). SpectraPure®Inc. assumes no responsibility for water damage due to leaks. It is the user’s responsibility to determine that the system is leak-free. SpectraPure®Inc . -
Page 8: Checking Waste To Product Water Ratio
System. Failure to perform this procedure can permanently damage the membrane and will void Warranty. In order to maximize the life of your SpectraPure RO Membrane, you may need to adjust the ratio of the concentrate to purified water. If not enough concentrate is allowed to flow past the membrane during operation, the impurities will precipitate out on the membrane surface, clogging the RO Membrane. - Page 9 12.7 12.7 15.2 15.2 17.8 17.8 20.3 20.3 22.9 22.9 25.4 25.4 27.9 27.9 30.5 30.5 33.0 33.0 35.6 35.6 38.1 38.1 40.6 40.6 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 10: Flow Restrictor Removal, Adjustment And Replacement
® SpectraPure FLOW RESTRICTOR REMOVAL, ADJUSTMENT AND REPLACEMENT Locate the yellow concentrate tubing (Fig. B for Single-Membrane System or Fig. C) for Dual-Membrane System). Remove the tubing from its push-fitting at the membrane as follows: a.) Firmly depress and hold the push-fitting collar down with your thumbnail. - Page 11 It also forces waste water to flow through the capillary tubing to restrict waste water as it leaves the housing.) SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 12: Sediment Filter Diagnostic
® SpectraPure SEDIMENT PRE-FILTER REPLACEMENT: A Sediment Filter will usually last approx. 4-6 months, depending on micron rating and quality of water. (The life span of the filter is determined by the turbidity, iron content, organics, and total particulate volume in your water source). -
Page 13: Carbon Filter Diagnostic
NOTE: Do not use filter wrench to tighten housings. Over-tightening will damage housings and void your warranty. Turn on system water supply and check for leaks. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... -
Page 14: Deionization Cartridge Diagnostic
® SpectraPure DEIONIZATION CARTRIDGE REPLACEMENT: ( right-most housing) The DI stage is the SilicaBuster™ Mixed-Bed Multi-Layer Deionization Cartridge, DI-SB-CI-10. The condition of this cartridge should be judged by observing color change. When 75% of the cartridge has changed in color, replace cartridge. -
Page 15: Ro Membrane Diagnostic
For this reason we recommend the use of a conductivity tester in order to receive the most accurate measurement for determining the condition of the RO membrane. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 16 ® SpectraPure RO MEMBRANE REPLACEMENT 1. Turn off the water supply to the RO system. Place the system where the membrane housing is easily accessible. 2. Remove the black tubing from the membrane feed push-fitting by depressing the collar on the fitting with your thumb and pulling the tubing from the push-fitting (Page 10).
- Page 17 2 gallons. (This step will flush out membrane preservatives.) 3. Re-insert flow restrictor and check for leaks. SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 18: Troubleshooting Guide For The System
® SpectraPure TROUBLESHOOTING GUIDE FOR RO/DI SYSTEMS: 1. Low production rate: a. Plugged pre-filters. i. Replace pre-filters. b. low water temperature. ii. Heat feed water OR use higher GPD membrane. c. low line pressure. iii. Use booster pump OR use higher GPD membrane. -
Page 19: Troubleshooting The Ro Membrane
0.661 71.6 /22 0.912 89.6 /32 1.232 55.4 /13 0.684 73.4 /23 0.941 91.4 /33 1.267 57.2/14 0.707 75.2 /24 0.970 93.2 /34 1.304 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com... - Page 20 Rejection = [ ( X - Y) ÷ X ] ×100 = 0.953 ×100 = 95.3 Membrane TDS Rejection = 95.3 % : Rejection rates less than 95% may indicate that the membrane should be replaced. * IF YOU NEED HELP WITH THIS PROCEEDURE, PLEASE CONTACT SPECTRAPURE* SpectraPure®Inc. 480.894.5437 Call us toll-free 1.800.685.2783...
- Page 21 SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 22: Tips & Storage
3. Your RO System must be protected from freezing or temperatures above 100° F (38°C). 4. MEMBRANE WARNING: All SpectraPure RO membranes, except for encapsulated membranes, must remain moist at all times. It is the customer’s responsibility to inspect the membrane upon receipt and maintain adequate moisture. - Page 23 ® SpectraPure SpectraPure®Inc . Fax 480.894.6109 Fax us toll-free 1.877.527.7873 E-mail: spectra@spectrapure.com Visit us on the web www.spectrapure.com...
-
Page 24: Replacement & Optional Parts
® SpectraPure REPLACEMENT PARTS: Model Replacement Part SF-MT-0.5-10 0.5 micron MicroTec™ Sediment Filter CF-0.5-10 0.5 micron Carbon Block Pre-Filter MEM-0025 25 gpd (95 lpd) TFC Membrane MEM-0040 40 gpd (151 lpd) TFC Membrane MEM-0060 60 gpd (228 lpd) TFC Membrane...
