- Page 1 For installation and connections, refer to the separate manual. °√ÿ ≥ “¥Ÿ § Ÿ Ë ¡ ◊ Õ ∑’ Ë · ¬°µË “ ßÀ“° „π°“√µ‘ ¥ µ— È ß ·≈–°“√‡™◊ Ë Õ ¡µË Õ INSTRUCTIONS §”·π–π” KD-G456 KD-G456 GET0291-001A [UH]...
-
Page 2: How To Reset Your Unit
IMPORTANT FOR LASER PRODUCTS 1. CLASS 1 LASER PRODUCT 2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel. 3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. -
Page 3: Table Of Contents
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... How to forcibly eject a disc ... -
Page 4: Location Of The Buttons

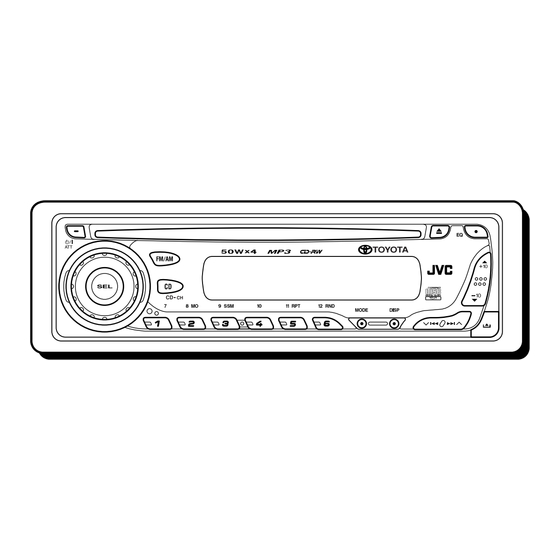

LOCATION OF THE BUTTONS Control panel Display window (standby/on attenuator) button 2 SEL (select) button 3 CD CD-CH (CD changer) button 4 FM/AM button 5 Loading slot 6 Display window 7 0 (eject) button 8 EQ (equalizer) button 9 Remote sensor p 5 (up) button +10 button q Control dial... -
Page 5: Remote Controller
Remote controller 1 • Turns on the unit if pressed when the unit is turned off. • Turns off the unit if pressed and held until “SEE YOU” appears on the display. • Drops the volume level in a moment if pressed briefly. -
Page 6: Preparing The Remote Controller
Preparing the remote controller Before using the remote controller: • Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between. Remote sensor • Do not expose the remote sensor to strong light (direct sunlight or artificial lighting). -
Page 7: Basic Operations
Turning on the power Turn on the power. Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Select the source. To operate the tuner (FM or AM), see pages 9 –... -
Page 8: Setting The Clock
Setting the clock Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 22.) Set the hour. 1 Select “CLOCK H” (hour) if not shown on the display. -
Page 9: Radio Operations
Listening to the radio You can use either automatic searching or manual searching to tune in to a particular station. Searching for a station automatically: Auto search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: Lights up when receiving an FM stereo broadcast with sufficient signal strength. -
Page 10: Storing Stations In Memory
Tune in to a station you want while “M” (manual) is still flashing. To tune in to stations of higher frequencies To tune in to stations of lower frequencies • If you release your finger from the button, the manual mode will automatically turns off after 5 seconds. -
Page 11: Tuning In To A Preset Station
Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually. Ex.: Storing FM station of 92.5 MHz into the preset number 1 of the FM1 band. Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1). -
Page 12: Cd Operations
CD OPERATIONS Refer “MP3 OPERATIONS” on pages 16 to 19 for operating MP3 discs. Playing a CD Insert a CD into the loading slot. The unit turns on, draws the CD and starts playback automatically. Note on One-Touch Operation: When a CD is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically. -
Page 13: Locating A Track Or A Particular Portion On A Cd
Locating a track or a particular portion on a CD To fast-forward or reverse the track Press and hold ¢ playing a CD, to fast-forward the track. 4, while playing a CD, to Press and hold reverse the track. To go to the next or previous tracks Press ¢... -
Page 14: Selecting Cd Playback Modes
Selecting CD playback modes To play back tracks at random (Disc Random Play) You can play back all tracks on the CD at random. Press MODE to enter the functions mode while playing a Press RND (random), while “MODE” is still flashing on the display, so that “DISC RND”... -
Page 15: Playing A Cd Text
Playing a CD Text In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text. To change the CD Text information manually, select text display mode while playing a CD Text. -
Page 16: Mp3 Operations
MP3 OPERATIONS Refer also to “CD OPERATIONS” on pages 12 to 15. Playing an MP3 disc Insert an MP3 disc into the loading slot. Note on One-Touch operation: When a disc is already in the loading slot, pressing CD CD-CH turns on the unit and starts playback automatically. -
Page 17: Locating A File Or A Particular Portion On An Mp3 Disc
To change the display information While playing back an MP3 file, you can change the MP3 disc information shown on the display. Press DISP (display) repeatedly. Each time you press the button, the display changes to show the following: • When “TAG DISP” is set to “TAG ON” (initial setting: see page 23) * If an MP3 file does not have ID3 tags, folder name and file name appear. - Page 18 * First time you press +10 or –10 button, the file skips to the nearest higher or lower file with a file number of multiple ten (ex. 10th, 20th, 30th). Then each time you press the button, you can skip 10 files (see “How to use the +10 and –10 buttons”...
-
Page 19: Selecting Mp3 Playback Modes
Selecting MP3 playback modes To play back files at random (Folder Random/Disc Random Play) You can play back all files of the current folder or all files on the MP3 disc at random. Press MODE to enter the functions mode while playing an MP3 disc. -
Page 20: Sound Adjustments
SOUND ADJUSTMENTS Selecting preset sound modes (C-EQ: custom equalizer) You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre. Select the sound mode you want. Each time you press the button, the sound modes change as follows: Indication pattern changes for each sound mode except for “USER.”... -
Page 21: Adjusting The Sound
Adjusting the sound You can adjust the sound characteristics to your preference. Select the item you want to adjust. Each time you press the button, the adjustable items change as follows: Indication To do: Adjust the bass. Adjust the treble. Adjust the front and rear speaker balance. -
Page 22: Other Main Functions
OTHER MAIN FUNCTIONS Changing the general settings (PSM) You can change the items listed in the table below by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. - Page 23 To select the dimmer mode—DIMMER You can dim the display at night (according to your preference). When shipped from the factory, dimmer is deactivated. • OFF: Cancels the dimmer. • ON: Activates the dimmer. To select the scroll mode—SCROLL You can select the scroll mode for the disc information (when the entire text cannot be shown at once).
-
Page 24: Detaching The Control Panel
Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power. -
Page 25: Cd Changer Operations
CD CHANGER OPERATIONS We recommend that you use the JVC MP3- compatible CD changer with your unit. By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format. - Page 26 • When the current disc is a CD: Playback starts from the first track of the current disc. Selected disc number Elapsed playing Current track time number Notes: • When you press CD CD-CH, the power automatically comes on. You do not have to press to turn on the power.
- Page 27 To show the disc information for CD Text and MP3 discs This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability. Select text display mode while playing a CD Text or an MP3 disc.
-
Page 28: Selecting The Playback Modes
Selecting the playback modes To play back tracks/files at random (Folder Random/Disc Random/Magazine Random Play) Press MODE to enter the functions mode during play. Press RND (random), while “MODE” is still flashing on the display. Each time you press the button, the random play mode changes as follows: For MP3 discs:... -
Page 29: External Component Operations
EXTERNAL COMPONENT OPERATIONS Playing an external component You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied). Preparations: • For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume). -
Page 30: Additional Information
ADDITIONAL INFORMATION Playing a CD-R or CD-RW • Use only “finalized” CD-Rs or CD-RWs. • This unit can play back only the files of the same type which is first detected if a disc includes both audio CD (CD-DA) files and MP3 files. -
Page 31: Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • Sound cannot be heard from the speakers. • This unit does not work at all. • SSM (Strong-station Sequential Memory) automatic preset does not work. - Page 32 Symptoms • Disc cannot be played back. • Noise is generated. • A longer readout time is required (“CHECK” keeps flashing on the display). • Files cannot be played back as you have intended them to play. • Elapsed playing time is not correct.
- Page 33 Symptoms • “NO DISC” appears on the display. • “NO MAG” appears on the display. • “RESET 8” appears on the display. • “RESET 1” – “RESET 7” appears on the display. • The CD changer does not work at all. About mistracking: Mistracking may result from driving on extremely rough roads.
-
Page 34: Maintenance
MAINTENANCE How to clean the connectors Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors. Connector Moisture condensation Moisture may condense on the lens inside the CD player in the following cases: •... -
Page 35: Specifications
AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): Front: 19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion. 19 W per channel into 4 Ω, 40 Hz to Rear: 20 000 Hz at no more than 0.8%... - Page 36 EN, TH 1004DTSMDTJEIN © 2004 Victor Company of Japan, Limited...
-
Page 37: Installation (In-Dash Mounting)
INSTALLATION (IN-DASH MOUNTING) The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits. • If you are not sure how to install this unit correctly, have it installed by a qualified technician. -
Page 38: Electrical Connections
Connections Adding Other Equipment / Amplifier / You can connect an amplifier and other equipment to upgrade your car stereo system. • Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
