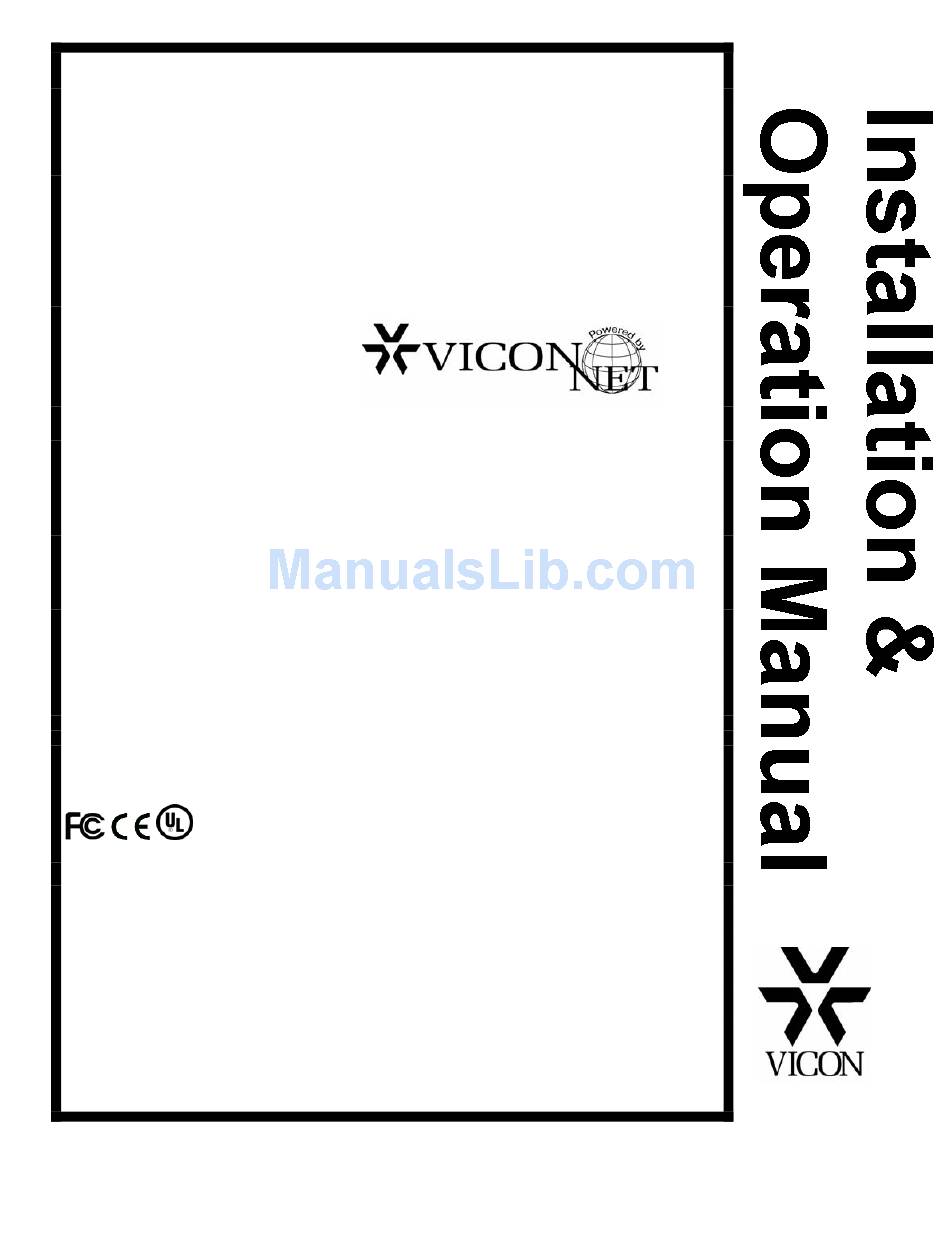

Vicon KTX-4 Installation & Operation Manual

4-channel, digital video encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

XX172-15-00
KTX-4 FOUR-CHANNEL
DIGITAL VIDEO ENCODER
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2010 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
ViconNet, Kollector and their logos are registered trademarks of Vicon Industries Inc.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Windows is a trademark of Microsoft Corp.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-2288
FAX: 631-951-2288
TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: +44 (0) 1489 566300 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8172-15-00
Rev 1010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KTX-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon KTX-4

Summary of Contents for Vicon KTX-4

  • Page 1 KTX-4 FOUR-CHANNEL DIGITAL VIDEO ENCODER Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 3: Fcc Notice

    Warning: Power must be removed from this unit before removing circuit modules or ribbon cables. Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static discharge. Take all necessary precautions to prevent static discharge Important Notice • i XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...
  • Page 4 8. Accessories - Do not place the unit on an unstable surface the site wiring. to avoid falling. Use only UL Listed Vicon recommended mounting For 230 VAC units with a plug, the outlet must be installed accessories.

  • Page 5: Important Notice

    Other company and brand products and service names are trademarks or registered trademarks of their respective holders. To ensure that the KTX-4 is protected during a power surge or failure and that no important data is lost, it should be connected to an uninterruptible power source (UPS) before use.

  • Page 6: About This Manual

    This KTX-4 Installation and Operation Manual is comprised of the following chapters: Chapter 1, Introduction, introduces the KTX-4 Four-Channel Digital Video Server. Chapter 2, Quick Installation, is for experienced installers, and provides an illustration of how the KTX-4 should be connected to its various peripherals.

  • Page 7: Table Of Contents

    CHAPTER 9 – TWISTED-PAIR CABLE RECOMMENDATIONS ........22 CHAPTER 10 – NETWORK CABLE RECOMMENDATIONS ..........23 CHAPTER 11 – TECHNICAL INFORMATION ..............24 VICON STANDARD EQUIPMENT WARRANTY ..ERROR! BOOKMARK NOT DEFINED. Table of Contents • v XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...

  • Page 9: Chapter 1 - Introduction

    National Electrical Code ANSI/NFPA 70, state and local wiring codes. The KTX-4 is an intelligent and rugged Digital Video Server. It is a state-of-the-art embedded server in an attractive aluminum case. It is sold in a prepackaged configuration ready for analog camera connection. It will provide a video (frame per second) rate of up to 120 fps over 4 channels, up to 30 fps per channel (25 fps for PAL).

  • Page 10: Unpacking And Inspection

    Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible.

  • Page 11: Chapter 2 - Quick Installation

    3. Make all connections to camera, LAN, PTZ, alarm, audio and power. 4. Power on the server. Run the provided ViconNet CD and choose software →KTX-4 to configure the correct IP address, using the provided MAC address. (See your System Administrator for assistance in IP addressing.)

  • Page 12: Chapter 3 - Installation

    For first-time installers, these steps provide the most thorough and accurate instructions. About This Chapter This chapter details the complete installation of the KTX-4 Four-Channel Digital Video Server. The following sections provide information as follows: Unpacking the Server defines how to remove the unit and accessories from the box.

  • Page 13: Unit Components

    Unit Components This section describes the KTX-4 front and rear panels. Panel Connectors and Indicators The following picture shows the KTX-4 panel. Each panel component is described below. Figure 3-1: Rear Panel Layout The KTX-4’s rear panel contains the following components: PTZ Port: A 5-position terminal block used to connect simplex RS-422/485 communications.

  • Page 14: Mounting

    Desktop The KTX-4 can rest on a clean and dry flat surface, like a desk or tabletop. Four (4) rubber bumpers are provided for stable mounting. There must be an area of no less than 3 in. (76 mm) left around the exterior to provide suitable airflow for cooling.
  • Page 15 Note: 4 cameras/camera domes may be daisy-chained using the RS-485 configuration. If using a DL device for star configuration, connect the KTX-4 to the DL first, then to the dome or PTZ/receiver. 3. Using a twisted-pair cable as defined in the section Twisted-Pair Cable Recommendations, prepare a 2-conductor shielded twisted-pair type cable by stripping the ends back for use.
  • Page 16 Star Configuration Daisy Chain Configuration Figure 3-2: PTZ Camera Control 8 • Chapter 3 - Installation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...
  • Page 17 To connect an alarm (sensor) to the KTX-4: 6. Locate the alarm cable(s) near the server. These wires (pairs) will be connected to the ALARMS and GND (Ground) terminal block connections (refer to Figure 3-3). There are four alarms available.
  • Page 18 Step 2: Connecting the Power Supply To ensure that the KTX-4 is protected during a power surge or failure and that no data is lost, it should be connected to an uninterruptible power source (UPS) before use. The power supply must be supplied by the customer.

  • Page 19: Chapter 4 - Operation

    1. Verify that the server is set up as detailed in Chapter 3, Installation. 2. Connect the 24 VAC power supply to the KTX-4 or connect PoE via network cable (RJ-45). The Status Indicator will illuminate blue (blinking) to indicate the server is ON and running properly.
  • Page 20 12 • Chapter 4 - Operation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...

  • Page 21: Configuring The Server

    NVRs can be used for live viewing and recording of network-streamed video (workstations do not record). A network can be as simple as a single KTX-4 connected to a ViconNet Workstation or can be complex with the addition of several networks interconnected via WAN.

  • Page 22: Configuring The Network Settings

    VNSetup consists of several TABs. Each TAB provides different functionalities. Note: Once the KTX-4 Setup is run the first time, a shortcut is placed on the desktop for future use. Make sure the MAC address and password of the KTX-4 is available. Use MAC Address log provided.
  • Page 23 Note: You MUST click the Select button to add the unit to the list; verify that it is added to the list. 5. The selected unit appears on the Selected Unit section on the top of the screen and settings can be changed. Chapter 4 - Operation • 15 XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...
  • Page 24 Note: In order for the DHCP option to work properly, verify that the server does not expire the IP address licensed to the encoder. (Encoder should always receive the same IP address from the DHCP server.) Unit 16 • Chapter 4 - Operation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...

  • Page 25: Info Tab

    The Install TAB allows the user to install/upgrade newer versions. Choose the correct version and click Install to send to the selected unit. Install Info TAB The Info TAB displays the selected IP product general information. Info Chapter 4 - Operation • 17 XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...

  • Page 26: Advanced Tab

    Loading of application is disabled. The Disable Load button allows the pausing of the application load in case of software issues while still permitting communication via VNSetup; the Enable Load button resumes the application load. Advanced 18 • Chapter 4 - Operation XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...
  • Page 27 VOX Silence Period – Defines the time between reaching VOX OFF level and the actual audio turns off. Default setting is 5000 ms. Function list: VOX Silence Period Chapter 4 - Operation • 19 XX172-15-00 Rev 1010 KTX-4 Digital Video Encoder...
  • Page 28 Note: This setup can be performed from any VN-WS/VN-NVR Workstation connected to the KTX-4 and to the Nucleus or from a Kollector. Verify that the KTX-4 is connected to the network, that it is active and that it is configured to use the same Nucleus.

  • Page 29: Chapter 5 - Troubleshooting

    IP address. • Verify that the server is correctly cabled to the workstation via hubs and switches. If the KTX-4 is present on the workstation but does not show any cameras and does not display video, check the following: •...

  • Page 30: Chapter 7 - Shipping Instructions

    Chapter 7 – Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 31: Chapter 8 - Coaxial Cable Recommendations

    Let the required picture quality and cable distances provide a guide in choosing the best cable type. For cables other than the approved Vicon types below, contact the manufacturers listed below. Note that “BC” refers to bare copper and “TC” refers to tinned copper.

  • Page 32: 22 • Chapter 9 - Twisted-Pair Cable Recommendations

    Choose a Belden cable type by referring to the characteristics and maximum distances listed below. The maximum distance for the most reliable digital control refers to the distance between the KTX-4 and the Camera Dome/Receiver Assembly. The characteristics of the cables in the table below should be used as a guideline when cables other than Belden are used.
  • Page 33 Chapter 10 – Network Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance. Vicon assumes no responsibility for poor performance when cables other than the recommended types, or equivalent, are used. Materials Use pure copper stranded conductors to obtain a low DC resistance. The preferred insulation and cable jacket is Polyvinyl chloride (PVC).

  • Page 34: Chapter 11 - Technical Information

    Table 11-1: Technical Information 24 VAC ±20%, 50/60 Hz nominal Input Voltage NOTE: Vicon recommends the use of uninterruptible power supply systems (UPS) to prevent voltage fluctuations that can affect operation and cause damage to the equipment. 300 mA @ 24 VAC...

  • Page 35: Vicon Standard Equipment Warranty

    Vicon Security Management Systems (SMS) All Models: All hardware is warranted for two years from date of original retail purchase. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
  • Page 36 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-2288 800-645-9116 Fax: 631-951-2288 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3 D-24537 Neumuenster...
