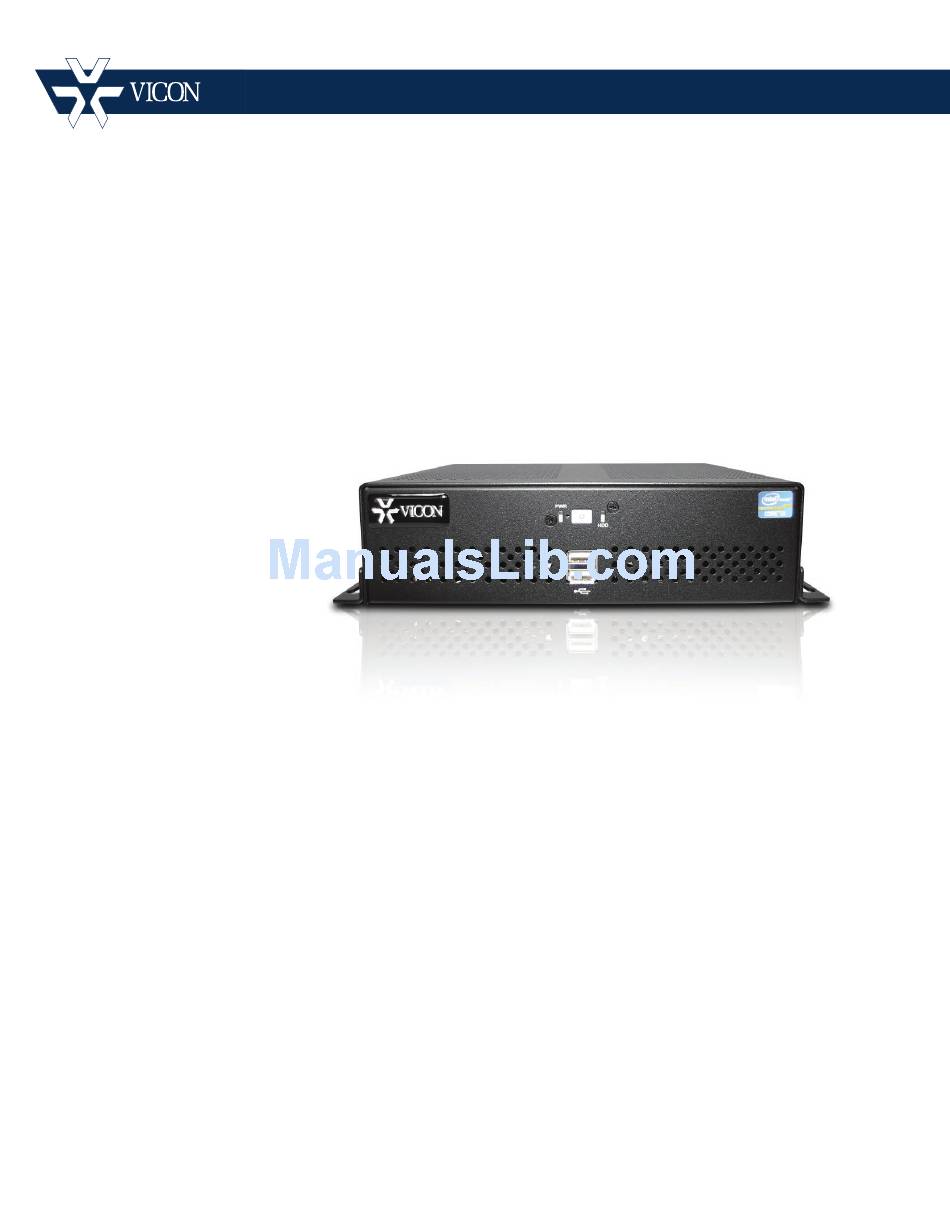

Installation Guide
XX256-22-00
VN-DECODER-2V8 Decoder for
the Virtual Matrix System
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8256-22-00
Issued: 715
Product specifications subject to change without notice.
Copyright © 2014 Vicon Industries Inc. All rights reserved.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon VN-DECODER-2V8
Summary of Contents for Vicon VN-DECODER-2V8
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 2: Important Safeguards - Indoor Use
The product shows a significant change in performance. 1. Read Instructions - Read all safety and operating instructions 19. Replacement Parts - Use only Vicon specified replacement before the product is operated. parts or an approved equivalent to prevent unit damage and 2. -
Page 3: Important Safeguards - Indoor Use (Cont)
Important Safeguards – Indoor Use (Cont) 25. For Rack-Mounted Units Only – The following precautions apply to all rack-mounted units. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. - Page 4 VN-DECODER-2V8 Decoder for use with the Virtual Matrix Display Controller. The VN-DECODER-2V8 is a key part of the ViconNet® Virtual Matrix Display Controller (VMDC) system. Used in conjunction with the VMDC, network data is received and converted from a digital IP source to an analog output for display on any monitor with a DVI or HDMI input (a DVI to VGA adapter can be used if VGA connection is required).
-
Page 5: System Architecture
Quick Guide System Architecture... -
Page 6: Connecting The Vn-Decoder-2V8
Quick Guide Connecting the VN-DECODER-2V8 The VN-DECODER-2V8 is meant to work with a Virtual Matrix Display Controller (VMDC) to decode digital video for display on monitors. Rear Panel Connections Refer to the figure below for a description of the rear panel connections. -
Page 7: Vn-Decoder-2 Connections
The VN-DECODER-2V8 can be desk-top/wall or VESA mounted. Desktop The VN-DECODER-2V8 can rest on a clean and dry flat service; additionally, it can be secured to the surface through the screw slots in the flange. The desk or table must provide a surface of suitable strength to support the weight of the VN-DECODER-2V8. - Page 8 Note There is a ferrite supplied in the accessory kit. To comply with FCC and CE, this ferrite must be installed onto the VN-DECODER-2V8 side of the HDMI cable. • Insert one side of a standard LAN cable to the network port’s RJ-45 connector.
-
Page 9: Configuring The Vn-Decoder-2V8
Connecting the VN-DECODER-2V8 to the Controlling VMDC Before the VN-DECODER-2V8 can be used with the VMDC system, you must set the IP address of the unit from Windows® network settings. Next, you must login to the VMDC software on the unit to connect to the Nucleus. - Page 10 Quick Guide Login The Login screen displays as below. Enter a User Name and Password. The default login is User Name “admin” and no Password. Click Login. Note Monitor icons will not show on initial setup. Rev 512...
- Page 11 Quick Guide Configuration After Login, the Virtual Matrix main screen displays. Click the button at the top of the screen. The Setup Site Selection list displays. Select your unit from the list and click ; the Settings screen displays.
- Page 12 Quick Guide Select the button to connect the VN-DECODER-2V8 to the Nucleus of the system. Rev 512...
- Page 13 OK; the application will restart. Once the Nucleus is defined, any VMDC connected to it will now be connected to the VN-DECODER-2V8 and the decoder can now be controlled remotely by a VMDC on the network. Note...
-
Page 14: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 15: Vicon Standard Equipment Warranty
“autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 10. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase. - Page 16 Except as provided in this written warranty and to the extent permitted by law, neither VIcon nor any affiliated shall be liable for any loss, (including loss of data and information), inconvenience, or damage, including, but not limited to, direct, special, incidental or consequential damages, resulting from the use or inability to use the Vicon product, whether resulting from breach of warranty or any other legal theory.
- Page 17 Vicon Industries Inc. For office locations, visit the website: www.vicon-security.com...
