Summary of Contents for iSP Technologies Vector SL

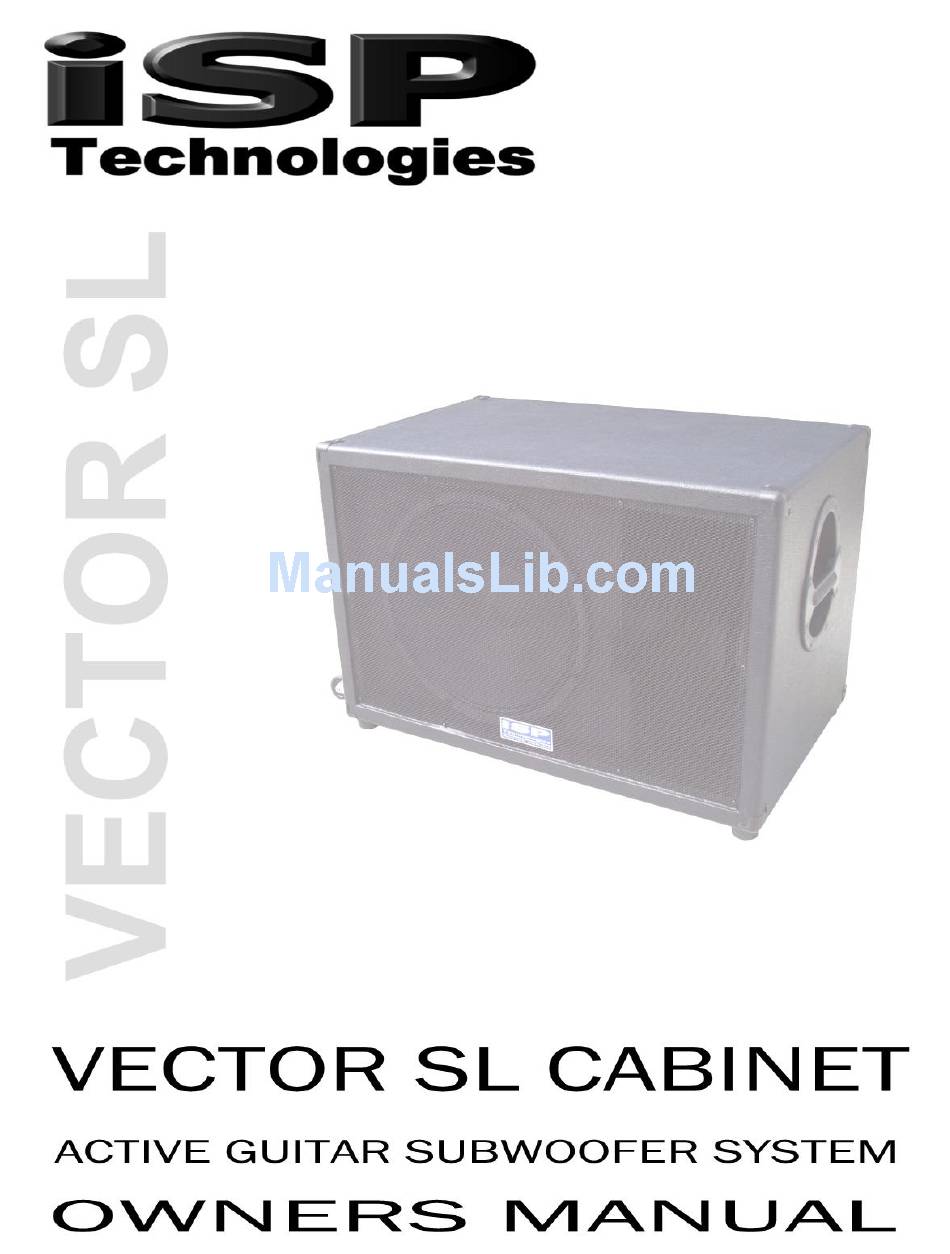

- Page 1 PATENTS PENDING...
- Page 2 2x12 or 4x12, or combo amplifier to complete a high performance full range guitar system. The VECTOR SL delivers up to 600 watts RMS to a 15-inch high excursion speaker, which is driven directly from the internal 600-watt RMS amplifier.
- Page 3 This unit requires connection to a 120-volt AC outlet. Do not cut or disconnect the ground pin on the power cord. Do not attempt to connect this unit to any power source other than the specified 120VAC. The VECTOR SL will typically draw approximately four amps of current when driven hard.
- Page 4 The VECTOR SL Cabinet is flat all the way down to 45Hz delivering enough low-end bass to match the frequency response of any 7-string guitar. Tune down as far as you want and the VECTOR SL continues to perform. To all this performance add three-way power amplifier protection and you have the most reliable active guitar system ever made.
- Page 5 VECTOR SL will internally attenuate the speaker output and apply this signal to the input of the internal D-CAT amplifier to drive the subwoofer. 2. SUB LEVEL The SUB LEVEL adjusts the output level of the VECTOR SL’s internal subwoofer. 3. INPUT JACK Connect the speaker output of your guitar amplifier to this input jack.
- Page 6 SYSTEM CONNECTIONS...
- Page 7 22 dB D-CAT amplifier output power 600 watts RMS D-CAT amplifier protection Thermal shutdown, limiter protect VECTOR SL power consumption 6 amps peak / 3 amps typical Fuse Slo Blo 5 amp-120 volt / 3 amp-220 volt Dimensions 20” L x 30” W x 18.5” D...
- Page 8 Any damage resulting from the misuse or the failure to follow the precautions and instructions will void the warranty. In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the...
