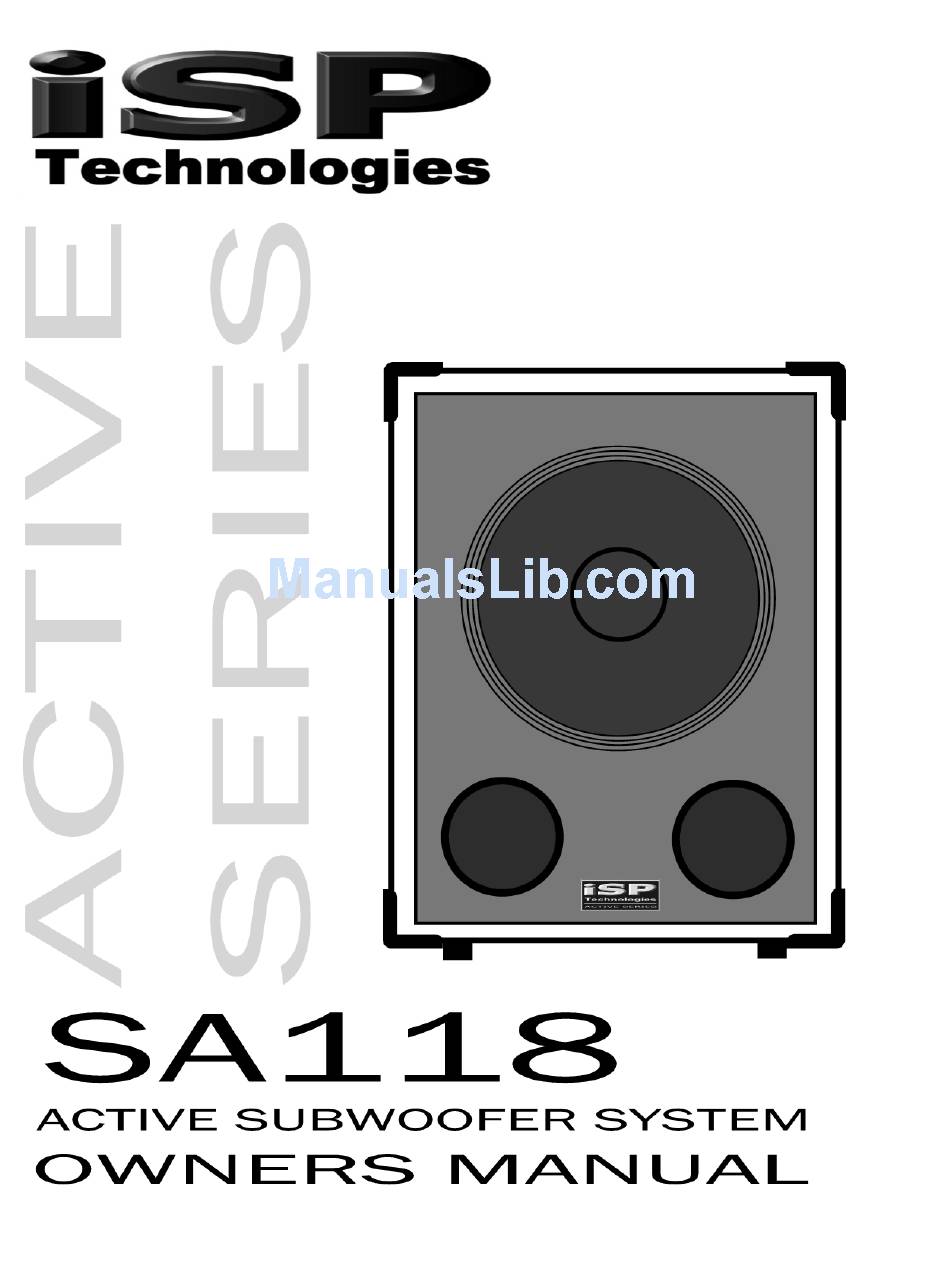

iSP Technologies SA118 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA118 and is the answer not in the manual?

Questions and answers

Related Manuals for iSP Technologies SA118

Summary of Contents for iSP Technologies SA118

  • Page 2: Important Safety Instructions

    Make certain there is proper ventilation for the external heatsink when is use.  Do not drive the SA118 into excessive heavy distortion for an extended period of time to avoid premature speaker failure.  Failure to follow these instructions may void the warranty.
  • Page 3 Caution: Exposure to extremely high noise levels can cause permanent hearing loss. The SA118 speaker system is capable of producing in excess of 126db SPL at 1 meter. Continued exposure to noise levels in excess of 90db may cause permanent hearing loss.
  • Page 4 PLACEMENT The SA118 is designed to sit directly on the floor or stage. Do not position or mount the cabinet where it can tip over and fall on someone. Do not attempt to mount the cabinet on speaker stands. Do not attempt to ‘fly’ (suspend by cables, chains, ropes, etc.) the cabinet.

  • Page 5: Rear Panel Description

    This connector may be used to daisy-chain the full range signal to additional powered sub cabinets such as another SA118 or SA115. 4. RIGHT FULL RANGE BALANCED OUTPUT-- This XLR male connector provides a balanced full range output from the right channel input.

  • Page 6: Fuse Replacement

    FUSE REPLACEMENT 1. Use a small screwdriver as shown to slide the fuse cover out from the power inlet module. The fuse can be found inside the fuse cover module after it is pulled out. NOTE: A SMALL COMPARTMENT IS ALSO PROVIDED WITHIN THE FUSE COVER MODULE FOR STORING A SPARE FUSE.

  • Page 7: Connection Diagram

    CONNECTION DIAGRAM...
  • Page 8 BALANCED CONNECTION DESCRIPTION The ISP Sub Series has balanced XLR and inputs and outputs configured to AES standards (Audio Engineering Society). These connections are connected in a loop through configuration from the inputs to the full range outputs and will accept a balanced line-level input. The standard phase configuration is that pin 2 is (+), pin 3 is (-), and pin 1 is shielded ground on the XLR.

  • Page 9: Specifications

    6.9 amps Power 800 watts Physical 32.5” (825mm) Height 24” (609mm) Front Width 20” (508mm) Depth Weight 120 lbs. Enclosure 18mm thick, 13 ply Baltic Birch plywood Mounting Methods Floor mount Note: D-CAT is a trademark of ISP Technologies LLC...

  • Page 10: Thermal Conditions

    THERMAL CONDITIONS The ISP Sub Series is capable of producing 600 watts at full power to 900 watts using an extension passive cabinet. This generates heat that must be dissipated in order to maintain reliability and insure the amplifier components stay within their operating temperature specs. To accomplish this, the amplifier is mounted onto a heatsink that is exposed on the rear of the cabinet.

  • Page 11: Warranty And Service

    Any damage resulting from the misuse or the failure to follow the precautions and instructions will void the warranty. In the event that the unit needs to be repaired. Please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem,...
