Summary of Contents for iSP Technologies Vector 210

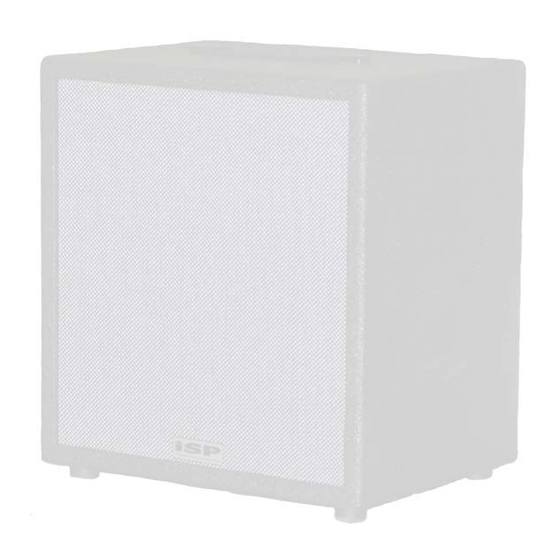

- Page 2 I pioneered the use of the guitar subwoofer. The VECTOR 210 continues that tradition of an active guitar subwoofer designed to enhance and expand your guitar tone. The VECTOR 210 is designed to be used with your existing guitar rig with either a line level input or connected to the speaker output of your guitar amplifier and add that extra impact and huge bottom end that you can only get by using a subwoofer.
-
Page 3: Important Saftey Instructions
Failure to follow these instructions may void the warranty. • THIS UNIT CONTAINS POTENTALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR HAZED, DO NOT REMOVE THE POWER AMPLIFIER MODULE, INPUT PANEL OR AC INPUT PANEL. NO USER SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED ISP TECHNOLOGIES SERVICE PERSONNEL. -
Page 4: Power Requirements
The VECTOR 210 can also be used in line level by feeding a line level input signal to the input of the VECTOR 210 and selecting the line level setting of the input attenuator switch. This allows the VECTOR 210 to work directly with any... -
Page 5: Input Jack
This means that, as long and hard as you drive the VECTOR 210, even to its maximum limits, you never have to worry about failures. Whether you use a line level input or a guitar amplifier speaker level input, the VECTOR 210 adds that missing bass for the guitar rig. -
Page 6: Ground Lug
7. GROUND LUG Grounding Options The VECTOR 210 is designed to allow interconnection to all makes and models of amplifiers available including amplifiers with Bridge Mode operation. A Bridge Mode amplifier design offers higher output signal swing because one channel drives the positive terminal of a speaker in phase and a second channel drives the negative terminal of the speaker with an inverted signal. -
Page 7: Line Level System Connections
LINE LEVEL SYSTEM CONNECTIONS NOTE: THE VECTOR 210 can also be connected to the send output of a guitar head for a line level input. Make sure to set the Input Attenuator switch for Line Input... -
Page 8: Speaker Level System Connections
SPEAKER LEVEL SYSTEM CONNECTIONS When using the Vector 210 with a tube guitar amplifier and connected to the speaker output, it is possible to have a micro-phonic feedback occur due to the fact Comment [ISP1]: …it is possible to have that the 4x12 speaker cabinet can act like a microphone on the input of the Vector micro-phonic feedback occur due to the fact that…... -
Page 9: Fuse Replacement
2. After replacing the fuse with another of identical specifications, push the fuse cover module fully back into place, ensuring that the fuse has snapped onto the fuse holder inside the power inlet module. VECTOR 210 SPECIFICATIONS D-CAT amplifier output power 400watts RMS D-CAT amplifier protection... - Page 10 Any damage resulting from the misuse or the failure to follow the precautions and instructions will void the warranty. In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Repack the unit, send a copy of the original receipt, a note stating the problem with a return address...
