- Page 2 Failure to follow these instructions may void the warranty. CAUTION: DO NOT CONNECT THE CAT5 INPUT CABLE BETWEEN THE MASTER CONTROL MODULE AND THE INPUT OF THE HDDS SB112-400 SUBWOOFER WHEN THE POWER ON THE MASTER CONTOL MODULE IS SWITHED ON!

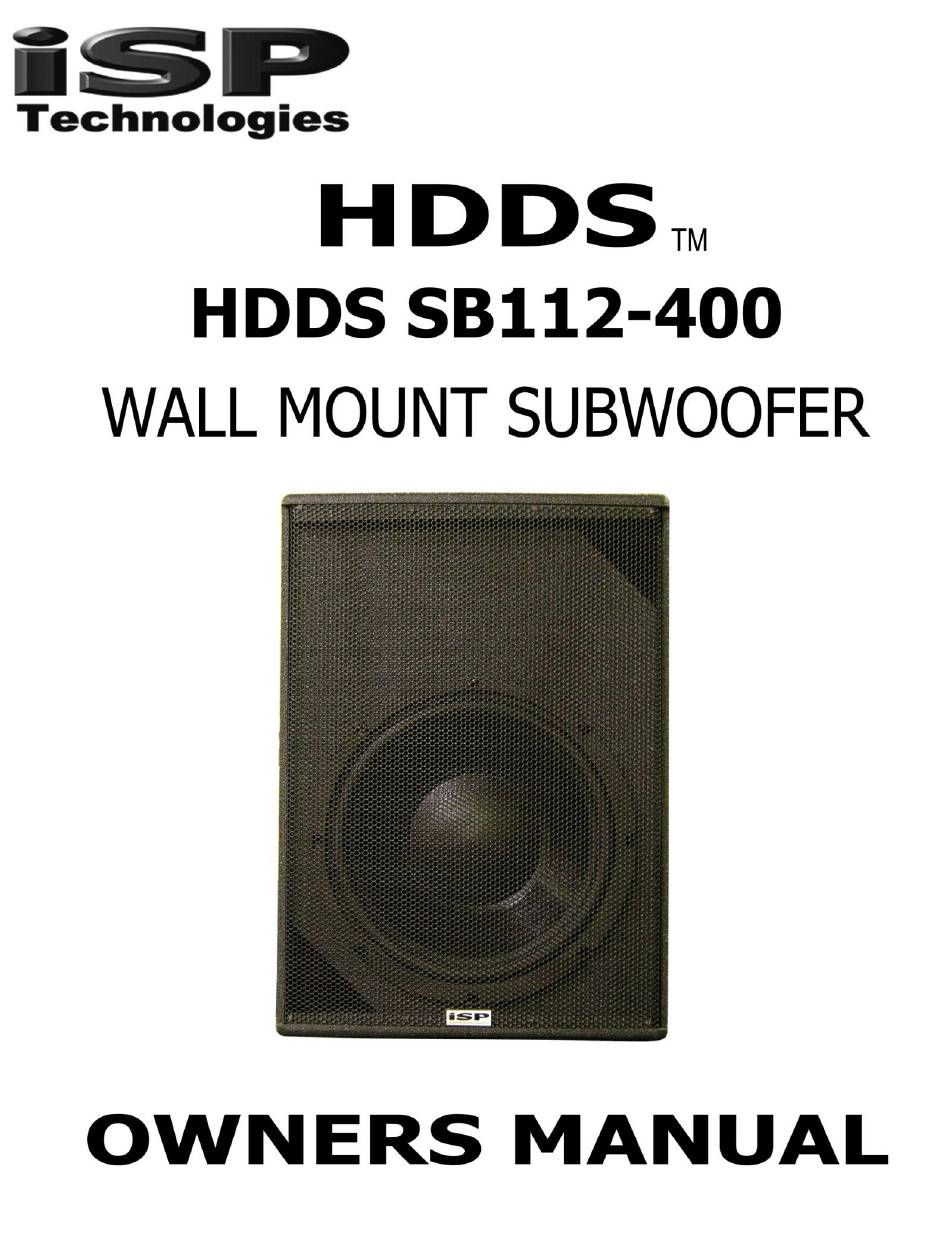

- Page 3 INTRODUCTION Thank you for your purchase of the ISP Technologies High Definition Distributed System HDDS SB112-400 Wall Mount Subwoofer. This product provides a new level of performance in distributed audio systems allowing greater system flexibility and easy installation of distributed sound. All connections are made via CAT5 RJ45 connections making installation of systems faster and easier using the HDDS SB112-400.
- Page 4 DAA Dynamic Adaptive Amplifier power amplifier circuits to drive the woofer. The output swing can exceed 120 volts and can deliver over 400 watts continuous power to the woofer. The HDDS SB112-400 includes a rear panel level adjustment that allows simple balancing of installed systems.
- Page 5 At maximum or peak level the HDDS 2210 can pull in excess of 4 amps of current. Connect the HDDS SB112-400 to any of the A, B or C outputs on the rear of the HDDS Master Control Module or to one of the outputs on the BRC1. There are two possible ways to connect the SB112-400 into the HDDS system.
- Page 6 Mounting the HDDS SB112-400 Refer installation to a qualified installer to ensure proper mounting to overhead structures. The HDDS SB112-400 includes a TV mounting bracket for easy install. Follow the mounting instructions included in the separate bracket mounting instructions included with the HDDS SB112-400.
- Page 7 HDDS SB112-400 SPECIFICATIONS Subwoofer Type: Active Low Frequency woofer: 12″ cone Crossover: 4th order LR high pass and low pass High Pass Filter: 90 Hz Maximum SPL: 122 dB peak, 116 dB long-term Frequency Range (-10 dB): 35 Hz – 90 Hz Frequency Response (+-3 dB): 40 Hz –...
- Page 8 In the event that the unit needs to be repaired, please return the unit to ISP Technologies directly. Simply repack the unit, send a copy of the original receipt, a note stating the problem, and send it to: ISP Technologies, LLC 5479 Perry Drive Unit B Waterford, MI 48329 Attn: Repair Dept.
