Clarke Vantage 17 cable Operator's Manual

Hide thumbs Also See for Vantage 17 cable:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Order Parts Here:
www.ivie-ent.com/parts
Ph:(918)254-5161
READ THIS BOOK
LEA ESTE MANUAL
LISEZ CE MANUEL
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
machine could result in injury to you or to other personnel; damage to the machine or to other
property could occur as well. You must have training in the operation of this machine before using it.
If your operator(s) cannot read this manual, have it explained fully before attempting to operate this
machine.
All directions given in this book are as seen from the operator's position at the rear of the machine.
For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.
Form No. 909 6773 000 - 05/2006

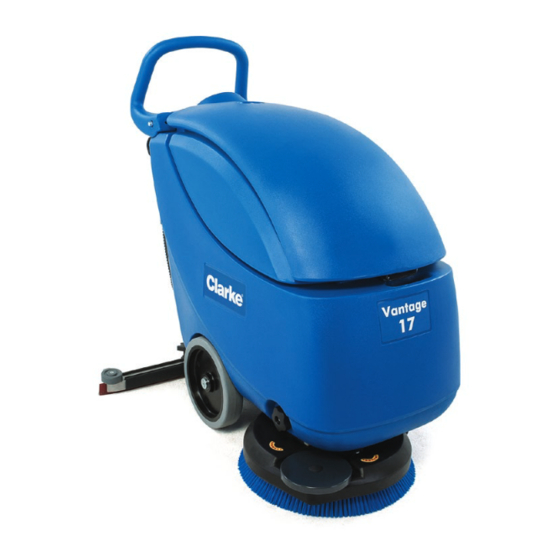

Vantage 17 Cable

Operator's Manual

Manuel d'utilisation
Libro de Instrucciones
EN
English (3 - 21)
ES
Español (23 - 41)
FR
Français (43 - 62)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vantage 17 cable and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarke Vantage 17 cable

Summary of Contents for Clarke Vantage 17 cable

  • Page 1: Operator's Manual

    This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.

  • Page 2: Table Of Contents

    SQUEEGEE BLADE CHECK AND REPLACEMENT BRUSH CLEANING CLEANING OF TANK AND VACUUM GRID WITH FLOAT SOLUTION FILTER CLEANING MACHINE SPEED ADJUSTMENT Vantage 17 Cable ACCESSORIES/OPTIONS HOW TO CORRECT PROBLEMS IN THE MACHINE Parts List Operator’s Manual - Vantage 17 Cable...

  • Page 3: Operator Safety Instructions

    Do not allow to be used as a toy. Close attention is necessary when used near children. WARNING: Use only as described in this Manual. Use only Clarke recommended accessories. WARNING: Take all necessary precautions to prevent hair, jewerly and loose clothing from being caught in the machine moving parts or vacuuming parts of this machine.
  • Page 4 If parts must be replaced, require GENUINE spare parts from a Dealer or Authorized Retailer. WARNING: Do not wash the machine with direct or pressurized water jets, or with corrosive substances. WARNING: Do not work under the machine without supporting it with safety stands. Operator’s Manual - Vantage 17 Cable...
  • Page 5 WARNING: Use the brushes and the pads supplied with the machine and those specified in the Operator's Manual. Using other brushes or pads could reduce safety. Operator’s Manual - Vantage 17 Cable...

  • Page 6: Introduction

    INTRODUCTION The Vantage 17 Cable model of the Clarke scrubber-dryer ensures a highly effective floor cleaning performance. The Vantage 17 Cable model uses a single rotary brush to clean an area of 17.0 in (430 mm) in width. The rear squeegee performs the floor cleaning and the vacuum system recovers the washing water in a single pass.

  • Page 7: Machine Specifications

    Law in force. Extension Use the extension supplied with the machine or an extension of identical electrical characteristics. Operator’s Manual - Vantage 17 Cable...

  • Page 8: Machine Transport Procedures

    How to Fasten the Machine Inside the Vehicle Clarke recommends tying down machine when transporting. SYMBOLS SHOWN ON THE MACHINE WARNING: Carefully read all instructions before performing any procedure. WARNING: Do not wash the machine with direct or pressurized water jets. Operator’s Manual - Vantage 17 Cable...

  • Page 9: Machine Description

    W1. Transport/parking device activated K. Squeegee W2. Transport/parking device deactivated Squeegee knobs X. Transport/parking device positioning pin M. Front squeegee blade Y. Recovery water tank N. Rear squeegee blade Z. Solution tank Figure 2 Operator’s Manual - Vantage 17 Cable...

  • Page 10: Inner Structure

    D. Recovery tank M. Pad-holder E. Solution tank N. Pad F. Suction grid with automatic shut-off float O. Vent hole G. Recovery water drain hole P. Terminal board box H. Vacuum motor Figure 3 Operator’s Manual - Vantage 17 Cable...

  • Page 11: Control Panel

    When one or both the activation switches are pressed, the brush/pad rotation is activated. The switches are active only if the brush/pad rotation switch (A, Fig. 4) is turned to the “I” position. Figure 4 Operator’s Manual - Vantage 17 Cable...

  • Page 12: Use

    Lift the brush cover (G, Fig. 5) by prying the handlebar (H). Place the brush (B, Fig. 6) or the pad-holder (C) with pad (D) under the cover. Lower the cover (G, Fig. 5) by means of the handlebar (H). Figure 6 Operator’s Manual - Vantage 17 Cable...

  • Page 13: Machine Start And Stop

    10. Lift the squeegee by pushing the lever (B, Fig. 8) completely upwards. 11. Lift the brush/pad by activating (B, Fig. 9) the transport/parking device (A) after inserting the relevant pin (C). Figure 9 Operator’s Manual - Vantage 17 Cable...

  • Page 14: Machine Operation (Scrubbing/Drying)

    Grasp the handlebar (A, Fig. 11) and slightly lower it until the rear wheel (B) comes into contact with the floor, as shown in the figure. While holding the machine in this position, push it to the transport/parking area. Figure 11 Operator’s Manual - Vantage 17 Cable...

  • Page 15: Tank Emptying

    4. Perform the daily maintenance operations (see the Maintenance chapter). 5. Store the machine in a clean and dry place, with the brush/pad and the squeegee lifted or removed. Figure 13 Operator’s Manual - Vantage 17 Cable...

  • Page 16: Recovery Tank Removal

    Perform the operations described in the paragraph After using the machine. Store the machine in a clean and dry place, with the brush/pad and the squeegee lifted or removed. Figure 14 Figure 15 Operator’s Manual - Vantage 17 Cable...

  • Page 17: Maintenance

    Vacuum Motor Carbon Brush Check or Replacement (1): and after the first 8 working hours (2): for these maintenance operations, contact an authorized Clarke Service Center INTEGRITY CHECK OF POWER SUPPLY CABLE AND EXTENSION Carefully check if the power supply cable, the extension and the plugs are worn or damaged.

  • Page 18: Squeegee Cleaning

    – Reinstall the spring clamp (G, Fig. 17). Reinstall the squeegee (B, Fig. 16) and screw down the squeegee knobs (E). Connect the vacuum hose (D, Fig. 16) to the squeegee (B). Figure 17 Operator’s Manual - Vantage 17 Cable...

  • Page 19: Brush Cleaning

    The hole (L, Fig. 19) compensates the air in the cover interspaces, thus allowing the creation of vacuum in the recovery tank. 8. Remove the cover stand (B, Fig. 19) and close the cover (A). Figure 19 Operator’s Manual - Vantage 17 Cable...

  • Page 20: Solution Filter Cleaning

    Install the recovery tank as shown in the Use chapter. With the machine ready to operate, carry out hands-on tests of the machine speed and, if other adjustments are necessary, repeat steps 1 to 4. Figure 20 Figure 21 Operator’s Manual - Vantage 17 Cable...

  • Page 21: Vantage 17 Cable Accessories/Options

    Insufficient solution flow to the brushes Clogged recovery tank output hole Clean the hole Debris under the squeegee blades Remove the debris The squeegee leaves streaks on the floor Worn, chipped or torn squeegee blades Replace the blades Operator’s Manual - Vantage 17 Cable...

  • Page 22: Parts List

    Vantage 17 Cable, 115V Vantage 17 Cable, 230V Parts List [] = Not shown * = optional # = Modified item No. or New item No. xxxxx = Contained in a Kit Form No. 909 6773 000 - 05/2006 Printed in Italy...

  • Page 23: Solution Tank

    Vantage 17 Cable Solution Tank 19 11 Parts list - Vantage 17 Cable...
  • Page 24 909 6281 000 Wheel 909 6283 000 Squeegee lifting cable (Kit squeegee lift cable) 909 6822 000 Decal Clarke Vantage 17 Cable (Kit decals) 909 6437 000 Kit squeegee lift cable (5,6,8,10,12,14,15,17,33,36) 909 6296 000 Squeegee lifting lever (Kit squeegee lift cable)
  • Page 25 Vantage 17 Cable Vacuum System Parts list - Vantage 17 Cable...

  • Page 26: Vacuum System

    146 0104 000 Hose clamp 909 5972 000 Motor protection 909 5859 000 Cable vacuum motor (115 V) 909 5598 000 Cable vacuum motor (230 V) [12] 909 5987 000 Vacuum systems hardware kit (1,2) Parts list - Vantage 17 Cable...

  • Page 27: Recovery Tank Parts View

    Vantage 17 Cable Recovery Tank Parts list - Vantage 17 Cable...
  • Page 28 Vacuum hose 909 6291 000 Drain hose 909 6762 000 Lever for fixing cover 8603935 Black cap xxx xxxx xxx Decal water faucet (kit decals) [18] 909 5988 000 Recovery tank hardware kit (1,5,6,7,8) Parts list - Vantage 17 Cable...
  • Page 29 Vantage 17 Cable Handle Assembly Parts list - Vantage 17 Cable...
  • Page 30 909 6774 000 Pin handle bar xxxxxx Switch housing (Kit push button) xxxxxx Switch lever (Kit push button) xxxxxx Switch (Kit push button) xxxxxx Spring (Kit push button) 11077A Kit push button (10, 11, 12, 13) Parts list - Vantage 17 Cable...
  • Page 31 Vantage 17 Cable Control Panel Assembly Parts list - Vantage 17 Cable...
  • Page 32 Nut hex. M4 self lock SS 145 1756 000 Screw 2.9X9 THD form. SS 909 5584 000 Switch 909 6275 000 Panel control 909 6526 000 Decal earthing 909 6776 000 Decal control panel 909 5791 000 Cable extension Parts list - Vantage 17 Cable...
  • Page 33 Vantage 17 Cable Solution System Parts list - Vantage 17 Cable...
  • Page 34 [32] 8603885 Connector for solenoid valve [33] 909 5980 000 Solenoid valve kit (115 V) (1,5,14,22,24,27,28,29,30) [33] 909 5699 000 Solenoid valve kit (230V) (1,5,14,22,24,27,28,29,30) [34] 909 5990 000 Solution systems hardware kit (3,4,6,7,8,9,10,11,13,15,19,20,21,25) Parts list - Vantage 17 Cable...
  • Page 35 Vantage 17 Cable Squeegee Assembly Parts list - Vantage 17 Cable...
  • Page 36 145 8280 000 Washer flat 5x15 SS (Kit squeegee wheel - Kit squeegee complete - Squeegee assembly hardware kit) 909 5702 000 Kit squeegee complete (1,2,3,4,5,6,7,8,9,10,11,12,13, 16) [18] 909 5991 000 Squeegee assembly hardware kit (1,2,4,5,6,7,12,13,16) Parts list - Vantage 17 Cable...
  • Page 37 Vantage 17 Cable Brush System Parts list - Vantage 17 Cable...
  • Page 38 Capacitor 450V 40µF (115 V) 909 5931 000 Capacitor 450V 30µF (230 V) 909 5106 000 Capacitor 400V 65µF (230 V) 08603912 Capacitor (230 V) [35] 909 5992 000 Brush system hardware kit (1,7,9,10,12,13,14,15,16,26) Parts list - Vantage 17 Cable...
  • Page 39 Vantage 17 Cable Wiring System Parts list - Vantage 17 Cable...
  • Page 40 Kit bush cable giude and retaining ring 8603706 Screw cyl hd M6x12 8812468 Spacer 145 6018 000 Screw M6X10 909 6779 000 Relay brush (115 V) 909 6784 000 Relay brush (230 V) [12] 8603912 Suppression capacitor Parts list - Vantage 17 Cable...
  • Page 41 Vantage 17 Cable Accessories - Pad holder kit Parts list - Vantage 17 Cable...
  • Page 42 Accessories - Pad holder kit Ref. Part No. Description 08812891 Brush, 17” 909 5691 000 Brush ø430 17” Midlite Grit180 909 5693 000 Brush ø430 Prolite 909 5695 000 Pad holder 410 8603966 Ring nylon Parts list - Vantage 17 Cable...
  • Page 43 Kit squeegee bumper roller [39] 909 6062 000 Kit bush cable guide and retaining ring [40] 909 5584 000 Switch [41] 909 6784 000 Relay (230 V) [42] 909 6779 000 Relay (115 V) Parts list - Vantage 17 Cable...

  • Page 44: Wiring Diagram

    ORANGE arancio PLUG 909 5862 000 PINK rosa 909 5584 000 BRUSH SWITCH rosso 909 5584 000 VACUUM SWITCH VIOLET viola RIGHT HANDLE BRUSH SWITCH WHITE bianco 11077A LEFT HANDLE BRUSH SWITCH YELLOW giallo Parts list - Vantage 17 Cable...

This manual is also suitable for:

Vantage 17 cable 115vVantage 17 cable 230v
