Page 1: Instruction Manual

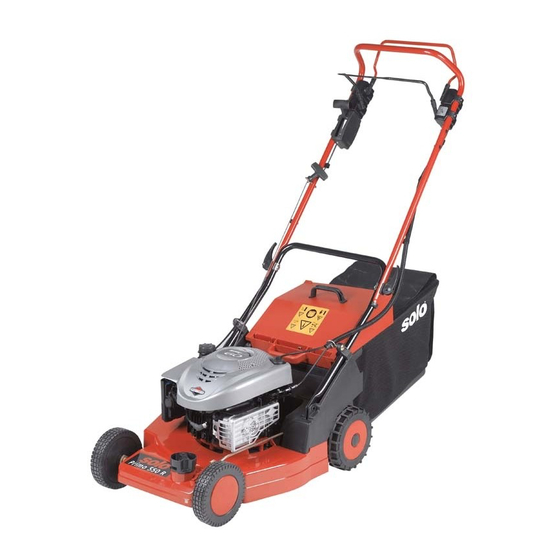

550 / 550R / 550HR / 550RS Instruction manual Lawn Mowers Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 9 550 114 english 11/2007... - Page 2 Do not allow third parties within the danger zone Description of product: petrol mower Model/type description: 550 / 550R / 550HR / 550RS complies with the following EU guide lines: 98/37/EC for machines, 2000/14/EC and RL - 2004 - 108 EC for Detach spark plug wire prior to working electromagnetic compatibility.
-
Page 3: Table Of Contents
11.7 Air filter Maintenance 11.8 Possible faults and troubleshooting 12. Guarantee.............................. 17 13. Parts subject to wear and tear ......................17 1. Type plate a: Type designation SOLO KLEINMOTOREN GmbH 71069 SINDELFINGEN b: Serial number c: Build year (07 2007) Typ 550 35kg d: Max. -
Page 4: Standard Delivery
• Spark plug wrench • 2 pcs. Support bolts for lower handle • 2 pcs.clamping levers • 2 pcs.Nuts M8 • 2 pcs. cable guide hooks • Owners manual, owners manual for engine 3. Control and function elements Fig. 1a Model 550 ENGLISH... - Page 5 Engine 550HRl Fig. 1b: 550R Fig. 1d: Motor 550HR Fig. 1c: 550RS, 550HR Adhesive labels: A Model 550: To stop the engine release bow handle (1) Model 550R, 5506HR, 550RS To start the self-drive pull bow handle (2) against the tubular handle...
-
Page 6: Technical Data
GCV 160 OHC READYSTART READYSTART E-START Engine capacity Fuel Lead-free reg. Engine oil: SOLO all-season 4-stroke engine oil SOLO gearbox oil 0083182 50 ml Noise level in work area L (DIN 45635) 80 dB(A) Sound capacity level L (DIN 45635) measured/ garanted... -
Page 7: Safty Guidelines
6. Safty guidelines 6.1 Correct use The SOLO lawn mower is intended to be used only for private home or hobby gardens. The lawn mower is not to be used in public facilities, parks, sports centers or for agricultural and forestry purposes. -
Page 8: Fuel
Safty guidelines 6.4 Fuel Handling gasoline requires great care. • Gasoline is highly flammable. Refuel only outdoors - never in enclosed areas. • Smoking and open fires are prohibited. • Do not spill any gasoline. • If gasoline is spilled, clean lawn mower immediately, otherwise do not start engine! •... -
Page 9: Information For Lawn Mower With Electrical Starter (550Rs)
Servicing and repairs are only to be conducted when engine is turned off and when spark plug cap is removed. • For warranty purposes and safety reasons only SOLO replacement parts should be used. Ensure that the tank is fully drained before any assembly, disassembly or modification. -
Page 10: Preparing The Equipment For Use
Preparing the equipment for use Fig. 2d 7. Preparing the equipment for use • Set the upper handle onto the lower handle, aligning the 7.1 Assembly holes in both handle parts. Your lawnmower will be ready for use in only a few •... -
Page 11: Adjusting Cutting Height
After the engine starts, put throttle lever (3) on position “max”. Note: For models 550, 550R and 550RS, the choke position is automatically adjusted through a bimetal sensor subject to engine temperature (Ready-Start®). These models require no manual adjustment for a cold start. -
Page 12: Self-Propelled Drive Roller (550R / 550Hr / 550Rs)
(grass stems become ragged during cutting and increases in width and density. the lawn turns yellow) has to be resharpened (see Attention: SOLO Lawn mowers with rear eject are chapter „Blade“). especially suited for the collection of leaves. Short and dry grass can be easily blown in the grass However, this use is only permitted on lawns where catching device (6). -
Page 13: Maintenance And Care
Tip: To enable the lawnmower to be maintained and We recommend SOLO bearing grease, part no. 00 83 cleaned with an empty fuel tank, fill only enough fuel for 175. -
Page 14: Drive Belt
• Position the new drive belt from below onto belt pulley A and insert to the rear into the mower When replacing any blade parts only SOLO spare parts chassis. are to be used. The identification No. on the blade has •... -
Page 15: Oil Level Check
Maintenance and Care Sharpening of Blade and catch old oil in a container. Wait several minutes until oil is drained. Dispose off the old oil in accordance Fig. 12 with local ordinances. After changing oil, always wash hands with a scouring agent, soap and water. -
Page 16: Possible Faults And Troubleshooting
Maintenance and Care 11.8 Possible faults and troubleshooting Problem Possible Cause Solution • Loose screws on engine or fastening screws loose • Tighten screws Mower runs rough, • Blade fastening loose • Check blade fastening vibrates severely • Blade not balanced or damaged •... -
Page 17: Guarantee
Thus SOLO recommends that you have a specialized clearly point out that we are not liable for any damages SOLO workshop carry out all work that is not described which may occur due to improper handling, or repair. Furthermore, we are not responsible for any damage in these operating instructions. - Page 18 Made in Germany SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-301-130 +49-7031-301-149 info@solo-germany.com export@solo-germany.com...
