Solo 526M Operating And Safety Instructions Manual

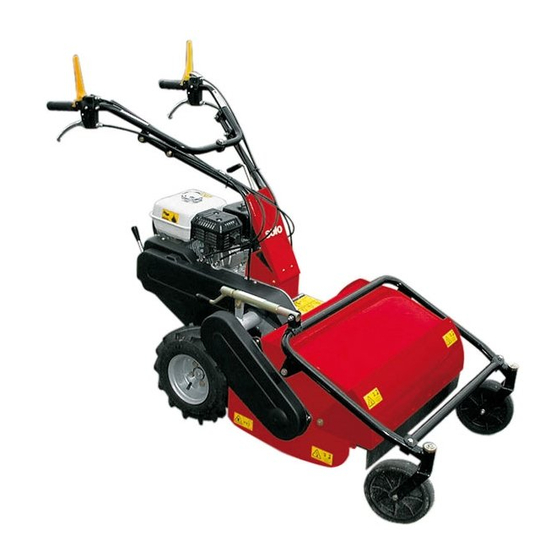

Flail mower with honda gx 200 engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

FLAIL MOWER

WITH HONDA GX 200 ENGINE
MODEL
526M
OPERATING AND SAFETY INSTRUCTIONS
R
. : F089500
26/11/2003
EF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 526M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solo 526M

Summary of Contents for Solo 526M

  • Page 1: Flail Mower

    FLAIL MOWER WITH HONDA GX 200 ENGINE MODEL 526M OPERATING AND SAFETY INSTRUCTIONS . : F089500 26/11/2003...

  • Page 2: Operating And Safety Instructions

    PERATING AND AFETY NSTRUCTIONS FLAIL MOWER MOD. 526M FOREWORD This machine may only be utilized for the purpose for which it was designed, i.e. agricultural use, for the cutting of shoots, grass and brushwood. Any other use other than that stated, not covered or deducible from this Manual and the enclosed Engine Manual is "PROHIBITED".
  • Page 3 Contents of the FLAIL MOWER Manual Use of the Manual Notices on the machine Technical data Lifting and transportation Main parts of the machine Controls and adjustments Assembly instructions for the handlebars and front support with wheels Safety information a) General instructions b) Training c) Preparation d) Working use...
  • Page 4 2. N OTICES ON THE MACHINE In this Manual all safety information appears in special boxes headed "WARNING". WARNING This heading is used to draw the user's attention to hazardous areas or moving parts of the machine. It is also used in instances where failure to comply with the instructions given may result in injury to persons and animals or damage to property.
  • Page 5 Danger of injury to both upper and lower limbs.Do not put hands or feet inside the cutting element while in motion. Danger of getting caught up in rotating parts. Do not put hands in the rotating parts. Danger of foreign objects being thrown outwards. Safety goggles must be worn.
  • Page 6 526M ECHNICAL DATA OF THE MODEL ENGINE petrol, HONDA GX 200 ENGINE CAPACITY 4.8 kW (6.5 HP) WORKING WIDTH 60 cm CUTTING HEIGHT adjustable 20 - 80 mm CUTTING SYSTEM 32-flail rotor SPEED GEARS 2 forward gears – 2 reverse gears...
  • Page 7 Environmental conditions Unless otherwise stated at the time of ordering it is understood that the machine is to work normally in the environmental conditions covered by the following points. Environmental conditions other than those described may cause mechanical breakage resulting in the creation of dangerous situations for persons. LTITUDE The altitude of the place in which the machine is to be used must not exceed 1500 m above sea level.

  • Page 8: Main Parts Of The Machine

    AIN PARTS OF THE MACHINE The machine consists of the following main parts Handlebar height adjustment lever Flail rotor clutch control lever Forward clutch control lever Accelerator control lever Cutting height adjustment lever Front guard Front wheels Right wheel release lever Left wheel release lever On/off switch (1/0) Crawl/high speed gear selector lever...

  • Page 9: Controls And Adjustments

    Forward Neutral Reverse Figure 2 gear gear ONTROLS AND ADJUSTMENTS A) HANDLEBAR HEIGHT ADJUSTMENT LEVER The height of the handlebars can be adjusted to suit both the user and the working conditions. Set the handlebars at user hip height. B) FLAIL ROTOR CLUTCH CONTROL LEVER This is used to engage and disengage rotary movement of the flail holder rotor.
  • Page 10 C) FORWARD CLUTCH CONTROL LEVER This lever only has two positions: engage and disengage. Lowering the lever engages the clutch and releasing it disengages the clutch. The service brake is connected to this lever. The brake operates automatically when the clutch is disengaged.

  • Page 11: Gear Lever

    WARNING. Make sure that you select the correct lever position, i.e. that it is firmly engaged. M) GEAR LEVER This lever serves to select the advance of the machine (forward, neutral, reverse). Used together with the crawl/high speed gear selector lever it gives 2 forward gears and two reverse gears.
  • Page 12 Before switching on ensure that the machine has been fully assembled cor- rectly. WARNING!!!! After assembling the handlebars, the foward control, roller movement and right wheel release cables MUST be secured using the CLIP PROVIDED, as illustrated in the drawing below (fig. 3a). Tie the cables together so that they do not touch the exhaust pipe and suffer heat damage.

  • Page 13: Safety Information

    AFETY INFORMATION Before using the flail mower it is essential that the operator has understood the warnings, do's and don'ts and precautionary measures given in this manual and in the engine manual: the prevention of injury to the operator, third parties, animals or objects directly depends on observance of these instructions.

  • Page 14: D)Working Use

    ! Supervise the clothing of personnel operating the machine: a long-sleeved jacket with close-fitting cuffs, long, close-fitting trousers, heavy-duty footwear, and a protective cap or helmet should be worn. Avoid wearing loose-tailed clothing, unbuttoned jackets or torn, undone or partially zipped up items to pre- vent them from being caught up in the moving parts.
  • Page 15 WARNING. During work operations the grass is shredded and expelled by the machine. However, if the grass is damp it tends to build up inside the flail housing, thus leading to the incorrect feeding of the grass to be cut. The result is that even on short grass the engine may tend to cut out.

  • Page 16: Transportation Of The Machine

    FTER USE ! Before moving away from the machine, place the gear lever in neutral (see fig- ure 2) and switch off the engine by moving the switch (Fig.2,ref.I) to the 0 po- sition. ! For greater safety shut off the feed cock (Fig. 4). RANSPORTATION OF THE MACHINE OADING AND UNLOADING FROM A VEHICLE ! For transportation it is preferable to use a vehicle with an open bed.

  • Page 17: Operations To Be Carried Out Before Switching On

    10. D ESCRIPTION OF THE SAFETY AND GUARD SYSTEMS WARNING The safety devices must never be tampered with. It is necessary to understand how they work and safeguard their efficiency and correct operation. In the instance of doubt, prob- lems or malfunction contact your dealer. FORWARD CONTROL AND FLAIL MOVEMENT LEVERS When released both of these levers instantly disengage the transmission con- nected to them, thus automatically engaging their respective brakes, hence the...

  • Page 18: Starting And Driving The Flail Mower

    12. S TARTING AND DRIVING THE FLAIL MOWER The machine can be switched on once all the aforementioned preliminary opera- tions have been carried out. Place the feed cock in the OPEN position (direction shown by the arrow) ( fig. 4) Bring the choke to the CLOSED position for a cold start (direction shown by the ar- row, Fig.

  • Page 19: Driving The Machine

    RIVING THE MACHINE WARNING. When using the machine for the first time it is advisable to get the feel of it by executing manoeuvres on flat ground free of foreign objects. Cut in a straight line at low speed, slightly overlapping the section cut previ- ously.

  • Page 20: Cutting Tips

    13. C UTTING TIPS 1) Before commencing cutting operations, read the safety instructions given in the previous sections. 2) Before engaging flail movement using the relative lever ( figure 1, ref. B) the guard ( fig. 1, ref. F) must be fully lowered to prevent the outward projection of objects.
  • Page 21 Figure 5 B1) R . A) IGHT AND LEFT WHEEL RELEASE CABLES Inspect or move the cable sheathing slightly to ensure play of 1-2 mm between the upper part of the cable and the adjustment screw (Fig. 5,. ref. A, point a). If there is none, restore to ideal position using the relative adjustment screw.
  • Page 22 B2)F . B) LAIL HOLDER ROTOR CONTROL CABLE Make sure that there is no play between the upper end of the cable and the ad- justment screw. If there is, or if the cable has stretched, restore to ideal position using the relative adjustment screw.
  • Page 23 Figure 7 Loosen and remove the screw ( ref. B fig. 7) Remove the brake adjustment device ( ref. A fig. 7) Shorten or lengthen the threaded pin as necessary (ref. D fig. 7) by turning clock- wise or anti-clockwise. Refit the brake adjustment device ( ref. A fig. 7) in its seat and make sure that the flail rotor control lever performs its safety function cor- rectly.
  • Page 24 B3) F ORWARD CONTROL CABLE (Fig. 5 ref. C point b , and ref. D point c) Make sure that there is no play between the upper end of the cable and the ad- justment screw. If there is, or if the cable has stretched, restore to ideal position using the relative adjustment screw.

  • Page 25: Belt Replacement And Adjustment

    BELT REPLACEMENT AND ADJUSTMENT If a belt breaks or becomes worn it is advisable to change the three belts con- nected to the engine at the same time. The replacement of one or two belts alone may give rise to adjustment problems. Conversely, the blade rotor control belt is completely independent of the others, so for its replacement or adjustment carry out the following: remove the plastic guard ( fig.
  • Page 26 To access the transmission belts and rotor brake adjustment device area, re- move the plastic guard (fig. 9 ref. D) and unscrew and remove the 4 screws shown in fig- ure 9 ref.A. - Loosen the 4 screws that fix the engine to the chassis ( Fig. 10, ref. A) Figure 10 Move the engine slightly towards the rear of the machine (towards the han- dlebars) until the belt shown in fig.11 (step 1) is in the ideal position.
  • Page 28 D) C HECKING AND REPLACING THE FLAILS Always check the state of the flails before commencing work. Do not forget to switch the engine off! Checking and replacement of the flails requires the assistance of another person to hold the handlebars down to tilt up the front part of the machine. The flails will be presented as shown in figure 14.
  • Page 29 To remove the flails proceed as follows: 1. Switch off the engine and disconnect the spark plug wire 2. Adjust the cutting height to maximum 3. Open the front housing. 4. Check the state of the flails. 5. Check that the flails are not cracked, bent, excessively worn or broken. If they are, either reverse them (turning them 180°) or replace them.

  • Page 30: Maintenance And Storage

    15. M AINTENANCE AND STORAGE ! All operations on the machine must be carried out exclusively by authorized personnel. ! Always switch off the engine when checking, adjusting or servicing the ma- chine. ! Allow the machine to cool down before inspection. ! The belt guard (Fig.
  • Page 31 ! Cover the machine with a sheet after the engine and silencer have cooled down. ! Have the flail and service brakes replaced by an authorized workshop if their safety function does not work perfectly. ! It is strictly forbidden to place/leave unattended on the flail mower any poten- tially dangerous objects which may put the safety of persons or the machine at risk.

  • Page 32: Cleaning The Machine

    16. C LEANING THE MACHINE Proceed in the following order: Switch off the engine and disconnect the spark plug wire; Clean the engine and the outside of the machine with a cloth soaked in a little oil. Clean all parts of the machine, particularly the starting unit, air filter, exhaust and carburetor.

  • Page 33: Decommissioning And Scrapping

    18. D ECOMMISSIONING AND SCRAPPING After the working life of the flail mower the user must have it dismantled and its components removed as per EEC directives or in accordance with current legis- lation in force in his country, taking particular care over the dismantling of the following materials of environmental impact: plastic parts rubber parts...
  • Page 34 20. W ARRANTY The flail mower has a 12-month warranty which starts from the day of purchase, (or up to 50 hours' service, if for individual use) or 6 months (or up to 50 hours' service, if for commercial use) excluding the engine, for which the warranty sup- plied by its manufacturer applies.
  • Page 35 21. CE marking The plate bearing the CE mark gives the main characteristics and information for the identification of the flail mower. • Manufacturer's details • Machine model • Serial number • Year of construction • Capacity in kW • Weight in kg The above information must not be altered or modified in any way.

  • Page 36: Troubleshooting

    22. T ROUBLESHOOTING The following table illustrates some problems which may arise during operation. FAULT CAUSE ACTION Grass ejection insufficient 1. Grass wet Wait until the grass has dried 2. Grass too long Go over the grass twice, changing the cutting height 3.
  • Page 37 FAULT CAUSE MEASURES TO BE TAKEN Engine sluggish at switch on accelerator not in start-up 1. move the accelerator to the position intermediate position Choke not closed 2. Close the choke when cold. 3. Check the fuel tank and Petrol does not arrive remove any water or sedi- ment.
  • Page 38 NOTES _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________...

  • Page 39: Ce Declaration Of Conformity

    Stuttgarter Str. 41 D-71069 Sindelfingen declares under its own responsibility that the new machine type: FLAIL MOWER model: 526M with GX 200 engine serial number : No.000763 to 00764 year of construction: 2004 described as follows: Machine for agricultural use for the cutting of shoots, grass and brushwood conforms to the Essential Health and Safety Requisites of Directive 98/37/CEE and sub- sequent amendments.
  • Page 41 F088000 1/12...
  • Page 43 F088100 2/12...
  • Page 45 F088200 3/12...
  • Page 48 F088300 4/12...
  • Page 50 F088400 5/12...
  • Page 53 F088500 6/12...
  • Page 55 F088600 7/12...
  • Page 57 F088700 8/12...
  • Page 59 F088800 9/12...
  • Page 61 F088900 10/12...
  • Page 64 F089000 11/12...
  • Page 66 F089100 12/12...
