Summary of Contents for Solo 589
-
Page 1: Instruction Manual

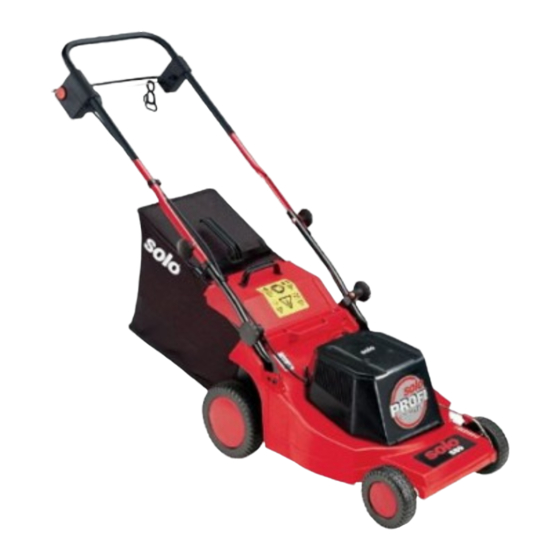

Instruction manual Lawn Mowers Original instructions Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 9 589 118 english 05/2009... - Page 2 Please read the owners manual carefully and familiarize yourself with the correct Wear protective head gear use of the SOLO lawn mower prior to operating the lawn mower for the first time. Please observe all instructions, recommendations and Observe mowing hours explanations.
-
Page 3: Table Of Contents
8. Technical data............................. 14 9. Accessories............................14 10. Parts subject to wear and tear......................15 11. Guarantee ............................15 1. Type plate a: Type designation SOLO KLEINMOTOREN GmbH 71069 SINDELFINGEN b: Serial number Typ 589 Kennz. 03 c: Build year... - Page 4 Standard delivery ; Control and function elements 2. Standard delivery • Lawn mower • Grass catcher frame • Grass catcher • 2 pcs. Star handles M8 • 2 pcs. Washers 8.4 dia. • 2 pcs. Coach bolts M8x45 • Owners manual •...
-
Page 5: Correct Use
4. Safty guidelines 4.1 Correct use The SOLO lawn mower is intended to be used only for private home or hobby gardens. The lawn mower is not to be used in public facilities, parks, sports centers or for agricultural and forestry purposes. -
Page 6: Prior To Mowing
Safty guidelines 4.4 Prior to Mowing • Prior to using the mower, always check the condition of the cutter blade and blade nut. Damaged blades, blade holder and fan wheels have to be replaced and balanced by an authorized workshop. Adhere to fitting instructions of the manufacturer. -
Page 7: Service And Storage
SOLO replacement parts, or parts that were not authorized by SOLO, have been used. In addition we are not liable for any damage that may occur if repair work was performed by any source other than the Customer Service or an authorized Service Center. -
Page 8: Assembly
Preparing the equipment for use 5. Preparing the equipment for use 5.2 Grass Catching Device Install and remove catcher only with 5.1 Assembly switched off mower! Fig. 3a Your lawnmower will be ready for use in only a few steps. Securing the handle: The lower handle part is secured with handle pins (8) and firmly held in place by the clamping block... -
Page 9: Adjusting Cutting Height
Preparing the equipment for use 5.3 Adjusting cutting height The mower is equipped with a continuously adjustable cutting height of approx. 30 - 75 mm (approx. 1 - 3 inches). The height adjustment for all wheels is accomplished by the central adjustment (10). -
Page 10: Starting The Motor / Stopping The Motor
Mowing hints 6. Mowing hints 6.1 Starting the Motor / stopping the Motor When mowing, please observe the safety Fig. 7 recommendations which are part of this owners manual! Important Note: The time and duration when lawn mowers can be operated may be subject to local ordinances. -
Page 11: Mowing With Grass Catching Device
4 to 5 weeks, so that the lawn increases in width and density. Attention: SOLO Lawn mowers with rear eject are especially suited for the collection of leaves. However, this use is only permitted on lawns where all foreign objects, such as stones, shards, metal objects, twigs, etc. -
Page 12: Cleaning The Mower
After each use, the mower needs to be thoroughly disassembly observe the sequence for the cleaned. Special attention needs to be given to the reassembly of the parts. We recommend SOLO lower side, the blade and the cutting area circle. bearing grease, part no. -
Page 13: Mowing Blade
The cutting edge of the blade is only be resanded up to the imprinted markings. When replacing any blade parts only SOLO spare parts are to be used. The identification No. on the blade has to agree with the Order No. for the replacement. - Page 14 (DIN 45635) measured/ garanted 92 dB(A) / 94 dB(A) Weighted acceleration value a (DIN 45675) < 2,5 m/s 9. Accessories Part no. Mulch set cutting deck insert and special blade 59 00 826 SOLO bearing grease 00 83 175 ENGLISH 14...
- Page 15 Parts subject to wear and tear ; Guarantee 10. Parts subject to wear and tear Various parts are subject to application-specific wear or to normal wear and must be replaced in good time if necessary. The following parts are subject to normal wear and are not covered by the manufacturers guarantee: •...
- Page 16 Made in Germany SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-301-130 +49-7031-301-149 info@solo-germany.com export@solo-germany.com...
