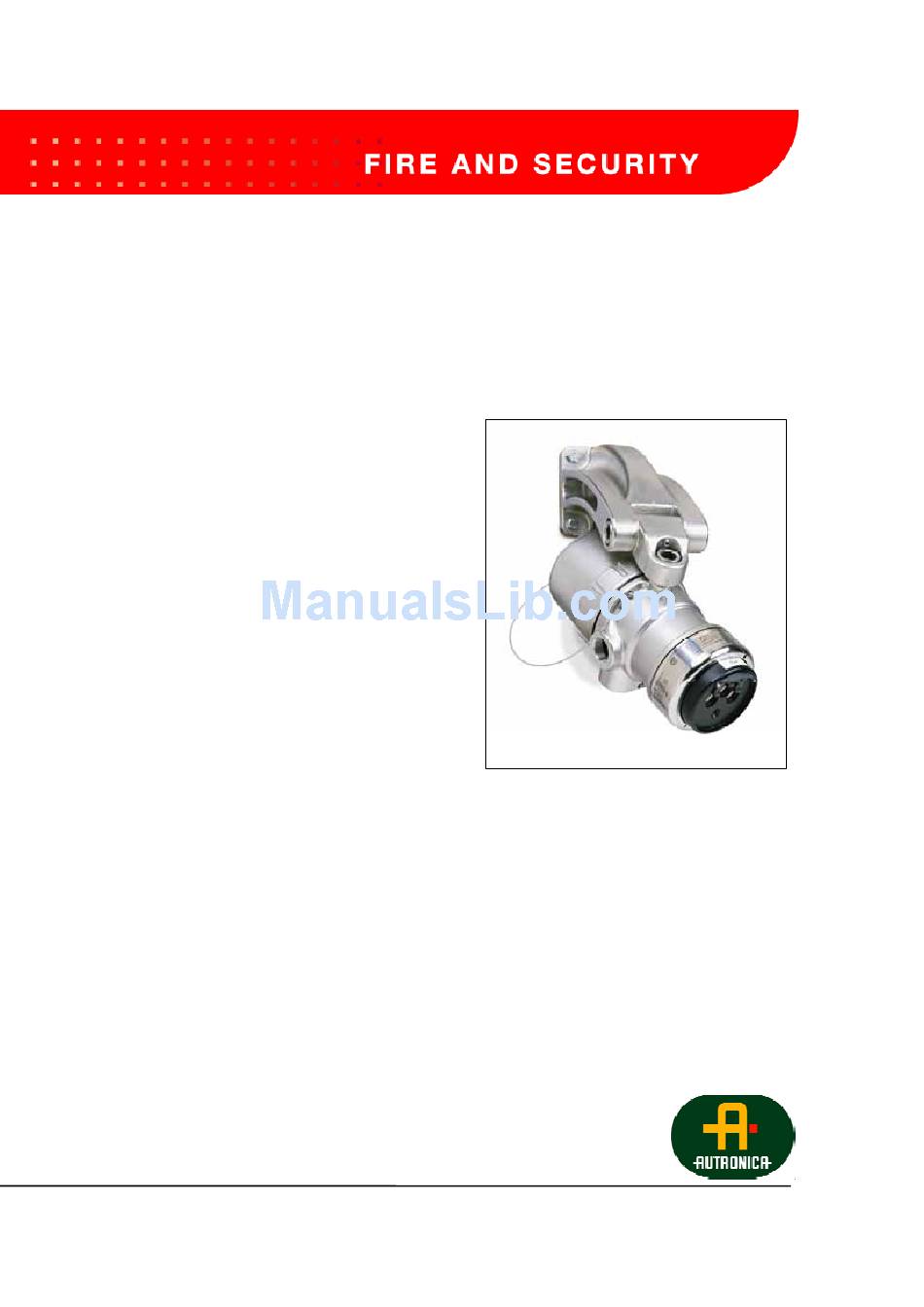

- Page 1 AutroFlame X33AF Multi-spectrum IR flame detector Addendum Protecting life, environment and property... 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12...
- Page 2 This publication, or parts thereof, may not be reproduced in any form, by any method, for any purpose. Autronica Fire and Security AS and its subsidiaries assume no responsibility for any errors that may appear in the publication, or for damages arising from the information in it.
-
Page 3: Table Of Contents
12. Status Info Menu ...............16 13. Hardware Menu ..............17 14. Oi Menu ................18 15. Detector Settings ..............19 16. HISTORY MENU ..............20 17. Command Menu ..............21 Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 1... -
Page 4: Addendum, Autroflame X33Af 116-P-X33Afaddendum/Ygb, Dec P/N 95-8624, 2007-11-12, Autronica Fire And Security As Page
19. Device Setup Menu ............22 20. Configuration Menu ............23 21. Calibration Menu...............23 22. Write Protect ..............24 23. HART Setup ...............25 24. Set Real Time Clock ............25 25. Reader’s comments............27 Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 2... -
Page 5: Introduction
1.3 Other reference documents For further information about the AutroFlame X33AF multispectrum IR flame detector, refer to the following: Manual Article no. Datasheet 116-P-X33AF/CE Handbook 116-P-X33AF/DE Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 3... -
Page 6: Interconnecting The Communicator With The Detector
Communicator displays the Main menu. If no device is found, check the connections and verify the presence of a minimum of 250 ohms load resistance in series in the loop. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 4... - Page 7 *Nominal input impedance of PLC = 250 ohms. Maximum loop impedance including input impedance of PLC = 875 ohms. Figure 5—Wiring the X33AF for Benchtop Testing/Programming Using HART Protocol Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 5...
- Page 8 NOTE This addendum covers HART wiring only. Refer to the device instruction manual for NFPA-72 compliant releasing wiring diagrams. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 6...
-
Page 9: Hart Device Description Language
A complete listing of the HCF DD Library is available for download in manufacturer and device type sequence at www.ccsi.com/hart. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 7... -
Page 10: Detector Wiring
Total power: 17 watts at 32 vdc with EOL resistor installed and heater on maximum. EOL resistor must be ceramic, wirewound type, rated 5 watts minimum, with actual power dissipation not to exceed 1.5 watts. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 8... -
Page 11: Hart Menu Structure
HART Menu Structure 5. HART Menu Structure Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 9... -
Page 12: X33Af Root Menu
4) Command Menu This menu allows the operator to initiate a manual Oi test and also to perform various reset/clear functions. 5) Device Setup Menu This menu allows various setup, configuration and calibration functions. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 10... -
Page 13: Device Info Menu
3) Status Info Menu Current operating status and/or diagnostic information. 4) Detector Settings Factory settings relating to relay operation, detector sensitivity and response. 5) History Menu Display log files: Alarm, Fault, General. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 11... -
Page 14: General Info Menu
9) Write Protect (Y/N) This indicates whether variables can be written to the device, or whether commands that cause actions to be performed in the device can or cannot occur. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 12... -
Page 15: Hart Info Menu
8) Num Req Preams HART specific synchronization messages. 9) HART PV Menu Display HART specific primary variable (PV) items. 10) Condensed Status Device status condensed for HART handheld display. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 13... -
Page 16: Hart Pv Menu
12) PV RNGE Unit Not implemented for X33AF. 13) PV URV Not implemented for X33AF. 14) PV LRV Not implemented for X33AF. 15) PV SNSR S/N Not implemented for X33AF. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 14... -
Page 17: Condensed Status
HART HW Fault (HART hardware fault) Intern Comm Fault (Modbus communication fault) Incompatible Fault 5) Operating Mode Fault Fire Alarm 6) Operating Mode 2 Spare Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 15... -
Page 18: Status Info Menu
HART Interface Board. 10) Voltage Fault (Y/N) Detector operating voltage is out of tolerance. 11) Hardware Menu Refer to sub-menu. 12) Oi Menu Refer to sub-menu. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 16... -
Page 19: Hardware Menu
6) Voltage Actual detector supply voltage (must be 18 to 32 Vdc). 7) Volt Range Fault Supply voltage is out of range. Operating voltage must be 18 to 32 Vdc. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 17... -
Page 20: Oi Menu
7) Oi Cal Fault An Oi calibration fault has occurred. 8) Manual Oi Active A manual Oi test is in progress. 9) Manual Oi Fail The detector has failed the last manual Oi test. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 18... -
Page 21: Detector Settings
(NDE) or normally energized (NE). 7) Sensitivity (VH/H/M/L) Detector sensitivity setting: Very high, High, Medium, or Low. 8) Response (.5/3/6/9) Fire alarm processing time in seconds. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 19... -
Page 22: History Menu
2) Fault Log Scroll through 32 Fault Logs with time, date and temperature stamp. 3) General Log Scroll through 32 General Logs with time, date and temperature stamp. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 20... -
Page 23: Command Menu
6) Clear Data Log This function resets the HART data log history. To view the logs, go to “Device Info Menu” and select “History Menu”. 7) HART Command Menu This menu performs various diagnostic and/or service functions. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 21... -
Page 24: Hart Cmd Menu
1) Configuration Menu 2) Calibration Menu 3) Write Protect 4) HART Setup 5) Set Real Time Clock Refer to the appropriate sub-menus for details. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 22... -
Page 25: Configuration Menu
The procedure takes approximately two minutes. 5. Upon completion of Oi calibration, remove the cover and return all alarm outputs to service. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 23... -
Page 26: Write Protect
3) Write Protect (Y/N) This indicates whether or not Write Protect is enabled. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 24... -
Page 27: Hart Setup
2) Minutes 0 to 59. 3) Hours 0 to 23. 4) Date 1 to 31. 5) Month 1 to 12. 6) Year 0 to 99. Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 25... - Page 28 Set Real Time Clock Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS Page 26...
-
Page 29: Reader's Comments
Please help us to improve the quality of our documentation by returning your comments on this manual: Title: Addendum, AutroFlame X33AF Ref. No.: 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12 Your information on any inaccuracies or omissions (with page reference): Please turn the page Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS... - Page 30 Please send this form to: Autronica Fire and Security AS N-7483 Trondheim Norway Tel: + 47 73 58 25 00 Fax: + 47 73 58 25 01 www.autronicafire.com Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS...
- Page 31 Reader’s comments Addendum, AutroFlame X33AF 116-P-X33AFADDENDUM/YGB, DEC P/N 95-8624, 2007-11-12, Autronica Fire and Security AS...
- Page 32 Autronica Fire and Security is an international company, headquartered in Trondheim, one of the largest cities in Norway. The company is owned by United Technologies Corporation and employs more than 319 persons with experience in developing, manufacturing and marketing of fire safety equipment. Our products cover a broad range of systems for integrated solutions, including fire detection systems, integrated fire and gas detection systems, control and presentation systems, voice alarm systems, public address systems, emergency light systems, plus suppression systems.
