Facade protection
with AutroFlame BG-201 IR flame detector

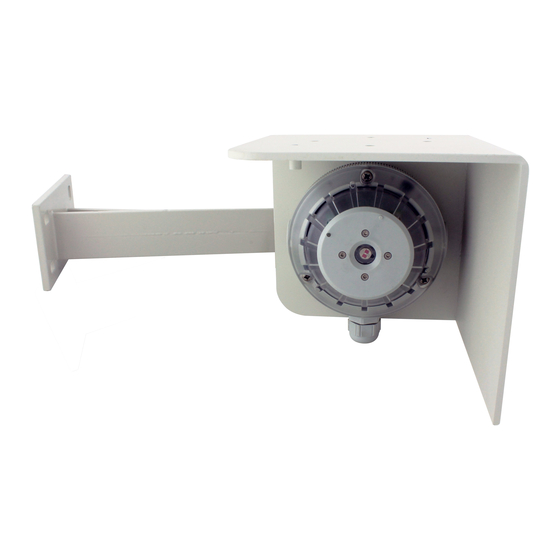

The flame detector is mounted on a discreet bracket protecting the detector from weather and
nusiance alarm sources. The bracket also limits the detector's field of view.
The mounting arm is adjustable. In this way, the detector's field of view can be adapted to
individual needs, both horizontally and vertically. In this way, the flame detector can point to
the facade only, without any disturbance from the surroundings.

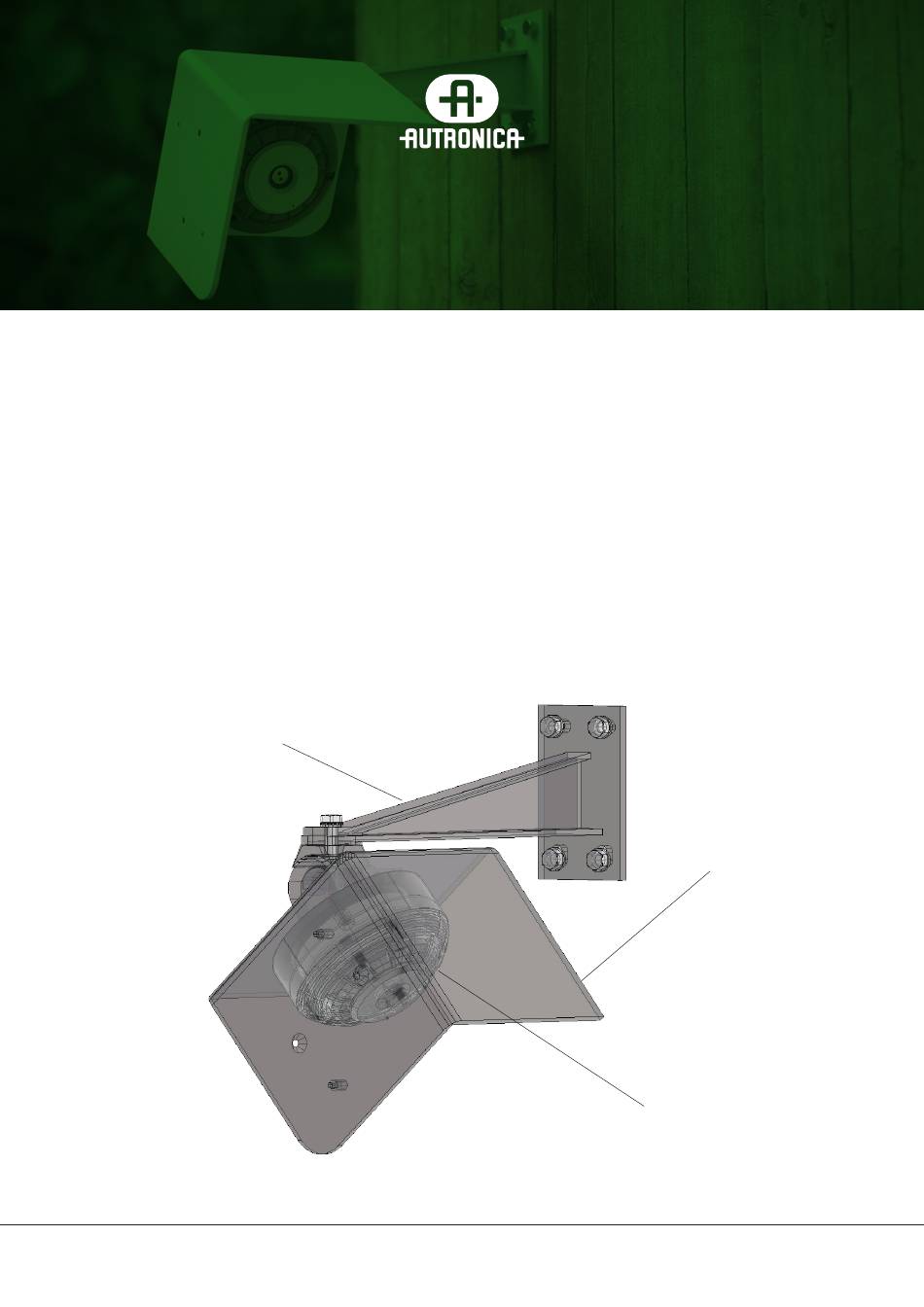

Content in package
Adjustable robust
mounting arm that
can be angled in any
direction
Mounting instructions
FACADE PROTECTION
116-P-MOUNTFACADEKIT/WGB, Rev. B, 2021-01-11
Bracket for weather
protection and
limiting field of view
Addressable
AutroFlame IR flame
detector
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Autronica AutroFlame BG-201
Summary of Contents for Autronica AutroFlame BG-201
- Page 1 Mounting instructions FACADE PROTECTION Facade protection with AutroFlame BG-201 IR flame detector The flame detector is mounted on a discreet bracket protecting the detector from weather and nusiance alarm sources. The bracket also limits the detector’s field of view. The mounting arm is adjustable. In this way, the detector's field of view can be adapted to individual needs, both horizontally and vertically.
- Page 2 Table 1 specifies maximum heights for detector mounting. We recommend that the detector is mounted at a height of between 4 and 6 meters, for practical and coverage reasons. Following Autronica's recommendations (table 1) gives a minimum of 2 meters coverage from the bottom of the wall and upwards.
- Page 3 Facade protection kit Complete bracket w/mounting arm, coupled with AutroFlame IR flame detector BG-201. 116-BG-201F Recommended mounting (Horizontal) The facade protection solution is best applied by tilting the bracket 50° downwards and up to 45° inwards (direction wall). A 45° angle ensures that the outer line of view runs along the wall. This ensures a protected area from behind the vertical axis and all along the detector’s field of view.
- Page 4 Facade protection kit Complete bracket w/mounting arm, coupled with AutroFlame IR flame detector BG-201. 116-BG-201F A facade protection kit covers up to 20 meters of a wall. The ground coverage depends on the mounting of the detectors as shown in Table 1. See examples below (top view of buildings): Example 1 Example 2...
- Page 5 Facade protection kit Complete bracket w/mounting arm, coupled with AutroFlame IR flame detector BG-201. 116-BG-201F Alternative mounting (Vertical) The facade protection solution can also be mounted with a vertical center line. The coverage area of the ground on each side of the center line will then be equal to the mounting height. The formula is as follows: Ground coverage area (m) = (mounting height x 2) –...
- Page 6 Facade protection kit Complete bracket w/mounting arm, coupled with AutroFlame IR flame detector BG-201. 116-BG-201F Assembly instructions Attach the bracket to the mounting arm with the supplied screws, washers and nuts. Attach the detector base to the bracket before attaching the detector head to the detector base. Detector head NOTE! There is a mark in the plastic that indicates...
- Page 7 Facade protection kit Complete bracket w/mounting arm, coupled with AutroFlame IR flame detector BG-201. 116-BG-201F Right hand mounting No. Amount Name Mounting arm Screws M8 x 1 x 50 Lock Washer Washer ST8 Nut M6 Washer ST6 Nut M8 Bracket Screw M6 lowered Detector base Screw M4 x 16 x 4.8...
- Page 8 Facade protection kit Complete bracket w/mounting arm, coupled with AutroFlame IR flame detector BG-201. 116-BG-201F Left hand mounting No. Amount Name Mounting arm Screws M8 x 1 x 50 Lock Washer Washer ST8 Nut M6 Washer ST6 Nut M8 Bracket Screw M6 lowered Detector base Screw M4 x 16 x 4.8...
