Preparing the Cabinet –

Uncrating and Inspection

Remove all crating material before operating.
Carefully inspect cabinet for hidden damage. If
damage is discovered, file your claim immediately
with the transport company. Perlick is not
responsible for damage in transit.

Plumbing

No plumbing connections are required. Condensate
from the cooling coil is automatically evaporated
through a condensate pan located in the
condensing unit section.

Electrical

The cabinet must be connected to a separately
fused power source (see Electrical Specification
Plate) and grounded in accordance with National
and Local Electrical Codes.
CAUTION: Do not attempt to operate the equip-
ment on any other power source than that listed on
the Electrical Specification Plate.

Placing the Cabinet

To assure maximum performance, fresh air must
be allowed to circulate through the machinery
compartment. Do not place anything in front of the
cabinet that would obstruct air flow at these grilles.
Do not place the unit in an unventilated small room.
Cabinet should be leveled front to back and side
to side.

Installing Casters or Legs

Attach casters or legs to the mounting bracket
with the lockwashers and
provided. Attach bracket and leg/caster assembly
to the side of the cabinet base using the
head self-tapping machine screws provided.

Anti-tip

(without Legs or Casters)
To prevent the cabinet from tipping forward and to
provide a stable installation, the cabinet must be
secured in place with an anti-tip device.
A set of metal anti-tip brackets and installation
screws (#10- 3 ⁄4" wood screws) are supplied. These
brackets should be attached to the floor, at the
back of the cabinet; each bracket located to catch
each rear leveling leg when the cabinet is pushed
backward into position.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
Single Door Freezer
(optional)
1 ⁄ "–20 hex head nuts
4
1 ⁄ "–20 hex
4
THE ANTI-TIP BRACKETS MUST CATCH EACH
OF THE LEVELING LEGS TO HAVE A STABLE AND
SAFE INSTALLATION.
Some installation sites might need to be modified
to provide a secure surface for attaching the brack-

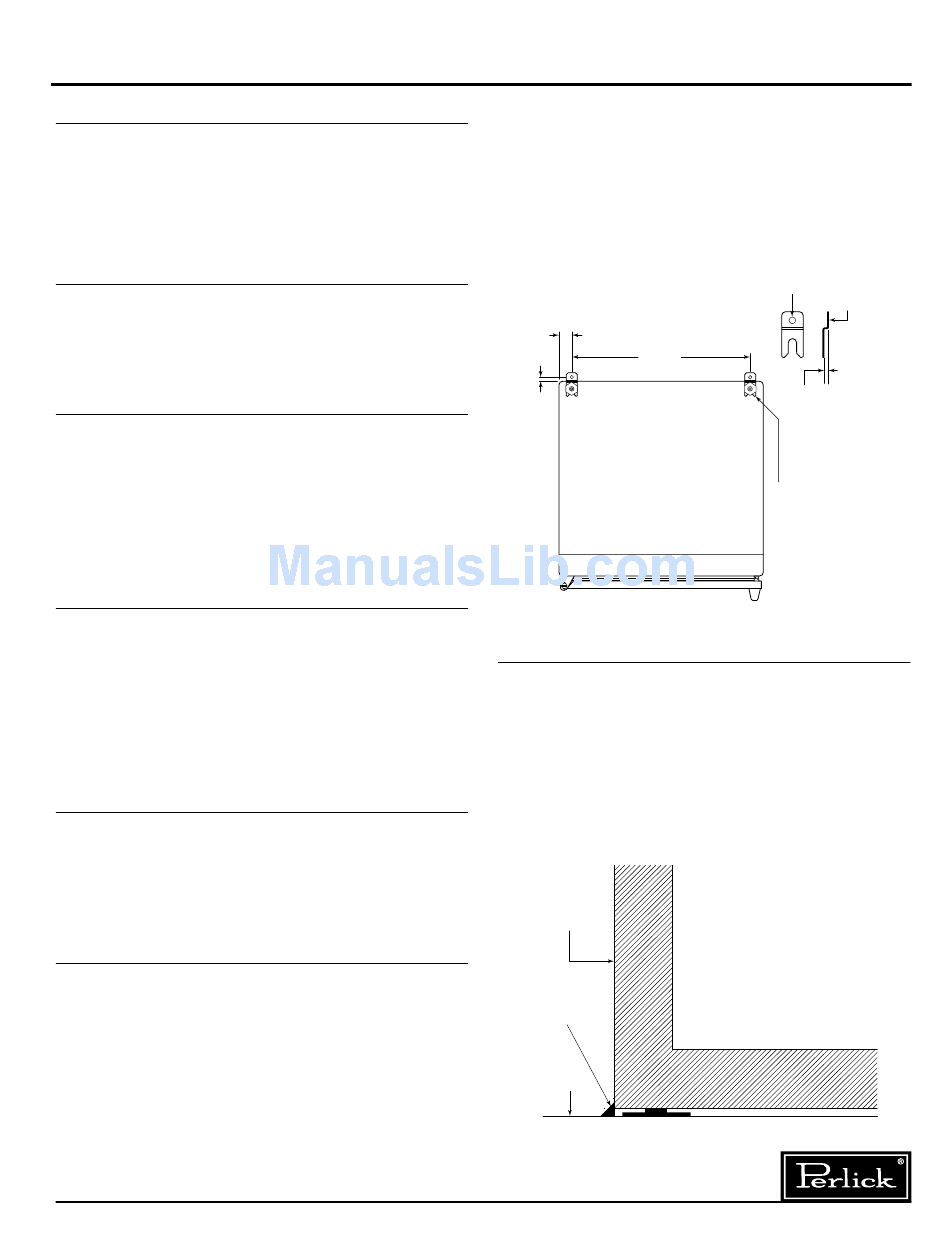

et. Refer to the illustration below for anti-tip mount-
ing bracket locations.
note: Do not extend leveler leg
more than 3/4" out of base. Do not
shim or pad to obtain levelness.
1 1/2"
20 7/8"
7/16"
toP VieW
Sealing the Cabinet
For sanitation purposes, it may be necessary to
seal the base of the cabinet to the floor. This can
be accomplished by laying a bead of silicone seal-
ant between the base of the cabinet and the floor
as shown by the figure below.
When sealing the cabinet to the floor, make sure
that the louvered front grille plate can still be
removed for condenser maintenance and cleaning.
Cabinet
beaD siLiCon
seaLer (rtV)
FLoor
3
surface
Ø 3/8" mounts
to floor.
Cabinet must
have at least
5/16" clearance
from floor to
accomodate
brackets.
shown with leg
leveler engaged
in anti-tip bracket.
