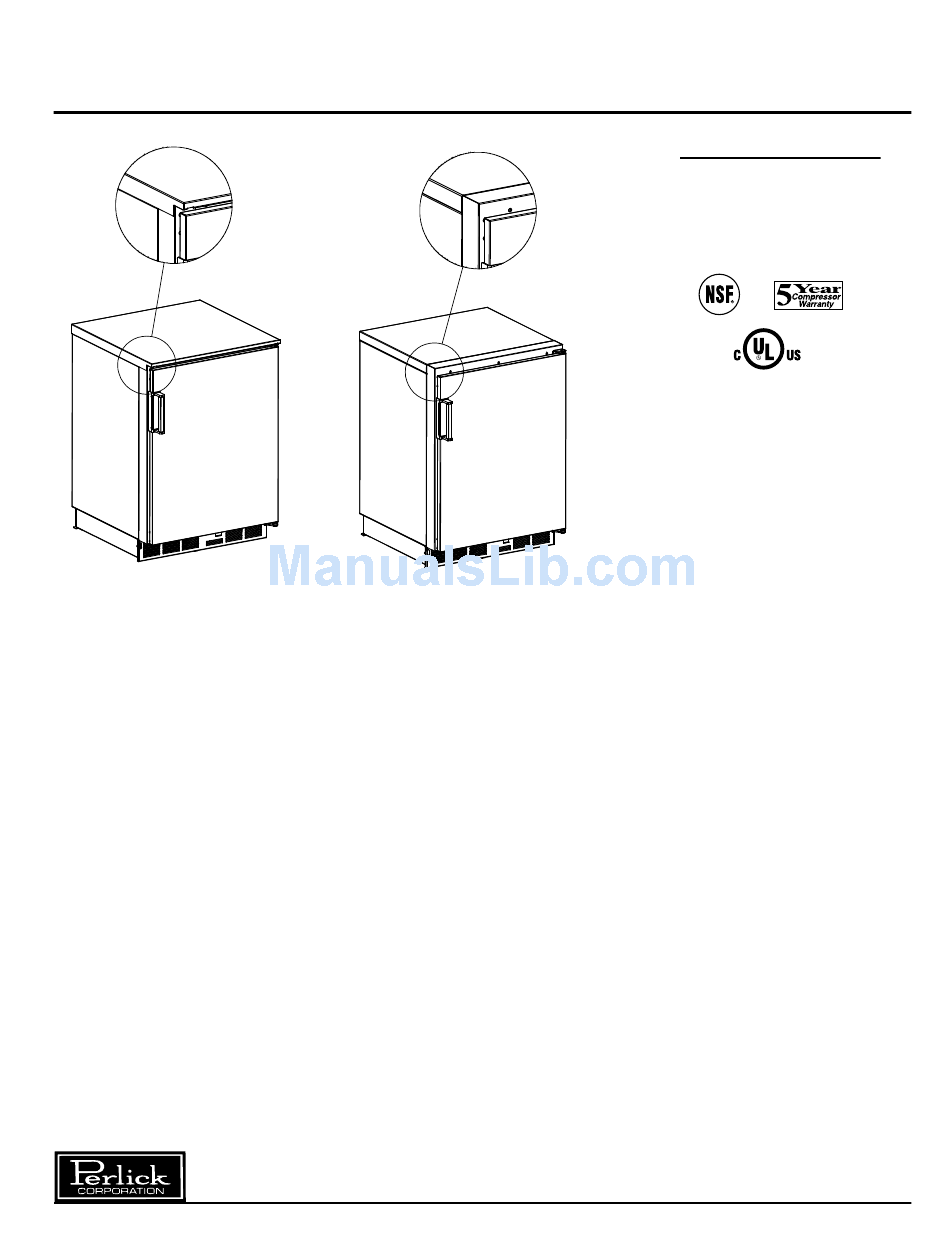

INSTALLATION AND OPERATION INSTRUCTIONS
SINGLE DOOR FREEZER
F24S
IMPORTANT INFORMATION
This manual has been prepared to assist you in the
installation of your Freezer and to acquaint you with
its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If, however service is required, call
Perlick at 1-800-777-7267 or your dealer who can
provide you with a list of qualified service agents. For
your own protection, never return merchandise for
credit without our approval.
We thank you for selecting a Perlick product
and assure you of our continuing interest in
your satisfaction.
IMPORTANT WARRANTY INFORMATION
A Warranty card is enclosed that must be completed
and mailed to the Perlick Corporation in order to
register the warranty. If the card is not returned to
Perlick, the warranty period will begin from the date
the equipment is shipped from the factory.
8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414-353-7060 • Fax 414-353-7069
F24N
Toll Free 800-558-5592 • E-Mail: Perlick@Perlick.com • www.Perlick.com
MODEL NOS.
Table of Contents
Cabinet Specifications ..........................................2
Installing
Uncrating and Inspection ................................3
Plumbing .........................................................3
Electrical..........................................................3
Installing Shelves ............................................3
Installing Casters or Legs................................3
Placing The Cabinet........................................3
Sealing the Floor.............................................3
Defrost System .....................................................4
Temperature Control .............................................4
Cleaning ................................................................5
Replacement Parts ............................................6/7
Wiring Diagram .....................................................8
F24N
F24S
Form No. Z2255
Rev. 4.19.05
