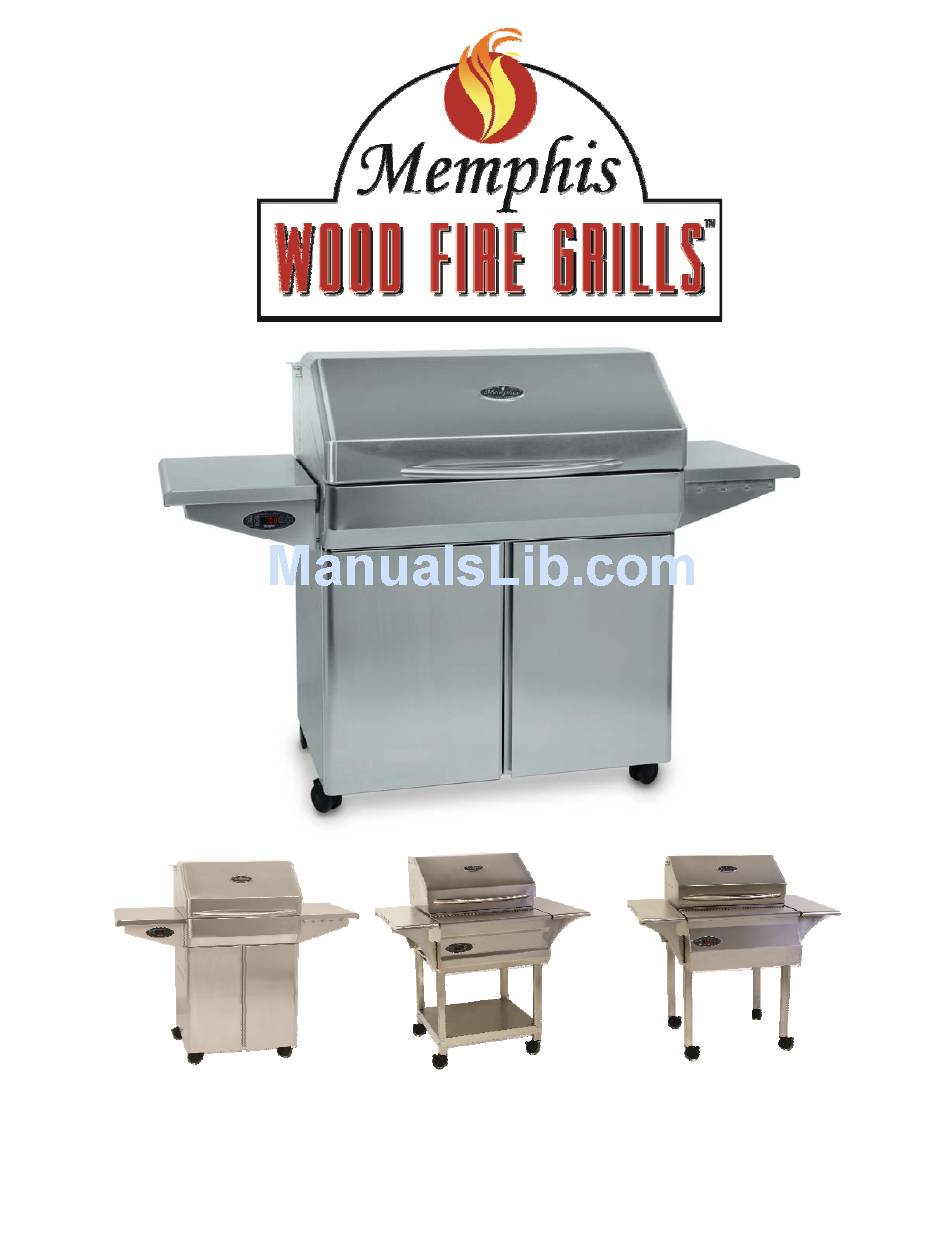

  • Page 1 Memphis Owner’s Guide Elite, Pro, Advantage, Select, Elite Built‐In, Pro Built‐In VG0970_D1 9/11/12...
  • Page 2 Keep in mind that your Memphis Wood Fired Grill is so much more than a grill. It’s a 3‐in‐1 outdoor cooking center that provides the convenience, wood‐fire flavors and versa lity of three appliances: high temperature grill, low ‘n’...

  • Page 3: Table Of Contents

    Contents  General Warning: Read all Safety Informa on Prior to Opera ng Grill ………………………….. How Your Memphis Wood Fired Grill Works…………………………………………………………………... Read Prior to Ligh ng! ……………………………………………………………………………………………………. Intelligent Temperature Control ‐ Overview …………………………………………………………………… Using Your Memphis Wood Fired Grill ……………………………………………………………………………...

  • Page 4: General Warning: Read All Safety Informa On Prior To Opera Ng Grill

    Use heat‐resistant barbeque mi s or gloves when opera ng this unit.  Do not move or clean your Memphis Wood Fired Grill while opera ng or while the grill is hot. Make sure the fire is completely out, and that the grill is completely cooled before transpor ng or cleaning the grill.

  • Page 5: How Your Memphis Wood Fired Grill Works

    How Your Memphis Wood Fired Grill Works: How Your Memphis Wood Fired Grill Works: Your Memphis Wood Fire Grill represents a new way of outdoor cooking. It is a true high quality convec on oven that also has grilling and smoking capability. It combines many unique features with me‐proven pellet‐burning technology. Together they give you controlled, quick, savory and repeatable cooking results. The perfect cooking experience starts with filling your hopper with all‐natural, 100% cer fied hardwood BBQ pellets.

  • Page 6: Read Prior To Ligh Ng

    This tool can be routed through the 5/16” hole in the side of the Memphis Select or Advantage, or under the hood gasket on the Elite, Pro or Built‐In to prevent damage to the wires. See “Memphis ITC Meat Probe” on page 8 for further instruc ons on the use of a meat probe.

  • Page 7: Intelligent Temperature Control - Overview

    Intelligent Temperature Control  Intelligent Temperature Control  ‐     Overview  Overview    ‐   About the ITC:   The ITC performs similarly to the control on your kitchen oven. The ITC automa cally compensates for different ambient condi ons, providing year‐round grilling and more accurate temperature control. Se ng the control is simple and intui ve, and offers the user a precise and highly‐customizable grilling experience.

  • Page 8: Using Your Memphis Wood Fired Grill

    Plug your Memphis Wood Fired Convec on Grill into the nearest 110 Volt AC outlet*. (Note: Use a GFI Outlet. We strongly recommend that if your home does not have a GFI outlet that you install one, or use a high quality outdoor surge protector.

  • Page 9: Opera Ng Instruc Ons

    Conver ng Your Grill’s Temperature Units    Your Memphis grill is capable of working in both Metric and English units. To switch between Fahrenheit and Celsius on the ITC, simply press and hold the UP and DOWN arrow keys at the same me while the grill is on.
  • Page 10 Smoke Mode: Smoking is a varia on on grilling and is one of the unique advantages of your Memphis Wood Fired Grill. The temperature you choose will largely depend on what is being smoked (see Appendix B‐C) and your personal preferences.
  • Page 11 This is made easier with the use of the Memphis Genie tool (VG1594).     2.  Remove The Insert.  The insert is not fastened, and can be easily removed using a Memphis Genie tool, a spatula, or a pair of tongs. Note: Do not a empt to remove the insert with your hands when the grill is hot.   ...

  • Page 12: Memphis Itc Meat Probe

      The Memphis ITC Meat Probe, which comes standard with the Elite, Pro and Built‐In models, and can be purchased separately for other models, is a must‐have accessory for any griller. The ITC Meat Probe conveniently interfaces directly with your grill’s ITC control and gives you an easy way to ensure your food is cooked to your predetermined temperature.

  • Page 13: Informa On About Bbq Cooking Pellets

    Informa on About BBQ Cooking Pellets  Informa on About BBQ Cooking Pellets      Flavored pellets come in a variety of flavors such as Mesquite, Alder, Apple, Hickory, Maple and Cherry. They contain approximately 8,200 BTU’s of heat per pound and have very li le ash and moisture content. Always use Premium BBQ Pellets in your grill.

  • Page 14: Periodic Grill Maintenance

    fit       Grill Cover    We recommend that you cover your Memphis Grill when   not in use. Ensure that your grill is completely off and   cooled before covering.  ...
  • Page 15 Periodic Grill Maintenance  Periodic Grill Maintenance      Frequency Once A  Every Use Every 3 Uses Once A Week Month Once A Year Scrape Cooking  Grates Check grease pan Clear Igniter Holes Clear Burn Pot Wipe down  exterior surfaces Scrape off  flavorizer Clean Grease Trays Wipe Off RTD Scrape/Vacuum  Ash From Interior Vacuum fine pellet  dust from hopper Wipe down,  vacuum out Air  VG0970_D1 9/11/12...

  • Page 16: Recommended Grilling Accessories

    Spatulas  Disposable Grease Trays  A must for turning those delicious Your Memphis grill u lizes at least one grease tray that burgers and fish filets. Again, look for a has been specially designed to accommodate disposable long, sturdy handle and the widest aluminum pans for easy and convenient clean‐up.

  • Page 17: Food Handling And Safety

    Recommended Grilling Accessories (Con’t)  Recommended Grilling Accessories (Con’t)      Bas ng Brush  You may need a selec on of these, as you should not use the same brush in two different marinades. Use to apply your favorite sauces and marinades to foods on the grill. Again look for one with a long handle to keep you hands away from the heat.

  • Page 18: Grilling Times And Temperatures

    Grilling Times and Temperatures Grilling Times and Temperatures     Approximate Cooking/Grilling Times for   Memphis Wood‐Fired Convec on Grill Always use a meat thermometer to be sure meats and poultry are cooked to a safe internal temperature. Serious Health risks  may exist with undercooked meat!. Approximate cooking mes are from various sources, and are based on meat at refrigerator temperatures.
  • Page 19 Grilling Times and Temperatures Grilling Times and Temperatures     CONTROL  APPROXIMATE  INTERNAL   ITEM SIZE SET POINT GRILLING TIME TEMP = ° F VEAL Chops, steaks 1" thick 450°‐ 700° 5 to 7 min./side 145 to 160 Roast, boneless (indirect heat) 2 to 3 lbs. 350°‐ 375° 18 to 20 min./lb. 145 to 160 VENISON Roast, saddle, or leg...

  • Page 20: Smoking Guidelines

    Smoking Guidelines Smoking Guidelines     Approximate Smoking Times for   Memphis Wood‐Fired Grill Always use a meat thermometer to be sure meats and poultry are cooked to a safe internal temperature and doneness. Serious  Health risks may exist with undercooked meat!. Approximate cooking mes are, from various sources and are based on meat at refrigerator temperatures.

  • Page 21: Smoking Sugges Ons

    Memphis Grills can smoke una ended con nually for up to 62 hours, depending upon the model.  If you wish to smoke at lower temperatures both the Memphis Elite and Pro are calibrated to allow you to go as low as 180° F.

  • Page 22: Troubleshoo Ng

    Troubleshoo ng And Error Messages In the event that your Memphis grill encounters any kind of issue or problem in opera on, please con- sult this chart. If the solu ons offered here are insufficient to resolve the ma er, please contact your dealer, or Hearthland Products directly at the number found at the end of this manual.
  • Page 23 Troubleshoo ng: ITC Circuit Board Fuse Replacement Troubleshoo ng: ITC Circuit Board Fuse Replacement     The ITC, or Intelligent Temperature Control system on your Grill is 2 way logic system with microprocessor technology. In the interest of protec on from power surges and electrical shorts, the ITC u lizes a 5 Amp, 120 Volt Fast‐Blow fuse*. This simple and inexpensive part can be easily replaced with the following instruc ons.

  • Page 24: Limited Warranty

    Memphis Grills Limited Warranty  This Limited Warranty covers Memphis Grill products manufactured by Hearthland Products, LLC. Products carry a five (5) year Limited Warranty from the date of purchase by the original owner against defects in mate‐ rial and workmanship. Electronic and electrical components carry a two (2) year replacement warranty when subjected to normal residen al use.
  • Page 25 Memphis Grills Limited Warranty (cont’d)  Some states do not allow the exclusion or limita on of incidental or consequen al damages, or limita ons of implied warran es, so the limita ons or exclusions set forth in this Limited Warranty may not apply to you.

  • Page 26: Warranty Registra On Form

    _______________________________________ Serial Number* (last 4‐5 digits) ____________________________________ Send Warranty Registra on and dated sales receipt to: Hearthland Products, LLC. Memphis Grill Warranty Registra on 9111 Grand Ave South Bloomington, MN 55420 Contact Hearthland Products Customer Service with any ques ons.
  • Page 27     NOTES:  VG0970_D1 9/11/12...
  • Page 28     NOTES:  VG0970_D1 9/11/12...
  • Page 29 Memphis Elite Built­In  Model Number VGB0002  Serial Numbers: 1534‐Current  Appendixes and Model‐Specific Information  Contents  Unique Features to the Memphis Elite  1  Memphis Elite Open Flame Flavorizer Insert VG4407 (OPTIONAL)  2  Unpacking and Assembly  3  Grill Island Dimensions  4  Grill Clearance to Combustible Materials  5  Grill Exploded View  6  Grill Bill Of Materials   7  Installation Step 1‐3  8‐10  Final Assembly  11  Hardware Kit  12  Wiring Diagram (Spade Connectors)  13  VG0969_B 5/11/12...
  • Page 30  3 Drawer Collection System The Memphis Elite features a three drawer system allowing the user to collect and discard grease and ash. The center drawer is used to collect ash during normal grill use, while the two outer drawers serve the purpose of collecting grease.
  • Page 31 3: The grill is only to be operated in an OF setting while cooking over an open flame. 4: The grill is never to be operated in an open flame setting without the optional Memphis Elite Open Flame Flavorizer Insert.
  • Page 32 Unpacking and Assembling Your Memphis Wood Fired Convection Grill. *Grill requires (2) two people for safe assembly* Please note that during shipping some movement may have taken place, so a complete visual inspection is required. Be sure to inspect entire grill after removing the protective shipping carton.
  • Page 33 HEIGHT HEIGHT The Memphis Pro and Elite require a 110/120 V AC* supply. The ITC is supplied with a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong ground-type outlet, grounded to conform with the National Electrical Code, ANSI/NFPA latest edition, Canadian Electrical Code (CSA) and all local codes and ordinances.
  • Page 34 UNIT WITH STANDARD UNIT OPTIONAL HEAT SHIELD KIT VGBHSK 18” 18” 3/8” 3/8” 2” 2” 3.5” 3.5” 18” 1/8” The Memphis Built-In Heat Shield Kit (VGBHSK) MUST be used if dimension E is less than 18” to combustible materials. VG0969_B 5/11/12...
  • Page 35 Elite Built-In Exploded View   VG0969_B 5/11/12...
  • Page 36 SHOULDER BOLT VG0803 BRACKET FLAVORIZER 1/4-20 x .625 SS DS2311 VGE4403 ASSEMBLY, WITH HEX BOLT REMOVABLE INSERT (OPTIONAL) VGBHSK MEMPHIS BUILT-IN VG4401 LARGE COOK GRATE HEAT SHIELD KIT RIGHT SUPPORT VG0802 VG4406 SMALL COOK GRATE BRACKET DS4668 LEVELING FOOT VGE0151...
  • Page 37 Installation Step 1   BEFORE THE UNIT IS INSTALLED INTO THE ISLAND, SOME ASSEMBLY IS REQUIRED. FOLLOW THE STEPS LISTED BELOW. 1. REMOVE ITEM 14 (3X) FROM THE UNIT 2. FASTEN ITEMS 12 AND 24 TO THE UNIT USING ITEM 10 (10X). 3.
  • Page 38 Installation Step 2   FOLLOW THE STEPS BELOW TO PROPERLY INSTALL THE UNIT INTO THE ISLAND. THE UNIT CAN BE SUPPORTED BY EITHER THE SIDE MOUNTING BRACKETS (ITEMS 11 AND 26) OR BY THE FOUR LEV- ELING FEET (ITEM 13). 1.
  • Page 39 Installation Step 3   1. REMOVE THE ITC CONTROLLER (ITEM 22) FROM THE CONTROLLER BOX 2. MOUNT THE CONTROLLER BOX TO ITEM 21 (2X) USING ITEM 30 (4X). FASTEN THE CONTROLLER BOX TO THE DESIRED DEPTH. 3. INSTALL THE CONTROLLER (ITEM22) BACK INTO THE CONTROLLER BOX, AND FASTEN ITEM 20 AND 22 TO THE CONTROLLER BOX USING ITEM 5 (2X).
  • Page 40 Final Assembly   1. INSERT ITEM 25 ONTO THE LEFT AND RIGHT LOWER BRACKETS FOUND INSIDE THE UNIT. 2. INSERT ITEM 26 (3X) ONTO THE FRONT AND REAR SUPPORTS. 3. INSERT ITEM 27 ONTO THE LEFT AND RIGHT UPPER BRACKETS FOUND INSIDE THE UNIT. 4.
  • Page 41 Hardware Kit   ITEM NO. QTY. PART NUMBER DESCRIPTION DS4459 POLY BAG, 9" X 12" X 2 DS2186 #10 SELF-TAPPING SCREW SS DS2311 1/4-20 x .625" SERRATED HEX SCREW VG0956 MEAT PROBE DS4219 CLEAR ZIP-LOC BAG 5" X 8" VG0911 120V POWER CORD* VG0911E 230V POWER CORD*...

  • Page 42: Wiring Diagram

    Wiring Diagram Spade-End Connectors  VG0969_B 5/11/12...
  • Page 43               Intentionally Left Blank ...
