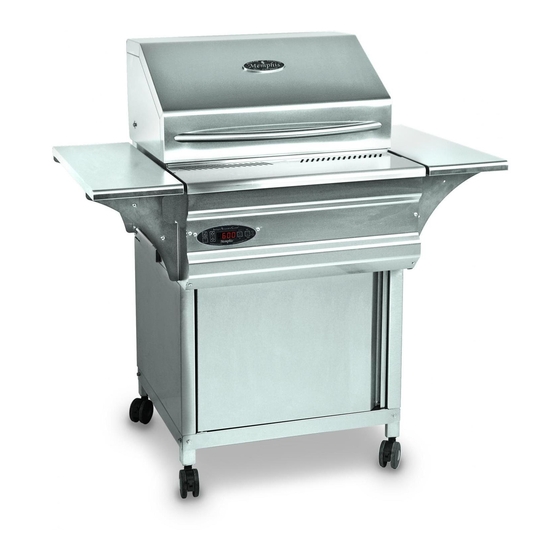

Wood fire convection grill
Hide thumbs Also See for Wood Fire Convection Grill:

Advertisement

Quick Links

Memphis Advantage
Wood Fire Convection Grill
Owner's Manual and User's Guide
Congratulations on your purchase of the Memphis Advantage Wood Fire Convection Grill. With proper
care and maintenance, your grill will give you years of trouble-free operation. Please review the following
information carefully for useful tips and information that will help you utilize your grill's extensive features
and benefits.
Keep in mind that your Memphis Advantage Wood Fired Convection Grill is so much more than a grill. It's
a true convection oven, featuring a computerized Intelligent Temperature Control (ITC) which
automatically adjusts for outside ambient conditions. The result is a simple "set it and forget it" way to
cook, bake, roast, sear or low and slow smoke; whether it's 40° or 90° outside, just set the desired
temperature and sit back and enjoy.
We all have our favorite recipes and cooking tricks. We suggest you experiment with your new grill to
discover just how many ways it adds to your outdoor cooking experience. With a little time and effort
you'll amaze your friends and family with your impressive culinary skills. Like many of us, you'll find that
your Memphis Advantage Wood Fired Convection Grill will become your cooking appliance of choice;
eliminating heat and odors from cooking indoors, while giving you unbeatable results.
Before you get started, take a few moments to register your grill and write your model and serial
number in the space provided. Fill in the information here and on page 34 as well. This will register your
warranty and make it quick and easy to reference this information in the future. Your model and serial
number are located on the sticker under the hopper lid.
Thank you for choosing the Memphis Advantage Wood Fire Convection Grill!
Model_________________________________________________________________________________
Serial Number:______10VG0050-__________________________________________________________
Date of Purchase_______________________________________________________________________
Dealer________________________________________________________________________________
Memphis Advantage Owner's Manual Revision F
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wood Fire Convection Grill and is the answer not in the manual?

Questions and answers

Summary of Contents for Memphis Wood Fire Convection Grill

  • Page 1 Keep in mind that your Memphis Advantage Wood Fired Convection Grill is so much more than a grill. It's a true convection oven, featuring a computerized Intelligent Temperature Control (ITC) which automatically adjusts for outside ambient conditions.
  • Page 2: Table Of Contents

    22-23 Food Handling and Safety Appendix A – Approximate Grilling Times 25-27 Appendix B – Approximate Smoking Times Appendix C – Smoking – General Information Wiring Diagram Limited Warranty 31-32 Blank Page Warranty Registration Memphis Advantage Owner’s Manual Revision F...
  • Page 3: Safety Information

    Do not move your Memphis Wood Fired Grill while operating or while the grill is hot. Make sure the fire is completely out, and that the grill is completely cold before transporting the grill. Memphis Advantage Owner’s Manual Revision F...
  • Page 4: Unpacking And Assembling Your Memphis Wood Fired Convection Grill

    4 - Push in casters Shelf Kit Includes: 2 - Shelf tops 2 - Shelf bracket right 2 - Shelf bracket left 12 - #10 Self-tapping screws Procedure for Assembly – See Diagrams on the following pages. Memphis Advantage Owner’s Manual Revision F...
  • Page 5 Memphis Advantage Owner’s Manual Revision F...
  • Page 6 VG0503 GRILL FRONT HEAVY DUTY, #10 SELF TAPPING DS4458 DS2185 LOCKING, CASTER SCREW VG0579 RTD COVER VG0909 MEMPHIS BADGE 1/4-20 SERRATED VS0927 RTD TEMP PROBE DS2100 FLANGE NUT VG5504 BURN POT ASSEMBLY VG0955 IGNITER Memphis Advantage Owner’s Manual Revision F...
  • Page 7 Memphis Advantage Owner’s Manual Revision F...
  • Page 8 TUBE LEG DS2258 1/4-20 X 2" BOLT, BLACK DS2100 1/4-20 SERRATED FLANGE NUT VG5511 SIDE SHELF ASSY RIGHT VG5510 SIDE SHELF ASSY LEFT VG0545 BOTTOM PAN VG0944 CASTER SOCKET DS4458 HEAVY DUTY, LOCKING, CASTER Memphis Advantage Owner’s Manual Revision F...
  • Page 9 Memphis Advantage Owner’s Manual Revision F...
  • Page 10 Memphis Advantage Owner’s Manual Revision F...
  • Page 11 Memphis Advantage Owner’s Manual Revision F...
  • Page 12 How Your Memphis Advantage Wood Fired, Convection Grill Works: Your Memphis Advantage Wood Fire Convection Grill represents a new way of outdoor cooking. It is a true high quality convection oven that also has grilling and smoking capability. It combines many unique features with time-proven pellet-burning technology.
  • Page 13: Read Prior To Lighting

    (refer to Using Your Memphis Advantage Wood Fired Convection Grill on page 16 for cleaning instructions.) Should your auto igniter refuse to ignite the wood pellets, it is easy to light your grill manually with a match and lighting agent.
  • Page 14: Intelligent Temperature Control – Overview

    Temp (Temperature) up and down touch pad By pressing either the up or down arrows, the LED readout can be moved in 5 degree increments. The temperature setting range is 200°-295°F for smoking and 300°-600°F for cooking. Memphis Advantage Owner’s Manual Revision F...
  • Page 15 The LED beside Cook or Smoke is used to indicate which mode is being used and blinks to indicate the start up (igniter is on) or shut down (fans are running to cool the grill) status of the grill. Memphis Advantage Owner’s Manual Revision F...
  • Page 16 Using Your Memphis Advantage Wood Fired Convection Grill Prior to starting your cooking center, inspect the burn area inside the grilling area. It's a recommended practice to go through this procedure at initial start up and after every few uses to ensure peak performance.
  • Page 17: Operating Instructions

    Operating Instructions: Memphis Advantage Wood Fired Convection Grill Computerized Intelligent Temperature Control (ITC). About the ITC: The ITC is very much the same as the control on your kitchen oven. The big difference is the ITC's ability to automatically compensate for different ambient conditions. This means that you can cook outside in nearly any weather.
  • Page 18 To clear the error message, turn the grill off and allow it to cool. Once the grill cools to 130F, restart using the normal starting procedure. When preparing particularly greasy food place a pan partially filled with water under item to catch grease. Memphis Advantage Owner’s Manual Revision F...
  • Page 19 Cover the cooking center with the optional cover. Note: If grease or smoke discoloration is allowed to stay for long periods of time you may need a stronger cleaner to remove. Frequent through cleanings are strongly advised. Memphis Advantage Owner’s Manual Revision F...
  • Page 20: Information About Bbq Cooking Pellets

    Flavor is an individual taste and we suggest you try the different flavors or combinations of flavors to find combinations that suit your needs tastes. (See local dealer www.natureswaypellets.com to order individual pellet flavors) Memphis Advantage Owner’s Manual Revision F...
  • Page 21: Periodic Grill Maintenance

    Do not use high-pressure hoses or steam to clean or use stiff brushes, harsh detergents, abrasive cleaners or chlorine on your grill cover. Do not store your cover in the lower grill cabinet while the grill is in use. Memphis Advantage Owner’s Manual Revision F...
  • Page 22: Recommended Grilling Accessories

    They can also be used for chops and chicken pieces. (Additional small grates are available for purchase and will allow you to significantly increase your total cooking surface.) Skewers (wood or metal) Memphis Advantage Owner’s Manual Revision F...
  • Page 23 It is important to clean your grill thoroughly before each use. A long handled brush with metal bristles is the best tool for the job. Skillets and Woks These kitchen favorites allow you to stir-grill vegetables, seafood, and other small pieces of food the same way you would if you were indoors. Memphis Advantage Owner’s Manual Revision F...
  • Page 24: Food Handling And Safety

    It’s a good idea to put grilled food onto a heated platter to help keep the food warm. Steaks benefit from resting for several minutes before serving. This seals those delicious juices in the meat. Memphis Advantage Owner’s Manual Revision F...
  • Page 25 Steaks, Sirloin, or Leg 1" thick 350°- 375° 5 min./side 145 to 160 Kabobs 1" cubes 350°- 375° 4 min./side 145 to 160 Patties, ground 4 oz., 1/2" 450°- 650° 3 min./side Medium 160 thick Memphis Advantage Owner’s Manual Revision F...
  • Page 26 325°F,160°c 1 to 1 3/4 hrs. boneless 2 3/4 to 3 1/2 lbs. recommended Thighs, drumsticks (indirect heat) 8 to 16 oz. 325°F,160°c 1 1/2 to 2 hrs. Direct heat (pre-cook 1 hr.) 8 to 10 min./side Memphis Advantage Owner’s Manual Revision F...
  • Page 27 Boneless turkey roll (indirect heat) 2 to 5 lbs. 325°F,160°c 1 1/2 to 2 hrs. 170 to 175 5 to 10 lbs. 2 to 3 1/2 hrs. Memphis Advantage Owner’s Manual Revision F...
  • Page 28: Appendix B – Approximate Smoking Times

    PORK, Fresh 225°-275° 160-180 VEAL 225°-275° 145 to 160 VENISON 225°-275° 145 to 160 225°-275° 170 to 180 CHICKEN 225°-275° 180 to 185 DUCK or GOOSE TURKEY 225°-275° 180 as measured in the thigh Memphis Advantage Owner’s Manual Revision F...
  • Page 29: Appendix C – Smoking – General Information

    If you wish to smoke at lower temperatures the Memphis Advantage is calibrated to allow you to When smoking at the lower temperatures it’s critical that you use a go as low as 200°.
  • Page 30 Memphis Advantage Owner’s Manual Revision F...
  • Page 31: Limited Warranty

    MANUFACTURER BASED ON THE BREACH OF THIS WARRANTY OR ANY OTHER TYPE OF WARRANTY EXPRESSED OR IMPLIED BY LAW, MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, CONSEQUENTIAL OR OTHER DAMAGES OF Memphis Advantage Owner’s Manual Revision F...
  • Page 32: Limited Warranty

    Call your nearest HP dealer for repair or replacement of your “in-warranty” parts. Be prepared to furnish the following information: 1. Purchaser’s name, model and serial number of grill and date of purchase. 2. An accurate description of the problem. ============================================================= Memphis Advantage Owner’s Manual Revision F...
  • Page 33: Blank

    This page is intentionally left blank. Memphis Advantage Owner’s Manual Revision F...
  • Page 34: Warranty Registration

    Send Registration Card to the following address: Hearthland Products, LLC. Memphis Advantage Grill Warranty Registration 9111 Grand Ave S Bloomington, MN 55420 Memphis Advantage Wood Fired Convection Grill. Thank you for choosing a 5-18-10 Memphis Advantage Owner’s Manual Revision F...
