w w w . e l a t i o n l i g h t i n g . c o m

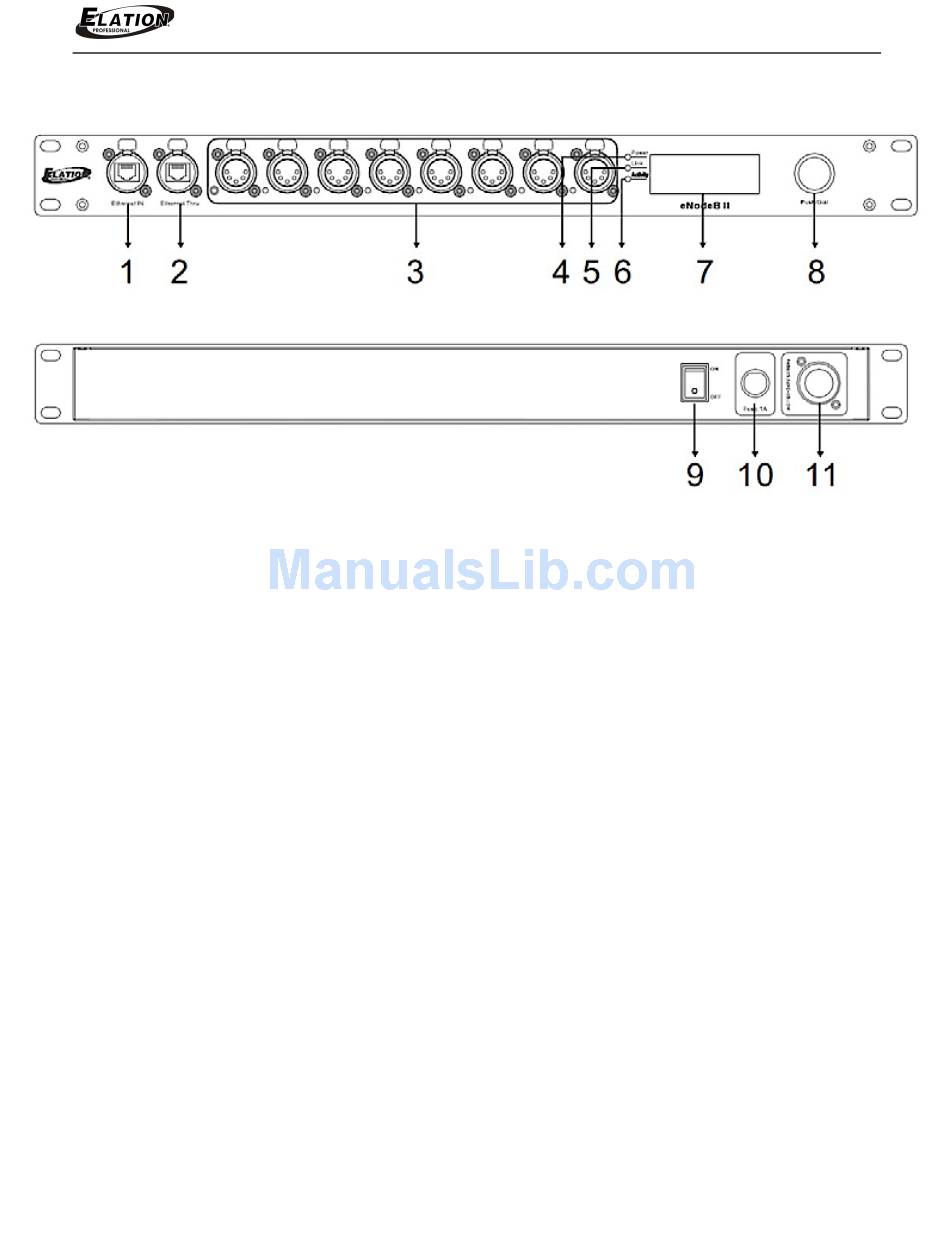

D E V I C E O V E R V I E W
1. RJ45 Ethernet Connector - Network Connection
2. RJ45 Ethernet Connector - Network Connection
3. 5pin DMX PORTS 1-8 - (with LED Indicators) - DMX Input Or DMX Output Ports
4. Power LED - Indicates Power is ON
5. LINK LED - Indicates Network Connection Status
6. ACTIVITY LED - Indicates Network Activity Status (flash when data is transmitting)
7. LCD Menu / Function Display - Displays Menus And Functions
8. MENU Button / Rotary Dial - Used To Enter Main Menu And Select Functions
9. Power Switch - Power ON/OFF
10. Fuse - Fuse Holder
11. PowerCON IN - Power Connection To Power Source
eNODE
8
9
U ser
M anual
1 .0
™
