eNODE 4™
user manual

Advertisement

Table of Contents
loading

Related Manuals for Elation eNODE 4

Summary of Contents for Elation eNODE 4

  • Page 1 4™ user manual...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Safety Instructions and Guidelines Overview Installation System Menu Setting DMX Ports Technical Specifications Optional Accessories www.elationlighting.com...

  • Page 4: General Information

    G E N E R A L I N F O R M A T I O N INTRODUCTION This device has been designed to perform reliably for years when the guidelines in this booklet are followed. Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device.
  • Page 5 You may also visit us on the web at www.elationlighting.com for any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST Voice: 323-582-3322 Fax: 323-832-9142 E-mail: support@elationlighting.com...

  • Page 6: Warranty

    A. Elation Professional® hereby warrants, to the original purchaser, Elation Professional® products to be free of manufacturing defects in material and workmanship for a period of two years (730 days), and Elation Professional® product rechargeable batteries to be free of manufacturing defects in material and workmanship for a period of six months (180 days), from the original date of purchase.

  • Page 7: Safety Instructions And Guidelines

    S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual.
  • Page 8 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S DO NOT shake device, avoid brute force when installing and/or operating. DO NOT operate fixture if the power cord has become frayed, crimped, damaged and/or if any of the power cord connectors are damaged and do not insert into the...

  • Page 9: Overview

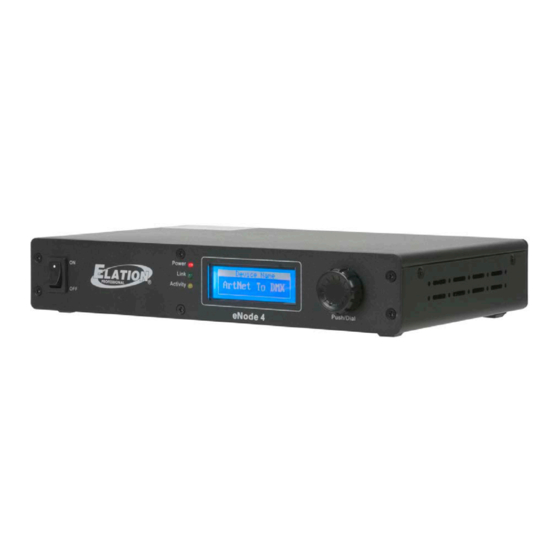

    O V E R V I E W Power Switch (On/Off) Power ON LED Indicator Network Link LED Indicator Network Activity LED Indicator LCD Control Menu Display Encoder Wheel RJ45 Ethernet Input RJ45 Ethernet Thru Output 5pin DMX Assignable Input or Output Ports 1-4 (with LED indicators) Fuse powerCON Cable Input www.elationlighting.com...

  • Page 10: Installation

    I N S T A L L A T I O N F L A M M A B L E M A T E R I A L W A R N I N G Keep device at least 5.0 feet (1.5m) away from any flammable materials, decorations, pyrotechnics, etc.

  • Page 11: System Menu

    ENCODER WHEEL to select a desired menu. Rotate the ENCODER WHEEL clockwise or counterclockwise to navigate the available setting options for each sub-menu. Setting changes are made using a combination of rotating and pushing the ENCODER WHEEL. eNode 4 www.elationlighting.com...
  • Page 12 There are four status screens which will display when the device is connected to a power source. Rotate the ENCODER WHEEL to scroll through the screens. 1. Device Name This displays the current device name (16 characters max) eNode 4 2. IP Address This displays the current IP Address 002.010.010.002 3.
  • Page 13 ELATION eNode 4 S Y S T E M M E N U Features subject to change without any prior written notice. Supports Software Version: ≥ V1.6 MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) eNode 4 1.Rename Device...

  • Page 14: Setting Dmx Ports

    S E T T I N G D M X P O R T S PORT STATUS INPUT - Any of the (4) ports can be set as INPUT. When a port is set as INPUT, only the principle universe is available and the PORT MODE can set to NORMAL or BACKUP. OUTPUT - Any of the (4) ports can be set as OUTPUT.

  • Page 15: Technical Specifications

    T E C H N I C A L S P E C I F I C A T I O N S CONTROL / CONNECTIONS (2) Auto-Switching 10/100Mbps Neutrik RJ45 EtherCON Input (4) Multi-Configuration 5pin Neutrik DMX Data Outputs Encoder Wheel / Function Selection Button LCD Menu / Function Display PowerCON Power IN...
  • Page 16 DIMENSIONAL DRAWINGS NOTE: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. www.elationlighting.com...

  • Page 17: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM NARROW CLAMP Heavy Duty 2 inch Clamp CAT005 5 ft. (1.5m) CAT6 EtherCON PRO Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available www.elationlighting.com...
