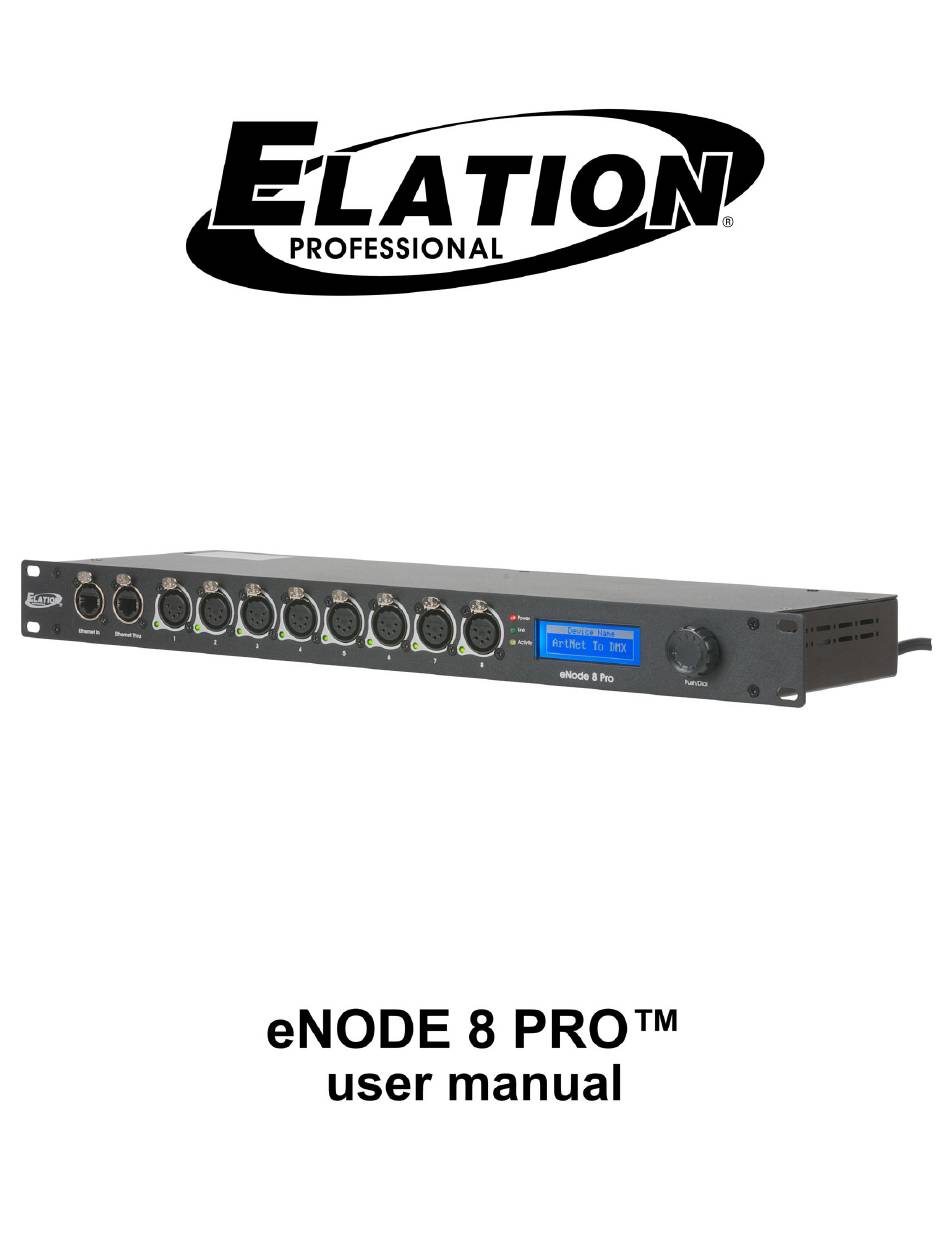

Elation eNODE 8 PRO User Manual
  1. Manuals
  2. Brands
  3. Elation Manuals
  4. Controller
  5. eNODE 8 Pro
  6. User manual

Elation eNODE 8 PRO User Manual

Hide thumbs Also See for eNODE 8 PRO:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Elation eNODE 8 PRO

Summary of Contents for Elation eNODE 8 PRO

  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Returns (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Colors & Animation Wheel SpectraColor Guide Fan Modes and Low Noise Operation Lens Installation / Replacement Installation Guidelines System Menu DMX Channel Functions and Values Error Codes Specifications...
  • Page 4 Fresnel Lens (installed) Omega Brackets (x2) Locking Power Cable CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Warranty Returns (Usa Only)

    Elation Professional concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the Elation Professional factory unless prior written authorization was issued to purchaser by Elation Professional; if the product is damaged because not properly maintained as set forth in the product instructions, guidelines and/or user manual.

  • Page 6: Safety Guidelines

    This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
  • Page 7 O V E R V I E W Ethernet Input Ethernet Thru Output 5pin DMX Assignable Input or Output Ports 1-8 (with LED indicators) Power ON LED Indicator Network Link LED Indicator Network Activity LED Indicator LCD Control Menu Display Encoder Wheel Power Switch (On/Off) 10.
  • Page 8 I N S T A L L A T I O N F L A M M A B L E M A T E R I A L W A R N I N G Keep device at least 5.0 feet (1.5m) away from any flammable materials, decorations, pyrotechnics, etc.

  • Page 9: System Menu

    ENCODER WHEEL to select a desired menu. Rotate the ENCODER WHEEL clockwise or counterclockwise to navigate the available setting options for each sub-menu. Setting changes are made using a combination of rotating and pushing the ENCODER WHEEL. eNode 8 Pro...
  • Page 10 There are four status screens which will display when the device is connected to a power source. Rotate the ENCODER WHEEL to scroll through the screens. Device Name This displays the current name (16 characters max) eNode 8 Pro MAC Address (ONLY VISIBLE WITH Version 2.3) This displays the current MAC Address Press and hold ENCODER WHEEL for 3 seconds to change MAC Address.
  • Page 11 ELATION eNode 8 PRO SYSTEM MENU Features subject to change without any prior written notice. Supports Software Version: ≥ V1.7 MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) 1.Rename Device Rename eNode 8 Pro Select 1-16 Characters to Rename Device Set Device IP Address 2.Set IP Address...
  • Page 12 ELATION eNode 8 PRO SYSTEM MENU Features subject to change without any prior written notice. Supports Software Version: ≥ V2.5 MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) 1.Rename Device Rename eNode 8 Pro Select 1-16 Characters to Rename Device Set Device IP Address 2.Set IP Address...
  • Page 13 ELATION eNode 8 PRO SYSTEM MENU Features subject to change without any prior written notice. Supports Software Version: ≥ V2.5 OPTIONS / VALUES (Default Settings in MAIN MENU SUB MENU DESCRIPTION BOLD) ArtNet 5. Network out Select between ArtNet and sACN sACN 6.
  • Page 14 S E T T I N G D M X P O R T S PORT STATUS INPUT - Any of the (8) ports can be set as INPUT. When a port is set as INPUT, only the principle universe is available, and the PORT MODE can set to NORMAL or BACKUP. OUTPUT - Any of the (8) ports can be set as OUTPUT.

  • Page 15: Specifications

    T E C H N I C A L S P E C I F I C A T I O N S CONTROL / CONNECTIONS 8-Universes Art-Net, sACN, and RDM Compatible DMX Control Systems DMX Bilateral Conversion sACN Auto-Detection Auto MDI/MDIX DMX Splitter Function (1 Input / 3 Outputs) Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)

  • Page 16: Dimensional Drawings

    DIMENSIONAL DRAWINGS Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.

  • Page 17: Optional Accessories

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM CAT005 5 ft. (1.5m) CAT6 EtherCON PRO Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available...
