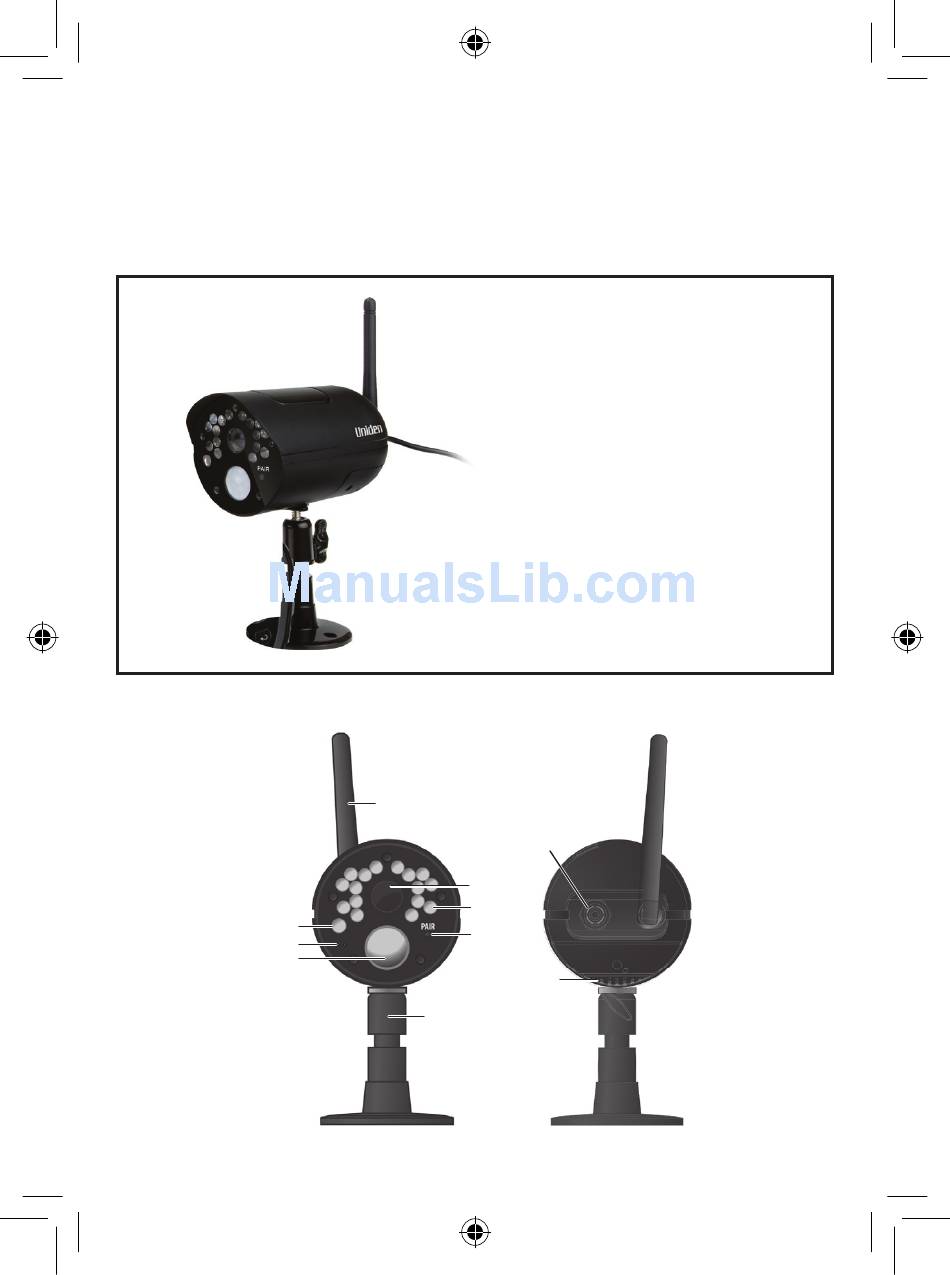

- Page 1 Accessory Camera for G14xx Series Surveillance Systems What’s in the Box? 1 x Camera 1 x Antenna 1 x Stand 1 x AC Adaptor Screws and Anchors Outdoor Camera FRONT BACK...
- Page 2 Keys/Indicators Function Camera Antenna Sends signals to the monitor. Light sensor Measures light intensity to activate IR LEDs for night vision. Microphone Receives sounds from the area near the camera PIR sensor Detects motion within camera’s line of sight. Camera Lens Mechanism through which the camera views surroundings and records images.
-
Page 3: Installing The Camera
Installing the Camera You can mount the camera with the stand on the bottom (for a flat surface such as a tabletop), on the side (for a wall), or on the top (for the ceiling). When you are positioning the camera, you might want to bring the monitor along;... -
Page 4: Attach The Camera
Attach the Camera Attach the camera Tighten the brace against to the mounting the camera to screw and turn it secure it to the desired in place. direction. Loosen the wingnut to Adjust the post to unlock the the correct angle, mounting then tighten the post. -
Page 5: Power Up The Camera
Power Up the Camera Connect one end of a DC 9V AC adaptor to the camera’s power pigtail and plug the other end into a 240 volt AC (standard indoor) power outlet. Adjust the camera viewing position, if needed. If... Try... -
Page 6: Pairing Accessory Cameras
5. Within 30 seconds, press the Pair button located on the camera. Once the camera pairs to the monitor, you can view the camera transmissions on the monitor. For more details on the G14xx Surveillance System, please refer to the G14xx Series Owner’s Manual. -
Page 7: Specification
SPECIFICATION Operating frequency range 2.400 ~ 2.4835GHz TX power 15dBm (typical) Spread spectrum FHSS Modulation type GFSK Data Rate 2 Mbps Communication range 150ms Line of Sight Image sensor type 1/4” color CMOS image sensor (Manufacturer/Model #) Effective pixel H: 640; V: 480 Image processing MJPEG Image resolution... -
Page 8: One-Year Limited Warranty
Warrantor: The warrantor is either Uniden Australia Pty Limited ABN 58 001 865 498 (“Uniden Aust”) or Uniden New Zealand Limited (“Uniden NZ”) as the case may be. Terms of Warranty: Uniden Aust/NZ warrants to the original retail purchaser only that the G1400 (“the Product”), will be free from defects in materials and... - Page 9 Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden at the addresses shown below. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim.
- Page 12 © 2013 Uniden Australia Pty Limited. Uniden New Zealand Limited. Printed in PRC.
