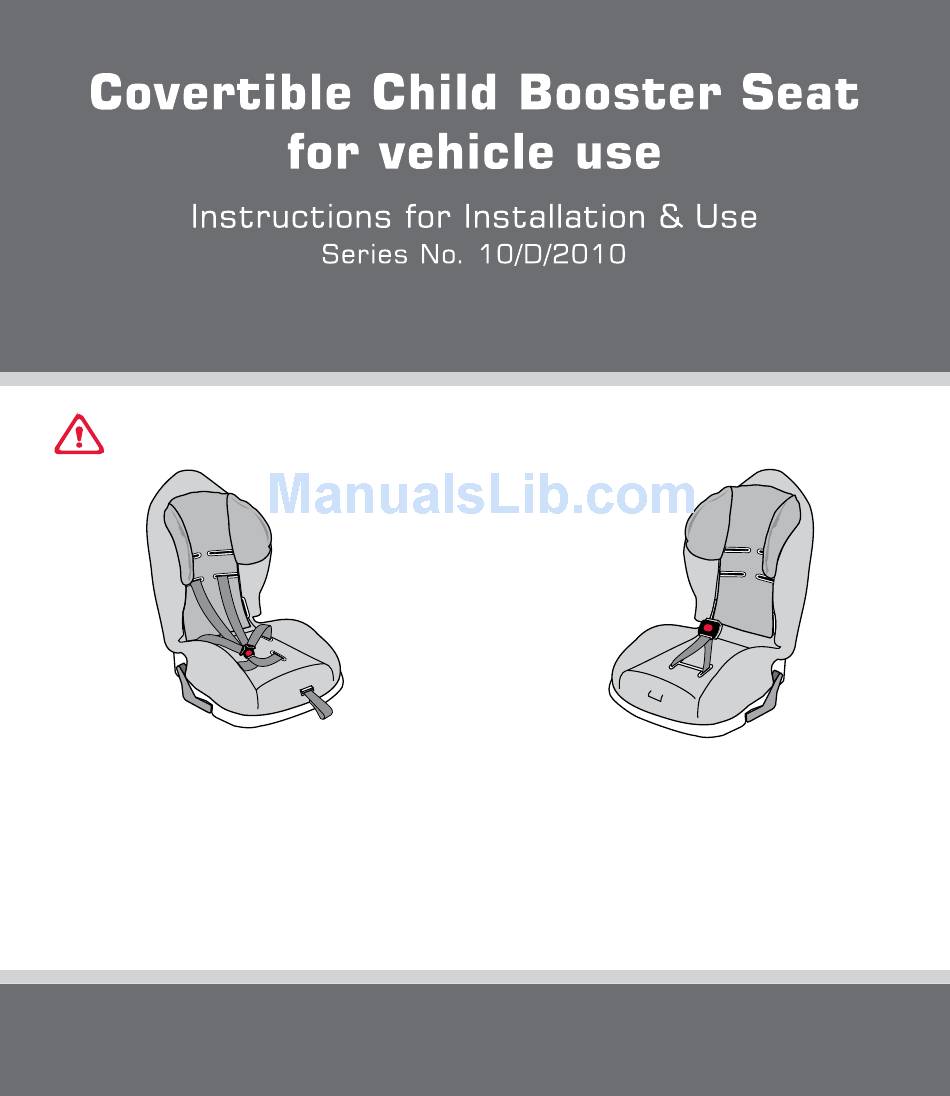

Next generation 10/D/2010 Instructions For Installation & Use

Convertible child booster seat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT
Forward Facing - Toddler Use
For children approximately 6 months to
approximately 4 years of age, using the
in-built harness.
Forward Facing - Booster Seat Modes
For children approximately 4 years of age to approximately 6
to 8 years of age when used as a booster seat with lap-sash
seat belt or child harness and seat belt. (A child harness
must be used in a position with a lap only seat belt).
Suitable for use only with the following child harnesses:
Safe-n-Sound™Protecta PLUS™Harness Series 220/2010
or Babylove EzyGo Harness™ Series BL220/2010.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 10/D/2010 and is the answer not in the manual?

Questions and answers

Related Manuals for Next generation 10/D/2010

Summary of Contents for Next generation 10/D/2010

  • Page 1 IMPORTANT: KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT Forward Facing - Toddler Use Forward Facing - Booster Seat Modes For children approximately 6 months to For children approximately 4 years of age to approximately 6 approximately 4 years of age, using the to 8 years of age when used as a booster seat with lap-sash in-built harness.
  • Page 2 Carefully read all the instructions for installation in this book. If in doubt about the method of installation, consult Care & maintenance Next Generation Nursery Products Pty. Ltd. or agent or a child restraint fitting station authorized by a relevant How to clean transport authority or, in New Zealand, the agent for the vehicle or authorised child restraint fitter.
  • Page 3 WHEN USED WITH THE 'IN-BUILT ' HARNESS • DO NOT USE THIS RESTRAINT WITHOUT THE COVER. • Fit the restraint firmly to the car. • Regularly check the restraint components, straps and other fitments for correct function and condition. Seek prompt repair. •...

  • Page 4: Shoulder Height Markers & A Growing Child

    SHOULDER HEIGHT MARKERS & SHOULDER HEIGHT MARKERS & A GROWING CHILD A GROWING CHILD OLDER CHILD AS A BOOSTER SEAT AS A BOOSTER SEAT With Seat Belt & Child Harness With Lap-sash seat belt To approximately 6-8 years of age. To approximately 6-8 years of age.
  • Page 5 SHOULDER HEIGHT LABELS & THE NEXT STEP SHOULDER HEIGHT LABELS & THE NEXT STEP Next type of restraint that can be used in the car for your child. IMPORTANT: Follow this advice. When your child has outgrown the seat, you can either use: Marker A Smaller Toddler - LOWER SHOULDER HEIGHT MARKER Using the in-built harness, The child’s shoulders must be in-line...

  • Page 6: Special Features - Toddler Restraint

    SPECIAL FEATURES - TODDLER RESTRAINT SPECIAL FEATURES - TODDLER RESTRAINT TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS To be used only in a forward-facing position with the in-built harness for a toddler whose shoulders are above Car's Anchor Fitting. the lower shoulder height marker (approximately 6 months to 4 years of age) until the shoulders reach the middle shoulder height marker.

  • Page 7: Suitable For Use

    SUITABLE FOR USE HOW TO SET-UP TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS INSTALLATION AND USE OF RESTRAINT TO BE USED WITH A LAP-SASH OR LAP ONLY SEAT BELT IN THE BACK OF MOST CARS WITH FORWARD-FACING SEATS.
  • Page 8 HOW TO SET-UP HOW TO SET-UP TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS ADJUSTING HARNESS STRAP HEIGHT & HEADREST: SETTING UP THE HARNESS Lengthen A. Sit the restraint against a wall for stability and get the child to sit Correct fitment of the harness is very important as it restrains the child in the restraint.
  • Page 9 HOW TO SET-UP HOW TO SET-UP TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS STEPS IN CHANGING SHOULDER STRAP SLOTS E. To release the headrest, go to the back of the (a) To Release (b) To Lock restraint and rotate lever down to loosen headrest A.

  • Page 10: How To Install

    HOW TO SET-UP HOW TO INSTALL TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS INSTALLING INTO VEHICLE (FORWARD FACING) (UPRIGHT OR RECLINED) G. Insert the shoulder straps through the lap strap slots in the cover and the restraint. A.
  • Page 11 HOW TO INSTALL HOW TO INSTALL TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS E. Fully lengthen lap or lap sash seat belt and insert Far Seat G. Fully press Upper Anchorage Strap Adjuster in through near seatbelt slot in the seat back. belt Slot Button (1) while pulling Upper Anchorage Ensure the seatbelt is between the harness...

  • Page 12: How To Use

    HOW TO INSTALL HOW TO USE TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS PLACING TODDLER IN THE RESTRAINT Upper Upper Anchorage Anchorage A. Lengthen harness by lifting Harness Adjuster Lever up (under Strap Storage band Car's Anchor flap) while pulling on either shoulder strap until the harness Pull Straps Fitting...
  • Page 13 HOW TO USE HOW TO USE TODDLER USE: WITH IN-BUILT HARNESS TODDLER USE: WITH IN-BUILT HARNESS TO REMOVE TODDLER C. Fit either harness buckle tongue into the harness buckle followed by the other tongue Press red button on harness buckle then both harness tongues will be released. until a click is heard.

  • Page 14: Special Features - Child Booster

    SPECIAL FEATURES - CHILD BOOSTER SPECIAL FEATURES - CHILD BOOSTER BOOSTER SEAT MODE BOOSTER SEAT MODE To be used with either a lap-sash seatbelt or an add-on accessory child harness by children whose shoulders are in-line with or above the middle shoulder height marker (approximately 4 years of age). This mode can be Car's Anchor Fitting.
  • Page 15 SUITABLE FOR USE HOW TO SET-UP BOOSTER SEAT MODE BOOSTER SEAT MODE To be used with either a lap-sash seatbelt or an add-on accessory child harness by children whose shoulders CONVERTING THE TODDLER RESTRAINT INTO CHILD BOOSTER are above the lower shoulder height marker with the head restraint in the lowest position (approximately To use this child restraint as a booster seat the harness needs to be stored under the cover.
  • Page 16 HOW TO SET-UP HOW TO SET-UP BOOSTER SEAT MODE BOOSTER SEAT MODE C. Tuck shoulder harness straps completely through seat F. Adjust the crotch strap length if necessary. See page belt slots in restraint shell. 32 and 33. Refit the centre panel of the cover with the harness G.
  • Page 17 HOW TO SET-UP HOW TO SET-UP BOOSTER SEAT MODE BOOSTER SEAT MODE SETTING UP AS A BOOSTER SEAT ADJUSTING THE LAP BELT POSITIONING CLIP POSITION AND HEADREST Lengthen NOTE: The Lap Belt Positioning Clip ensures that the child does not When used as a Booster Seat using either a slump and ensures the lap belt is always positioned on the child’s lap-sash seatbelt or child harness and seatbelt,...
  • Page 18 HOW TO USE HOW TO USE BOOSTER SEAT WITH LAP-SASH SEATBELT BOOSTER SEAT WITH LAP-SASH SEATBELT PLACING CHILD IN THE RESTRAINT USING LAP SASH SEAT BELT & UPPER Attachment Clip ANCHORAGE STRAP ENGAGED Recline Foot Recline Foot position position for A.
  • Page 19 HOW TO USE HOW TO USE BOOSTER SEAT WITH LAP-SASH SEATBELT BOOSTER SEAT WITH LAP-SASH SEATBELT CAUTION: ALWAYS USE THE SASH GUIDE. NOTE: Some vehicle seats have more rearward slope than others. Use a rolled up towel or padding under the seat for contoured vehicle seats to prevent excessive recline.

  • Page 20: How To Install With A Child Harness

    HOW TO USE HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH LAP-SASH SEATBELT BOOSTER SEAT WITH CHILD HARNESS TO REMOVE CHILD USING WITH CHILD HARNESS IN BOOSTER SEAT MODE Either Safe-n-Sound™Protecta PLUS™ Harness Series 220/2010 or Babylove™ EzyGo™ Harness Series Disengage seat belt tongue and buckle, remove the lap portion of seat BL220/2010 are suitable for use with this seat.
  • Page 21 HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS INSTALLING CHILD HARNESS INTO SEAT C. Adjust headrest to the appropriate height and lock in to position. Feed A.
  • Page 22 HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS Installing into vehicle without extension strap Installing into vehicle with an extension strap Hook the Child Harness attachment clip (1) onto VERSATETHER™ Catch (2). Then hook attachment clip (3) Hook the Harness clip first onto the extension strap catch, then hook the extension strap hook onto the onto anchor fitting.
  • Page 23 HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS CHOOSING METHOD OF INSTALLATION METHOD 1: USING LAP-SASH SEAT BELT Harness strap loops WITH CHILD HARNESS. (Using Gated The Child Harness can be installed using either of the following methods.
  • Page 24 HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS FITTING THE GATED SLIDE TO THE LAP-SASH SEAT BELT C. Repeat previous step A for the other slot in the Gated Slide.
  • Page 25 HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS HARNESSING THE CHILD INTO THE BOOSTER SEAT C. Feed the adult belt (lap belt or converted lap/sash) through the harness loops, ensuring that the cross strap loop does not disconnect.
  • Page 26 HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS D. Engage the seat belt tongue to the F. With the lap belt (or converted lap/sash) adjusted to be a firm fit on the child's thighs, then adjust the Child Harness buckle and adjust the seat belt to sit firmly around the child’s hips and...
  • Page 27 HOW TO INSTALL WITH A CHILD HARNESS HOW TO INSTALL WITH A CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS BOOSTER SEAT WITH CHILD HARNESS RESTORING THE RESTRAINT FOR TODDLER USE TO REMOVE CHILD FROM HARNESS AND SEAT H. Disengage seat belt tongue and buckle, A.

  • Page 28: Care And Maintenance

    Buckle cannot be returned to its original working condition then contact & stretch bottom elastic over recline foot Next Generation Nursery Products Pty. Ltd. Customer Service. towards the back of the restraint. E. Refit the harness buckle to the restraint with the red button facing out &...

  • Page 29: Accessories & Features

    TO REPLACE COVER not, a variety of accessories are available from various retailers of Next Generation Nursery Products Pty Ltd. 1. Fit cover over restraint starting at top ensure that both back and bottom elastics are at the back of In the case of a small baby, accessories are available to improve the installed position of the baby in the restraint.

  • Page 30: Pre-Installation Anchor Fitting

    ACCESSORIES & FEATURES PRE-INSTALLATION ANCHOR FITTING STEREO SPEAKERS (IF SUPPLIED) Speakers fitted to headrest Consult the vehicle owner's handbook for location of anchorage fittings or anchorage points and the possible use of spacers. Some vehicles may have an anchor fitting fitted by the vehicle manufacturer. If anchorage points Speakers have been supplied to provide enjoyment for your cannot be found refer to car manufacturer or local child restraint fitting station or traffic authority for optimum child.
  • Page 31 PRE-INSTALLATION ANCHOR FITTING PRE-INSTALLATION ANCHOR FITTING Extension Strap distance to be measured. IF THE CAR IS FITTED WITH CHILD RESTRAINT ANCHORAGE UPPER ANCHORAGE FITTING Length 300mm (Use Safe-n-Sound part 0035) POINT Fig.1. Length 600mm (Use Safe-n-Sound part 0036) Locate the anchorage point behind the rear seating position. Attachment Bolt Available from all major child restraint retailers.
  • Page 32 PRE-INSTALLATION ANCHOR FITTING PRECAUTIONS ONLY USE A 5/16 UNC GRADE 5 BOLT. IF THE BOLT IS NOT THE Precautions to prevent reducing the safety Note: Marking on CORRECT LENGTH THE CAR MANUFACTURER’S HAND BOOK CAN the top of a Grade 5 offered by this child restraint.
  • Page 33 IN CASE OF A CRASH NOTES If your restraint has been involved in a severe crash, you should destroy the restraint even if no damage is obvious. Some insurance companies offer vehicle insurance which covers or partially covers the replacement of your child restraint.
  • Page 34 NOTES NOTES...
  • Page 35 We reserve the right to alter this product without notice in our constant endeavor for improvement. ©2007-2011 Next Generation Nursery Products Pty. Ltd. Cargo and Hipod Trademarks are the property of Next Generation Nursery Products Pty. Ltd. Babylove and EzyGo trademarks are the property of Nursery Elegance Pty Ltd.
