Lorex LW2275 Series Quick Start Manual

WIRE LE SS D IG ITAL S ECUR ITY CAMER A
LW2275 SERIES
QUICk START GUIDE

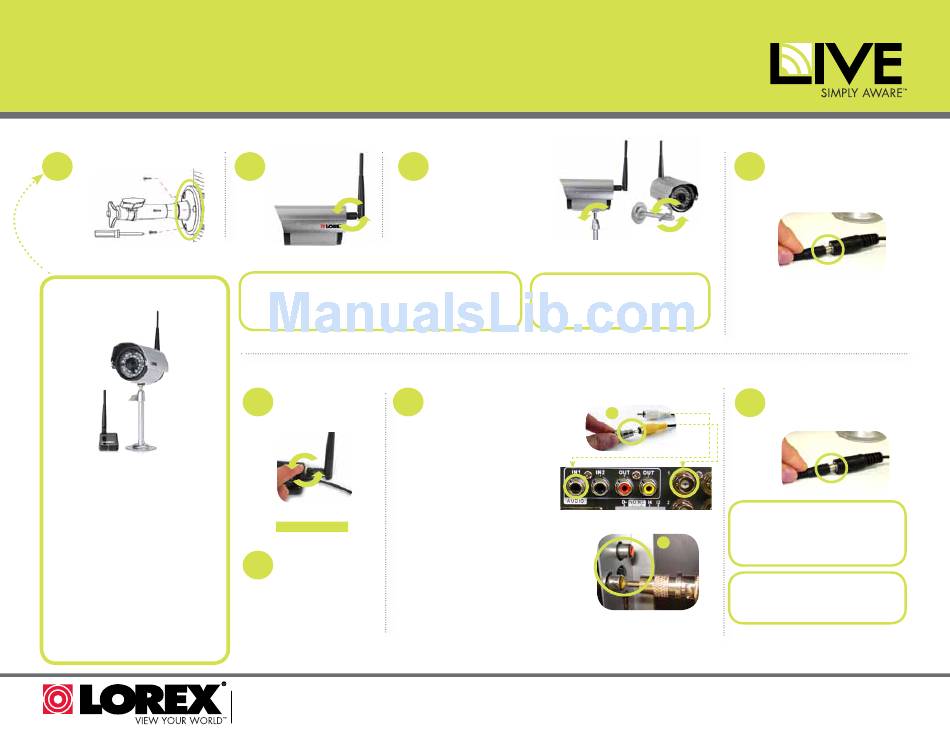

A. Connect the Camera
Mount camera stand to the wall.
1
Getting Started
This Wireless Digital Security
Camera System comes with the
following components:
• Digital Wireless Color Camera
with Sunshade
• Camera Stand
• Wireless Receiver
• Antenna's for Camera and
Receiver
• Power Adaptors for Camera and
Receiver
• RCA/BNC Adapter
• Mounting Hardware
• Double Sided Tape for Receiver
• Instruction Manual
Screw the
2 3
Antenna to the
back of the
camera.
NOTE: Before you install a camera, carefully plan where and how it
will be positioned, and where you will route the cable that connects the
camera to the power adaptor. Before starting permanent installation,
verify its performance by observing the image on a monitor when the
camera is positioned where it will be permanently installed.
B. Connect the Receiver to an Observation System / DVR for recording or TV for Viewing**
Attach the included
3
1
Antenna to the receiver
by screwing it on.
OPTIONAL
Take the double
2
sided tape supplied
to securely attach
the receiver to a flat
surface.
www.lorextechnology.com
Screw the camera onto
the head of the stand(1).
Adjust the angle of the
camera until the desired
view is set. Tighten the
thumbscrew to secure the
camera position (2).
1
NOTE: Avoid installing in a location which
requires the wireless signal to pass through
cement, concrete and metal structures. This will
reduce the transmission range.
View your Camera on any Observation Monitor/DVR with BNC
inputs or TV with RCA inputs.**
1
1. Obseration Monitor
or DVR with BNC:
Attach the included RCA/BNC
adapter to RCA cable and plug
into Observation Monitor or DVR.
Connect the Audio end of the
RCA cable to the Audio input of
the Observation Monitor or DVR.
2. TV with RCA Inputs:
Connect the RCA Video and
Audio ends of the RCA Audio/
Video cable to the Video and
Audio inputs on your TV.
** Requires viewing/recording
device with RCA Video or BNC Video
input. Viewing/ Recording device
sold separately.
Connect one end of the Camera
4
Power Adapter to the Camera
and the other end to an
electrical outlet.
2
Connect power adaptor to local
120V AC power outlet
NOTE: Wireless camera requires a power
source to operate.
Connect one end of the Receiver
4
Power Adapter to the Receiver and
the other end to an electrical outlet.
IMPORTANT: If the video appears
pixelated, make sure the receiver is set to
VGA resolution as QVGA will result in a
2
pixelated image. Press RESOLUTION button
to switch resolution.
ATTENTION: Make sure to first connect
and power on the camera before powering
on the receiver; this will ensure a proper
connection.
LW2275 Series QSG_EN_R1 Page 1
