Hytera DMR Installation Manual

Dmr digital mobile radio
Hide thumbs Also See for DMR:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
Preface

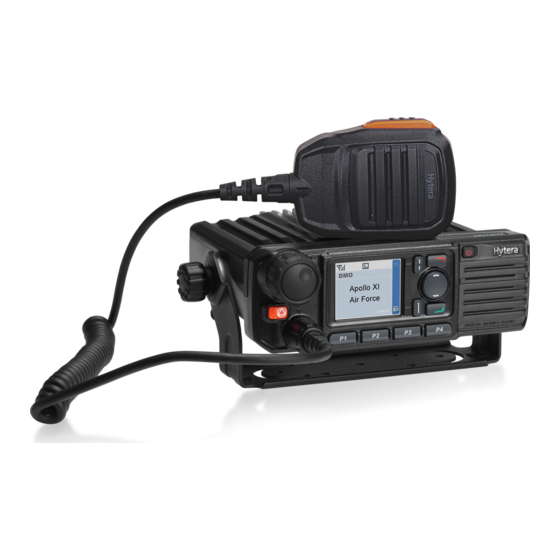

Thank you for purchasing Hytera DMR digital mobile radio. As a
product built to the DMR standard, the mobile radio is endowed with
ergonomic design and comprehensive digital functions to deliver
an advanced communication solution. With it, you can make use of
digital functions to top the competition!
To derive optimum performance from your radio, please read this
manual and the supplied Safety Information Booklet carefully before
use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMR and is the answer not in the manual?

Questions and answers

Related Manuals for Hytera DMR

Summary of Contents for Hytera DMR

  • Page 1 Preface Thank you for purchasing Hytera DMR digital mobile radio. As a product built to the DMR standard, the mobile radio is endowed with ergonomic design and comprehensive digital functions to deliver an advanced communication solution. With it, you can make use of...

  • Page 2: Copyright Information

    Copyright Information channel only. Hytera and HYT are trademarks or registered trademarks of Hytera Communications Co., Ltd. in the PRC and/or Functions marked with no function icons are available on other countries or areas. Hytera retains the ownership of both analog and digital channels.
  • Page 3 No part of this manual may be to the purchaser with respect to Hytera computer programs. copied, modified, translated, or distributed in any manner Any Hytera computer programs may not be copied, without the express written permission of Hytera.

  • Page 4: Fcc Licensing Information

    Code of Federal Regulations; 47CFR part 2 sub-part J and can radiate radio frequency energy and, if not installed  American National Standards Institute (ANSI)/Institute and used in accordance with the instructions, may cause of Electrical and Electronic Engineers (IEEE) C95. harmful interference to radio communications.

  • Page 5: Table Of Contents

    Contents Zone ---------------------------------------------------------- 13 Checking Items in the Package ----------------------- 1 Settings ------------------------------------------------------ 13 Radio Overview ------------------------------------------- 2 Functions and Operations ------------------------------ 16 Front Panel-------------------------------------------------- 2 Standby Screen -------------------------------------------- 16 Rear Panel -------------------------------------------------- 2 Scan ---------------------------------------------------------- 16 Programmable Keys -------------------------------------- 2 Public Address --------------------------------------------- 16 Installation -------------------------------------------------- 4 Talk Around ------------------------------------------------- 17...

  • Page 6: Checking Items In The Package

    Checking Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Radio Unit Palm Microphone Microphone Hanger and Screws Power Cord Mounting Bracket Kit Fuse Owner’s Manual /Quick Reference Guide/Safety Information Booklet...

  • Page 7: Radio Overview

    Radio Overview Rear Panel Front Panel Part Name Part Name Part Name Part Name BNC Antenna Volume Control / Power Inlet Connector Channel Selector LED Indicator GPS Antenna Knob Accessory Jack Connector LCD Display OK/Menu Key Back Key Power On/Off key Programmable Keys Up Key Down Key...
  • Page 8 Radio Overview Shortcut Keys Description Zone Up Quick access to desired zone Zone Down Quick access to desired zone Message Quick access to the menu “Message” Contact List Quick access to Contact List Call Log Quick access to the menu “Call Logs” Adjusting Power Level To adjust power level through one button press.

  • Page 9: Installation

     Please connect the supplied antenna and power cord to the radio, before you install the radio in the bracket.  Install the radio with Hytera supplied mounting bracket, to avoid radio loose in case of accidents. The loose radio may cause bodily injury.

  • Page 10: Installation Steps

    Installation Installation Steps I n s t a l l t h e b r a c k e t i n a location where it’s easy to operate the radio. No. Part Name Connect accessories such as Radio Unit antenna and power cord to BNC Antenna Connec...

  • Page 11: Status Indicators

    Status Indicators LCD Icons Scanning is in progress The LCD of your radio displays the radio status, text Scanning pauses on a non- entries, and menu items. The following are the icons that priority channel Scan Icons appear on the radio’s display. Scanning pauses on Priority Channel 1 Standby Interface...

  • Page 12: Led Indicator

    Status Indicators Operation Mode Icons Icon Name Icon Operation Mode Direct Mode: Under this mode, radios commu- nicate with each other directly. Operation Mode Repeater Mode: Under this mode, radios com- m u n i c a t e w i t h e a c h other via a repeater.

  • Page 13: Basic Operations

    Basic Operations press of the programmed Zone Up or Zone Down key. Turning the Radio On/Off Note: You dealer may designate the power-up To turn the radio on, hold down the Power On/Off key until zone and channel. If not, the radio will enter the the following indications are given: the radio shows the zone and channel last used.

  • Page 14: Call

    Basic Operations Call Transmitting a call through Manual Dial 1 Go to Contact -> Manual Dial. Transmitting a Private Call 2 Input a Private Call number you want to call. You may transmit a Private Call through any of the 3 Hold down PTT key to transmit a call.
  • Page 15 Basic Operations Note: You can transmit an All Call only when it is enabled by your dealer. Receiving and Responding to a Call Receiving a Call When a call is received, your radio will display the corresponding icon as follows: for a Private Call, for a Group Call and for an All Call.

  • Page 16: Menu Navigation

    Menu Navigation Editing a Contact You can edit the number and alias of each private contact. Viewing a Contact You can view details of each contact. Deleting a Contact You can delete a Private Call contact. However, please note that you can not delete the contact when there is only one entry left in the list.

  • Page 17: Call Logs

    Menu Navigation New Message To delete all messages in the outbox, select “Message -> Outbox -> Delete All”. You can create your desired text message (256 characters Call Logs at most) and send it to an individual user or to a talk group.

  • Page 18: Zone

    Menu Navigation indicates priority channel 1, and indicates priority channel 2. Deleting a Channel To remove a channel from the active scan list. However, the first channel in the list can not be deleted. Scan On/Off Zone The feature “Scan” allows you to listen to communication To access this item, press Menu key in idle mode and then activities on other channels so that you can keep a close select “Zone”.
  • Page 19 Menu Navigation You can optimize your radio performance by customizing languages: Simplified Chinese and English. related parameters according to actual needs and your (5) Squelch Level preferences. This option allows you to select an appropriate squelch Radio Setting level. Alternatively, you can change the squelch level by pressing the shortcut key for Adjust Squelch Level in idle (1) Brightness mode.

  • Page 20: Radio Information

    Menu Navigation transmission on analog channels only), and Enable (tone indication for transmission on both analog and digital channels). Private Ring: to set whether the radio will give tone indication when it receives a private call. TextMsg Ring: to set whether the radio will give tone indication when it receives a message.

  • Page 21: Functions And Operations

    Functions and Operations  When activities are detected on a channel, the mobile Standby Screen radio will stay on the channel to receive current The feature allows you to quickly return to the previous activities. If your mobile radio stays on a non-priority menu or the home screen.

  • Page 22: Talk Around

    Functions and Operations 2. H o l d d o w n t h e P T T k e y a n d s p e a k i n t o t h e Operation: microphone. Then your voice will be broadcasted (1) Press the programmed Monitor key to enable the clearly via the external speaker.

  • Page 23: Emergency

    Functions and Operations Emergency In Emergency mode, the mobile Silent radio won't give any audible or In case of an emergency, you can use the feature to visible indication. ask for help from your companion or control center. The In Emergency mode, the mobile Emergency process has the highest priority.
  • Page 24 Functions and Operations Operation Methods for Analog Emergency In this mode, you can send alarm information by pressing the programmed Emergency Emergency Alarm key. When icon appears, Emergency Alarm Operation: Press the programmed Emergency key to send you can speak into the micro- with Call alarm information.

  • Page 25: Ignition Sense

    Functions and Operations If the preset Voice Cycles expire, you can press the PTT 3. When icon appears, you can receive. And when a key to make the emergency call again (the mobile radio call is received, the icon appears. displays the icon , with red LED glowing).

  • Page 26: Busy Channel Lockout

    Functions and Operations Operation: To power on the mobile radio, start the transmission and keep beeping. To stop beeping, please engine or hold down the Power On/Off key; to power release the PTT key. You must wait for a certain time it off, stop the engine or long press the Power On/Off period (preset by your dealer) before you can press and key.

  • Page 27: Troubleshooting

    Troubleshooting Phenomena Analysis Solution The equipment can not be The power cord may be unconnected. Connect the power cord correctly. powered on. Increase the volume by rotating the Vol- The volume may be set to a low level. ume Control knob clockwise. The antenna may get loose or may be Power off the radio, re-install the antenna During receiving signals, the...
  • Page 28 Troubleshooting You may be interrupted by radios using the Change the frequency, or adjust the same frequency. squelch level. Irrelevant communications or Set your radio with signaling to avoid inter- noises are heard on the analog ference at the same frequency, and make channel.

  • Page 29: Care And Cleaning

    Care and Cleaning To guarantee optimal performance as well as a long service life of your mobile radio, please follow the tips below. Radio Care  Keep the mobile radio at a place with good ventilation and heat dissipation to facilitate normal work.  Do not place irrelevant articles on top of the mobile radio to ensure optimal heat dissipation.

  • Page 30: Optional Accessories

    Programming Cable (USB Port) PC37 Data Cable PC40 Keypad Microphone SM19A1 Power Supply (320W) PS22002 Antenna Note: Use the accessories specified by Hytera only. If not, Hytera shall not be liable for any losses or damages arising out of use of unauthorized accessories.

  • Page 31: Appendix Input Method

    Appendix Input Method Number You can enter aliases, numbers or messages using the keypad. This mobile radio supports the following input Operation: methods: Chinese Pinyin (simplified), English and Number. 1. Press to switch to Number mode; Chinese Pinyin (Simplified) 2. Enter the numbers through alphanumeric keys Operation: 1.
