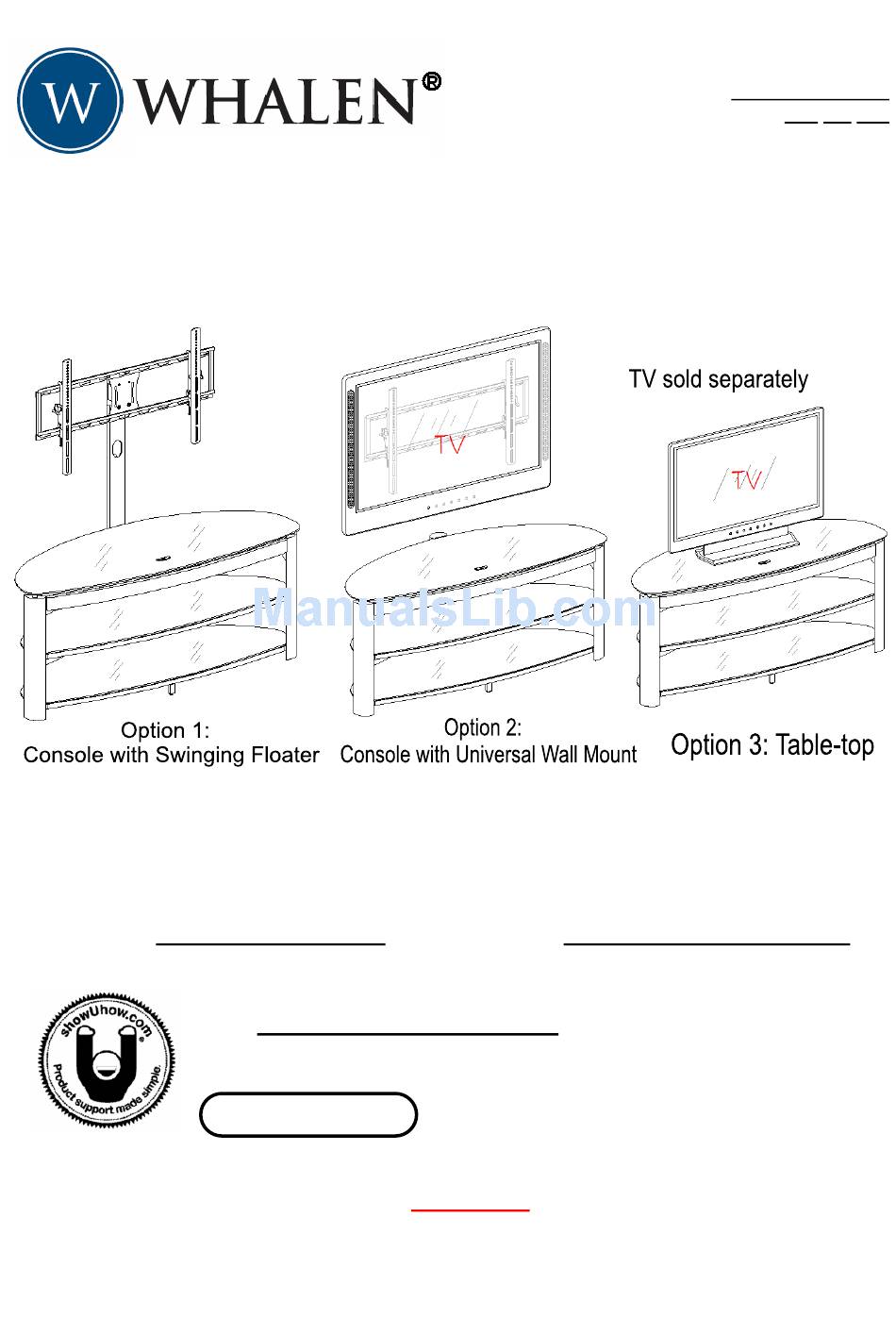

3-in-1 TV Stand (WMCXL-3)
U.S. Patents 8,079,311 & 8,191,485
This item is designed to be a 3-in-1 configuration. Please choose the option that best suits your
needs. DO NOT discard any of the hardware or parts that you will not use on your chosen option.
This will allow you to use this TV Console in different configurations at a later date, if desired.
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
www.whalenstyle.com
ONLINE:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg. Inc.
8:30 a.m. - 4:30 p.m. PST, Monday - Friday
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
WMCXL-3
LOT NUMBER:
DATE PURCHASED:
parts@whalenfurniture.com
EMAIL:
Page 1
/
Factory No. 33-10944
/

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMCXL-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whalen WMCXL-3

  • Page 1 ONLINE: EMAIL: Video Instruction Guides Go to http://whalen.showuhow.com to view step-by-step instructional videos for assembling and installing your product. Enter the following product number on the ShowUhow homepage. WMCXL-3 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
  • Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Mfg., Inc. CATALOG: 3-in-1 TV Stand (WMCXL-3) DATE OF MANUFACTURE: November 2012 MADE IN CHINA FITS UP TO MOST 56”...
  • Page 3 Model # WMCXL-3 Parts and Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A- Top Shelf Frame (1) B- Middle Shelf Frame (1) C- Bottom Shelf Frame (1) D- Long Spine (1)
  • Page 4 Model # WMCXL-3 Parts and Hardware Master List (1) Suction Cup (2) 3/4” Bolt (3) 1-1/4” Bolt (4) Hex Nut (12+1 extra) (44+2 extra) (6+1 extra) (4+1 extra) (5) Lock Washer (6) Flat Washer (7) Lag Bolt Washer (8) 2-1/2” Lag Bolt...
  • Page 5 Model # WMCXL-3 Assembly Instructions Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Unpack the unit and confirm that you have all the hardware and parts required.
  • Page 6 Model # WMCXL-3 Assembly Instructions 5. Stand the unit upright. 6. Align and attach Left Leg (E) to three Shelf Frames (A, B and C) by inserting the 3/4” Bolts (2) with Washers (5 and 6) through the end bracket holes of shelf frames into the threaded inserts on the Left Leg.
  • Page 7 Model # WMCXL-3 Assembly Instructions 8. For a stable structure, align and attach Front Left Support (I) and Front Right Support (J) in place to connect the Top Shelf Frame (A) with Left and Right Legs (E and F) using 3/4”...
  • Page 8 Model # WMCXL-3 Assembly Instructions 10. Go back and tighten all bolts with the Allen Wrench provided. 11. In case of uneven floor, Floor Levelers are provided at the bottom of both Legs (E and F) and the support leg on Bottom Shelf Frame (C). Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting as shown in detail #4.
  • Page 9 Model # WMCXL-3 Assembly Instructions for Table-top 12. Attach 2 Cable Wheels (P) onto the backside of Short Spine (D1) with the 3/4” Bolts (2). Tighten the bolts with Allen Wrench provided. See detail #5. 13. The Cable Wheels (P) enables you to shorten, separate and route cables and cords. Using...
  • Page 10 Model # WMCXL-3 Assembly Instructions for Table Top 14. Put the Suction Cups (1) firmly into top holes of the Middle Shelf Frame (B) and Bottom Shelf Frame (C) as shown in detail #6. 15. Screw 8 Glass Raisers (10) onto the top holes of Top Shelf Frame (A) and both Legs (E and F).
  • Page 11 Model # WMCXL-3 Assembly Instructions for Table-top 17. Position the assembled Table Top in your desired location against the wall. Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint Hardware Kit to the Spine (D1) properly. As shown in detail #7.
  • Page 12 Model # WMCXL-3 A s s e m b l y I n s t r u c t i o n s f o r O p t i o n 1 : C o n s o l e w i t h S w i n g i n g F l o a t e r Align and attach Swiveling Bracket (M) to the top of Long Spine (D) using six 3/4”...
  • Page 13 Model # WMCXL-3 Assembly Instructions for Option 1: Console with Swinging Floater 20. Hold the flat side of XYZ Mounting Frame (N) onto the Swiveling Bracket (M) ensuring the recessed 2 holes on the Mounting Frame bottom. Align and attach by threading four 3/4”...
  • Page 14 Model # WMCXL-3 Mounting Monitor Bracket to a television with a flat back Note: For televisions with a curved back or recessed back proceed directly to step #24. 21. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV.
  • Page 15 Model # WMCXL-3 Mounting Monitor Bracket to a television with a curved / recess back 24. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
  • Page 16 Model # WMCXL-3 Assembly Instructions for Option 1: Console with Swinging Floater MAKE SURE ALL BOLTS ARE TIGHT AND SPINE IS AT A 90 DEGREE ANGLE AND USING A QUALITY LEVEL TO VERIFY THE MOUNTING FRAME IS LEVEL PRIOR TO INSTALLATION OF TV.
  • Page 17 Model # WMCXL-3 Assembly Instructions for Option 1: Console with Swinging Floater 29. The Monitor Brackets (OL/OR) can tilt up to 11˚ downward and 5˚ upward, depending on your optimum viewing position. Have your assistant hold the TV steady before you start to adjust the tilt.
  • Page 18 Model # WMCXL-3 Assembly Instructions for Option 1: Console with Swinging Floater 30. Repeat steps 12 thru 16 to attach the Cable Controls (P) and install Top Glass (G) and Glass Shelves (H) in place. 31. Carefully move the console and position in your desired location against the wall. Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint Hardware Kit to the Spine properly.
  • Page 19 Model # WMCXL-3 The following steps are only for those who wish to mount their TV directly to the wall. If you have already mounted your TV to the Swinging Floater or plan to display your TV on the top surface of the stand, disregard the following steps.
  • Page 20 Model # WMCXL-3 Assembly Instruction for installing XYZ Mounting Frame onto BRICK, SOLID CONCRETE OR CONCRETE BLOCK 36. Use the XYZ Mounting Frame (N) as a template, mark six holes location on the wall, three in the top row and three in the bottom row of slots. Make sure that the holes are level and there is at least 6”...
  • Page 21 Model # WMCXL-3 Assembly Instructions 39. Once the Monitor Brackets (OL/OR) are attached onto the back of television, ask for assistance to lift the television up to attach the Monitor Brackets onto the XYZ Mounting Frame (N). Place the hooks on Monitor Brackets over the Mounting Frame then lower them onto the bars of Mounting Frame.
  • Page 22: Care And Maintenance

    Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
