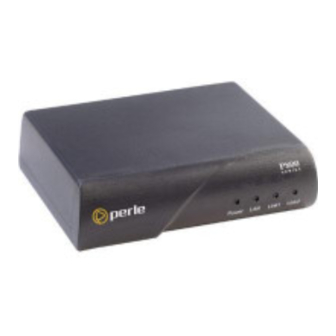

Perle P850 User And System Administration Manual

Bridge / router
Hide thumbs Also See for P850:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, User and System Administration Manual
Perle P850
Bridge / Router
USER AND SYSTEM
ADMINISTRATION GUIDE
Part number 5500086-15
© Copyright 2003 Perle Systems Ltd.

Advertisement

Table of Contents
loading

Related Manuals for Perle P850

Summary of Contents for Perle P850

  • Page 1 Perle P850 Bridge / Router USER AND SYSTEM ADMINISTRATION GUIDE Part number 5500086-15 © Copyright 2003 Perle Systems Ltd.
  • Page 2 2. Applicable USOC jack required: RJ49C 3. If the terminal equipment P850 router causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required.
  • Page 3 Canadian Emissions Standard ICES-003 This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Department of Communications. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”, NMB-003 édictée par le ministre des Communications.
  • Page 4 Using This Manual This Installation and Applications Guide provides the basic information required to initially set up and configure the P850 router. This guide is organized into the following sections: Installation “ ” provides instructions for installing the P850 router.
  • Page 5 Using the Electronic Reference Manual The P850 router Reference Manuals are provided as Adobe Acrobat PDF files on the accompanying CD-ROM. The PPP Menus Reference File is provided individually for ease of configuration reference. The Adobe Acrobat Reader program is included on the CD-ROM. It is also available for most computer operating platforms from Adobe on the Internet at: www.adobe.com.

  • Page 7: Table Of Contents

    Setting the T1/E1Parameters (T1/E1 WAN only) Identify the Status LEDs 2 - TYPICAL APPLICATIONS & HOW TO CONFIGURE THEM Managing the P850 Using Menus Conventions Basic Frame Relay Configuration Auto Learning the Frame Relay Configuration Manual Configuration - LMI Type “Quick Start”...
  • Page 8 Configure Remote Site Profiles for PPPoE QOS - Priority Queuing Simple Network Time Protocol 3 - INTRODUCTION TO FILTERING MAC Address Filtering Pattern Filtering Popular Filters Bridge IP & Related Traffic Novell IPX Frames NetBIOS &NetBEUI (Microsoft Windows) Banyan IP Router NetBIOS over TCP Other interesting TCP Ports APPENDIX A MENU TREES...
  • Page 9 Contents V.35 Link Pinouts RS232C / V.24 Link Pinouts RS530 / RS422 Link Pinouts V.11 / X.21 Link Pinouts V.11 / X.21 DB25 to DB15 Connector Cable V.35 Null-Modem Cable Configuration The link speed must be defined for each of the two units. RS232 / V.24 Null-Modem Cable RS530 / RS422 Null-Modem Cable APPENDIX D SOFTWARE UPGRADES...

  • Page 10: Installation

    1 - I NSTALLATION P850 is an Ethernet Bridge/Router that provides bridging, IP/IPX routing, and compression over a frame relay permanent virtual circuit or a PPP leased line circuit.. The following instructions provide a quick set-up guide for installation of the P850 router Unpack the P850 Rough handling during shipment can damage electronic equipment.

  • Page 11: Identify The Connectors

    WAN connector on the back panel. CSU-DSU Figure 1 - 1 Rear View of the CSU-DSU P850 router UNIVERSAL WAN Figure 1 - 2 Rear View of the Universal WAN P850 V.35...

  • Page 12: Connect To The Console

    RJ-45 to DB9 (female) converter are provided for connection to a DB9 (male) connector. Connect the console port of the P850 router to a computer running an asynchronous communication package or a standard asynchronous terminal. The router supports autobaud rates at 1200, 2400, 9600 or 19,200 bps.
  • Page 13 The T1/E1 and LX411 CSU-DSU interfaces connect with a standard RJ-45 (RJ-48C specification for T1/E1, RJ-48S specification for CSU/DSU) connector After the P850 is powered up and the router has established communications with its partner across the WAN, the “Tx” LED will turn green.

  • Page 14: Power Up The Router

    P850 router. Connect the DC power cord from the supplied power supply to the back of the P850 router and plug the power supply into the AC wall outlet. Observe the LEDs as the router powers up. The LEDs will go through a flashing pattern as the power-up diagnostics are performed.

  • Page 15: Mandatory Configuration

    Section 2: Typical Applications and How to Configure Them. Refer to Section 2 for details on configuring the P850 router. Also refer to the Menu Reference Manual file on the accompanying CD- ROM for a complete description of all the Menu Options.

  • Page 16: Setting The Link Interface Type (Universal Wan Only)

    WAN Set Up Link Set Up Link Interface Type Select the Service type to which this P850 router will be connected. Note: If the module is being changed from one type of service to another, you must first select “none” before a new selection may be chosen.

  • Page 17: Setting The T1/E1Parameters (T1/E1 Wan Only)

    Configuration WAN Set Up Link Set Up T1/E1 Set Up Link mode T1 or E1 Set the service mode to which this P850 router will be connected. Service parameters: Location: Main Configuration WAN Set Up Link Set Up T1/E1 Set Up...
  • Page 18 Installation provider will tell you which specification their service requires. Short haul LBOs are listed as the length of the cable run (in feet) between the router and the local exchange. E1 service does not require line build out selection. Set Link Interface Type: Location: Main Configuration...
  • Page 19 Installation Some E1 service providers reserve timeslot 16 for network management use. If your service specifies that timeslot 16 is for their use, toggle this option to reserved Set Link Interface Type: Location: Main Configuration WAN Set Up Link Set Up T1/E1 Set Up Slot/Channel Set Up...

  • Page 20: Identify The Status Leds

    Installation Identify the Status LEDs The meanings of the four 3-colour Light Emitting Diodes (LEDs) on the front of the P850 router are found in the following chart: Router is running and has passed power-up diagnostics Green Green (flashing) Router is in BOOT mode and is programming the flash...
  • Page 21 Installation Power Figure 1-4 Front View of the P850 router...

  • Page 22: Typical Applications & How To Configure Them

    P850 using each of its networking functions. The P850 may be configured as a simple Ethernet bridge, an Ethernet IP router, an Ethernet IPX router, or a combination of the three. When operating the P850 as a combination bridge/router simply configures each of the components separately.

  • Page 23: Managing The P850 Using Menus

    Each of the configuration scenarios requires setting of operational parameters on the P850. The built-in menu system of the P850 is used to configure the unit. When navigating around the menu system, a new menu or an option may be chosen by simply typing the number associated with the option that you wish to choose.

  • Page 24: Conventions

    Applications Conventions Throughout this section, P850 menu options are shown that are required for the various configuration choices. The appropriate menu options are shown in each instance in the following format: Configuration Option Name Location: Main Sub-Menu Name Sub-Menu Name...

  • Page 25: Basic Frame Relay Configuration

    WAN connections to other frame relay units via frame relay Permanent Virtual Circuits (PVC). From 1 to 40 PVC’s may be defined to connect to other frame relay units. Before the P850 can establish a PVC connection to another frame relay router, at least one PVC must be defined.
  • Page 26 For an P850 with a CSU-DSU interface, the default clock speed that the P850 will expect to receive from the DCE link is 64Kbps. If the DCE link is 56 Kbps, then the Link Speed value must be reset to 56 here.

  • Page 27: Auto Learning The Frame Relay Configuration

    Manual configuration is also allowed by modifying the options within each Remote Site Profile and the individual link configuration menus. When the P850 first starts up it will query the frame relay service to try to determine the LMI type. Once the LMI type is determined, the PVC configurations will be known from the full status enquiry messages.

  • Page 28: Manual Configuration - Lmi Type

    Management Interface in use by the Frame Relay service provider for the Frame Relay service. When the LMI type is set to none, the P850 simply creates frame relay packets and sends them on the defined PVC’s. The links are not checked for errors.

  • Page 29: Quick Start" Frame Relay

    Because an IP router requires an IP address, the P850 must be configured with an IP address before IP routing is fully operational. To configure an IP address for the P850, use the IP address option. IP Address Location: Main...
  • Page 30 The configuration options described here are only for initial set up and configuration purposes. For more complete information on all of the configuration parameters available please refer to the P850 PPP Menus Reference Manual file on the accompanying CD-ROM.

  • Page 31: Basic Leased Line Configuration

    Basic Leased Line Configuration P850s shipped outside North America are configured to have a default setting as a leased line router. The P850 will operate as a PPP leased line bridge/router if the frame relay function is disabled. The Leased...
  • Page 32 Applications Figure 2 - 2 Basic PPP Leased Line Configuration The following steps must be performed on the P850 unit. Link Speed Location: Main Configuration WAN Set up Link Set up Link Speed The clock speed that the P850 will expect to receive from the DCE link device must be defined.
  • Page 33 Applications Bridge Connection. Once the link speeds have been configured, the P850 will attempt to establish the link connection to the remote site PPP router. The Bridge connection does not require any configuration for operation. IP Router Connection. Once the link speeds and local IP address have been configured, the P850 will attempt to establish the link connection to the remote site PPP router.

  • Page 34: Should You Bridge Or Route

    Applications Should You Bridge or Route? When connecting two Local Area Networks together, the first question to ask is should I bridge or route? The decision to bridge or to route may be decided by how the existing networks have been already set up. Bridging should be used when the network consists of non-routable protocols or routable protocols using the same network numbers.

  • Page 35: Configure As An Ethernet Bridge

    LAN traffic to be re-broadcast again and again causing network congestion. P850 is pre-configured to operate as an Ethernet bridge compatible with the IEEE 802.1d Spanning Tree Protocol definitions. This means that without configuration modifications, the P850 will bridge Ethernet traffic to its partner bridges when the Wide Area Network (WAN) connection has been established.
  • Page 36 Applications The P850 router also is pre-configured as an IPX router. This means that if you wish to bridge IPX traffic instead of routing it, you must disable the IPX routing function of the P850 router. Once IPX routing has been disabled, all IPX traffic will be bridged between partner bridges on the WAN.
  • Page 37 The configuration options described here are only for initial set up and configuration purposes. For more information on all of the configuration parameters available please refer to the P850 PPP Menus Reference Manual file on the accompanying CD-ROM.

  • Page 38: Configure As An Ethernet Ip Router

    If no explicit route entry is found in the routing tables, the IP frame is sent to the Default Gateway. To configure the P850 to be an IP router, the following parameters must be defined in the built-in menu system.
  • Page 39 Applications IP Address Location: Main Configuration LAN Set-up LAN IP Set-up IP Address / Subnet mask size The IP address consists of four 8-bit numbers and is represented by 4 fields separated by periods (“.”), where each field is specified by a decimal number (e.g.

  • Page 40: Define An Ip Default Gateway

    IP frame is received that is destined for a network that is not listed in the routing tables of the P850, the P850 will send the IP frame to the default gateway. If the device originating the IP frame is on the same local LAN as the P850, the P850 will then send an ICMP redirect message to the originating device.

  • Page 41: Define An Ip Static Route

    IP network address. The configuration options described here are only for initial set up and configuration purposes. For more information on all of the configuration parameters available please refer to the P850 PPP Menus Reference Manual file on the accompanying CD-ROM.

  • Page 42: Define An Ip Subnet Mask

    IP network and to be routed together to allow inter-network communication. The P850 allows masks from 8 to 32 bits. The mask size determines how many bits of the host field of the original IP network address will be used for the creation of subnets.
  • Page 43 199.169.100.67 199.169.100.130 199.169.100.131 Figure 2 - 5 Defining an IP Subnet Mask To configure the P850 routers to route between the newly created sub-networks, the following parameters must be defined in the built-in menu system. IP Address & Subnet Size...
  • Page 44 62 host IP addresses defined. The configuration options described here are only for initial set up and configuration purposes. For more information on all of the configuration parameters available, please refer to the P850 PPP Menus Reference Manual file on the accompanying CD-ROM.

  • Page 45: Configure As An Ethernet Ipx Router

    LAN segments to be connected. The second configuration consists of Novell servers located on only one of the LAN segments to be connected. The P850 IPX router will need to be configured differently in the second configuration with Novell servers located on only one of the LAN segments.
  • Page 46 Once the destination IPX address is found in the routing tables, the IPX router sends the IPX frame to the remote partner P850 router that is connected to the appropriate remote IPX network.

  • Page 47: Novell Servers In One Location Only

    LAN #1 to be stored in the services table on the P850 on LAN #2. When one of the clients on LAN #2 starts up, it will look for a server on the local LAN and the P850 will respond with the list of servers that are located on the central LAN.
  • Page 48 Since there is not a server on LAN 2 in this example, the IPX network number may be manually configured and the P850 router will proceed to route between the two networks. When manually configuring an IPX network number for a frame type that has already learned a network number, IPX routing must be disabled before the new network number is assigned.

  • Page 49: Ppp Link Configuration Overview

    Applications PPP Link Configuration Overview A PPP (Point to Point Protocol) connection between two routers may use a number of Network Control Protocols (NCP) for communication. An IP router connection will use the Internet Protocol Control Protocol (IPCP) NCP for all IP communications. An IPX router connection will use the Internet Packet Exchange Control Protocol (IPXCP) NCP for all IPX communications.

  • Page 50: Unnumbered Links

    Peer IP Address. The peer IP address in this case is the IP address of the remote PPP router, that is the IP address of its LAN connection. If the peer IP address is not specified, the P850 router will attempt to determine it when negotiating the IPCP connection.

  • Page 51: Configure Dynamic Host Configuration Protocol

    P850’s LAN and supply minimal configuration needed to allow hosts to operate in an IP network. The following steps must be performed on the P850 to configure it as a DHCP server. DHCP Services...
  • Page 52 Applications The IP address pool option requires having the first IP address in the range that is wanted for the devices attached to the DHCP Server to be set. The number of addresses to be assigned must also be specified to a maximum of 253. With the DHCP Services and IP Address Pool defined, devices may be attached to the network (up to the maximum specified) and they will be automatically configured.

  • Page 53: Configure Network Address Translation (Nat)

    Applications Configure Network Address Translation (NAT) Support is provided for Network Address Translation (NAT). Network Address Translation is a technique which translates private IP addresses on a private network to valid global IP addresses for access to the Internet. Port translation (NAPT) allows more than one private IP address to be translated to the same global IP address.
  • Page 54 Port The configuration options described here are only for initial set up and configuration purposes. For more complete information on all of the configuration parameters available please refer to the P850 PPP Menus Reference Manual file on the accompanying CD-ROM.

  • Page 55: Configure Ppp Security

    When a security level is defined on this P850, an entry for each remote site PPP router that may be connected to this P850 must be placed in the security database. The security database is used to store the user names...
  • Page 56 When defining the user names for the PPP routers that will be connecting together, you should remember that the remote site PPP router user name that is authenticated by the P850 is used to match to the configured remote site profiles.

  • Page 57: Configure Firewall

    LAN and remote sites. The direction of filtering is from the perspective of the P850; incoming traffic is from the network in question to the P850, outgoing is from the P850 to the network. The direction of filtering may be set to incoming, outgoing, both or none.
  • Page 58 Anyone in the corporation may have unrestricted access to the Internet. The following steps must be performed on the P850 to set up the firewall support as desired. First the firewall on the ISP connection (remote site 1) of the WAN is set up.
  • Page 59 TCP port values. Next, the LAN firewall is set up to restrict access to the LAN. The firewall option is set to “outbound” to have the LAN firewall filter traffic from the P850. Firewall LAN Filter Direction Location: Main...
  • Page 60 — 195.100.1.20 The configuration options described here are only for initial set up and configuration purposes. For more information on all of the configuration parameters available, please refer to the P850 PPP Menus Reference Manual file on the accompanying CD-ROM.

  • Page 61: Configure Remote Site Profiles For Pppoe

    Remote Site Profiles allow for the router to be configured to support PPP over Ethernet (PPPoE) client on the router. The PPPoE feature on the Perle routers provide a PPPoE client support on Ethernet interfaces to a bridging DSL modem to the Internet. This feature will create a PPP tunnel to an ISP located somewhere on the ATM network side of the xDSL modem.
  • Page 62 To verify that PPPoE is enabled for this remote connection, view the read-only parameter Location: Main Configuration WAN Set-UP Remote Site Set-Up Edit Remote Site Protocol Set-Up PPPoE enabled When setting up your PPPoE link with your ISP provider, one global IP addresses will be provided that should be used for the PPPoE remote site configuration.
  • Page 63 Applications TCP mss option should decrease to 1452 bytes. Therefore when configuring the router for PPPoE, the remote site NAT configuration automatically adjust its TCP mss option to 1452 to accommodate this requirement. To verify this value has been adjusted: Location: Main Configuration WAN Set-Up...
  • Page 64 Applications To ensure that network traffic is routed to the PPPoE connection, the router must be configured to have the default IP gateway setup to your newly created PPPoE remote site connection. Location: Main Configuration IP Routing Set-up Gateway PPPoE remote site alias...

  • Page 65: Qos - Priority Queuing

    Applications QOS - Priority Queuing Priority Queuing (PQ) allows the users to configure the router to allow specific traffic bound for an outgoing interface to be prioritized into high, medium, normal and low queues. Packets sent to the high priority queue are serviced first, followed by the packets on the medium queue and so on.
  • Page 66 Applications To assign a Priority List to a LAN interface Location: Main Configuration Lan Set-up QOS Set-up Queuing Strategy Priority Priority List Number To assign a Priority List to a Remote Site Configuration Location: Main Configuration Wan Set-up Remote Site Set-up Edit Remote Site Protocol Set-up QOS Setup...

  • Page 67: Simple Network Time Protocol

    When the Perle router has SNTP enabled it will periodically send NTP packets to the NTP/SNTP server which will respond with the network time. The router will synchronize its internal clock with the response from the NTP/SNTP server.
  • Page 68 Applications recurring year after year. Configuration parameters allow the router to enable Summer-time each year by specifying the month, week, day and hour for the begin and end Summer-time. To enable SNTP on the router and setup for unicast mode to directly obtain the time from a specific NTP server implement the following steps.
  • Page 69 * * * * Applications Name Summer Time Setup Summer Time enabled Summer Time Mode date Summer Time Start Year Month Date Time Summer Time End Year Month Date Time Offset...

  • Page 70: Introduction To Filtering

    IP routed frames, and IPX routed frames. For more information on filtering, please refer to the Programmable Filtering section of the P850 reference manual file. The PDF file is located on the accompanying CD-ROM. MAC Address Filtering MAC address filtering is provided by three built-in functions.

  • Page 71: Pattern Filtering

    LAN is passed on to the appropriate internal section of the P850. The IPX frames are passed on to the IPX router, the IP frames are passed on to the IP router, and all other frames are passed on to the bridge.
  • Page 72 Introduction to Filtering The following operators are used in creating Pattern filters. offset Used in pattern filters to determine the starting position to start the pattern checking. Example: 12-80 This filter pattern will match if the packet information starting at the 12 octet equals the 80 of the filter pattern.
  • Page 73 Introduction to Filtering brackets Used in pattern filters to separate portions of filter patterns for specific operators. Example: 12-80&(14-24|14-32) This filter pattern will be checked in two operations. First the section in brackets will be checked and then the results of the first check will be used in the second check using the first portion of the filter pattern.

  • Page 74: Popular Filters

    Some of the more commonly used pattern filters are shown here. Bridge Bridge pattern filters are applied to Ethernet frames that are bridged only. When the P850 is operating as a router, all routed frames will be unaffected by the bridge pattern filters. IP & Related Traffic IP &...

  • Page 75: Banyan

    IP Router IP router pattern filters are applied to IP Ethernet frames that are being routed. When the P850 is operating as an IP router, all IP routed frames will be checked against the defined IP router pattern filters. IP routed frames are unaffected by the bridge pattern filters and the IPX router pattern filters.

  • Page 76: Appendix A Menu Trees

    The menu trees on the next few facing pages are a graphical representation of the hierarchy of the built-in menu system of the P850. The menus are shown with the options of the menus being displayed below the specific menu name.

  • Page 77: Menu Tree

    Menu Tree MAIN Frame Relay Options software release: F5P6.06.xx Configuration 1] 1] 2] 2] Access Set-Up Terminal Set-Up Device Set-Up Telnet Set-Up Load FLASH Set-Up Console 1. Password 1. Terminal 1. Terminal Set-Up menu 1. Telnet access 1. Console (ZMODEM) 1.
  • Page 78 Continued from previous page Syslog Application Set-Up Firewall Set-Up NAT Exports SNMP Set-Up DHCP Set-Up 1. Syslog 1. Edit Services 1. Edit Community menu 1. LAN firewall setup menu 1. SNMP set-up menu 1. Server IP pool address menu 2. Syslog IP 2.

  • Page 79: Appendix B Octet Locations On Ethernet Frames

    PPENDIX CTET OCATIONS ON THERNET RAMES This appendix provides octet locations for the various portions of three of the common Ethernet frames. When creating pattern filters these diagrams will assist in the correct definition of the patterns. The offset numbers are indicated by the numbers above the frame representations.

  • Page 80: Octet Locations On A Bridged Tcp/Ip Frame

    Octet Locations on Ethernet Frames Octet Locations on a Bridged TCP/IP Frame Octet Locations on a Bridged Novell Netware Frame...

  • Page 81: Ethernet Type Codes

    Octet Locations on Ethernet Frames ETHERNET Type Codes Type Code Description 0800 DOD IP 0801 X.75 Internet 0804 Chaosnet 0805 X.25 Level 3 0806 0807 XNS Compatibility 6001 DEC MOP Dump/Load 6002 DEC MOP Remote Console 6003 DEC DECNET Phase IV Route 6004 DEC LAT 6005...

  • Page 82: Octet Locations On An Ip Routed Tcp/Ip Frame

    Octet Locations on Ethernet Frames Octet Locations on an IP Routed TCP/IP Frame Octet Locations on an IPX Routed Novell Netware Frame...

  • Page 83: Octet Locations On A Bridged Xns Frame

    Octet Locations on Ethernet Frames Octet Locations on a Bridged XNS Frame...

  • Page 84: Appendix C Servicing Information

    PPENDIX ERVICING NFORMATION Opening of the case is only to be performed by qualified service personnel. WARNING ! Before servicing ensure that appliance coupler is disconnected. Always disconnect the power cord from the rear panel of the bridge/router. Geraetesteckvorrichtung trennen vor den Wartung. Opening the case Remove power from the bridge/router and remove the other cabling.

  • Page 85: Identifying The Internal Components

    The major components and the jumper strap positions are shown: Sanity Timer - Always ON Force ZMODEM SW Upgrade Return Password to Default Power V.35 / Universal 10BaseT Figure C-1 Top Internal View of the P850 router V.35 or Universal WAN interface...
  • Page 86 Servicing Information Power CSU/DSU T1/E1 10BaseT Figure C-2 Top Internal View of the P850 CSU-DSU or T1/E1...

  • Page 87: Sanity Timer

    Servicing Information Sanity Timer Do not remove this strap – pins 1-2. Force ZMODEM Software Load On the rare occasion that during the programming of the FLASH something happens to the bridge/router (power hit or hardware reset), causing the FLASH to become corrupted, the bridge/router will restart in ZMODEM receive mode only.

  • Page 88: Connecting To The Console Connector

    Servicing Information Connecting to the Console Connector The console connector on the P850 is a DCE interface on a RJ45 pinout. The supplied DB9 to RJ45 converter should be used to connect to the DB9 connector of a DTE terminal.

  • Page 89: Wan Interface Connection

    Servicing Information WAN Interface Connection Pinout Information The P850 router is manufactured with three different WAN link modules: V.35, LXT411 CSU/DSU or Universal WAN. The type installed may be determined from the label above the WAN link output connector on the back of the router.

  • Page 90: T1/E1 Module

    2 --> 8 7 --> 1 8 --> 2 T1/E1 Module: P850 routers with a T1/E1 interface module use a standard RJ45 service connector, pinout specification RJ48C. T1/E1 Figure C-5 Rear View of the T1/E1 Connector When two T1/E1 routers are to be connected in a back to back set-up, a null-modem crossover cable used for the connection.

  • Page 91: Universal Wan Module

    Servicing Information UNIVERSAL WAN Module: The Universal WAN Interface module in this router may be configured to operate in one of four modes: V.11/X.21, V.35, RS232/V.24, or RS530/RS422. The interface connector for all types is a standard DB25 pin female connector. WARNING: ensure that the connector cable used with the Universal WAN interface module has the correct pinouts for the operational mode selected for the interface (V.11X.21, V.35, RS232/V.24, or...

  • Page 92: V.35 Link Pinouts

    Servicing Information V.35 Link Pinouts DB25 M.34 Direction From Contact Contact Circuit DCE DCE Name Protective Ground Transmitted Data (A) Received Data (A) Request to Send Clear to send Data Set Ready Signal Ground Data Channel Received Line Signal Detector Receiver Signal Element Timing (B) ---------- Terminal Signal Element Timing (B)
  • Page 93 Servicing Information Circuits which are paired (contain an (A) and (B) reference) should be connected to twisted pairs within the connecting cable. NOTE For U.K. Approval: The connecting cable may be any length between 0 and 5M. One end must be terminated in a male 34 pin X.21 bis connector as defined in ISO-2593 1984.

  • Page 94: Rs232C / V.24 Link Pinouts

    Servicing Information RS232C / V.24 Link Pinouts Circ Circuit Direction tact Name To From DCE DCE Protective Ground Transmitted Data Received Data Request to Send ---------- Data Set Ready Signal Ground Received Line Signal Detector (CD) ---------- ---------- ---------- ---------- ---------- ---------- Transmit Signal Element Timing (DCE Source)

  • Page 95: Rs530 / Rs422 Link Pinouts

    Servicing Information RS530 / RS422 Link Pinouts Direction Contact Circuit To From Number Circuit Name DCE DCE Shield Protective Ground BA (A) Transmitted Data BB (A) Received Data CA (A) Request to Send CB (A) Clear to Send CC (A) Data Set Ready Signal Ground CF (A)

  • Page 96: V.11 / X.21 Link Pinouts

    Servicing Information V.11 / X.21 Link Pinouts X.21 Direction Contact Circuits Circuit To From Ref. Name DCE DCE Protective Ground T (A) Transmitted Data (A) C (A) Control (A) R (A) Received Data (A) I (A) Indication (A) S (A) Signal Element Timing (A) ---------- Ground...

  • Page 97: X.21 Db25 To Db15 Connector Cable

    Servicing Information V.11 / X.21 DB25 to DB15 Connector Cable DB25 MALE DB15 MALE Protective Ground Protective Ground Transmit Data (A) Transmit Data (A) Receive Data(A) Receive Data (A) Signal Ground Signal Ground Indication (A) Indication (A) Indication (B) Indication (B) Signal Element Timing (B) Signal Element Timing (B) Transmit Data (B)

  • Page 98: V.35 Null-Modem Cable Configuration

    Servicing Information V.35 Null-Modem Cable Configuration Figure C - 11 V.35 Null-Modem Cable The connecting cable must be a shielded cable. Circuits which are paired (contain an (A) and (B) reference) should be connected to twisted pairs within the connecting cable.

  • Page 99: Rs232 / V.24 Null-Modem Cable

    Servicing Information RS232 / V.24 Null-Modem Cable DB25 MALE DB25 MALE Shield Shield Received Data Transmitted Data Received Data Transmitted Data Data Set Ready Request To Send Data Set Ready Request To Send DTE Ready Received Line Signal Detector (CD) Signal Ground Signal Ground Received Line Signal Detector (CD)

  • Page 100: Rs530 / Rs422 Null-Modem Cable

    Servicing Information RS530 / RS422 Null-Modem Cable DB25 MALE DB25 MALE Shield Shield Received Data (A) Transmitted Data (A) Received Data (B) Transmitted Data (B) Received Data (A) Transmitted Data (A) Received Data (B) Transmitted Data (B) DCE Ready (A) Request To Send (A) Request To Send (B) DCE Ready (B)
  • Page 101 Servicing Information...

  • Page 102: Appendix D Software Upgrades

    Software Upgrades PPENDIX OFTWARE PGRADES Procedures for performing a Console ZMODEM Flash Load to upgrade the operating software of the router: 1) Save the current configuration of the router (Main menu: option 2) Execute the Console (ZMODEM) command from the Load FLASH Set-Up menu.
  • Page 103 LAN interface and the WAN interface will be disabled. The router will only accept information from the console management port. The BOOT code of the P850 may be upgraded by performing a load of the “###.all” file from the Operational/BOOT Code directory on the CD-ROM.
  • Page 104 Procedures for performing a TFTP Flash Load to upgrade the operating software of the router: 1) Execute the Network (TFTP) command from the Load FLASH Set-Up menu. 2) Enter “none” to connect locally or enter the remote site ID number or alias to connect to a remote site. 3) Start the TFTP application to be used for transfers to the router.
  • Page 105 In the following diagram of a cluster of routers, when upgrading the three P850 routers in the diagram, the upgrade order should be Router C, then Router B, and finally Router A. A TFTP software load to Router C would be performed as follows: Using TFTP, get config.txt from each router and save.
  • Page 106 PC used for TFTP transfers Router A Link 1 Router B Link 2 Router C...
