2004 Expedition/Navigator Workshop Manual
SECTION 303-01A: Engine — 4.6L and 5.4L
IN-VEHICLE REPAIR
Intake Manifold — 4.6L
Printable View (1287 KB)
Removal
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always
present and can be ignited. Failure to follow these instructions may result in personal injury.
1. Disconnect the battery ground cable. For additional information, refer to
2. Remove the air cleaner outlet pipe. For additional information, refer to
3. Drain the engine cooling system. For additional information, refer to
4. Compress the hose clamp and disconnect the upper radiator hose.

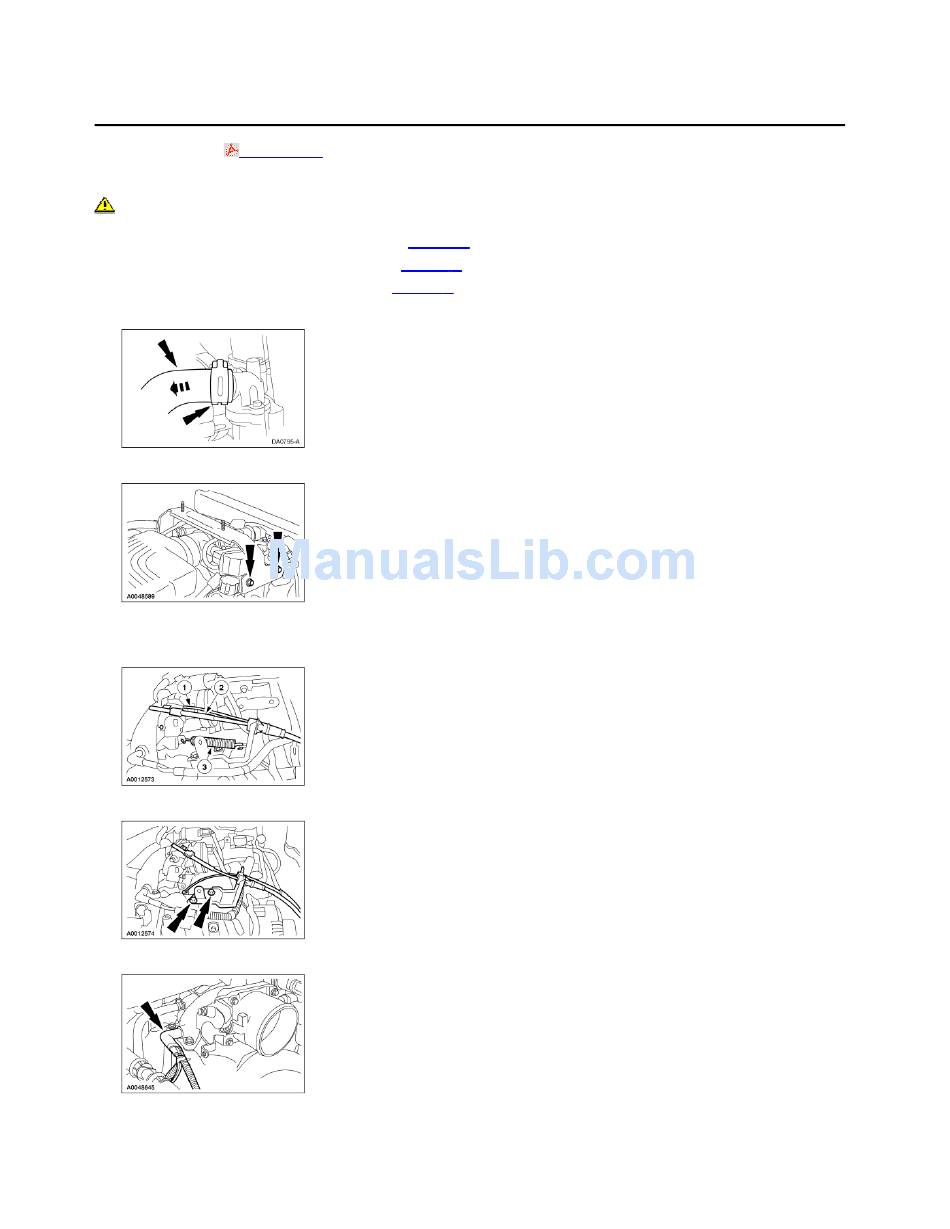

5. Remove the three bolts and the appearance cover mounting bracket.
6. Disconnect the throttle body cam.
1. Disconnect the accelerator cable.
2. Disconnect the speed control actuator cable.
3. Remove the accelerator return spring.
7. Remove the accelerator cable bracket bolts and position the bracket and cables aside.
8. Disconnect the main vacuum harness.
9. Disconnect the fuel pulse damper vacuum hose.
http://www.fordtechservice.dealerconnection.com/pubs/content/~WS4J/~MUS~LEN/20/S...
Section
414-01.
Section
303-12.
Section
303-03.
2004 Expedition/Navigator Workshop Manual
Procedure revision date: 06/23/2003
11/3/2009
12
