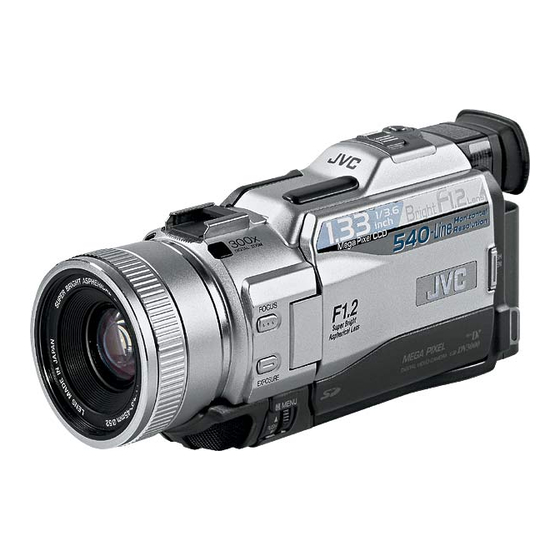

DIGITAL VIDEO CAMERA

GR-DV3000
Please visit our Homepage on the World Wide Web
and answer our Consumer Survey (in English only):
http://www.jvc-victor.co.jp/english/index-e.html
For Accessories:
http://www.jvc-victor.co.jp/english/accessory/
INSTRUCTIONS
CONTENTS
Recording On Tape ............................... 18
Recording On Memory Card ................... 21
Playback From Tape .............................. 25
Playback From Memory Card .................. 26
Basic Connections ................................ 54
Advanced Connections .......................... 56
Dubbing To A VCR ................................ 58
Dubbing From A VCR ............................ 59
On A Tape To A Memory Card ............... 61
Playback and Playback Zoom ............... 64
Playback Special Effects ........................ 65
Random Assemble Editing ..................... 66
For More Accurate Editing ...................... 70
Insert Editing ....................................... 71
Audio Dubbing ..................................... 72
Jack Box ............................................ 81
Indications ......................................... 84
LYT0972-001A
ENGLISH
7
8 - 17
18 - 24
25 - 27
28 - 33
34 - 53
54 - 57
58 - 61
62 - 73
74 - 79
80
81 - 88
89 - 91
92 - 93
94 - 95
