Omron HEM-7201 Instruction Manual

1. Overview
Main unit:
A
B
Automatic Blood
F
C
Pressure Monitor
E
D
Model HEM-7201
A. Display
Instruction Manual
B. START/STOP button
C. USER A/B button
5331366-8B
D. Memory ( ) buttons
E. Date/Time setting ( ) button
Introduction

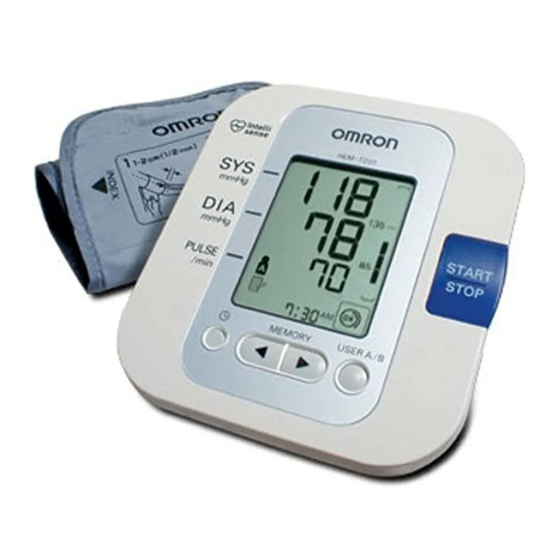

Thank you for purchasing the OMRON HEM-7201 Automatic Blood Pressure
Monitor. Arm cuff:
The OMRON HEM-7201 is a compact, fully automatic blood pressure monitor,
I J K
operating on the oscillometric principle. It measures your blood pressure and
pulse rate simply and quickly. For comfortable controlled inflation without the
need of pressure pre-setting or re-inflation the devices uses its advanced
"IntelliSense" technology.
Intended Use
L
This product is designed to measure the blood pressure and pulse rate of
people within the range of the designated arm cuff, following the instructions in
Storage case:
this instruction manual. It is mainly designed for general household use. Please
read the Important Safety Information in this instruction manual before using
the unit.
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure, CONSULT YOUR
DOCTOR.
Important Safety Information
Display:
M
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia
N
or arteriosclerosis.
Please read this section carefully before using the unit.
O
Warning:
P
• Indicates a potentially hazardous situation which, if not avoided, could result
Q
in death or serious injury.
(General Usage) R
• Always consult your doctor. Self-diagnosis of measurement results and
S
self-treatment are dangerous.
T
• People with severe blood flow problems, or blood disorders, should consult a
doctor before using the unit, as cuff inflation can cause internal bleeding.
M. Systolic blood pressure
(AC Adapter Usage)
N. Diastolic blood pressure
• Never plug in or unplug the power cord from the electric outlet with wet
O. Heartbeat symbol
hands.
(Flashes during measurement)
(Battery Usage)
P. User A/B symbol
• If battery fluid should get in your eyes, immediately rinse with plenty of clean
Q. Memory symbol
water. Consult a doctor immediately.
R. Battery low symbol
Caution:
S. Average value symbol
• Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury to the user or patient or damage to the equipment or

2. Preparation

other property.
(General Usage)

2.1 Installing/Replacing the Batteries

• Do not leave the unit unattended with infants or persons who cannot express
their consent. 1.
Remove the battery cover.
• Do not use the unit for any purpose other than measuring blood pressure.
• Do not disassemble the unit or arm cuff.
2.
Insert four "AA" batteries
• Use only the approved arm cuff for this unit. Use of other arm cuffs may result
in incorrect measurement results. as indicated in the battery
• Make sure that the air tube is not wrapped around other parts of your body
compartment and then
when taking measurements at night. This could result in injury when the air
replace the battery cover.
pressure in the air tube is increased.
• Do not leave the cuff wrapped on the arm if taking measurements during the
Notes:
night. This could result in injury.
• If the battery low symbol (
• Do not inflate the arm cuff over 299 mmHg.
then replace all batteries at the same time.
• Do not use a mobile phone or other devices that emit electromagnetic fields,
• The measurement values continue to be stored in memory even after
near the unit. This may result in incorrect operation of the unit.
the batteries are replaced.
• Do not operate the unit in a moving vehicle (car, airplane).
• To inflate the cuff manually, refer to Section 3.3. If the cuff is over inflated, it Disposal of used batteries should be carried out in accordance with the
national regulations for the disposal of batteries.
can cause internal bleeding.
(AC Adapter Usage)
• Use only the original AC adapter (optional) designed for this unit. Use of

2.2 Setting the Date and Time

unsupported adapters may damage and/or may be hazardous to the unit.
• Plug the AC adapter into the appropriate voltage outlet. Do not use a
1.
Press the button.
multiple-tap.
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off
2. Set the monitor to the correct date and time before
the power and unplug the power cord immediately.
taking a measurement for the first time.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with
plenty of clean water.
1)
• Use only four "AA" alkaline or manganese batteries with this unit. Do not use
other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned. 2)
• Replace old batteries with new ones immediately. Replace all four batteries at
the same time.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit and arm cuff. Year
Month Day
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating.
• Do not forcibly bend the arm cuff or bend the air tube excessively. 3.
Press the START/STOP button to store the setting.
• When removing the air tube, pull on the air plug at the connection with the
Notes:
main unit not the tube itself.
• If the batteries have been removed for 30 seconds or more, the date
• Do not inflate the arm cuff when it is not wrapped around your arm.
and time setting will need to be reset.
• Do not wash the arm cuff or immerse it in water.
• If the date and time are not set, "-:--" appears during or after
• Read and follow the "Important information regarding Electro Magnetic
measurement.
Compatibility (EMC)" in the Technical Data Section.
• Read and follow the "Correct Disposal of This Product" in the Technical Data
Section when disposing of the device and any used accessories or optional
parts.

3. Using the Unit

3.1 Applying the Arm Cuff

G
Remove tight-fitting clothing or tight rolled up sleeve from your
upper arm.
Do not place the cuff over thick clothes.
H
1. Insert the air plug into the air jack.
F. Air Jack
G. Battery compartment
H. AC adapter jack (for optional AC
adapter)
2.
Put your arm through the cuff loop.
I. Arm cuff (Medium cuff: arm
circumference 22-32 cm)
J. Coloured Marker
K. Air tube
L. Air plug
3.
Position the arm correctly.
The bottom edge of the cuff should be 1 to 2 cm above the elbow.
Marker (arrow under tube) is centred on the middle of your inner arm.
Close the fabric fastener FIRMLY.
U
V
1 to 2 cm
W
X
Notes:
Y
• When you take a measurement on the right
Z
arm, air tube will be at the side of your
elbow. Be careful not to rest your arm on
the air tube.
T. Deflation symbol
• The blood pressure can differ between the right arm and the left arm,
U. Blood pressure level indicator
and therefore also the measured blood pressure values can be
V. Pulse display/Memory number
different. Omron recommends to always use the same arm for
W. Movement error symbol
measurement. If the values between the two arms differ substantially,
X. Cuff wrapping guide
please check with your doctor which arm to use for your
Y. Irregular heartbeat symbol
measurement.
Z. Date/Time display
Cuff wrapping guide
This monitor checks whether the cuff is applied correctly during the
inflation. When the cuff is applied correctly, is displayed while taking a
measurement or using the memory function. If the cuff is not applied
correctly, is displayed. Carefully read and repeat the steps listed
under this section.

3.2 How to Sit Correctly

To take a measurement, you need to be
relaxed and comfortably seated, under
comfortable room temperature. No eating,
smoking or exercising 30 minutes before
taking a measurement.
• Sit on a chair with your feet flat on the floor.
• Sit upright with your back straight.
) appears on the display, turn the unit off • The cuff should be at the same level as your
heart.

3.3 Taking a Reading

Notes:
• To cancel a measurement, press the START/STOP button to turn off
the unit and to release the air in the arm cuff.
• Remain still while taking a measurement.
1. Press the START/STOP button to turn the monitor on.
All symbols appear on the display.
Push or buttons to
2. Select your USER ID (A or B).
change.
Push the button to confirm.
Next setting appears.
3.
Press the START/STOP button.
The cuff will start to inflate automatically.
The backlight will turn on automatically when you turn on the monitor.
Hour Minute
START INFLATE DEFLATE END COMPLETE
If your systolic pressure is more than
220 mmHg
After the cuff starts to inflate, press and hold the
START/STOP button until the monitor inflates 30 to 40 mmHg
higher than your expected systolic pressure.
Notes:
• The monitor will not inflate above 299 mmHg.
• Do not apply more pressure than necessary.
Note: Wait 2-3 minutes before taking another blood pressure

4. Troubleshooting and Maintenance

measurement. Waiting between readings allows the arteries to

4.1 The Icons and Error Messages

return to the condition prior to taking the blood pressure
measurement.
Error Display Cause
Warning:
Self-diagnosis of measured results and treatment are dangerous.
Irregular or weak pulses are
Please follow the instructions of your doctor.
detected.
2.
Remove the arm cuff.
Movement during
3. measurement.
Press the START/STOP button to turn off the monitor.
The monitor automatically stores the measurement in its
Cuff is not applied correctly.
memory.
It will automatically turn off after 5 minutes.
After the measurement, the backlight will automatically
Blink The batteries are low.
turn off without any operation within 1 minute.
Important:
• Recent research suggests that the following The batteries are
Lit
values can be used as a guide to high blood
exhausted.
pressure for measurements taken at home.
Cuff is under inflated.
Systolic Blood Pressure Above 135 mmHg
Movement during
Diastolic Blood Pressure Above 85 mmHg
measurement.
• Your blood pressure monitor includes an irregular
heartbeat feature. Irregular heartbeats can influence
Air plug disconnected.
the results of the measurement. The irregular
heartbeat algorithm automatically determines if the
Arm cuff not applied
measurement is usable or needs to be repeated. If the
correctly.
measurement results are affected by irregular
heartbeats but the result is valid, the result is shown
together with the irregular heartbeat symbol ( ). If the
Clothing is interfering with
irregular heartbeats cause the measurement to be
the arm cuff.
invalid, no result is shown. If the irregular heartbeat symbol ( ) is
shown after you have taken a measurement, repeat the
Air is leaking from the arm
measurement. If the irregular heartbeat symbol ( ) is shown
cuff.
frequently, please make your doctor aware of it.
The arm cuff was inflated

3.4 Using the Memory Function

above 299 mmHg when
The monitor automatically stores the result up to 60 sets in the memory
inflating the cuff manually.
for two people (USER A and USER B) every time a measurement is
completed. It can also calculate an average reading based on the
measurements from the last three readings taken within 10 minutes. If
there are only two readings in memory for that period, the average will
Device error.
be based on two readings. If there is one reading in memory for that
period, the average will be based on one reading.
Notes:
• If the memory is full, the monitor will delete the oldest readings.
• When viewing the reading taken without setting the date and time,
"-:--" is displayed instead of the date and time.
To Display the Measurement Values

4.2 Troubleshooting

1. Press the START/STOP button to turn the monitor on.
2. Select your USER ID (A or B). Problem Cause
3. Press the Up button ( ) to display average reading and the most
recent set of measurement values on the screen.
Arm cuff not applied
Press the Down button ( ) to display the oldest set of
correctly.
measurement values.
Average Value Previous Reading
The reading is
Movement or talking
Alternating extremely low (or
during measurement.
date/time display
high).
Clothing is interfering
with the arm cuff.
Old Recent
The air tube is not
securely connected
Arm cuff pressure into the main unit.
View the Average View the Previous View the Readings
Value Reading Stored in Memory does not rise.
• If the previous • The Memory number
Air is leaking from the
reading was taken appears for a second
arm cuff.
without setting the before the pulse rate
date and time, the is displayed. The
average value is not newest set is
Arm cuff deflates too
calculated. numbered "1".
The arm cuff is loose.
soon.
Notes:
• The measurement value number is
Cannot measure or The arm cuff has not
displayed briefly in the Pulse Display area
readings are too low been inflated
when you press the Up/Down buttons
or too high. sufficiently.
( / ).
• The date and time are alternately displayed
with the measurement values.
The batteries are
• If the date and time are not set, "-:--" is
empty.
displayed with the measurement values. Nothing happens
• Press the button repeatedly to display the when you press the
Alternating
The batteries have
next values. display buttons.
been inserted
• Press and hold the button to display the
incorrectly.
values faster.
• Press the START/STOP button and repeat
To Delete All the Values Stored in Memory
measurement.
• If the problem continues, try replacing the
When the memory symbol ( ) appears, first press the Memory
Other problems.
batteries with new ones.
button. Then while holding it down, press the START/STOP button
If this still does not solve the problem, contact
simultaneously for about 2-3 seconds.
your OMRON retail outlet or distributor.
Note: You cannot partially delete the stored readings.

4.3 Maintenance

To protect your unit from damage, please observe the following:
• Do not subject the main unit and the cuff to extreme
Remedy
temperatures, humidity, moisture or direct sunlight.
• Do not fold the cuff or tubing tightly.
Remove the arm cuff. Wait
2-3 minutes and then take • Do not inflate the arm cuff over 299 mmHg.
another measurement.
• Do not disassemble the unit.
Repeat the steps in section
• Do not subject the unit to strong shocks or vibrations
3.3. If this error continues to
(for example, dropping the unit on the floor).
appear, contact your doctor.
• Do not use volatile liquids to clean the main unit. The
Carefully read and repeat
unit should be cleaned with a soft, dry cloth.
the steps in section 3.3.
• Use a soft, moistened cloth and soap to clean the arm
Apply the arm cuff correctly. cuff.
Refer to section 3.1.
• Do not wash the arm cuff or immerse it in water.
You should replace them • Do not use petrol, thinners or similar solvents to clean
with new ones ahead of
the arm cuff.
time.
Refer to section 2.1.
You should replace them
with new ones at once.
Refer to section 2.1.
Carefully read and repeat
the steps listed under
section 3.3.
Repeat measurement.
Remain still and do not talk
during measurement.
Refer to section 3.3.
Insert the air plug securely.
Refer to section 3.1.
• Do not carry out repairs of any kind yourself. If a defect
Apply the arm cuff correctly.
occurs, consult your local authorised OMRON
Refer to section 3.1.
distributor or dealer.
Remove any clothing
Calibration and Service
interfering with the arm cuff.
Refer to section 3.1.
• The accuracy of this blood pressure monitor has been
carefully tested and is designed for a long service life.
Replace cuff with new one.
• It is generally recommended to have the unit inspected
Refer to Chapter 5.
every two years to ensure correct functioning and
accuracy. Please consult your local authorised
Do not inflate the arm cuff
OMRON distributor or dealer.
above 299 mmHg.
Refer to section 3.3.
4.4 Storage
Contact your OMRON retail Keep the unit in its storage case when not in use.
outlet or distributor.
1.
Unplug the air tube from the air connector.
2.
Gently fold the air tube into the arm cuff.
Note:
Do not bend the air tube excessively.
Remedy
Apply the arm cuff
3.
correctly. Place the arm cuff and main unit in the
Refer to section 3.1.
storage case.
Remain still and do not
talk during
measurement.
Do not store the unit in the following situations:
Refer to section 3.3. • If the unit is wet.
• Locations exposed to extreme temperatures,
Remove any clothing
humidity, direct sunlight, dust or corrosive
interfering with the arm
vapours.
cuff.
• Locations exposed to vibrations, shocks or where it will be at an
Refer to section 3.2.
angle.
Make sure that the air
tube is connected
securely.
Refer to section 3.1.
5. Optional Parts
Replace the arm cuff
with a new one.
Medium Arm Cuff Large Arm Cuff AC Adapter "R"
Refer to Chapter 5.
Arm circumference Arm circumference
22 - 32 cm 32 - 42 cm
Apply the cuff correctly
so that it is firmly
wrapped around the arm.
Refer to section 3.1.
Inflate the cuff so that it
is 30 to 40 mmHg above
your previous Using the Optional AC Adapter
measurement result.
Refer to section 3.3.
1.
Insert the AC adapter plug
Replace the batteries into the AC adapter jack on
with new ones.
the rear side of the main
Refer to section 2.1.
unit.
Insert the batteries with
2.
Plug the AC adapter into an
the correct (+/-) polarity.
Refer to section 2.1. electrical outlet.
To disconnect the AC adapter, unplug the AC adapter from the
electrical outlet first and then remove the AC adapter plug from the
main unit.
HEM-7201-C1_B_M03_100331.pdf
6. Technical Data
Product Description Automatic Blood Pressure Monitor
Model
HEM-7201
Display LCD Digital Display
Measurement Method Oscillometric method
Measurement Range Pressure: 0 mmHg to 299 mmHg
Pulse: 40 to 180 beats/min.
Accuracy Pressure: ±3 mmHg
Pulse: ±5% of display reading
Inflation Fuzzy-logic controlled by electric pump
Deflation
Automatic pressure release valve
Memory 60 Measurements with date and time for each user (A and B)
Rating DC6V 4W
Power Source 4 "AA" batteries 1.5 V or AC adapter
(optional)
Battery Life Capacity of new alkaline batteries is approximately
300 measurements
Applied Part
= Type B
Protection against Internally powered ME equipment
Electric Shock (When using only the batteries)
= Class II ME equipment
(Optional AC adapter)
Operating +10°C to +40°C / Maximum: 30 to 90% RH
Temperature/ Humidity
Storage Temperature/ -20°C to +60°C / Maximum: 10 to 95% RH /
Humidity/ Air Pressure 700-1060 hPa
Console Weight Approximately 340 g without batteries
Cuff Weight
Approximately 120 g
Outer Dimensions Approximately 123 (w) mm × 85 (h) mm × 141(l) mm
Cuff Dimensions Approximately 146 mm × 446 mm (Medium cuff: arm
circumference 22 to 32 cm)
Cuff Material
Nylon and polyester
Package Content Main unit, cuff, instruction manual, storage case,
battery set
Notes:
• Subject to technical modification without prior notice.
• Disposal of this product and used batteries should be carried out in
accordance with the national regulations for the disposal of electronic
products.
Please read this instruction manual carefully before using the device.
• This device fulfils the provisions of EC directive 93/42/EEC (Medical Device
Directive).
• This blood pressure monitor is designed according to the European Standard
EN1060, Noninvasive sphygmomanometers Part 1: General Requirements
and Part 3: Supplementary requirements for electromechanical blood
pressure measuring systems.
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC's and mobile
(cellular) telephones, medical devices in use may be susceptible to
electromagnetic interference from other devices.
Electromagnetic interference may result in incorrect operation of the medical
device and create a potentially unsafe situation.
Medical devices should also not interfere with other devices.
In order to regulate the requirements for EMC (Electro Magnetic Compatibility)
with the aim to prevent unsafe product situations, the EN60601-1-2:2007
standard has been implemented. This standard defines the levels of immunity to
electromagnetic interferences as well as maximum levels of electromagnetic
emissions for medical devices.
This medical device manufactured by OMRON HEALTHCARE conforms to this
EN60601-1-2:2007 standard for both immunity and emissions.
Nevertheless, special precautions need to be observed:
• Do not use mobile (cellular) telephones and other devices, which generate
strong electrical or electromagnetic fields, near the medical device. This may
result in incorrect operation of the unit and create a potentially unsafe situation.
Recommendation is to keep a minimum distance of 7 m. Verify correct
operation of the device in case the distance is shorter.
Further documentation in accordance with EN60601-1-2:2007 is available at OMRON
HEALTHCARE EUROPE at the address mentioned in this instruction manual.
Documentation is also available at www.omron-healthcare.com.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it
should not be disposed of, with other household wastes at the end
of its working life. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product should not be mixed with other commercial
wastes for disposal.
This product does not contain any hazardous substances.
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto
617-0002 JAPAN
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp, THE NETHERLANDS
OMRON HEALTHCARE SINGAPORE PTE LTD.
Asia Pacific HQ
438A Alexandra Road, #05-05/08, Alexandra Technopark
Singapore 119967
www.omron-healthcare.com.sg
OMRON HEALTHCARE MANUFACTURING VIETNAM
Production Facility
CO., LTD.
Binh Duong Province, Vietnam
This OMRON product is manufactured under the strict quality system of
OMRON HEALTHCARE Co., Ltd., Japan. The Core component for OMRON
blood pressure monitors, which is the Pressure Sensor, is produced in Japan
for assembly.
