Operating and Maintenance Manual

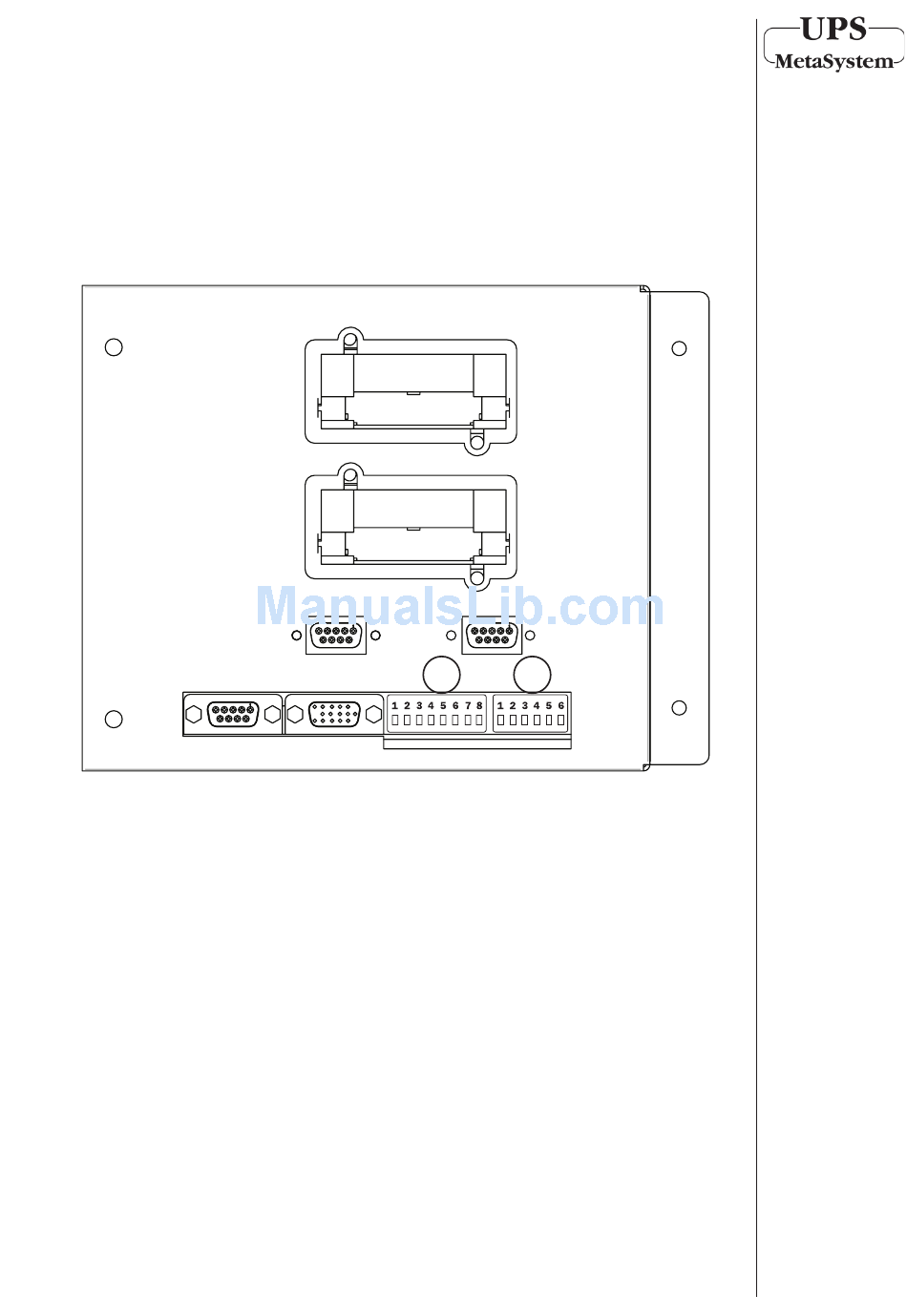

2.5.4 Communication slot
A slot at the back of the UPS ARCHIMOD® is for the SNMP board (optional).
Attention: the maximum current taken from pin4 of connector DB15 "RS232 power supply"
and from the SNMP slot for the network board to work must be, in total, less than 700mA.
1
2
Technological
Description
2-13
code 5040275001 Rev. September 2010
