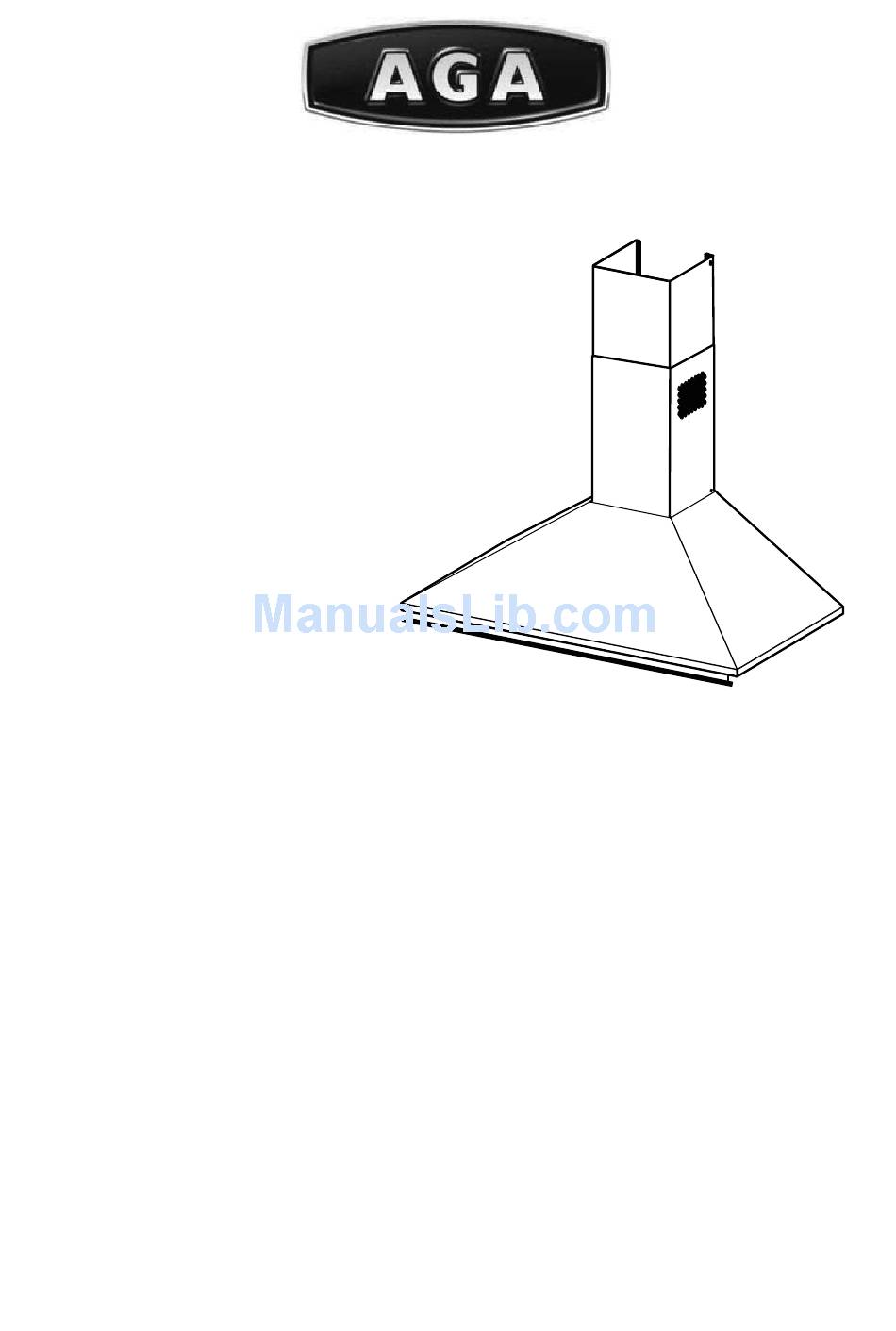

- Page 1 TRADITIONAL HOOD ATHOOD Instructions Manual...
-
Page 2: Table Of Contents
INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................5 USE ......................................8 MAINTENANCE ..................................9... -
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or im- proper installation. -
Page 4: Characteristics
CHARACTERISTICS Dimensions Components Product Components Ref. Q.ty Hood Body, complete with: Controls, Light, Blower, Filters Telescopic Chimney comprising: Upper Section Lower Section Right Air Outlet Grill Left Air Outlet Grill Reducer Flange ø 150-120 mm Adapting ring ø 120-125 mm Air Outlet Connection Installation Components Ref. -
Page 5: Installation
INSTALLATION Wall drilling and bracket fixing 7.2.1 109,5 109,5 Wall marking: • Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed. •... - Page 6 Mounting the hood body 12.d • Screw the two screws 12d supplied onto the brackets 7.1. • Hook the hood body onto the bracket 7.1, centring it around the vertical line. • Use the adjusting screws 12d underneath the hood to level the hood body.
- Page 7 ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease s (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.
-
Page 8: Use
Light Switches the lighting system on and off Motor Switches the extractor motor on and off Speed Sets the operating speed of the extractor: 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. -
Page 9: Maintenance
MAINTENANCE Grease filters CLEANING METAL GREASE FILTERS The filters are washable at least every 2 months of operation, or more frequently for particularly heavy usage. • Remove the filters one at a time by supporting them with one hand and turning the safety knobs (pull and turn). •... - Page 12 436005756_ver1 F200070...
