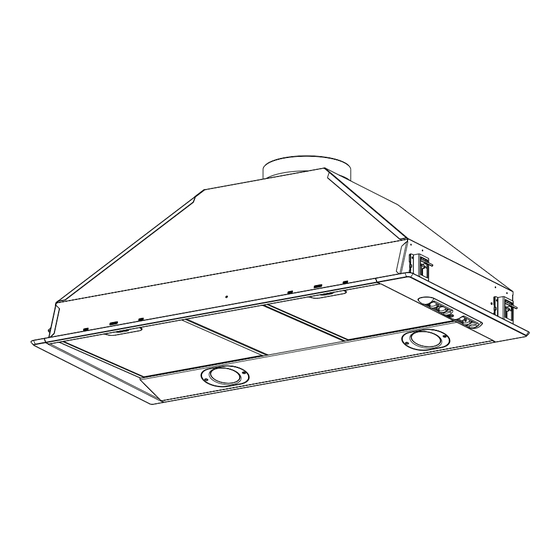

- Page 1 AEXT 720 (72) Instruction Manual...
- Page 3 Dear Customer, If you follow the recommendations con- tained in this Instruction Manual, your appliance will give you constant high performance and will remain efficient for many years to come. CONTENTS RECOMMENDATIONS AND SUGGESTIONS CHARACTERISTICS INSTALLATION MAINTENANCE...
-
Page 4: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation). -
Page 5: Characteristics
CHARACTERISTICS Dimensions Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Reducer Flange ø 150-120 mm Ref. Q.ty Installation Components Screws 2,9 x 6,5 Q.ty Documentation Instruction Manual Electric Diagram... -
Page 6: Installation
INSTALLATION Drilling the Support surface and Fitting the Hood The Hood can be fitted directly to the underside of the Wall units (min. 650 mm above the cooker top) with snap-on side supports, which are set up for a support panel thickness of between 15 mm and 30 mm. - Page 7 • Replace the filter support • Screw the filter support using the 2 screws 12c (2,9 x 6 ,5) pro- vided. • Replace the grease filters make sure that the handle is visible on the outside. Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø...
-
Page 8: Control Panel
Control Panel The hood can be switched on pushing directly onto the requested speed without firstly having to select 0/1 button. Button Function Turns the lights on/off at maximum strength. Fixed Turns the motor on/off at speed one. Fixed Turns the Motor on at speed two. Press and hold the button for approximately 3 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm on. -
Page 9: Maintenance
REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type. • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. - Page 10 Activated charcoal filter (Recirculation version) REPLACING THE ACTIVATED CHARCOAL FILTER • The filter is not washable and cannot be regene- rated. It must be replaced when led S1 flashes or at least every 4 months. The alarm signal will only light up when the extractor motor is switched on.
- Page 12 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
