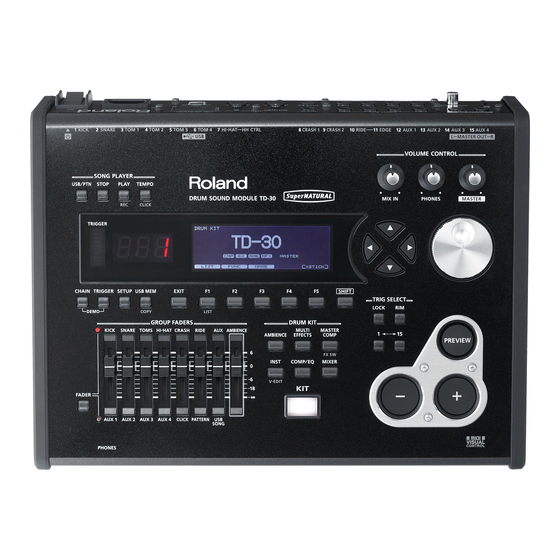

Roland TD-30 Quick Manual

About the Wireless LAN Function
Check the version
The wireless LAN function was added in TD-30 version 1.10.
If the version is earlier than 1.10, download the update from
the support page (http://www.roland.com/support/) g
Downloads g product name (TD-30) g TD-30 System
Program Version 1.10, and update your TD-30.
* If this supplementary manual was included with a new TD-30
you purchased, your instrument has already been updated to
version 1.10 or later; you do not need to update.
How to check the version
Press the [SETUP] g [F5] (A>B>C) g [F5] (A>B>C) g [F4]
(INFO) g [F5] (VERSION) button.

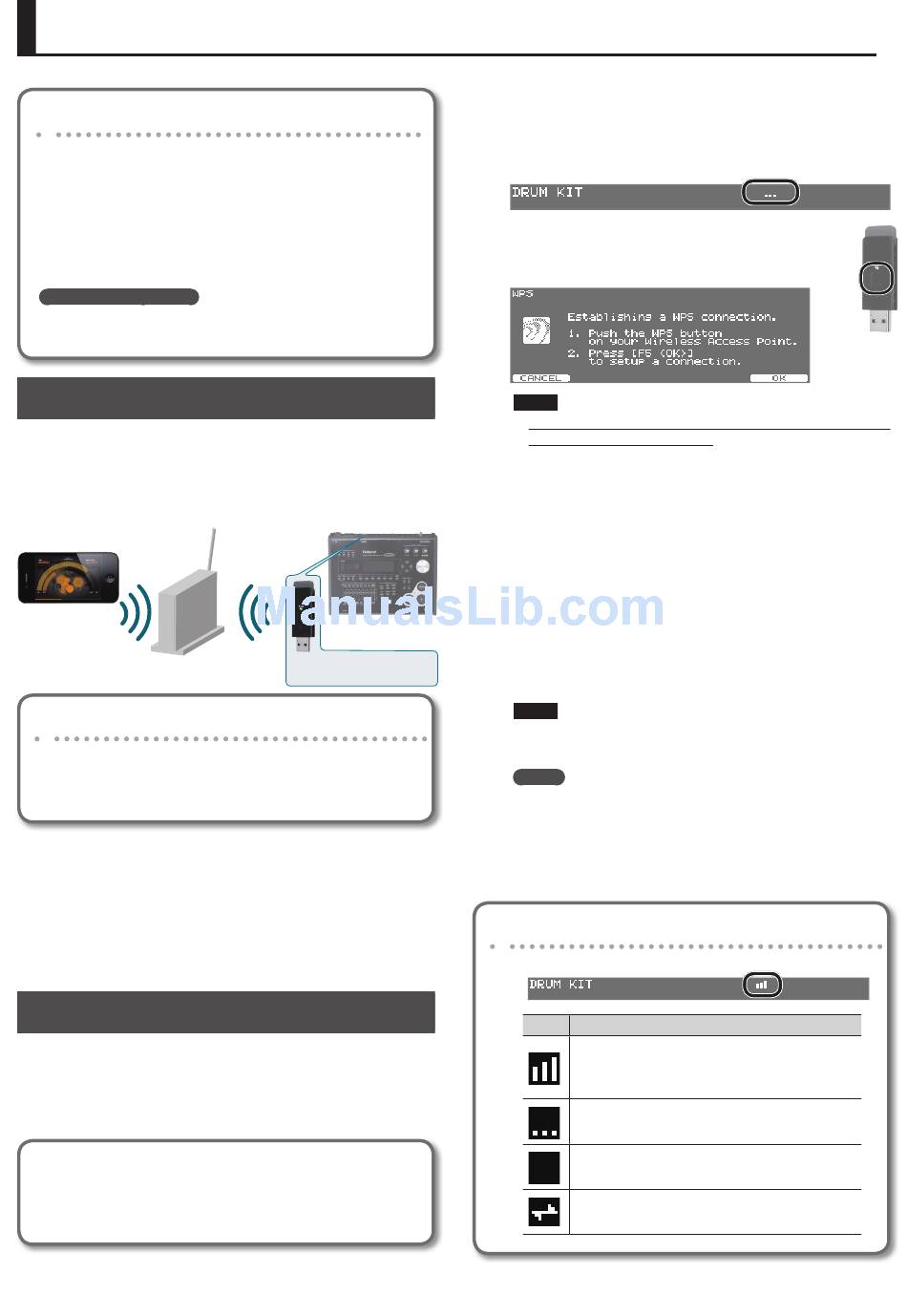

What is Wireless LAN function?
By inserting the wireless USB Adapter (WNA1100-RL; sold
separately) into the TD-30's USB MEMORY port, you'll be
able to use wireless-compatible applications (such as the
"V-Drums Friend Jam for iPhone" iPhone app).
iPhone etc. Wireless LAN access point
(e.g., wireless LAN router)
Wireless LAN
Items required to use the wireless LAN function
‰Wireless USB Adapter (sold separately: WNA1100-RL)
‰Wireless LAN access point (e.g., wireless LAN router) *1 *2 *3
‰iPhone or iPod touch etc.
*1 The wireless LAN access point you use must support WPS. If your
wireless LAN access point does not support WPS, you can connect
using the procedure described in "Connecting to a Wireless LAN
Access Point That You Select (SELECT ACCESS POINT)" (p. 2).
*2 The ability to connect with all kinds of wireless LAN access points
is not guaranteed.
*3 If you're unable to connect to the wireless LAN access point, try
connecting using Ad-Hoc mode (p. 3).
Basic Connection Method (Connect by WPS)
The first time you connect the TD-30 to a wireless network, you'll
need to perform the following procedure (WPS) to join the wireless
network.
This procedure is required only the first time. (Once you've joined the
network, this procedure will no longer be necessary.)
What is WPS?
This is a standard that makes it easy to make security settings
when connecting to a wireless LAN access point. We recommend
that you use WPS when connecting to a wireless LAN access point.
1.
Turn OFF the TD-30.
TD-30
TD-30
Wireless USB Adapter (sold
Wireless LAN
separately: WNA1100-RL)
2.
Insert the wireless USB Adapter (WNA1100-RL; sold
separately) into the TD-30's USB MEMORY port.
3.
Turn ON the TD-30.
Wait until the following icon appears in the upper of the DRUM KIT
screen.
4.
Press the button of the Wireless USB Adapter (sold
separately: WNA1100-RL).
The WPS screen will appear.
NOTE
* If you apply excessive force to the USB adapter when pressing
the button, you may damage it. Please use caution.
5.
Perform the WPS operation on your wireless LAN access
point (e.g., press the WPS button on your wireless LAN
access point).
For details on WPS operation of your wireless LAN access point, refer
to the documentation for your wireless LAN access point.
6.
Press the [F5] (OK) button of the TD-30.
Once successfully connected, the status (WIRELESS STATUS) screen
(p. 2) will appear.
7.
Press the [KIT] button to return to the DRUM KIT screen.
You can use the wireless connection from an iPhone app such as
V-Drums Friend Jam for iPhone. Choose "TD-30" in the instrument
select screen of your iPhone app.
NOTE
* The device (e.g., iPhone) running the app must be connected to
the same network.
MEMO
• The connection data is stored in memory when you perform
the WPS procedure; the device will automatically connect to the
wireless network the next time.
• All connection data will be erased if you perform a factory reset.
* Connection data is not included in a backup saved in the USB
flash drive.
Icons in the display
The wireless LAN status is shown in the upper part of the display.
Icon Explanation
Currently connected to the wireless LAN access point.
Three bars are used to indicate the signal level (the
strength of the connected wireless LAN access point's
radio signal).
The wireless USB adapter is inserted, but not connected
with a wireless LAN access point.
The wireless USB adapter is not inserted (nothing is
displayed).
Ad-Hoc mode (p. 3).
