Thank you, and congratulations on your choice of the Roland CY-5.
201a
Before using the CY-5, carefully read the sections entitled: "USING THE UNIT SAFELY" and
"IMPORTANT NOTES" (p. 2; p. 3). These sections provide important information concerning the
proper operation of the unit. Additionally, in order to feel assured that you have gained a good
grasp of every feature provided by your new unit, this owner's manual should be read in its
entirety. The manual should be saved and kept on hand as a convenient reference.
Main Feature
The CY-5 has been designed to be used as a hi-hat pad or a cymbal pad, with the corresponding mounting
parts for both functions included in the package. The dual trigger pad allows one to play edge shots, bow
shots and choking techniques can be used. It's an ideal "add on" to any existing set up.
fig.Cover.e

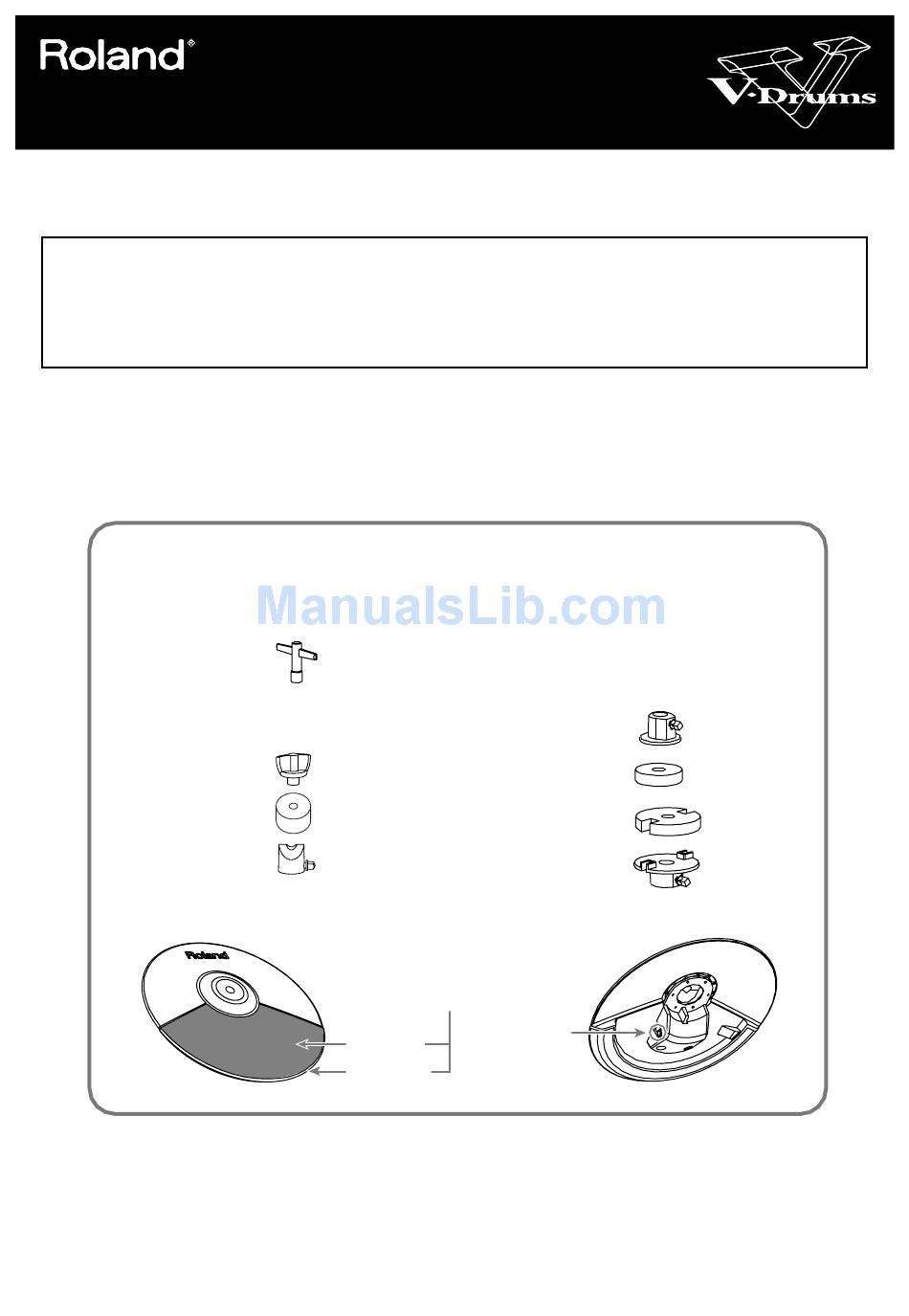

Package Contents
❑ CY-5 (cymbal pad)
❑ Connection Cable (stereo)
❑ Drum Key
❑ Attachment Set for Cymbal
❑ Wing Nut
❑ Felt Washer
❑ Stopper
Names of Components
202
All rights reserved. No part of this publication may be reproduced in
any form without the written permission of ROLAND CORPORATION.
04235167
'06-1-1PR
Dual Trigger Cymbal Pad
Owner's Manual
Bow Portion
Edge Portion
Copyright © 2006 ROLAND CORPORATION
CY-5
❑ Cable Tie
■ Owner's Manual (this manual)
❑ Attachment Set for Hi-Hat
❑ Upper Clutch
❑ Clutch Felt (S)
❑ Clutch Felt (L)
❑ Lower Clutch
Pad Face
Output Jack
Advertisement
Table of Contents
Related Manuals for Roland V-Drums CY-5
Summary of Contents for Roland V-Drums CY-5
-
Page 1: Main Feature
Main Feature The CY-5 has been designed to be used as a hi-hat pad or a cymbal pad, with the corresponding mounting parts for both functions included in the package. The dual trigger pad allows one to play edge shots, bow shots and choking techniques can be used. - Page 2 Refer all servicing to your retailer, the unit, and keep it from wobbling. nearest Roland Service Center, or an authorized ....................Roland distributor, as listed on the “Information” • Do not allow any objects (e.g., flammable page.
-
Page 3: Maintenance
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This • Try to prevent cords and cables from way you will avoid causing shorts, or damage to the becoming entangled. Also, all cords and cable’s internal elements. -
Page 4: Making The Settings
Standard, metal wing nuts found on most cymbal stands should never be used. 4. Use the included connection cable and connect the output jack of the CY-5 to the trigger input jack of the percussion sound module. Connect the L-shaped plug of the included cable to the CY-5. - Page 5 If it is too loose, double triggering Acceptable rod diameters: may occur. 10.5–11.5 mm (7/16 to 1/2 inch) Be sure the Roland logo is on the opposite side of the playing area. Upper Clutch Apply pressure Clutch Felt (S) Tighten the bolt with a drum key.
-
Page 6: Trigger Settings For Percussion Sound Module
Trigger Settings For Percussion Sound Module When using the CY-5, trigger parameter settings will be different depending on the module you are using. Below you will find the parameters that correspond to different sound modules. Make the trigger type setting for the percussion sound module. -
Page 7: Playing Methods
This is the most common playing method, playing the pad face of the cymbal. It corresponds to the sound of the “head-side” of the connected trigger input. Specifications CY-5 Edge Shot Size: 10 inches Triggers:... - Page 8 Information When you need repair service, call your nearest Roland Service Center or authorized Roland distributor in your country as shown below. PHILIPPINES COSTA RICA TRINIDAD NORWAY JORDAN AFRICA G.A. Yupangco & Co. Inc. JUAN Bansbach Instrumentos AMR Ltd Roland Scandinavia Avd.
