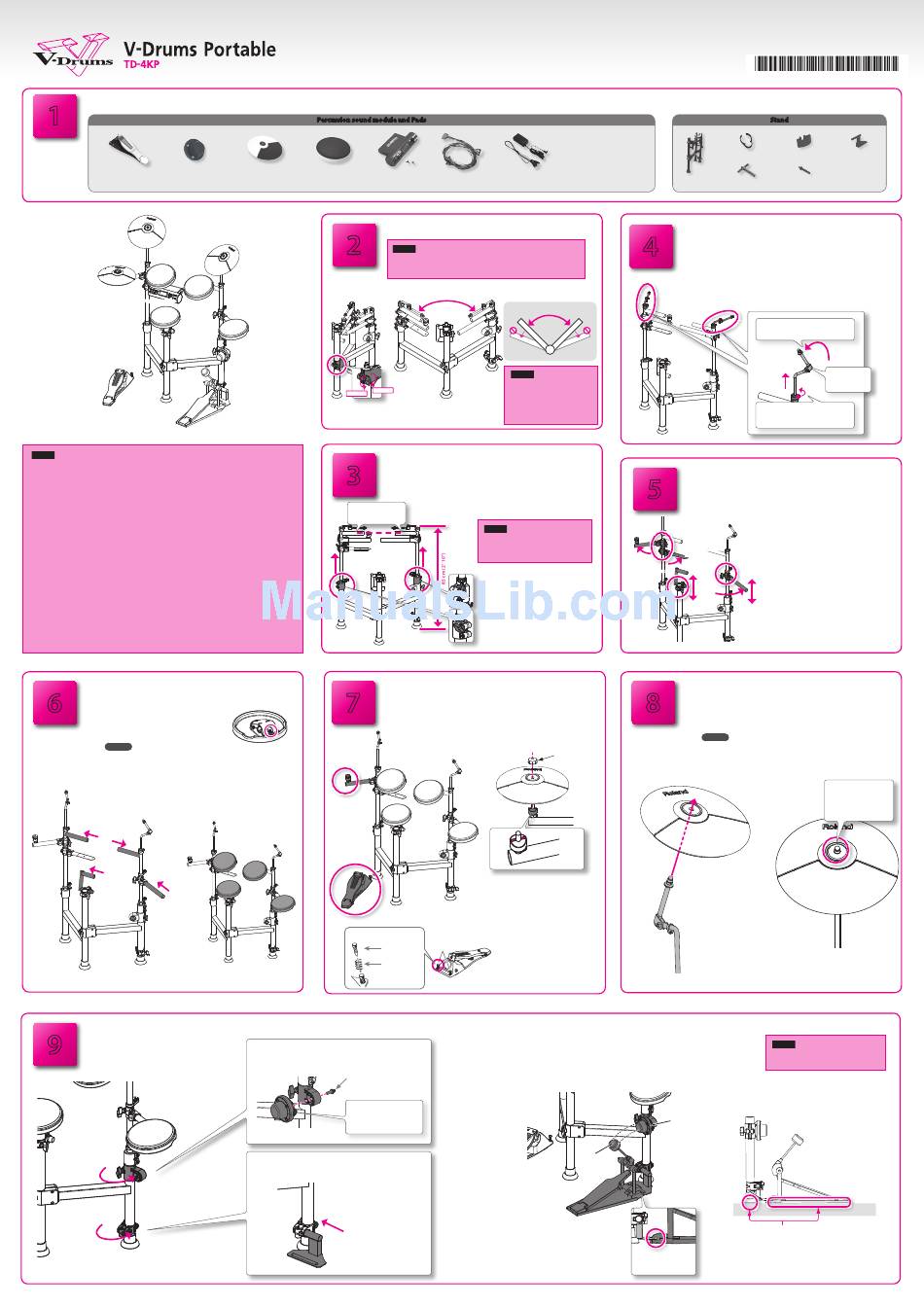

Roland TD-4KP Setup Manual

Check the included items
1
… Hi-hat control pedal … Kick pad
(FD-8)
Crash

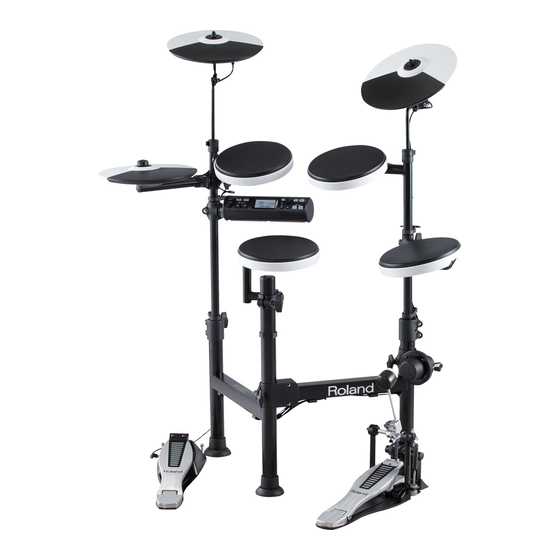

Completed setup
Hi hat
Tom 1
Tom 2
Percussion sound module
Snare
Hi hat control pedal
* The cross stick and rim shot are not supported.
N O T E
Caution during assembly
* Do not open the stand frame wider than 90 degrees in order to maintain stability.
* Position all pipes as instructed in this Setup Guide in order maintain the proper balance
of the entire kit.
* Be careful to not pinch your fingers or hands when opening, closing, adjusting,
transporting or using the stand.
* Do not pull hard on any connection cables.
* Follow all procedures in this Setup Guide regarding set up or folding the stand. Pipes
folded incorrectly may damage or stretch the cables.
* Handle the cymbals with care when adjusting the cymbal arms. A falling cymbal could
injure you.
* Repeatedly folding and setting up the stand may cause the various bolts to loosen.
Before you perform, verify that the bolts and hand knobs are not loose.
* Take care when transporting the system in the folded state.
Use caution for protruding parts such as the pedal plate and hand knobs.
* The pipes and the cymbal rods will come out if they are extended too far.
Attach the snare and toms
6
1.
Attach the snare and toms as shown in the illustration (four
locations).
Use the drum key to slightly loosen the pad
bolts beforehand.
M E M O
• The snare and tom pads are all the same.
• To mount tom 1 & 2, you will need to temporarily move the left or
right pipe.
• Mount the snare pad, making sure the bolt is on the opposite side
of the player's position.
2.
Use the drum key to tighten the snare and tom bolts.
Attach the kick pad
9
1.
Rotate the kick pad and pedal plate holders
as shown in the illustration.

Setup Guide 1

Assembling
As soon as you open the package, check to see that all items are included. If anything is missing, please contact your dealer.
* Use a commercially available kick pedal.
Percussion sound module and Pads
… Cymbal pad for hi-hat/ … Pad for snare/tom
… Percussion sound
crush/ride (CY-5) × 3 × 4
module (TD-4)
Open the stand
2
Ride
N O T E
* Take care that the stand does not fall over during assembly.
* Take care not to pinch your fingers while setting up or storing the stand.
1.
Loosen the hand knob and open the stand.
Tom 3
Kick pad
Tighten
Loosen
2.
Tighten the hand knob to secure the stand.
Extend the pipes
3
Left and right pipes
facing each other
Attach the hi-hat
7
1.
2.
Hi-hat control
pedal
Attach the anchor bolt
(if installing on a drum mat)
Anchor bolt
Spring for
the anchor bolt
* Use a commercially available kick pedal.
2.
Attach the kick pad as shown in the illustration,
and firmly tighten the kick pad attachment bolt.
Kick pad attachment bolt
(included with the stand)
With the OUTPUT jack facing
out, use the drum key to
securely tighten the bolt.
3.
Loosen the bolt and attach the pedal plate as
shown in the illustration (do not tighten the bolt
yet).
Loosen the bolt,
then insert the pedal
plate (don't tighten
the bolt).
Copyright © 2012 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the written permission of
ROLAND CORPORATION.
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (Owner's
Manual). These sections provide important information concerning the proper operation of the unit. Additionally, in
order to feel assured that you have gained a good grasp of every feature provided by your new unit, Setup Guide 1, 2
and Owner's manuals should be read in its entirety. These manuals should be saved and kept on hand as a convenient
reference.
Manual set
… Setup Guide 1 (this document)
… Setup Guide 2
… Owner's Manual
… AC adaptor
… Connection cable
(special for TD-4KP)
Do not open wider than 90 degrees
N O T E
* As shown in the illustration,
do not open the stand wider
than 90 degrees. If the stand
is opened too wide, it will be
less stable, and may fall over.
1.
Loosen the hand knobs at the locations shown, and extend
the pipes.
Adjust the pipes so that the stand is 85 cm (2' 10") high.
Adjust the left and right tom pipes to the same height so that they
face each other.
N O T E
* The pipes will come out if they are
extended too far.
2.
After you've extended the
pipes, tighten the hand knobs
to secure the pipes position.
Remove the nut and attach the hi-hat pad as shown in the
illustration.
Pay attention to the direction of the rubber part attached to the tip of the
hi-hat arm.
Tighten the not to obtain the desired amount of sway.
Nut
Note direction
3.
Place the hi-hat control pedal
below the hi-hat.
Anchor bolt
4.
Kick pedal positioning.
Mount the kick pedal to the pedal plate and so that the beater strikes the center
of the kick pad.
In order to this, you may have to loosen the knob on the kick pad to adjust the
height and angle.
Once the pedal is in the desired playing position, tighten the 2 knobs and bolt.
Adjust the position of the beater so
that it strikes the center of the kick pad
striking surface, and firmly fasten the
kick pedal and kick pad.
… Cable clip A
… Stand … Drum key
Extending the cymbal rods
4
1.
Use the drum key to loosen the bolt of the movable section.
2.
Tilt up the tips of the cymbal rods (two locations).
3.
Release the lever at the top of the pipe, and pull out the cymbal
rod.
4.
Tighten the lever to secure the rod.
Pipe and Mount positioning
5
1.
Loosen the hand knobs and spread open the hit hat arm
and sound module mount as shown in the illustration.
Hit hat arm
Sound module
mount
Tom
Snare arm
arm
Attach the cymbals
8
1.
Place the cymbals onto the tip of the cymbal rods (two locations).
Align the cymbal with the narrow part of the cymbal rod, and insert the rod
firmly.
M E M O
Place the cymbals onto the tip of the cymbal rods, and firmly press them
to secure the position, as shown in the illustration.
Kick pad
Beater
Pedal
plate
Verify that the plate and pedal firmly contact the floor without any gap
Install the kick pedal
securely.
* 5 1 0 0 0 3 1 7 9 5 - 0 1 *
Stand
… Cable clip B × 4 … Pedal plate
… Kick pad attachment
bolt
Tilt up the cymbal rod.
Use the drum
key to loosen.
Release the lever and pull out the
cymbal rod.
2.
Position the snare arm as shown in
the illustration.
3.
Loosen the knob and position the
tom arm as shown in the illustration.
Align with narrow part
of cymbal rod, and insert
firmly.
N O T E
* Take care not to pinch your fingers.
