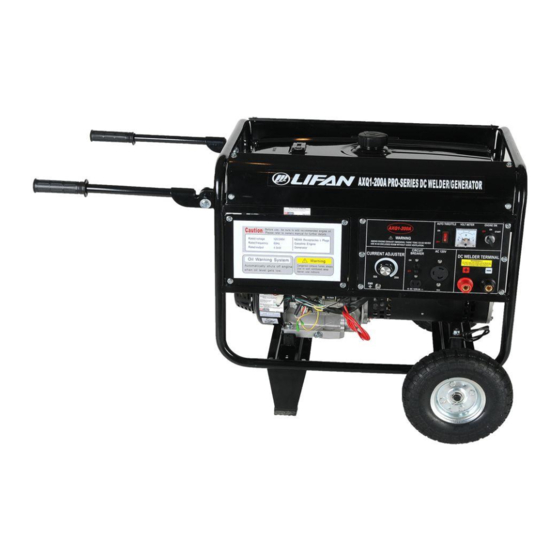

LIFAN Power USA AXQ1-200A Operating Instructions And Owner's Manual

Professional generator/welder combination
Hide thumbs

Advertisement

Table of Contents

Operating Instructions and
Owner's Manual
AXQ1-200A
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING YOUR NEW
PORTABLE GENERATOR/WELDER

Advertisement

Table of Contents
loading

Related Manuals for LIFAN Power USA AXQ1-200A

Summary of Contents for LIFAN Power USA AXQ1-200A

  • Page 1 Operating Instructions and Owner’s Manual AXQ1-200A PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING YOUR NEW PORTABLE GENERATOR/WELDER...
  • Page 2 If you have any questions visit www.lifanpowerusa.com or call 1-866-471-7464. This Owner’s Manual is for the Following Models: AXQ1-200A LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...

  • Page 3: Table Of Contents

    Controls and Features PRE-OPERATING INSTRUCTIONS Assembly Battery Specifications Generator/Welder Setup Operation of Generator/Welder Storing the Unit Maintenance Troubleshooting Generator/Welder Safety Wire Diagram Generator Wattage Reference Worksheet Limited Warranty Policy LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...

  • Page 4: Preface

    Preface Thank you for choosing LIFAN Power USA for your Power Equipment Needs. LIFAN Power USA prides itself on providing quality products at affordable pricing, creating the “Best Equipment Value on Today’s Market!” All LIFAN Power USA products are manufactured utilizing the latest technology. Built with quality components, your new Power Equipment Product will give you years of dependable service.

  • Page 5: Product Specifications

    Sound Level (@ 7m or 23ft) 75 decibels Engine Type 4-Stroke OHV Fuel Type Automotive Grade Unleaded Gasoline LIFAN Power USA Fuel Compliance 15% Ethanol Mix 2205 Industrial Park Road Oil Type & Amount SAE10w30 32oz. Van Buren, AR 72956...

  • Page 6: Safety Instructions

    For your safety read this manual carefully. Become familiar with the proper operation, care, and maintenance of your LIFAN Power USA generator/welder combination unit. The safety and alert symbol ( ) is used with a signal word (CAUTION, DANGER, WARNING), a pictorial and/or safety message to alert you to hazards.
  • Page 7 Start the generator and let the engine rpm’s stabilize before connecting electrical loads.  Connect all electrical loads with the device in the off position.  Turn off electrical loads before shutting off generator engine. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 8 Do NOT adjust engine speed governor. Unit supplies correct voltage and frequency at designated speed.  Modifying unit in any way may be dangerous and will void warranty. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...
  • Page 9  Do not connect improperly operating devices to unit.  Shut off unit and take to a qualified service center if the unit fails to operate properly. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...

  • Page 10: Controls And Features

    Recoil Starting Handle Crankcase Oil Drain Plug Current Adjuster Mobility Kit & Grounding Stud Current Adjuster Crankcase Oil Dipstick/ Oil Fill Hole Cap Receptacles & Master Circuit Breaker LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 11  The Equipment connected to the generator requires full power at start-up. Example: Power Tools and other equipment with electric motors.  Generator is working at a constant rated power output LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...

  • Page 12: Pre-Operating Instructions

    Pre-Operating Instructions: Assembly Your LIFAN Power USA Generator/Welder Combination is packaged without fuel and oil. Some assembly is required before operating your LIFAN Power USA Generator/Welder. For further assistance in assembling your unitplease visit our website (www.lifanpowerusa.com) or call 1-866-471-7464 between the hours of 9am-5pm Monday-Friday.
  • Page 13 8. Place the Support Legs under the Frame Brace as shown in “Assembly Diagram.” 9. Secure with the provided Cap Screws and Hex Nuts. Securely tighten using 12mm Ratchet and Socket. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...

  • Page 14: Assembly Diagram

    12 volt Battery (not included) 1 pc. Battery Box 5000- 8000 watt models Tire & Wheel Assembly 2 pcs Battery Box 3500 watt models LIFAN Power USA CAUTION! Assemble generator before adding fuel or oil. 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...

  • Page 15: Battery Specifications

    (-) negative battery terminal and the frame mounting bolt. 2. Connect the Red (hot) terminal to the battery. 3. Connect the Black (negative) terminal to the battery. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...

  • Page 16: Generator/Welder Setup

    Always fill the fuel tank with the unit outdoors.  DO NOT overfill tank. Allow room for fuel expansion.  Keep fuel away from sparks, open flames, heat, pilot lights, and other ignition sources. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 17 Before restarting the carburetor. Float bowl must be removed and cleaned of any debris. NEVER use chemical solvents or cleaners in the fuel tank for damage may occur. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...
  • Page 18 Connect the Ground Terminal on the generator to an acceptable source of electrical ground, such as a copper-grounding stake, using copper electrical wire with a minimum diameter of 16 gauge. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...

  • Page 19: Operation Of Generator/Welder

    Allow the rope to return slowly. Do NOT allow the rope to snap back against housing. 7. Once the engine runs for 3-5 seconds, push the choke pin in to disengage. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 20 SPECIFICATIONS TO ENSURE YOUR GENERATOR WILL OPERATE THE DESIRED EQUIPMENT. NOTE: Use the running and starting wattage provided by the equipment manufacturer if available. If not available, use provided “Generator Wattage Reference Worksheet.” LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...
  • Page 21 5. Allow unit to cool to ambient temperature before storage or transportation. 6. Always transport the unit with the fuel valve in the “OFF” position. Failure to do so will result in damage to the engine. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 22 The engine may become overheated and over-lean combination of fuel and air produced, may cause severe damage to the engine. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...

  • Page 23: Storing The Unit

    8. Place the unit in a clean, dry, and secure location. 9. Cover with “LIFAN Water Proof Generator Cover,” Item Number LF100-69600 not included) or canvas/vinyl tarpaulin. Do NOT operate unit with cover installed. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...

  • Page 24: Maintenance

    4. After oil is completely drained, replace oil drain plug and tighten with appropriate tools. Replace oil with the proper oil for your product. Refer to the Pre-Operating Instruction: Generator Setup section for exact fill requirements. LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 25 For Paper Type Air Filters, replace with the correct Air Filter for your unit. They are available at your dealer or from LIFAN Power USA. Order your filter by calling toll free 866-471-7464. 3. Re-Install the air filter element into the air filter housing.
  • Page 26 6. Units equipped with a pre-filter for fuel will have a filter housed just below the fuel cock. Remove the fuel filter element (refer to “Fuel Filter Element Removal” LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 27 Re-assemble the fuel filter element (refer to “Fuel Filter Element Assembly” diagram below.) Fuel Filter Element Removal Fuel Filter Element Assembly LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...

  • Page 28: Troubleshooting

    Maintenance section of the Owner’s Manual for proper procedure. 5. If your unit will still NOT start after performing the above checks, call our customer hotline at LIFAN Power USA Toll Free 1-866-471-7464 or take your unit to an authorized Service Center.

  • Page 29: Generator Safety

    Troubleshooting (continued) UNIT DOES NOT PROVIDE ELECTRICAL CURRENT (continued): 4. If your unit still does NOT produce electricity after performing the previous checks, call LIFAN Power USA at 1-866-471-7464, your dealer, or authorized Service Center. Generator Safety 1. Never operate gasoline engine powered products in any enclosed spaces, as they product deadly Carbon Monoxide Poisonous Gases.

  • Page 30: Wire Diagram

    Wire Diagram LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 31 LCD TV - 13" Outdoor Light String Plasma TV - 13" Portable Heater 1500 NOTE: These Values are Estimates. Check Tool/Appliance for Exact Wattage Requirements Customer Service: 1-866-471-7464 www.lifanpowerusa.com LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464 www.lifanpowerusa.com...
  • Page 32 * Only one Starting Wattage is needed because only one item will cycle or start at the same time NOTE: These Values are Estimates. Check Tool/Appliance for Exact Wattage Requirements Customer Service: 1-866-471-7464 www.lifanpowerusa.com LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...
  • Page 33 - S ervice and/or repairs performed by anyone other than an "Authorized LIFAN or S torm S eries Products S ervice C enter." More Information Available on our website: www.lifanpowerusa.com EquipS ource, LLC 2010 Revised 04/25/2010 LIFAN Power USA 2205 Industrial Park Road Van Buren, AR 72956 866-471-7464...
  • Page 34 Please Read this Owner’s Manual Carefully Before Operating Your New Generator/Welder. This Owner’s Manual includes the operation and maintenance of the AXQ1-200A. Thank you for purchasing our ProSeries Generator/Welder Combination Unit! All information in this publication is based on the latest product information available at the time of approval for printing.
