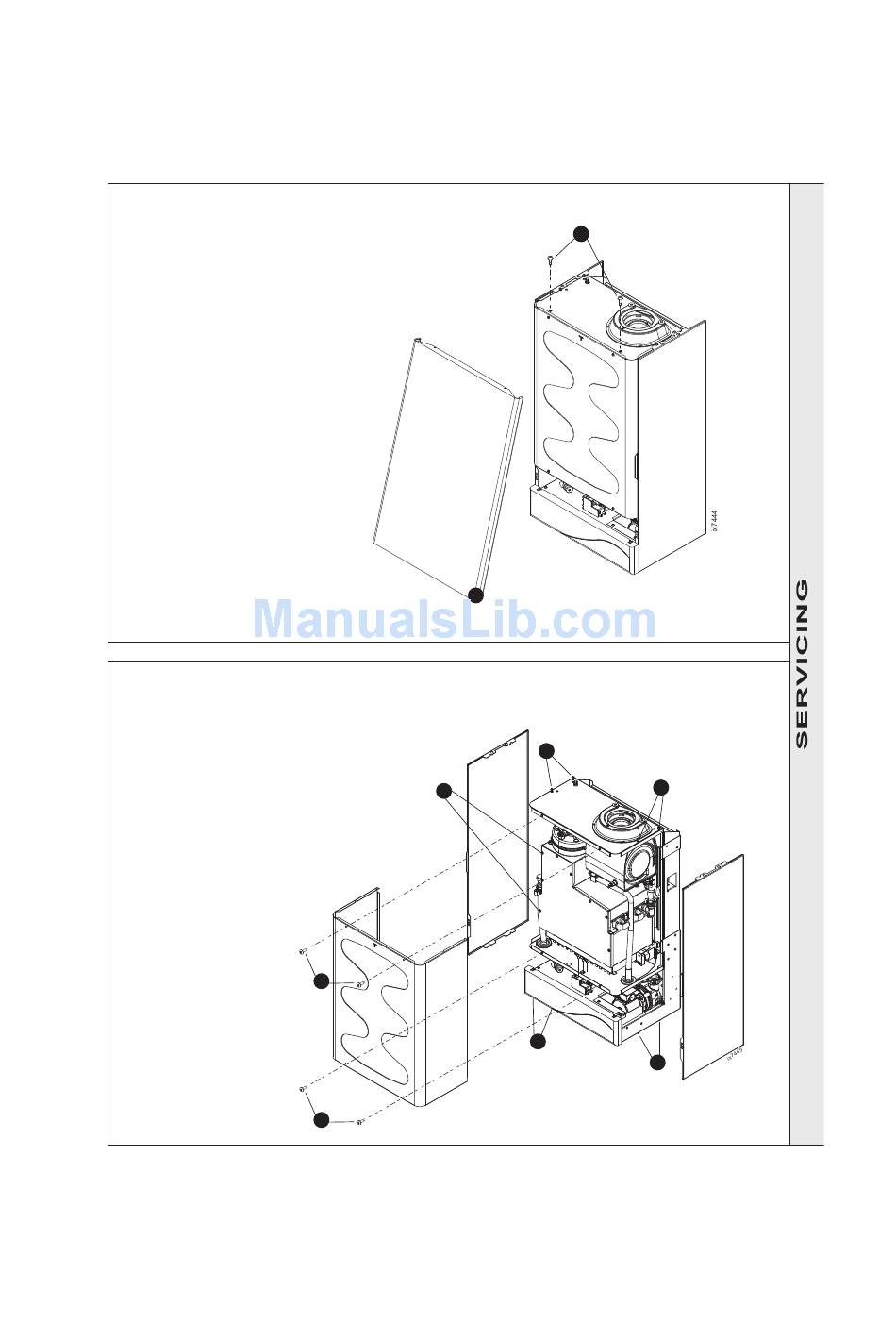

44 BOILER FRONT PANEL REMOVAL
1. Remove the 2 fixing screws from the top
of the front panel.
2. Lift the front panel upwards and forward
at the bottom to remove.
45 BOILER SIDE PANEL AND SEALING PANEL REMOVAL
1. Slacken the 2 top and 2 bottom
fixing screws from the LH and RH
side panels and remove the
panels.
2. To remove the sealing panel
remove the 4 fixing screws from the
front.
3. Remove the sealing panel by
pulling forward to disengage rear
clips.
4. Remove the fixing screws retaining
the inner sealing panel and remove
the panel taking care not to damage
the front insulation panel.
