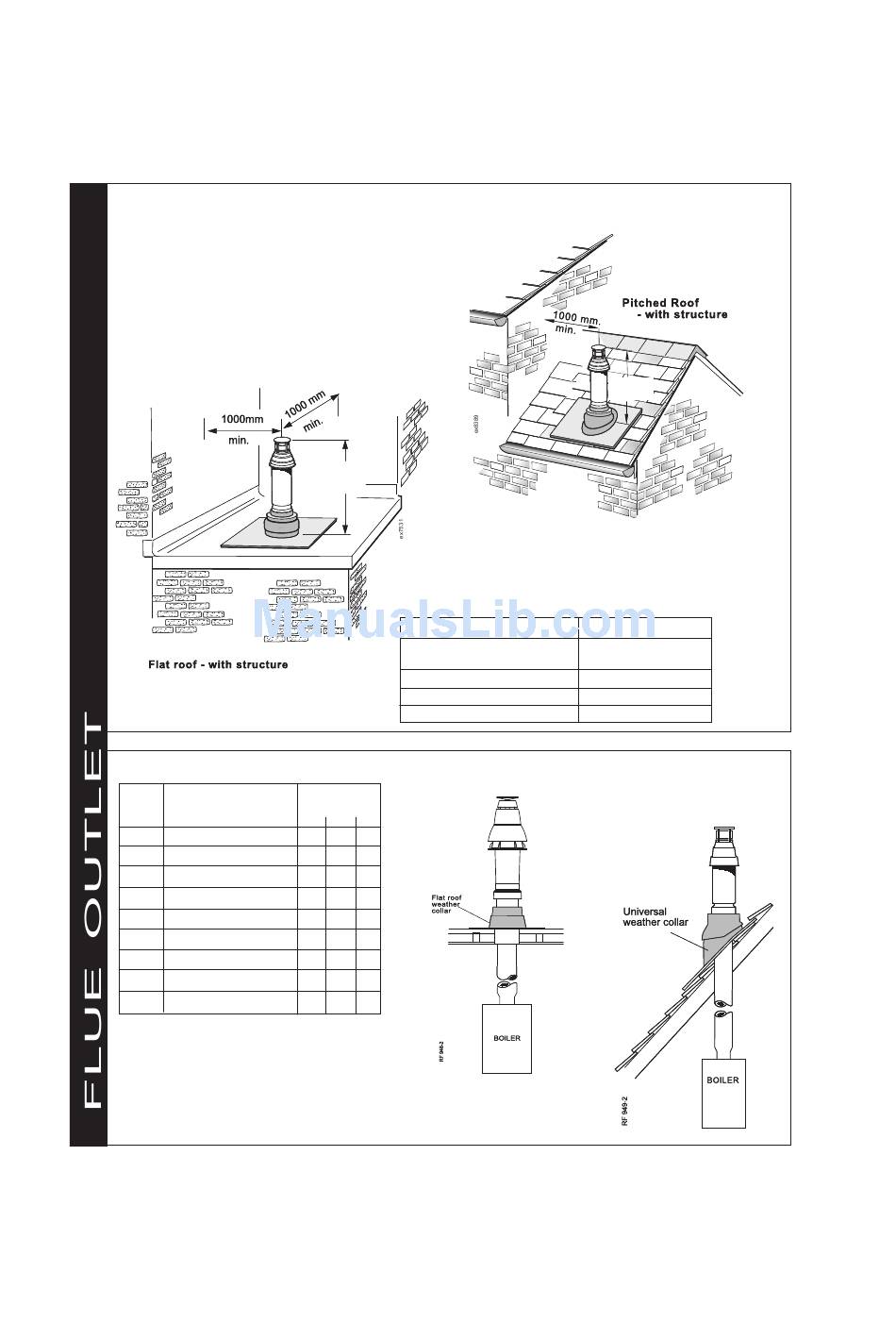

22 FLUE TERMINAL POSITION

The terminal should be positioned so that products of
combustion can safely disperse at all times.
Pluming may occur at the termination so, where
possible, terminal positions where this could cause
a nuisance should be avoided.
Minimum dimensions are shown below
23 FLUE ARRANGEMENT
Part No. Description
n/a Maximum Flue Length
201 548 Flue ext. 80/125
201 547 Terminal Vertical Roof 80/125
158 431 Weather Collar Pitched Roof
158 432 Weather Collar Flat Roof
o
201 550 90 Elbow kit (80/125)
o
201 551 45 Elbow kit (80/125)
201 184 Vertical Connector
201 549 Adaptor (60/100 - 80/125)
Note.
The equivalent flue length resistance of the 90
o
(80/125) is 1.5m and the 45 elbow kit (80/125) is 1.0m.
20
INSTALLATION
610 mm
min.
Terminal Position
Directly below an opening,
air brick, windows, etc.
Below plastic / painted gutters
Painted surface
Below eaves or balcony
80/125
Quantity
C24 C28 C32
(m) 16 12 8
15 11 7
1 1 1
1 1 1
1 1 1
4 4 4
4 4 4
1 1 1
1 1 1
o
elbow kit
*
610 mm
min.
*Flat Roof - 600mm
Minimum Dimension
300 mm
300 mm
300 mm
500 mm
