9 UNPACKING
The boiler is supplied fully
assembled in one Pack A, together
with a standard flue assembly for
lengths up to 775mm, rear or side
flue outlet, in Pack B.
Unpack and check the contents.
Refer to Frame 10 for Unpacking.

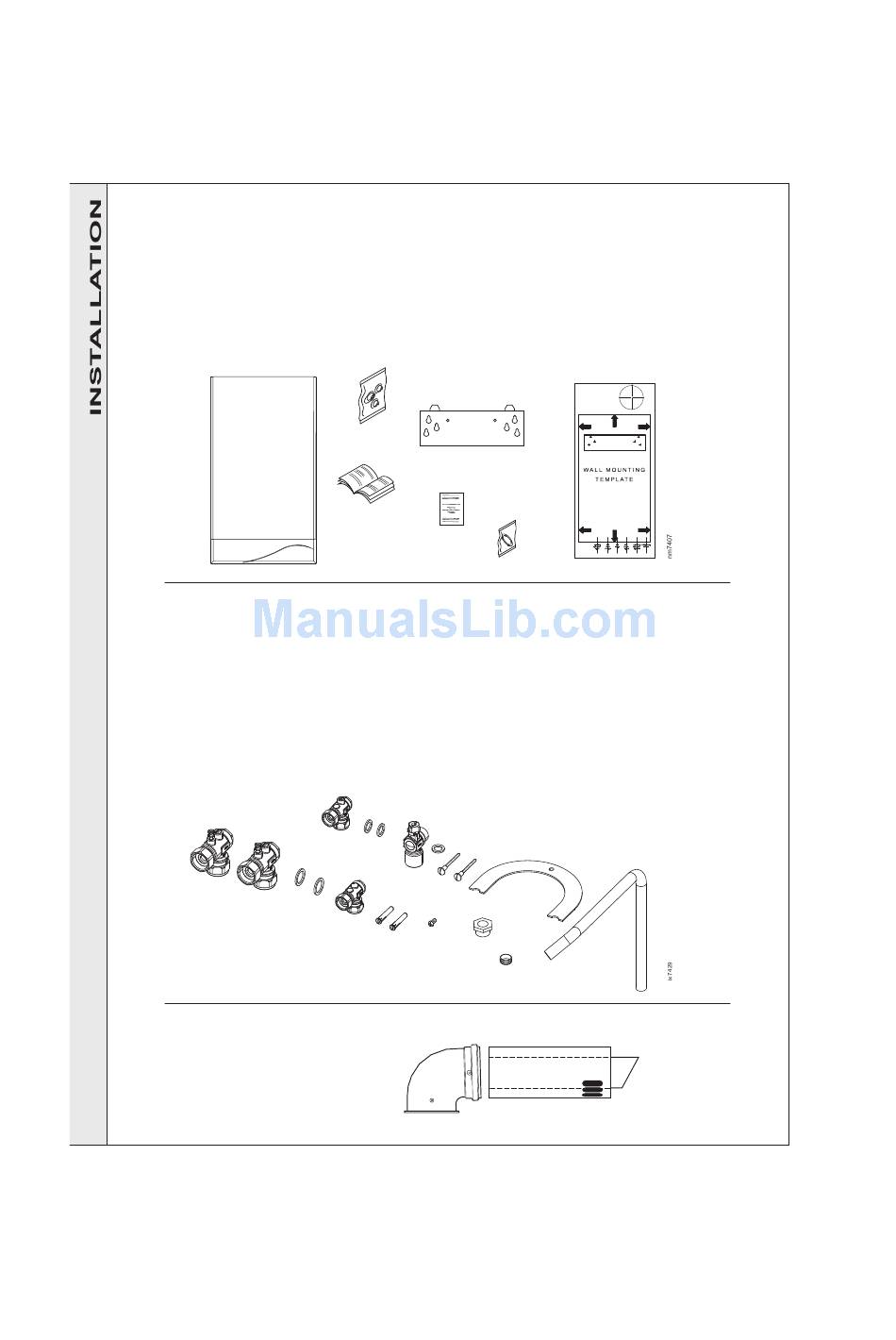

A
Hardware Pack & Fittings
A Isolation ball valve - CH - 2 off
B Isolation ball valve - DHW - 1 off
C 3/4" sealing washer - 2 off
D Bulkhead elbow - 1 off
E 12mm sealing washer - 2 off
F Gas cock - 1 off
G Gas cock washer - 1 off
H Wallplug - 2 off
A
Pack B Contents
A Flue turret
B Flue terminal
14
INSTALLATION
Pack A Contents
A The boiler
B Hardware pack and fittings
C Wall mounting plate
D These Installation & Servicing/
User's instructions
E Wall mounting template
B
C
D
F
J No 14x2in wood screw rd hd black - 2 off
K M5x10 pozi pan screw ZP - 1 off
L Turret clamp - 1 off
M Pressure relief valve discharge pipe - 1 off
N Pressure relief valve discharge pipe back nut - 1 off
P Pressure relief valve discharge pipe 15mm olive - 1 off
B
E F
G
C
N
D
H
K
A
F 1 year guarantee form
G Flue Restrictor - 1 off
24 kW - 39mm
28 kW - 43mm
32 kW - 45mm
E
G
J
L
P
M
