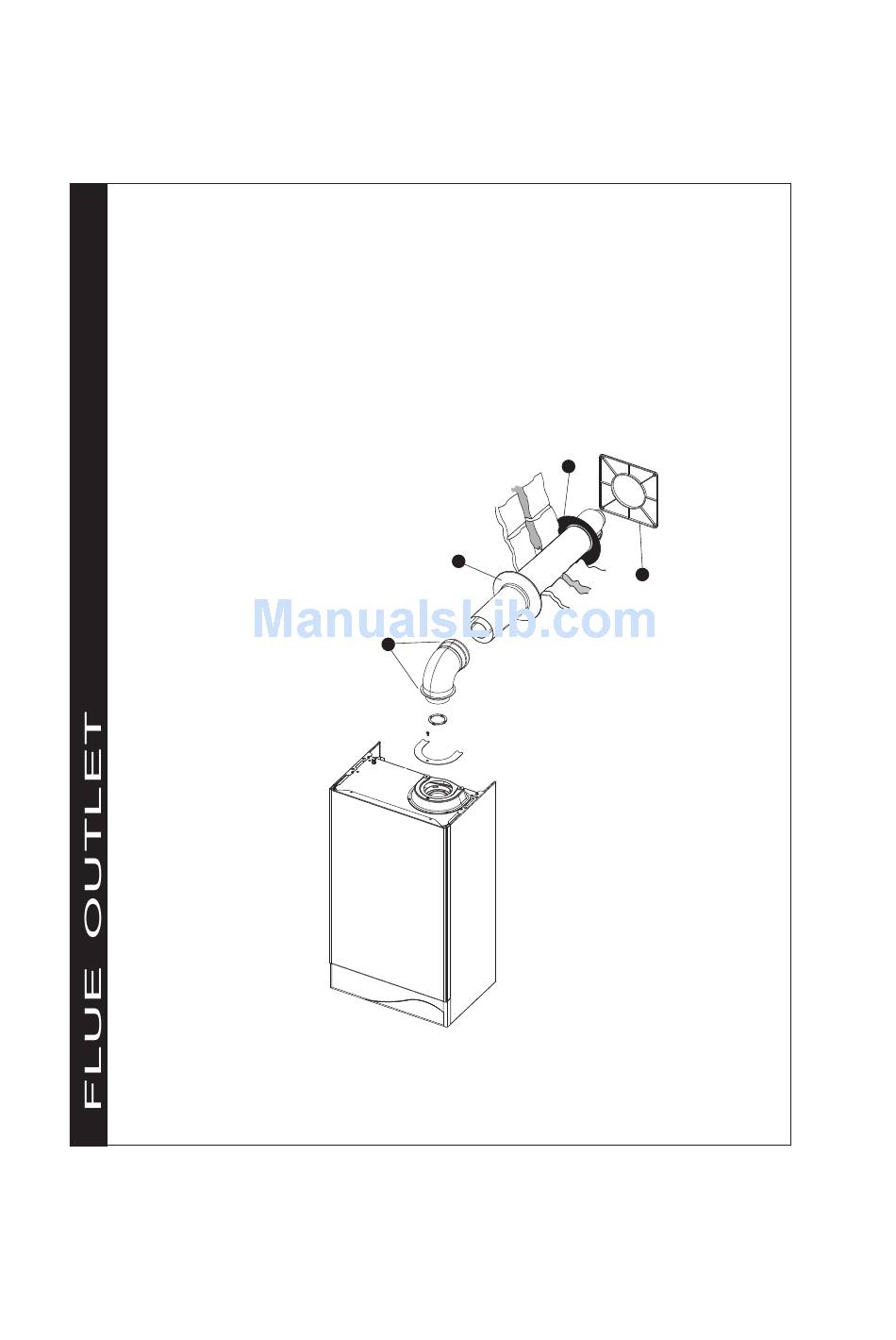

25 FITTING THE OPTIONAL FLUE FINISHING KIT
Contents:
Outer wall sealing plate - 1off
Inner rubber wall seal (White) - 1 off
Outer rubber wall seal (black) - 1 off
Wall plugs - 4 off
Screws No. 10x2" - 4 off
1. Fit black outer wall seal over terminal and
ensure the retaining rim is located in the
terminal depression.
2. Fit flue pipe assembly through the hole
previously cut in wall.
3. Fit white inner wall seal and push up to
inner wall.
4. Fit turret to boiler (see Frame 30) and to
the flue pipe assembly.
5. Fit outer wall sealing plate over outer wall
seal and retain with the 4 screws and wall
plugs provided.
22
INSTALLATION
3
4
ix7475
1
5
excel HE -
Installation and Servicing
