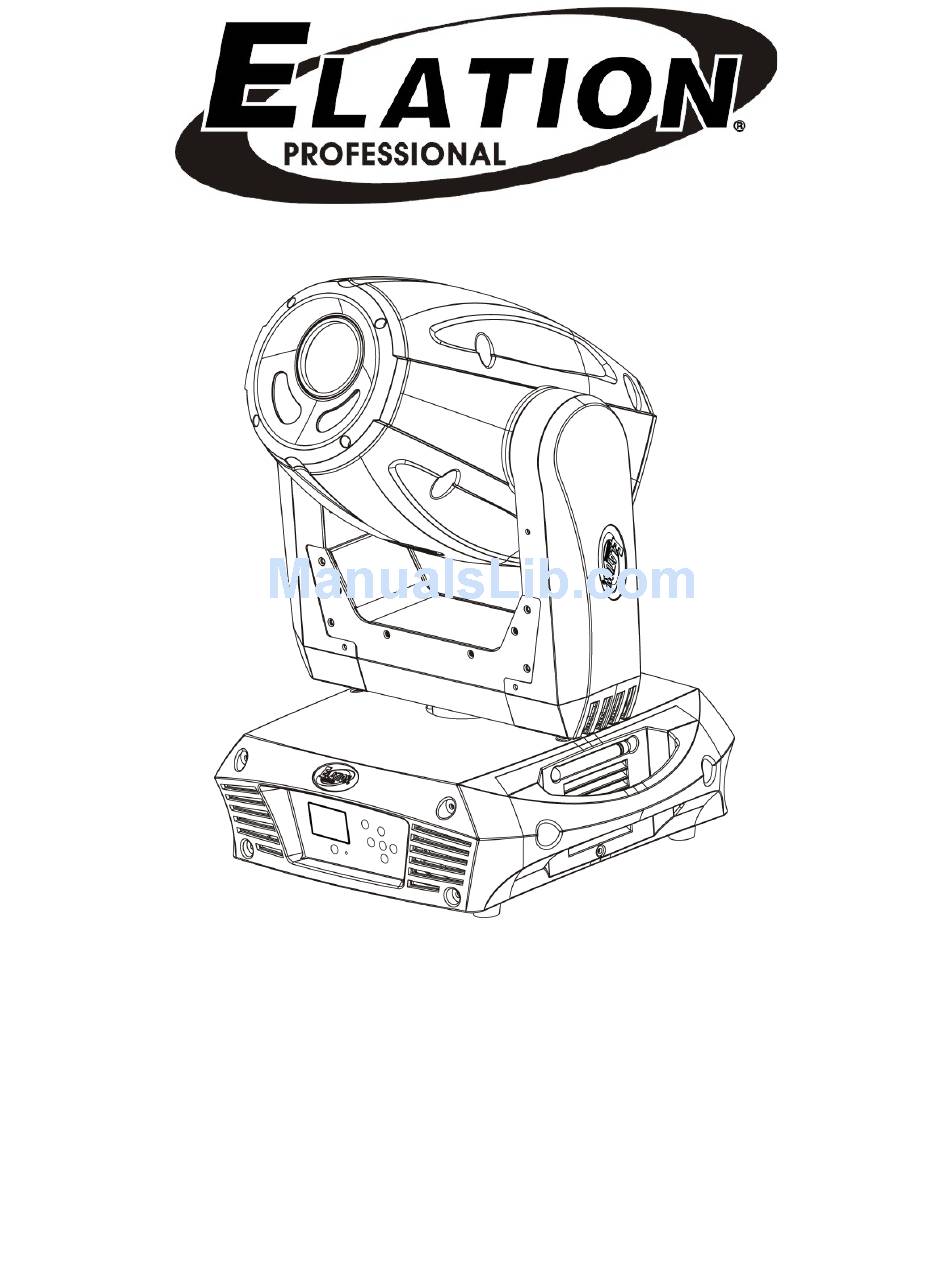

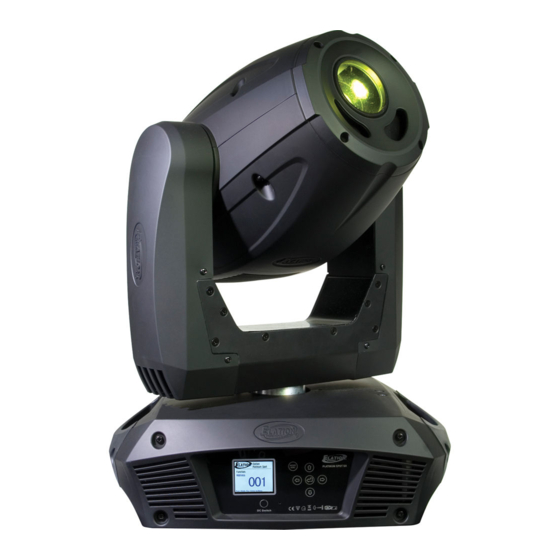

- Page 1 Platinum Spot LED Pro Elation Professional 6122 S Eastern Ave Los Angeles, Ca 90040 www.elationlighting.com 9/26/2012 - visage Version 1.3...
- Page 2 Platinum Spot LED Pro™ Platinum Spot LED Pro™ ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 3: Table Of Contents
13. DMX Channel Traits…...….…………………………………………………………..… 43 14. Error Codes………………………………………………………………………….……. 48 15. Cleaning and Maintenance……………………………………………………………… 51 16. Wireless DMX….………………………………………………………………………….52 17. Gobo Patterns……………………………………………………………..……………... 53 18. Dimensional Drawings………………………………………………….……………….. 54 19. Circuit Schematic………...………………………………………………………………. 55 20. Technical Specifications…………………………………………...………….……….…56 21. Warranty……………………………………………………………………………………58 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 4: General Information
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and reliable lighting fixtures on the market today! The Platinum Spot LED PRO™ has been designed to perform reliably for years when the guidelines in this booklet are followed. -
Page 5: Warranty Registration
Platinum Spot LED™ Please do not discard the shipping carton in the trash. Please recycle whenever possible. WARRANTY REGISTRATION: The Platinum Spot LED Pro™ carries a two-year (730 days) limited warranty. Please fill out the enclosed warranty card to validate your purchase. - Page 6 Platinum Spot LED Pro™ Platinum Spot LED Pro™ procedure. Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion of the cord. This fixture is designed for use indoors. Use of this fixture outdoors will void the manufactures warranty.
-
Page 7: Safety Instructions
Never touch the fixture during normal operation. This can cause severe personnel injuries and/or damage to the fixture. Be sure to unplug the Platinum Spot LED Pro™ from the power outlet before performing any service related issues. Never look directly into the lamp beam. You risk injury to your retina, which may induce blindness. -
Page 8: Features
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 3. FEATURES Pan 540° or 630˚ (User selectable) / Tilt 265° • 3 operation mode: DMX controlled, stand alone, or sound activated • 3 DMX Modes; 15/17/22 Channels • Built-in WDMX Reciever •... -
Page 9: General Guidelines
Do not permit operation by persons not qualified for operating this type of theatrical fixture; most damages are the result of operations by nonprofessionals. Please use the original packaging to transport the fixture in for service. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 10: Fixture Overview
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 5. FIXTURE OVERVIEW 1: Lens 2: Display 3. Wireless DMX Indicator 4: DC Switch 5: Microphone 6: Left Button 7: Down Button 8: Right Button 9: Mode/Esc Button 10: Up Button 11: Wireless DMX Antenna... - Page 11 10. Up Button – The up button is used to toggle forward through the menu functions and settings. 11. Wireless DMX Antenna – This antenna works with the built-in wireless DMX receiver. The built-in wireless DMX system works with any Elation wireless system or any compatible “EWDMX” system. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 12 Platinum Spot LED Pro™ Platinum Spot LED Pro™ 12. Enter Button – The enter button is used to enter in to a certain menu function or to lock a function into memory. 13. Carrying Handle – Please use this intergraded handled to move the fixture form location to location.
-
Page 13: Mounting And Installation
1.5 feet Mounting The Platinum Spot LED Pro™ is fully operational in two different mounting positions, hanging upside-down from a ceiling, or set on a flat level surface (see illustration on next page). Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). -
Page 14: Mounting Points
Platinum Spot LED Pro™ Platinum Spot LED Pro™ Mounting points Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. -
Page 15: Securing
Securing the Platinum Spot LED Pro™ Regardless of the rigging option you choose for your Platinum Spot LED Pro™ always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. -
Page 16: Understanding Dmx
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 7. UNDERSTANDING DMX DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and controller manufactures as a form of communication between intelligent fixtures and controllers. DMX allows all makes and models of different manufactures to be linked together and operate from a single controller. - Page 17 Always be sure daisy chain your in and out data connections, never split or “Y” your DMX connections unless you are using an approved DMX splitter such as the Elation Opto Branch 4™ or DMX Branch/4™. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 18: Dmx Terminator
Platinum Spot LED Pro™ Platinum Spot LED Pro™ DMX-512 connection with DMX terminator A DMX terminator should be used in all DMX lines especially in longer runs. The use of a terminator may avoid erratic behavior in your DMX line. A terminator is a 120 ohm 1/4 watt resistor that is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). - Page 19 That means changing the settings of one channel will only affect the selected fixture. In the case of the Platinum Spot LED Pro™, which is a 17 channel fixture (default), you should set the starting DMX address of the first unit to 1, the second unit to 18 (17 + 1), the third unit to 35 (17 + 18), and so on.
-
Page 20: Fixture Menu
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 8. FIXTURE MENU On-Board System Menu: The Platinum Spot LED Pro™ comes with an easy to navigate, full color system menu. This next section will detail the functions of each command in the system menu. - Page 21 Fahrenheit between ˚C/˚F PAN =XXX Initial Status Initial effect position ……. WDMX Off De-activate WDMX Activate WDMX Activate WDMX Wireless DMX Act & Data Out Act & Data Out Clean WDMX Memo Reset Wireless ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 22 Platinum Spot LED Pro™ Platinum Spot LED Pro™ Memory Reset Default ON/OFF Restore factory set. Reset All Reset all motors Reset Pan&Tilt Reset Pan/Tilt Reset Colors Reset color wheel Reset Gobos Reset gobos Reset Others Reset other motors Test Channel PAN ……...
-
Page 23: Dmx Addressing
“Select program” section of the control menu. You can set the number of steps under “Edit program”. You can edit the individual scenes under “Edit scenes”. With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 24 Platinum Spot LED Pro™ Platinum Spot LED Pro™ 8.1.5 Music control This function is similar to the “Auto Program” described in the previous section with the exception that this function will advance the built-in program via sound. 8.2 Information: 8.2.1 Time information These functions will detail different time functions associated with the fixture.
-
Page 25: Temperature Info
• Select “ON” if you wish to strike the lamp or “OFF” to switch it off. • Press “ENTER” to confirm. • Press the Mode/Esc-button to return to the main menu. 8.3.2 Automatic La-On When in the “ON” position, this function will automatically turn the lamp on when power ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 26 Platinum Spot LED Pro™ Platinum Spot LED Pro™ is applied to the fixture 8.3.3 Lamp On Via DMX When engaged, this function will allow the lamp to be switched “on” via a DMX controller. Select “ON” to enable this function or “OFF” to disable it.
- Page 27 Speed 1 (Default): Slower than the original Design Spot 250 for smoother, more precise movements. Speed 2: Pan and Tilt speeds are identical to the first generation Design Spot 250. Speed 3: includes a faster Pan speed. Pan speed is 0.5 seconds faster than ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 28 Platinum Spot LED Pro™ Platinum Spot LED Pro™ original DS-250. Tilt speed will be the same as speed 2. Mic Sensitivity – This function makes the internal microphone more or less sensitive to sound. This function only works in conjunction with the sound active modes.
- Page 29 Ø Reset Gobos: This function will only reset the gobo wheels to the home position. Ø Reset Shutter: This function will only reset the blackout shutter to the home position. Ø Reset Others: This function will reset all other motors not associated with any in the ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 30 Platinum Spot LED Pro™ Platinum Spot LED Pro™ previously listed reset commands to the home position. 8.6 Effect Adjust: 8.6.1 Test Channel – This menu function allows the user to select each individual fixture channel and test it’s function independently from the control board.
- Page 31 DMX compliant controller. This function allows those scenes to be stored in to the fixture’s built-in memory and then subsequently used to create the user-defined programs. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 32: Dmx Addressing
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 9. DMX ADDRESSING Setting the DMX address - After the fixture is turned “ON” it will immediately complete a reset process that test all the fixture’s functions. When the reset process concludes the LCD will display the fixture’s current DMX. - Page 33 420, set channel 1 to a value of “7,” channel 2 to "8" and channel 3 to "164" (256+164=420). 4. Wait for approximately 20 seconds for the unit to complete the address reset function. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 34: Operation
Platinum Spot LED Pro™ 10. OPERATION Operating Modes: The Platinum Spot LED Pro™ can operate in six different modes. This next section will detail the differences in the operating modes. • Auto Program Mode (Master) - The fixture will chase through the built-in programs, sending a DMX control signal to all other fixtures connect via DMX cables instruction for a synchronized light show. - Page 35 Be sure to use a terminator on the last fixture, especially for longer cable § runs (more than a 100 feet). For help operating in DMX mode consult the manual that was included with § your DMX controller. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 36: Working With Built-In Programs
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 11. WORKING WITH BUILT-IN PROGRAMS The fixture comes equipped with a built-in DMX recorder that allows custom programs to be installed and recalled directly from the fixture’s control board. Programs can be created and stored using the fixture’s control board or by using an external DMX controller. - Page 37 Once you have built all your required scenes, enter the fixtures main menu and toggle to Step 2 – Editing Programs. The control will store a maximum of 10 programs. A program can store one or a maximum ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 38 Platinum Spot LED Pro™ Platinum Spot LED Pro™ of 64 scenes. Keep in mind that a scene can only be access when it is stored inside one of the 10 available programs. Follow the procedure below to build an internal program: •...
-
Page 39: Dmx Channel Traits
Backwards rainbow effect from slow to fast Color Wheel Fine 0-255 Fine control of Tilt movement Rotating gobos, cont. rotation Open 10-19 Rot. gobo 1 20-29 Rot. gobo 2 30-39 Rot. gobo 3 40-49 Rot. gobo 4 ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 40 Platinum Spot LED Pro™ Platinum Spot LED Pro™ 50-59 Rot. gobo 5 60-69 Rot. gobo 6 70-79 Rot. gobo 7 80-99 Gobo 1 shake slow to fast 100-119 Gobo 2 shake slow to fast 120-139 Gobo 3 shake slow to fast...
- Page 41 96-127 No function (shutter open) 128-159 Pulse-effect in sequences 160-191 No function (shutter open) 192-223 Random strobe effect slow to fast 224-255 No function (shutter open) Dimmer (intensity) 0-255 Intensity 0 to 100% Iris ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 42 Platinum Spot LED Pro™ Platinum Spot LED Pro™ 0-191 Max. diameter to Min.diameter 192-223 Pulse closing fast to slow 224-255 Pulse closing slow to fast Iris Fine 0-255 Iris Fine Speed pan/tilt movement 0-225 max to min speed 226-235 Blackout during movement...
-
Page 43: Error Codes
This message will appear after a fixture reset if the tilt magnetic-indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or a defective motor IC drive on the main PCB). ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 44 Platinum Spot LED Pro™ Platinum Spot LED Pro™ Color-wheel error: The color wheel is not located in the default position after start-up or after a reset command. This message will appear after a fixture reset if the color wheel’s magnetic- indexing circuit malfunctions (sensor failed or magnet is missing) or there is a stepper motor failure (defective motor or a defective motor IC drive on the main PCB).
- Page 45 This message will appear after the reset of the fixture and if the magnetic indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main PCB). The focus motor is not located in the default position after the reset. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 46: Cleaning And Maintenance
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 14. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: Be sure all screws and fasteners are securely tightened at all times. Lose screws may fall out during normal operation resulting in damage or injury as larger parts could fall. -
Page 47: Wireless Dmx
Platinum Spot LED™ 15. BUILT-IN WIRELESS RECIEVER The Platinum Spot LED Pro™ is equipped with an Elation WDMX Wireless DMX Receiver built-in. This receiver is fully compatible with your existing Elation Wireless DMX System or any WDMX compatible solution. 12.1 Working with the Wireless DMX (WDMX) System: •... - Page 48 Platinum Spot LED Pro™ Platinum Spot LED Pro™ then begin to flash rapidly for about 5~ 10 seconds while the two system pair c) Once the fixture is paired with the transmitter (T1), the WDMX status indicators on the both the fixture and the transmitter will stop flashing and glow solid green.
- Page 49 Platinum Spot LED™ 16. GOBOS: ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
-
Page 50: Dimensional Drawings
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 17. DIMENSIONAL DRAWINGS: ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... -
Page 51: Circuit Schematic
Platinum Spot LED™ 18. CIRCUIT SCHEMATICS ©Elation Professional, Los Angeles Ca. www.ElationLighting.com... - Page 52 United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought. B. For warranty service, send the product only to the Elation Professional factory. All ®...
- Page 53 The consumer’s and or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall Elation Professional® be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
-
Page 54: Technical Specifications
Platinum Spot LED Pro™ Platinum Spot LED Pro™ 20. TECHNICAL SPECIFICATIONS Power supply Power Requirements AC 100V~240V, 50/60Hz Fuse Protection 120V = 4A/250V, GMA (5x20mm fine-wire fuse) 220V = 2A/250V, GMA (5x20mm fine-wire fuse) Power Consumption 240 Watts Lamp Type... - Page 55 Operating Noise Levels (Base level 46.8dB) Mode: Auto 1m = 55.9 dB Mode: High 1m = 56.2 dB Mode: Auto 1m = 51.6 dB (Lamp off) Ambient Operating Temperature -25˚C ~ 45˚ C Specifications subject to change without notice. ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
- Page 56 Platinum Spot LED Pro™ Platinum Spot LED Pro™ Elation Professional 6122 S. Eastern Ave. Los Angeles, CA. 90040 323-582-3322 / 323-832-9142 fax www.ElationLighting.com / Info@ElationLighitng.com ©Elation Professional, Los Angeles Ca. www.ElationLighting.com...
