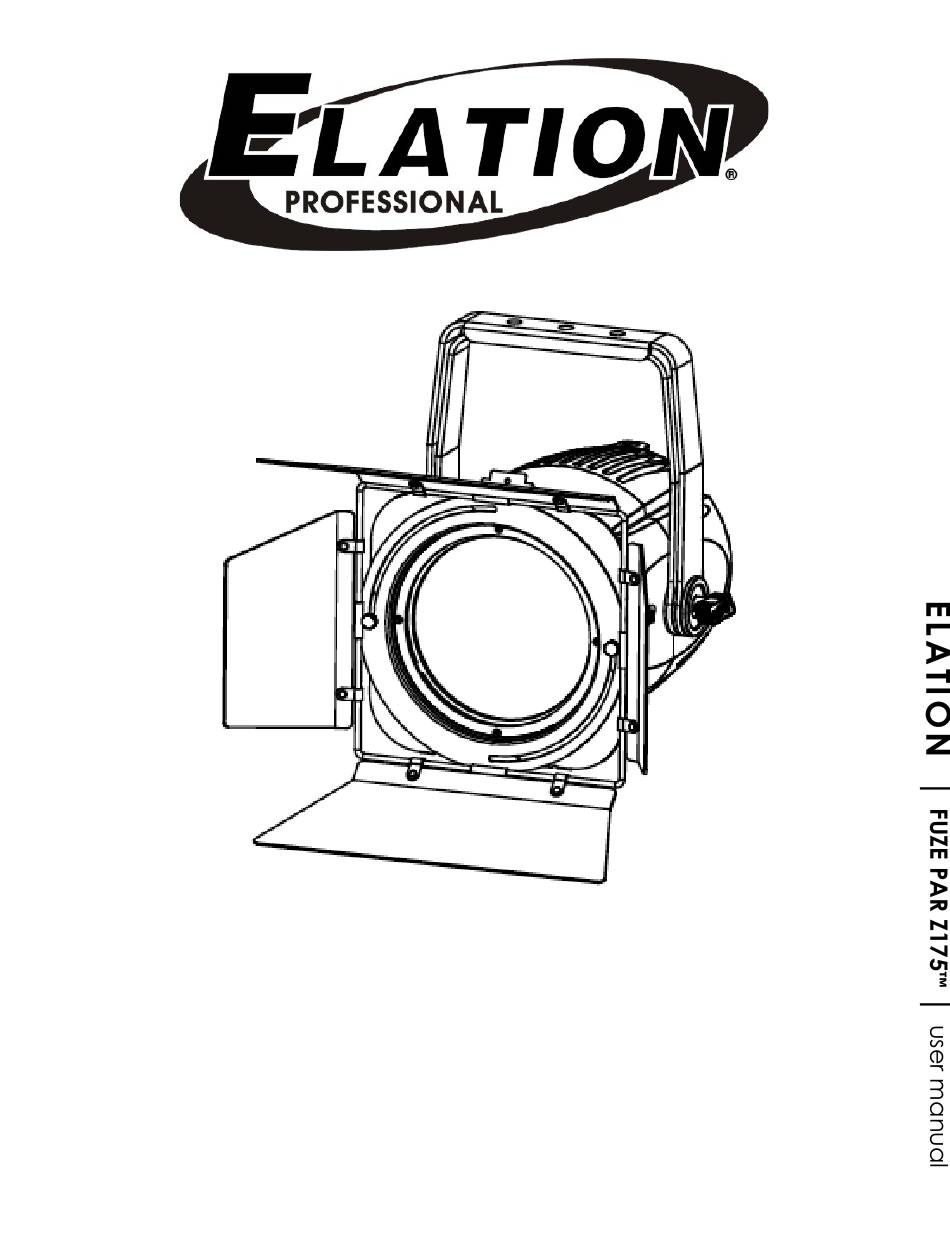

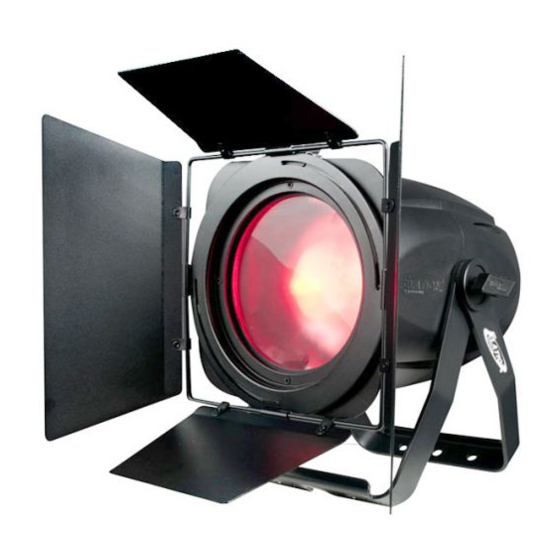

- Page 1 FUZE PAR Z175™ user manual ...
- Page 2 . e l a t i o n l i g h t i n g . c o m ©2017 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. ...
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information 4 Warranty 6 Safety Instructions and Guidelines 7 Overview 9 Installation 10 System Menu 12 DMX Channel Functions And Values 16 Cleaning and Maintenance 20 Technical Specifications 21 Optional Accessories 23 FUZE PAR Z175™ User Manual... -
Page 4: General Information
In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this unit to your dealer without first contacting customer support at the number listed below. Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) Gel Frame (attached) (1) Gel Frame/Barn Door Holder (attached) (1) Barn Door (attached) (1) powerCON Cable FUZE PAR Z175™ User Manual... - Page 5 I M P O R T A N T N O T I C E ! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufactures warranty. Damages resulting from modifications to this fixture and/or the disregard of safety and general user instructions found in this user manual void the manufactures warranty and are not subject to any warranty claims and/or repairs. FUZE PAR Z175™ User Manual...
-
Page 6: Warranty
B. For warranty service, send the product only to the Elation Professional® factory. All shipping charges must be pre‐paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional® will pay return shipping charges only to a designated point within the United States. If any ... -
Page 7: Safety Instructions And Guidelines
Only qualified and/or certified personnel should perform installation of this fixture and only the original rigging parts (omega brackets) included with this fixture should be used for installation. Any modifications to the fixture and/or the mounting hardware included will void the original manufactures warranty and increase the risk of damage and/or personal injury. PROTECTION CLASS 1 ‐ FIXTURE MUST BE PROPERLY GROUNDED DO NOT PLUG FIXTURE INTO A DIMMER PACK! NEVER OPEN THIS FIXTURE WHILE IN USE! UNPLUG POWER BEFORE SERVICING FIXTURE! NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT! KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE! INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK ‐ MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! FUZE PAR Z175™ User Manual... - Page 8 Always disconnect fixture from main power source before performing any type of service and/or cleaning procedure. Only handle the power cord by the plug end, never pull out the plug by tugging the wire portion of the cord. During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. This is a normal process and is caused by excess paint in the interior of the casing burning off from the heat associated with the lamp and will decrease gradually over time. Consistent operational breaks will ensure the fixture will function properly for many years to come. Use the original packaging and materials to transport the fixture in for service. FUZE PAR Z175™ User Manual...
-
Page 9: Overview
. e l a t i o n l i g h t i n g . c o m OVERVIEW 1. LCD Menu Display 2. MENU, UP, DOWN, ENTER Buttons 3. 3pin DMX IN/OUT 4. 5pin DMX IN/OUT 5. Power IN 6. Fuse 7. power OUT FUZE PAR Z175™ User Manual... -
Page 10: Installation
Ambient operating temperature range for this fixture is 5° to 113°F. (‐15° to 45°C) Do not use the fixture under or above this temperature. Before mounting the fixture to any surface, make sure the installation area can hold a minimum point load of 10 times the weight of the fixture. Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing, or servicing. POWER LINKING Max number of FUZE PAR Z175™ units power linked together: 5 units @120V | 10 units @240V NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO FUZE PAR Z175™! POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! ALWAYS CHECK MAX AMP OUT RATING PRINTED ON THE REAR CONNECTION PANEL! FUZE PAR Z175™ User Manual... - Page 11 If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. Fixture is fully operational in the specific mounting positions illustrated below. S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE TO THE FIXTURE WHENEVER INSTALLING IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF CLAMP FAILS. FUZE PAR Z175™ User Manual 11 ...
- Page 12 You may exit the main menu at any time without making any adjustments by pressing the MODE/ESC button. LCD CONTROL PANEL LOCKOUT When the Key Lock menu is set to ON, the LCD display will turn OFF after 30 seconds and the (4) button Control Panel will be LOCKED. To unlock the (4) button LCD control panel, press and hold the MODE button. Red 000‐255 Green 000‐255 Blue 000‐255 White 000‐255 Zoom 000‐255 INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is powered ON, the display shows the following information: Update ZOOM Fuze Par ELATION Wait... Reset Z175 V102 Fixture Software Version (Greater than or equal to) FUZE PAR Z175™ User Manual...
-
Page 13: System Menu
000‐255 Zoom 000‐255 LED Freq 0.9‐25KHz (1200Hz) LED Frequency TimeInfo | Current XXXX (Hours) Fixture Run Time From Power ON TimeInfo | TotalTim XXXX (Hours) Fixture Total Run Time TimeInfo | LastClea XXXX (Hours) Clear Fixture Last Run Time TimeInfo | TimePIN PIN= 050 Enter PIN to Access Clear Last. Menu Info TempInfo XXX Fº / Cº Temperature in Fixture Head Fuze Par ModelInf Display Fixture Model Name Z175 1U V106B Software Versions Software Version (greater than or equal to) 2U V106B FUZE PAR Z175™ User Manual 13 ... - Page 14 OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD) ZoomRset Reset. M Set DMX Channel Secondary Secondry Set Secondary Mode ManCtrl 000 ‐ 255 ZOOM ManCtrl 000 ‐ 255 Dimmer ManCtrl 000 ‐ 255 Red ManCtrl Manual 000 ‐ 255 Manual Control Green ManCtrl 000 ‐ 255 Blue ManCtrl 000 ‐ 255 White ManCtrl 000 ‐ 255 Strobe FUZE PAR Z175™ User Manual...
- Page 15 . e l a t i o n l i g h t i n g . c o m DIMMING CURVES The DimCurve menu allows you to select one of the following preset dimming curves: Standard, Stage, TV, Architec, or Theatre. FUZE PAR Z175™ User Manual 15 ...
-
Page 16: Dmx Channel Functions And Values
10 12 13 13 Dimmer Curve Special 0‐79 Normal 5 6 7 8 8 7 9 10 9 10 11 11 11 13 14 14 80‐84 Zoom Reset 85‐255 No Function FUZE PAR Z175™ User Manual... - Page 17 128‐130 1320 Hz 131‐133 1330 Hz 1340 Hz 134‐136 137‐139 1350 Hz 140‐142 1360 Hz 143‐145 1370 Hz 146‐148 1380 Hz 149‐151 1390 Hz 152‐154 1400 Hz 155‐157 1410 Hz 158‐160 1420 Hz 161‐163 1430 Hz 164‐166 1440 Hz 167‐169 1450 Hz 170‐172 1460 Hz 173‐175 1470 Hz FUZE PAR Z175™ User Manual 17 ...
- Page 18 4000 Hz 191‐193 5000 Hz 5 8 10 11 12 15 194‐196 6000 Hz 197‐199 10,000 Hz 200‐202 15,000 Hz 203‐205 20,000 Hz 206‐208 25,000 Hz 209‐255 No Function FUZE PAR Z175™ User Manual...
-
Page 19: Cleaning And Maintenance
Check for any deformations on the housing, color lenses, rigging hardware and rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously injure a person(s). Electric power supply cables must not show any damage, material fatigue or sediments. Never remove the ground prong from the power cable. FUZE PAR Z175™ User Manual 19 ... -
Page 20: Technical Specifications
T E C H N I C A L S P E C I F I C A T I O N S SOURCE 175W RGBW COB LED 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On‐Off Cycling), Control, and Dimming. EFFECTS 8° ‐ 35° Motorized Zoom Electronic Strobe Color and Chase Macros Electronic Dimming: 0% ‐ 100% 16‐bit Dimming and Variable Dimming Curve Modes CONTROL / CONNECTIONS (12) DMX Channel Modes (14 Total Channels) (4) Button Touch Control Panel LCD Menu Display 3pin/5pin DMX In/Out powerCON In/Out SIZE / WEIGHT (with barn doors attached) Length: 18.2” (463mm) Width: 16.2” (411mm) Vertical Height: 17.0” (431mm) Weight: 20.0 lbs. (9.07 kg) ELECTRICAL / THERMAL AC 100‐250V ‐ 50/60Hz 220W Max Power Consumption 5°F to 113°F (‐15°C to 45°C) APPROVALS / RATINGS CE | IP30 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE PAR Z175™ User Manual... - Page 21 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE PAR Z175™ User Manual 21 ...
-
Page 22: Optional Accessories
O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM NARROW CLAMP Heavy Duty Wrap Around Hook Style Clamp SCABLE 60 60 lbs. Rating 24 Inch Safety Cable AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable PLC3 3 ft. (1m) PowerCON PRO Link Cable Additional Cable Lengths Available FUZE PAR Z175™ User Manual... - Page 23 ...
