JVC 1010MTH-SW-MT Instructions Manual

Jvc blu-ray disc & hdd recorder instructions manual.
Hide thumbs

Advertisement

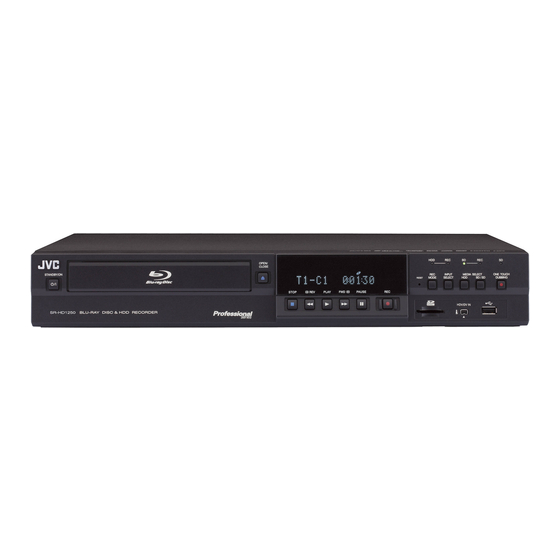

BLU-RAY DISC & HDD RECORDER
SR-HD1500US
SR-HD1250US
STANDBY/ON
INSTRUCTIONS
OPEN/
CLOSE
STOP
REV
PLAY
FWD
PAUSE
REC
H
D
D
REC
BD
R
E
C
SD
REC
INPUT
MIDIA SELECT
ONE TOUCH
MODE
SELECT
HDD
BD/SD
DUBBING
RESET
HDV/DV IN
For Customer Use:
Enter below the Model No. and Serial
No. which are located on the rear of
cabinet. Retain this information for
future reference.
Model No.
Serial No.
.
LST1083-001C
(A)

Advertisement

   Related Manuals for JVC 1010MTH-SW-MT

   Summary of Contents for JVC 1010MTH-SW-MT

  • Page 1

    BLU-RAY DISC & HDD RECORDER SR-HD1500US SR-HD1250US STANDBY/ON INSTRUCTIONS OPEN/ CLOSE INPUT MIDIA SELECT MODE SELECT RESET STOP PLAY PAUSE HDV/DV IN For Customer Use: Enter below the Model No. and Serial No. which are located on the rear of cabinet.

  • Page 2: Safety Precaution

    Safety Precaution Dear Customer, Thank you for purchasing the JVC BLU-RAY DISC & HDD recorder. Before use, please read the safety information and precautions to ensure safe use of your new unit. Cautions CAUTION RISK OF ELECTRIC SHOCK OF ELECTRIC SHOCK...

  • Page 3: Important Safety Instructions

    7. DO NOT place any naked flame sources, such as lighted candles, on the apparatus. 8. AVOID violent shocks to the unit during transport. CAUTION: Changes or modifications not approved by JVC could void user’s authority to operate the equipment. Declaration of Conformity Model Number:...

  • Page 4

    Do not put the batteries in a place where young children can reach. ● DISCLAIMER OF LIABILITY JVC shall not be liable for any loss relating to the unit’s failure to properly record, store or playback any content (video, audio or otherwise) for any reason whatsoever. Any applicable warranties shall only cover replacement or repair of the effected unit, and shall not apply to recovery or replacement of lost content.

  • Page 5: Table Of Contents

    Contents Safety Precaution Contents Getting Started Key Features ... 6 How to Read this Manual ... 6 Other Precautionary Notes ... 7 Hard Disk Drive (HDD) ... 8 SD Cards ... 8 Discs ... 9 Precautions on the Use of Discs ... 11 On-screen Displays ...

  • Page 6: Getting Started

    Compatible with ProHD Camcorder GY- HM700/100 (only for SR-HD1500) MOV files that are taken in SP mode (*1) using the JVC ProHD Camcorder GY-HM700/100 are compatible with the SR-HD1500, and can be imported into the HDD or dubbed onto discs.

  • Page 7: Other Precautionary Notes

    Read and understand fully the terms and conditions of all copyright works before using this unit in the correct manner. Under no circumstances shall JVC take any responsibility for any infringements of copyright caused by the customer when using this unit. The customer shall be responsible for resolving all legal issues regarding to any copyright infringements.

  • Page 8: Hard Disk Drive (hdd)

    Getting Started Hard Disk Drive (HDD) Hard disk drive (HDD) The HDD rotates at a high speed whenever the power is turned “On”. Pay particular attention to the following precautions when using this unit. Warning Do not subject it to vibration or strong impact Subjecting this unit to excessive impact may result in loss of recorded data and even damage of the HDD.

  • Page 9: Discs

    Discs BD recording formats BDAV mode Videos can be edited (chapter edit etc) and new videos can be added to the disk. This format is suitable for recording videos. MPEG2 with HD quality will be recorded as it is onto the disc.

  • Page 10

    Getting Started Discs (Continued) Discs that enable both dubbing and playback Disc Type Recording Format BD-RE BDAV mode BDMV mode BD-R BDAV mode BDMV mode DVD-RW Video mode VR mode DVD-R Video mode VR mode Discs that enable playback only Disc Type DVD-RAM (4.7 GB) Supports specific forms of playback, but no recording can be done.

  • Page 11: Precautions On The Use Of Discs

    DVD recording side of the dual disc. Use genuine JVC discs The best performance may not be obtained for some discs. It is recommended that genuine JVC discs be used to ensure the best results. Power Cable Do not unplug the cable during recording or playback.

  • Page 12: On-screen Displays

    Getting Started On-screen Displays Status display Displays the current settings and operating status (such as playback, pause) of this unit. Pressing the [ON SCREEN] button on the remote control displays the status. To cancel the display, press the [ON SCREEN] button again. You can select whether to display the statuses by changing the settings in the settings menu.

  • Page 13: Name And Function Of Parts

    Name and Function of Parts Front panel A [ A ] button Turn On/Off the power. B Disc tray C [ M ] button Opens/closes the disc tray. D Display window E Remote control sensor F [RESET] switch Reset the unit. G [REC MODE] button Switches the recording mode.

  • Page 14: Display Window

    Getting Started Name and Function of Parts (Continued) Display window HDD/DISC remaining level display Dubbing display Disc status display HDMI output display Memo: The brightness of the display window can be adjusted. For more details, refer to “PANEL DISPLAY BRIGHTNESS” (A page 75) .

  • Page 15: Remote Control

    Remote control A [DELETE] Deletes a title or characters. B [ M ] Opens/closes the disc tray. C [HDD] For operating the HDD. D [1]-[9] For entering characters. E [Z] For entering characters. F [RED] Enabled when the color button (red) is displayed. G [GREEN] Enabled when the color button (green) is displayed.

  • Page 16

    Getting Started Name and Function of Parts (Continued) g [ N ] Fast forwards the video and starts slow playback. h [ I ] Plays the video. i [ W ] Pauses the video that is currently playing. j [ o ] Stops playback/recording.

  • Page 17: Preparation

    Connecting a Monitor To display video images from this unit, connect it to a monitor. This unit supports connections using “HDMI cable”, “component video cable”, “S-video cable”, or “video cable”. Memo: Switch to the appropriate monitor input according to the type of connection cable used.

  • Page 18: Connecting A Video Deck Or Other Equipment

    Preparation Connecting a Video Deck or Other Equipment Connecting a video camera Connecting via the i.LINK terminal OPEN/ CLOSE STANDBY/ON STOP PLAY Connecting via the USB terminal OPEN/ CLOSE STANDBY/ON STOP PLAY PAUSE Memo: Some video camera models may require an AC adapter instead of batteries to run.

  • Page 19: Connecting External Devices

    Connecting External Devices Connecting a wired remote control Using a wired connection enables stable control of this unit from an external device. Operation is possible using any code (1 to 4) regardless of the remote control code settings of this unit. Memo: There is currently no compatible remote control unit available.

  • Page 20: Setting And Displaying Date/time

    Preparation Setting and Displaying Date/Time Set the date/time of the built-in clock as follows. The recording date/time is stored on the disc. Setting the date/time Set the date/time of the built-in clock as follows. 1 Press the [SET UP] button on the remote control unit The Settings menu screen appears.

  • Page 21

    6 After setting is complete, select “ENTER”, and press the [OK] button Doing so exits date/time setting, and returns to the initial screen. Memo: The value for seconds cannot be set. After setting the minute, press the [SET UP] button according to the time signal.

  • Page 22

    Preparation Setting and Displaying Date/Time (Continued) Memo: The date display style will be applied in the following information displays. Recording date of the title that is shown in the playback navigation screen (The recording date will be shown in place of the title if the title has not been input). Shooting date and time that is shown when AVCHD is played back Date that is displayed in the title information display...

  • Page 23: Dubbing/importing

    USB. Memo: For MOV format videos, only videos in MOV format (SP mode) taken using JVC ProHD camcorder GY-HM700/100 are compatible. There is no guarantee for importing videos taken on devices by other company. In addition, MOV videos cannot be imported using the SR- HD1250.

  • Page 24: Dubbing Chart

    77) in the settings menu to “4:3” before recording or importing. Only re-encoding will be performed when dubbing a title that is recorded or imported with a setting other than “4:3”. MOV* : MOV files that are taken in SP mode using the JVC ProHD Camcorder GY-HM700/100 Dubbing the picture data from the HDD...

  • Page 25: Formatting

    Note: If a disc is formatted using an equipment not manufactured by JVC, the disc may not be read correctly even though it corresponds to the chart below. In this case, reformat the disc using this unit, or make use of another blank disc.

  • Page 26

    Dubbing/Importing Formatting (Continued) 5 Select “YES”, and press the [OK] button in the format confirmation screen Formatting starts. After formatting is complete, a “THE DISC HAS BEEN FORMATTED” message appears on the monitor, and the normal screen is displayed. Memo: To return to the initial screen without formatting the disc, select “DO NOT FORMAT”...

  • Page 27

    Formatting an SD Card 1 Insert the SD card to be formatted into the [SD SLOT] With the terminal side facing down, insert the SD card until a “click” sound is heard. Note: Formatting cannot be performed if the SD card is write- protected.

  • Page 28: Recording Modes

    Dubbing to a DVD cannot be done in HD picture quality. DR mode HDV, MOV* and SD-VIDEO(JVC Everio MPEG2 TS) titles are imported using DR mode. MOV* : MOV files that are taken in SP mode using the JVC ProHD Camcorder GY-HM700/100 BD (Single- BD (Single-...

  • Page 29: Importing Data To The Hdd Using The One Touch Dubbing Button

    Titles of two or more scenes cannot be combined if the recording criteria, such as video size, are different. Import of MOV files recorded using JVC GY-HM700/100 SP mode 1080i (25 Mbps) requires a duration that is about 1.3 times longer than the usual time.

  • Page 30: Importing Data From A Bd/dvd To The Hdd

    Dubbing/Importing Importing Data from a BD/ DVD to the HDD Data can be imported from a BD/DVD to the HDD as follows. File formats that can be imported BD-MV, BD-AV, AVCHD, DVD-VR, DVD-VIDEO, EverioBackup, and JPEG Memo: Titles that are imported using “FULL IMPORT” combined into one title.

  • Page 31

    5 Select “START”, and press the [OK] button Importing of the titles starts. After titles are successfully imported, a “DUBBING IS COMPLETED” message appears on the monitor. Specify a title 1 Select “SEL. TITLE(VIDEO)” in the import selection screen, and press the [OK] button A check mark is added to the “SEL.

  • Page 32

    Dubbing/Importing Importing Data from a BD/ DVD to the HDD (Continued) 7 Select “START”, and press the [OK] button Importing of titles starts according to the sequence in the created title list. After titles are successfully imported, a “DUBBING IS COMPLETED”...

  • Page 33: Importing Data From A Usb-compatible Device To The Hdd

    If the internal device is not recognized: Copy the data from the camera’s internal memory or HDD onto the SD card. If using a JVC camcorder that has two memory card slots: Put the memory card that has the required data in slot A.

  • Page 34

    Dubbing/Importing Importing Data from a USB- compatible Device to the HDD (Continued) Importing of the titles starts. After titles are successfully imported, a “DUBBING IS COMPLETED” message appears on the monitor. Specify a title 1 Select “SEL. TITLE(VIDEO)” in the import selection screen, and press the [OK] button A check mark is added to the “SEL.

  • Page 35: Importing Data From An Sd Card To The Hdd

    Titles of two or more scenes cannot be combined if the recording criteria, such as video size, are different. Import of MOV files recorded using JVC GY-HM700/100 SP mode 1080i (25 Mbps) requires a duration that is about 1.3 times longer than the usual time.

  • Page 36

    VIDEO, MOV*) in the SD card, press the [RED] button to select the format you want to display. MOV*: MOV files that are taken in SP mode using the JVC ProHD Camcorder GY-HM700/100 4 Select “START”, and press the [OK] button Importing of titles starts according to the sequence in the created title list.

  • Page 37: Importing Data From An I.link-compatible Device To The Hdd

    Do not unplug the i.LINK cable while importing to the HDD is in progress. Doing so may result in loss or damage of the titles. For example, during full import of HDV content from JVC GY- HD100 via i.LINK connection, the beginning of the image may not be captured if GY-HD100 is not set as follows.

  • Page 38

    Dubbing/Importing Importing Data from an i.LINK-compatible Device to the HDD (Continued) Select “XP”, “SP”, “LP”, or “EP” from the “RECORDING MODE” option. Memo: HDV contents will be imported in DR mode. For more details, refer to “Recording Modes” (A page 28) . 4 Select “START”, and press the [OK] button Importing of the titles starts.

  • Page 39: Dubbing A Title From The Hdd To A Bd/dvd

    The following high bit-rate files may not meet the Blu-ray Disc standards when they are dubbed to a BD. When a BDAV/BDMV disc is created (high-speed dubbing) by importing content captured in the JVC GY- HM700/100 SP mode. When a BDAV disc is created (high-speed dubbing) by importing content captured in the JVC GZ-HD7/6 etc FHD mode.

  • Page 40

    Dubbing/Importing Dubbing a Title from the HDD to a BD/DVD (Continued) Memo: High-speed dubbing Select this option if you want to significantly shorten the time required for dubbing. Make use of a disc that supports high-speed recording. AF/AN/AL/AE Can be selected for BD-R and BD-RE. Dubbing is done with HD picture quality.

  • Page 41

    Memo: The background image of the disc menu can be selected (only for DVD-Video and BD-MV). The following sizes are recommended for still images. : 1920 x 1080 DVD : 720 x 480 When a still image is used, the two vertical or horizontal edges are trimmed based on the side that is smaller than the aspect ratio of the video to be dubbed.

  • Page 42: Dubbing Still Images From The Hdd

    Dubbing/Importing Dubbing Still Images from the HDD Still images stored in the internal HDD can be dubbed to a BD-RE or an SD card as follows. Memo: Only “JPEG” still image format is supported. For more details, refer to “Dubbing the picture data from the HDD”...

  • Page 43

    6 Select “START”, and press the [OK] button Dubbing starts. A progress bar is displayed during the dubbing process. After dubbing is complete, a “DUBBING IS COMPLETED” message appears on the monitor. Memo: A directory of the following configuration is created in the media, and still images are written with file names ranging from “PIC_0001.jpg”...

  • Page 44: Enabling Playback On Other Devices (finalizing)

    Dubbing/Importing Enabling Playback on Other Devices (Finalizing) DVD-R and DVD-RW discs may need to be finalized before they can be played on other DVD players. Memo: Discs in the Video mode becomes a DVD-Video format with a title menu after finalizing. Discs containing DVD-Video data can be finalized by setting the disc operation settings according when the disc is inserted into this unit.

  • Page 45

    ③ Select “CHANGE DISC MENU BACKGROUND” to select a background image for the top menu You can register and use a background image of your preference. Memo: The items in “FIRST PLAY”, “REPEAT” and “CHANGE DISC MENU BACKGROUND” can also be set in “Dubbing a Title from the HDD to a BD/DVD”...

  • Page 46: Copying The Entire Disc

    Dubbing/Importing Copying the Entire Disc Copying the entire disc allows all content on a BD (BDMV) or DVD (AVCHD, DVD-Video) to be copied onto another disc. Note: Content cannot be copied to a formatted BD-R or DVD-R disc. Make use of an unformatted disc. Use a DVD-R/-RW instead of a BD-R/-RE or DVD when the source disc is a BD disc.

  • Page 47: Recording Using External Inputs

    9 Complete the entire disc copying After copy is complete the tray will open automatically, and copy of the entire disc ends. Memo: The screen prompting you to insert a new disc appears repeatedly until this unit has finished copying the number of discs specified in Step 3.

  • Page 48: Playing Back

    For details on importing MOV* files from an SD card, refer to “Importing Data from an SD Card to the HDD” (A page 35) . MOV* : MOV files that are taken in SP mode using the JVC ProHD Camcorder GY-HM700/100...

  • Page 49

    Switching between thumbnail and list displays You can switch between the thumbnail display and list display of a video. When the video thumbnail list screen is displayed Press the [RED] button to display the title list screen. When the title list screen is displayed Press the [RED] button to display the video thumbnail list screen.

  • Page 50: Option Menu List

    Playing Back Using Playback Navigation (Continued) 2 Select an operation option, and press the [OK] button Options that cannot be operated are displayed in gray and cannot be selected. For details on the Option menu items, refer to “Option menu list”...

  • Page 51: Video Playback Operation

    Video Playback Operation Frequently used button operations [ I ] button If the stop position (resume point) is memorized in the selected video, pressing the button plays back the video from this position. The video may not resume playback depending on the media and settings used.

  • Page 52

    Playing Back Video Playback Operation (Continued) [ v ] button During normal playback, 1.3x playback, slow motion playback, fast forward, or fast reverse, pressing the button moves the playback position forward by about 30 seconds. Pressing the button multiple times moves playback to the position equivalent to the number of times pressed multiplied by 30 seconds.

  • Page 53: Playing Videos On A Bd/dvd

    Playing Videos on a BD/ Playback starts automatically after a BD/DVD is set. If the Auto Play feature is disabled, play the title using Playback Navigation. Memo: For details on the button operations during playback, refer to “Video Playback Operation” (A page 51) . Playing a disc when Auto Play is enabled 1 Set a BD or DVD on the disc tray Auto Play starts.

  • Page 54: Playing Videos On The Hdd

    VIDEO, MOV*) in the SD card, press the [RED] button to select the format you want to display. MOV*: MOV files that are taken in SP mode using the JVC ProHD Camcorder GY-HM700/100 Videos can also be played back without starting up Playback Navigation.

  • Page 55: Playing Still Images (jpeg)

    Playing Still Images (JPEG) Still images stored on the HDD/BD/DVD/SD card can be played back using Playback Navigation. Playing still images 1 Select the playback location : If the current playback location is “BD/DVD” or “SD CARD”, press the [HDD] button on the remote control unit to switch it to “HDD”.

  • Page 56: Changing Playback Settings

    Playing Back Changing Playback Settings Displaying the playback settings menu 1 Press the [PB MODE] button on the remote control unit during the playback of a title The Settings Menu screen appears. The playback settings menu can only be displayed during the playback of a title.

  • Page 57: Video Settings

    Video settings PICTURE QUALITY The following items can be set. Setting Values Description NORMAL Standard picture quality. CINEMA Effective when playing movies. FINE Produces sharp images with enhanced outlines. SOFT Reduces noise that is prominent in the video image. USER Enables the Details setting.

  • Page 58: Editing

    Editing Editing Before editing This unit mainly edits video images stored on the HDD. To edit video images stored in a disc or SD card, do so after importing them to the HDD. Data on a finalized disc cannot be edited. To edit a finalized disc, you have to either unfinalize the disc, or do so after importing the data to the HDD.

  • Page 59: Entering Characters

    Entering Characters Names can be changed or given to stored videos or groups. You can enter characters while referring to the input on the monitor. Character input screen A Function name field B Screen description C Input window Characters entered appear on the input window. D Operation guide 1 The [0]-[9], [Z], [#], [PAGE PRV ], [w] and [v] buttons are displayed.

  • Page 60: Grouping

    Editing Grouping Multiple titles stored on the HDD can be combined into a group. Memo: Only video data stored on the HDD can be grouped. Grouping 1 Press the [NAVIGATION] button on the remote control unit The Playback Navigation screen appears. 2 Select the titles or groups to be grouped, and press the [MARK] button Pressing the [MARK] button adds a check mark to the...

  • Page 61

    4 Select “YES”, and press the [OK] button All titles within the selected group are ungrouped. Memo: To cancel ungrouping, select “NO” and press the [OK] button. Alternatively, you can press the [RETURN] button to cancel ungrouping and return to the initial screen. Excluding from a group You can select titles and exclude them from a group.

  • Page 62: Changing The Title/group Name

    Editing Changing the Title/Group Name The saved title/group name can be changed as follows. Memo: A title/group name can be added to video data stored on the HDD, BD-RE, BD-R, DVD-RW, or DVD-R, and the name can be changed. Video data stored on a DVD-RW or DVD-R in the Video mode cannot be changed.

  • Page 63: Turning On Title/group Protection

    Turning On Title/Group Protection Titles/groups can be protected. Editing and deletion cannot be performed on protected titles/ groups. Title/group protection can be turned on for video data stored on the HDD, BD-RE (BDAV), BD-R (BDAV), and DVD-RW (VR). 1 Press the [NAVIGATION] button on the remote control unit The Playback Navigation screen appears.

  • Page 64: Turning Off Title/group Protection

    Editing Turning Off Title/Group Protection Protection of a title/group can be turned off. Titles/groups can be edited and deleted after their protection is turned off. Title/group protection can be turned off for video data stored on the HDD, BD-RE (BDAV), BD-R (BDAV), and DVD-RW (VR).

  • Page 65: Creating A Playlist

    Creating a Playlist A playlist can be created from the video titles on the HDD. Playlists can only be created for titles that are stored on the HDD. Playlist : Enables you to create a program by selecting chapters from a specific title and editing their playback sequence.

  • Page 66: Editing A Thumbnail

    Editing Editing a Thumbnail Thumbnails (index images) can be changed to a still image according to your preference. Memo: Thumbnails of titles stored on the HDD, BD-RE, BD-R, DVD-RW, and DVD-R can be edited. However, thumbnails of titles that are stored on an SD card or finalized disc cannot be edited.

  • Page 67: Editing A Chapter

    Editing a Chapter Creating a chapter mark for a saved title enables you to find a specific scene within the title. Memo: All chapter editing functions can be performed on titles stored on the HDD. Titles stored on a BD-RE (BDAV), BD-R (BDAV), DVD-R (VR), or DVD-RW (VR) only allow chapters to be divided or combined.

  • Page 68

    Editing Editing a Chapter (Continued) Chapter mark insertion (divide chapter) 1 Play the video, and press the [W] button to stop at the scene you want to add a chapter mark 2 Press the [MARK] button on the remote control unit A chapter mark is inserted into the paused scene.

  • Page 69: Dividing

    Dividing You can select a saved title and divide it into two titles. Memo: Dividing can only be applied to titles stored on the HDD. Titles that are protected cannot be divided. To divide a title, turn off the protection. For details on turning off the title protection, refer to “Turning Off Title/Group Protection”...

  • Page 70: Delete Scenes

    Editing Dividing (Continued) Memo: To cancel the dividing operation, select “CANCEL” and press the [OK] button. Alternatively, you can press the [RETURN] button to cancel the divide operation and return to the initial screen. The dividing edit screen can also be called up from the Playback Navigation screen.

  • Page 71

    ① Play the video, and press the [W] button at the point where you want to start the delete operation ② Select “START”, and press the [OK] button - : -- : -- ③ Play the video, and press the [W] button at the point where you want to end the delete operation ④...

  • Page 72: Changing The Disc Name

    Editing Changing the Disc Name The name of a BD or DVD disc can be changed as follows. 1 Set the BD or DVD for which the disc name is to be changed on the disc tray 2 Press the [MEDIA MANAGE] button on the remote control unit The Media Management menu screen appears.

  • Page 73: Mode Conversion

    5 Select “ENTER”, and press the [OK] button The modified shooting date/time is saved. Memo: Alternatively, you can press the [RETURN] button to cancel the shooting date/time modification and return to the initial screen. The shooting date/time modification will not be reflected on a title that was dubbed.

  • Page 74: Settings Menu

    Settings Menu Changing Settings of this Unit Settings changed in the Settings Menu screen are stored on this unit even when its power is turned off. Displaying the Settings Menu 1 Press the [SET UP] button on the remote control unit The Settings Menu screen appears.

  • Page 75: Setup

    Turns off power after two hours. 6 HOURS Turns off power after six hours. REMOTE CONTROL CODE For remote control units compliant with JVC’s products, different remote control codes can be specified for those that are used with this unit. Setting Values REMOTE CONTROL 1 Sets remote control code to 1.

  • Page 76: Playback Setting

    Settings Menu DIMMER (POWER OFF) For turning on/off the light of the display window when the power is turned "Off". Setting Values Description Turns off the light. Turns on the light. QUICK STARTUP The quick startup setting can be specified as follows. Setting Description Values...

  • Page 77: Record

    RESUME The stop position can be stored when playback of a BD- Video, DVD-Video, BDMV, AVCHD, finalized discs, or SD card is stopped halfway. Setting Values Description Resume information is not stored. Stores resume information. Memo: Resume information is stored at all times for other discs as well as the HDD regardless of this setting.

  • Page 78: Audio

    Settings Menu DISC RECORDING AUDIO For changing the settings of audio to be recorded to the disc when in the AF, AN, AE or AL mode. Setting Description Values AUTO Records “Stereo”, “Surround” or “Dual broadcast” audio sounds as they are. FIXED Records “Stereo”...

  • Page 79: Display

    DTS-HD For setting audio output to “BITSTREAM” or “PCM”. Setting Values Description BITSTREAM Use this setting when connecting a device that is able to decode “DTS-HD”. Audio input will be changed and output as “PCM”. Use this setting when connecting a device that is unable to decode “DTS-HD”.

  • Page 80: Connection

    Settings Menu Connection MONITOR TYPE For setting the aspect ratio according to the connected monitor. Setting Values Description 16:9 Set to this value when connected to monitors with 16:9 aspect ratio. 16:9FULL Choose this setting when a 16:9 monitor is connected to display images without the black borders.

  • Page 81: Component Output

    x.v.Color Setting Description Values AUTO Outputs x.v.Color information with HDMI when video images that include x.v.Color information are played back. This is applicable when an x.v.Color compatible monitor is connected. Memo: This is applicable when an x.v.Color compatible monitor is connected.

  • Page 82: Others

    Others Locking the Disc Tray By turning on the lock for the disc tray, the tray cannot be opened or closed using the [M] button. Memo: When the [M] button is pressed while the disc tray lock is turned on, a “LOCKED” message will appear on the display window of the unit for about three seconds.

  • Page 83: Rs-232c Interface (only For Sr-hd1500)

    RS-232C Interface (only for SR-HD1500) Command Table only for SR-HD1500 Lower Order Higher Order Complete Error Sense Title Chapter Sense Chapter Title Search Search Finalize Cancel- Disc Disc Erase Finalization Standby Standby Command Target Specifications Pin layout PIN No. Signal Operation Transmit data Receive data...

  • Page 84: Command

    Others Command Operation Commands Commands for operating functions such as PLAY and REC on the BLU-RAY DISC & HDD RECORDER Command Description Plays the selected deck. Stops the selected deck. Resume will be cleared when this is pressed while in the Stop mode.

  • Page 85

    80-8F 80 : Chapter Search 1st Byte Chapter Search Hundreds Tens ASCII codes (30 - 39) 3* E.g. (012) E.g. : When searching the 12th chapter. 81 : Title Search under “ORIGINAL” 1st Byte 2nd Byte 3rd Byte 4th Byte Title Search (ORIGINAL) 30 ASCII codes (30 - 39) E.g.

  • Page 86

    Others 9F : Remote Data The remote control codes for controlling the wired remote controller via RS-232C is as shown in the following table. The codes apply to all three HDD, BD and SD deck unless otherwise stated. Code Items INPUT SELECT STOP F.F/SPEED+...

  • Page 87

    JOG +1/6 JOG +1 INSTANT REPLAY EDIT COLOR KEY GREEN COLOR KEY YELLOW NAVIGATION L1 Y/C INPUT SELECT B8 : Input/Output Selection External input selection L-1 VIDEO External input selection L-1 S-VIDEO 30 External input selection DV B8 : Recording Mode Selection 1st Byte 2nd Byte DR 34 AN 34...

  • Page 88: Subtitle Selection

    Others Subtitle Selection B8 : Subtitle Selection Byte Byte JAPANESE ENGLISH GERMAN FRENCH ITALIAN SPANISH DUTCH SWEDISH NORWEGIAN FINNISH DANISH “Language Code List” (A page 94) Byte Byte Byte Byte Byte Byte...

  • Page 89

    Audio Language Selection B8 : Audio Language Selection Byte Byte JAPANESE ENGLISH GERMAN FRENCH ITALIAN SPANISH DUTCH SWEDISH NORWEGIAN FINNISH DANISH “Language Code List” (A page 94) Byte Byte Byte Byte Byte Others Byte...

  • Page 90

    CTL Data Sense: For acquiring the lapse counter when there is a media in the selected deck. (*) JVC Status Sense: Returns data from the unit. (*) VTR Ind: A command for checking whether the connected device is the external recorder.

  • Page 91

    Title/Track Sense under “ORIGINAL” 1st Byte 2nd Byte 3rd Byte 4th Byte Title/Track Sense (ORIGINAL) 30 E.g. (345) E.g. : When the current title under “ORIGINAL” is the 345th title. Title/Track Sense in “PLAY LIST” 1st Byte 2nd Byte 3rd Byte 4th Byte Title/Track Sense (PLAY LIST) 38 E.g.

  • Page 92

    Others Status Data Sense For acquiring the remaining time in the current recording mode in hours, minutes and seconds for HDD/DVD. 1byte 1byte STATUS SENSE bit7 1 (Fixed) 1 (Fixed) bit6 0 (Fixed) 1 (Fixed) bit5 0 (Fixed) 0 (Fixed) bit4 Record Record...

  • Page 93

    CTL Data Sense Hr (Tens) Hr (Ones) Min (Tens) Min (Ones) Sec (Tens) Sec (Ones) Frame (Tens) Frame (Ones) E.g. (01:23:45) E.g. : When time lapse counter is 1 hr 23 min 45 sec. Frame is fixed as 0. JVC Status Sense 1byte HDD/BD/SD HDD/BD/SD bit7 1 (Fixed)

  • Page 94: Language Code List

    Others Language Code List Code Language Afar Abkhazian Afrikaans Akan Albanian Amharic Arabic Aragonese Armenian Assamese Avar Avestan Aymara Azerbaijani Bashkir Bambara Basque Belarusian Bengali Bihari Bislama Bosnian Breton Bulgarian Burmese Catalan, Valencian Chamorro Chechen Chinese Church Slavic Chuvash Cornish Corsican Cree Czech...

  • Page 95

    Divehi Dutch Dzongkha English Esperanto Estonian Faroese Fijian Finnish French Western Frisian Fulah Georgian German Scottish Gaelic Irish Galician Manx Greek Guaraní Gujarati Haitian Hausa Hebrew Herero Luba-Katanga Ganda Macedonian Marshallese Malayalam Māori Marathi Malay Malagasy Maltese Moldavian Mongolian Nauruan Navajo South Ndebele North Ndebele...

  • Page 96: Country Code List

    Others Country Code List Code Country Name Andorra United Arab Emirates Afghanistan Antigua and Barbuda Anguilla Albania Armenia Netherlands Antilles Angola Antarctica Argentina American Samoa Austria Australia Aruba Azerbaijan Bosnia and Herzegovina Barbados Bangladesh Belgium Burkina Faso Bulgaria Bahrain Burundi Benin Bermuda Brunei...

  • Page 97

    Cook Islands Chile Cameroon China Colombia Costa Rica Cuba Cape Verde Christmas Island Cyprus Czech Republic Germany Djibouti Denmark Dominica, Commonwealth of Dominican Republic Algeria Ecuador Estonia Egypt Western Sahara Eritrea Spain Ethiopia Finland Fiji Falkland Islands (Malvinas) Micronesia (Federated States of) Faroe Islands France France, Metropolitan...

  • Page 98: Using The Hdmi Consumer Electronics Control (hdmi Cec)

    Conversion not required SD-VIDEO(HD)* Recording mode conversion after seamless conversion SD-VIDEO(HD)* : SD-VIDEO(JVC Everio MPEG2 TS) MOV* : MOV files that are taken in SP mode using the JVC ProHD Camcorder GY-HM700/100 Procedures to create a seamless BDAV File to import...

  • Page 99: Troubleshooting

    The cooling fan motor is spoiled. Remove the power plug from the power point, and consult the dealer from which this product is purchased, or any nearby JVC Servicing Center. Change the “AUTO POWER (OFF)” setting of “SETUP” to “OFF”.

  • Page 100

    Others Troubleshooting (Continued) Problem Data cannot be The title to be dubbed is copyright imported protected. The number of titles stored in the HDD has reached the maximum amount. The remaining space on the HDD is running out. The title/group name Protection of the title/group name is cannot be changed turned on.

  • Page 101: Specifications

    Specifications General Power requirement AC 120 V H, 60 Hz Power consumption Power on : 34 W Power off : 3.0 W Laser specification For CD Wavelength : 779 nm to 789 nm Output : No hazardous radiation is emitted with the safety protection.

  • Page 102: Index

    Others Index AUDIO CABLE ... 14, 18, 17 AUDIO LANGUAGE ... 56, 76, 89 AUDIO/SUBTITLE SETTINGS ... 56 BD (BD-R/BD-RE) ... 9, 10, 25, 39, 58, 93 BD MIX SOUND ... 79 BD VIDEO DATA ... 8 BDAV ... 9, 10, 24 BDMV ...

  • Page 104

    2010 Victor Company of Japan, Limited Printed in Thailand 1010MTH-SW-MT...

This manual also for:

Lst1083-001c, Sr-hd1250us, Sr-hd1500us
