To set the VPI/VCI/WAN IP/WAN Subnet Mask parameters, including
adding, modifying, and deleting, refer to the "Set up VPI/VCI " section in
this manual.
Create a new RFC1483 Routed Connection
1. Enter the correct numbers in the VPI and VCI fields.
2. Select the appropriate encapsulation - LLC or VCMUX.
3. Select Enable NAPT if an Internet connection will be shared
among multiple computers.
4. Enter the WAN IP address and the WAN subnet mask.
5. Click Add. This will create a new VPI/VCI connection. Up to
eight VPI/VCI connections can be set.
6. Click OK to save the settings.*
Note: If you are setting the NAPT inbound server, please refer to the
LAN Settings section of this manual for more configuration instructions.
Modify a RFC1483 Routed Connection
1. Select one VPI/VCI pair from the Connection List.
2. Modify the numbers in the VPI and VCI fields and select the
appropriate encapsulation - LLC or VCMUX.
3. Select Enable NAPT if an Internet connection will be shared
among multiple computers.
4. Enter the WAN IP address and the WAN subnet mask.
5. Click Modify.
6. Click OK to save the settings.*
Delete a RFC1483 Bridged Connection
1. Select a VPI/VCI pair from the Connection List.
2. Click Delete.
3. Click OK to save the settings.*
Note: After you click OK, you will be prompted to save your settings.
Make sure you are finished making all your changes before you save
your settings. When you are finished making your changes, click Save .
15

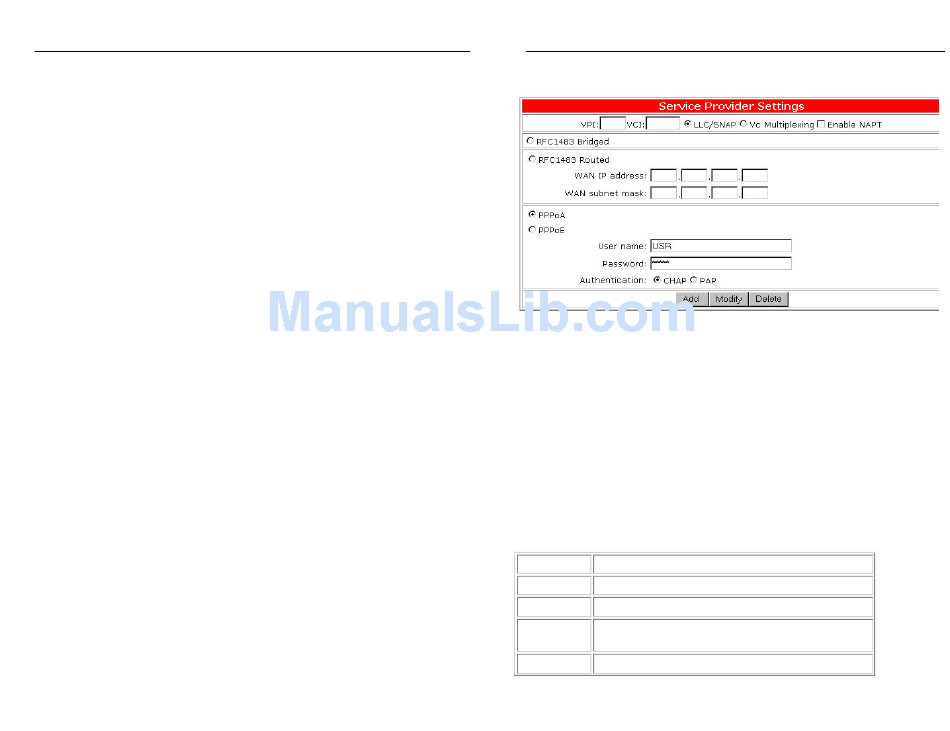

Configure PPPoA Mode
Click the PPPoA button to use PPP over ATM connection mode. PPP is
a single link or multi-link interface between two packet switching devices,
such as a router or bridge. PPP is an efficient conduit for multiple
protocols such as IP and IPX, which are encapsulated across the
communications datalink. PPP over ATM is PPP frames that are carried
over ATM cells, which are the common transport and backbone used by
DSL service providers.
Your service provider, usually the telephone company or the ISP, will tell
you the values of VPI/VCI to use after you sign up the service. Your
service provider must also provide your User name, Password, and
Authentication protocol. To set the VPI/VCI parameters including adding,
modifying, and deleting, refer to "Set up VPI/VCI " in this manual.
The following are the required settings for a PPPoA connection:
Parameters Description
VPI Virtual path identifier
VCI Virtual circuit identifier
User name assigned or verified by your service
User name
provider.
Password The password that will allow login in conjunction
