Edirol R-09 Turbostart

®
e

Welcome

Congratulations on your purchase of the EDIROL R-09 WAVE/MP3 Recorder. This
TurboStart contains step-by-step instructions that will quickly introduce you to the R-09's
major features.

Recording

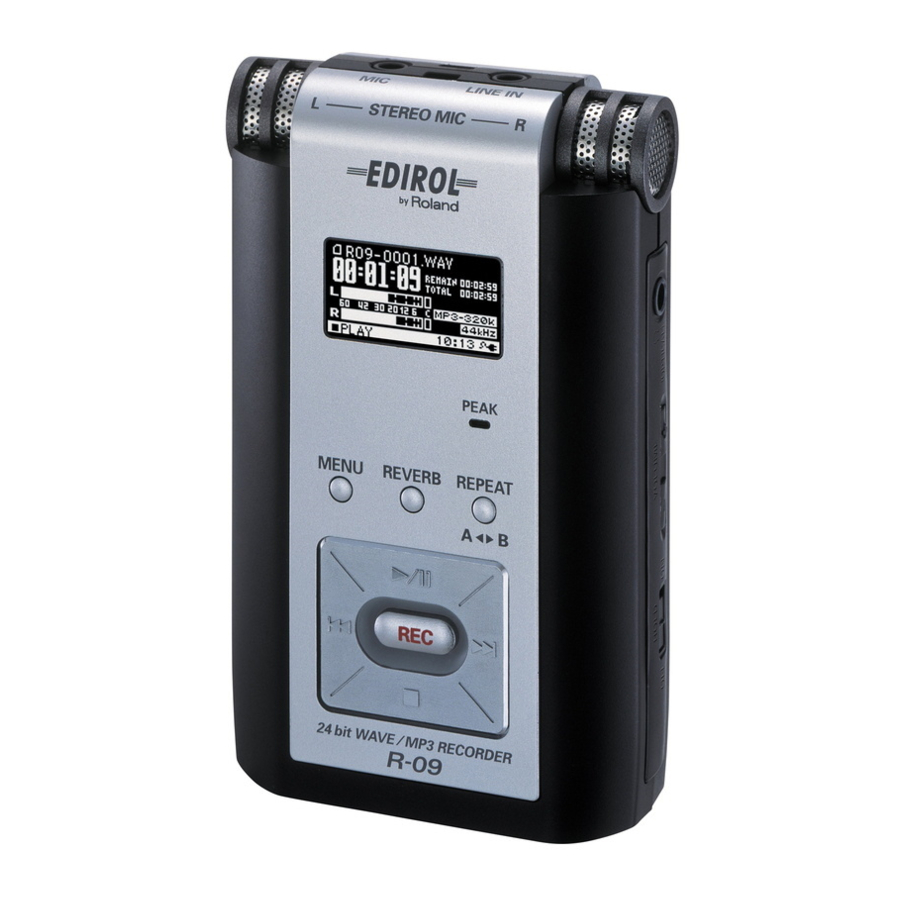

The R-09 offers high-quality recording capabilities in a compact package. Here's how to
record in the R-09 using its built-in microphone:
1 Turn on the power.
2 Press the button—the red
n
3 Press the + or - INPUT level buttons located on the left side panel of the R-09 to
adjust the level so the meter in the display averages between 12 and 6.
4 Press to start recording.
n
Press when you're finished.
5
g

Listening to a Recording

Here's how to listen to a recording on the R-09:
Connect headphones to the headphones OPTICAL jack on the right side panel.
1
2 Press or 4/ ; to begin playback.
g
3 Press the + or - VOLUME buttons on the side panel to adjust the playback volume.
Tip: To move backward or forward through the recording, press and hold the I 7 or 8 I
button, respectively.
4 When you're finished, press

Selecting a File for Playback

There are two different ways to select a file for playback. Here's how:
To select a file from the main screen:
1 Press I 7 or 8 I to select different files. As you press the buttons, the files are
selected and shown in the top of the display.
©2008 Roland Corporation U.S.
R-09
W A V /MP3 Recorder
light flashes, indicating Record-Standby mode.
n
.
g
www.RolandUS.com/EDIROL
To select files while from the Finder screen:
1 Press and release the FINDER/MENU button.
2 Press or 4/ ; to choose the desired file.
g
3 Once you've selected the file, press
playback.

Selecting the Recording Format

The R-09 has several different recording formats to choose from. For example, files
recorded at 48kHz/ WAV-24bit mode would have better sound quality than files recorded
at 44.1k/ MP3 192kpbs; however, they use up more memory. Here's how to change the
record format to the one that best suits your needs.
Press and hold FINDER/MENU until "SELECT" is flashing in the upper right corner
1
of the display.
2 Press or 4/ ; to select Recorder
g
3 Press .
n
4 Press I 7 or 8 I to choose the Sample Rate (44.1kHz or 48kHz).
5 Press to select Rec Mode.
g
6 Press I 7 or 8 I to change the recording mode.
Note:
For more details and descriptions of the different modes, refer to Pages 26-28 in the
R-09 manual.
7 Press FINDER/MENU twice to return to the main screen.
Recording an External Audio Device (CD's, cassettes, etc.)
Almost any external audio device can be recorded to the R-09. Here's how:
1 Connect the output of the external audio device—CD player, Cassette player, mp3
player, etc.—to the LINE IN jack on the top panel of the R-09.
Adjust the volume on your external device and begin its playback.
2
3 Follow Steps 1-5 of the "Recording" section above.
TBS268
twice to load it—the file's now ready for
n
Setup.
