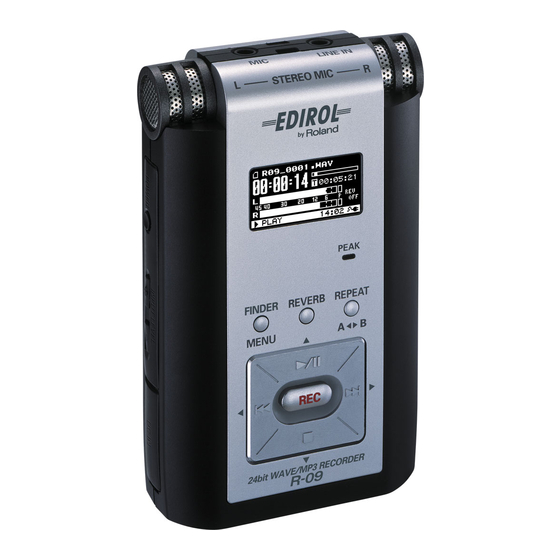

Edirol R09 How To Use Manual
Mp3/wave audio recorder
Hide thumbs
Also See for R09:
- Owner's manual (106 pages) ,
- Practical manual (28 pages) ,
- Brochure & specs (12 pages)
Related Manuals for Edirol R09
Summary of Contents for Edirol R09
-
Page 1: Table Of Contents
How to use the Edirol R09 MP3/WAVE audio recorder • Before you begin on page 1 • Switching on on page 2 • Recording on page 4 • Playback on page 7 • Transferring on page 9 • Video version... -
Page 2: Switching On
How to use the Edirol R09 MP3/WAVE audio recorder Make sure you have the following: Edirol R09 MP3/WAVE Recorder Power cable and power adapter SD memory card (this should be inserted at bottom of record under panel) 2 x AA batteries (if not using mains power) - Page 3 How to use the Edirol R09 MP3/WAVE audio recorder Connect power cable to power adapter Connect plug to power source Connect power to side of recorder If using batteries: Open bottom panel by sliding it away from recorder until it stops. Press, hold and slide battery release...
-
Page 4: Recording
How to use the Edirol R09 MP3/WAVE audio recorder Press and hold power button at side of recorder for more than 2 seconds Recording Generated by Clearspace on 2009-10-29Z... - Page 5 How to use the Edirol R09 MP3/WAVE audio recorder Set record mode by pressing and holding down 'Finder/Menu' button for more than 2 seconds Press 'Rec/Enter' button Change sample rate and record mode using the navigation/ control buttons and 'Rec/Enter' button...
- Page 6 How to use the Edirol R09 MP3/WAVE audio recorder Recommend sample rate; 48KHZ and record mode; MP3-128KHZ (for mp3 recordings) or WAV-16bit (for wave recordings) Press 'Finder/Menu' button repeatedly until back at main screen Press 'Rec' Note: This is not recording but in 'Standby mode'. In this mode you can check your levels...
-
Page 7: Playback
How to use the Edirol R09 MP3/WAVE audio recorder Press 'Rec' again To stop recording press 'Stop' using control/ navigation buttons Playback Generated by Clearspace on 2009-10-29Z... - Page 8 How to use the Edirol R09 MP3/WAVE audio recorder Note: This recorder does not have speakers. To listen back you will need to plug in headphones at the side of the recorder. Use the Volume buttons to adjust volume Generated by Clearspace on 2009-10-29Z...
-
Page 9: Transferring
How to use the Edirol R09 MP3/WAVE audio recorder Use the control/ navigation buttons to play, pause and stop playback. • Press the scan buttons to switch between tracks • Press and hold the scan buttons to fast-forward/ rewind Transferring... - Page 10 How to use the Edirol R09 MP3/WAVE audio recorder Turn on recorder (see 'Switching on') Connect USB cable at bottom of recorder (under panel) Connect USB cable to computer Generated by Clearspace on 2009-10-29Z...
- Page 11 How to use the Edirol R09 MP3/WAVE audio recorder The recorder will appear as a 'Removable device' 4. Open to view files Generated by Clearspace on 2009-10-29Z...
- Page 12 How to use the Edirol R09 MP3/WAVE audio recorder 5. Select recorded files (e.g. R09_0001, R09_0002) 6. Copy and paste to computer Generated by Clearspace on 2009-10-29Z...
-
Page 13: Video Version
How to use the Edirol R09 MP3/WAVE audio recorder 7. Confirm transfer and delete files from recorder Video version This guide is also available in video format. To view this click here This document was created by Chris Clow & Hadrian Cawthorne... - Page 14 How to use the Edirol R09 MP3/WAVE audio recorder Generated by Clearspace on 2009-10-29Z...
